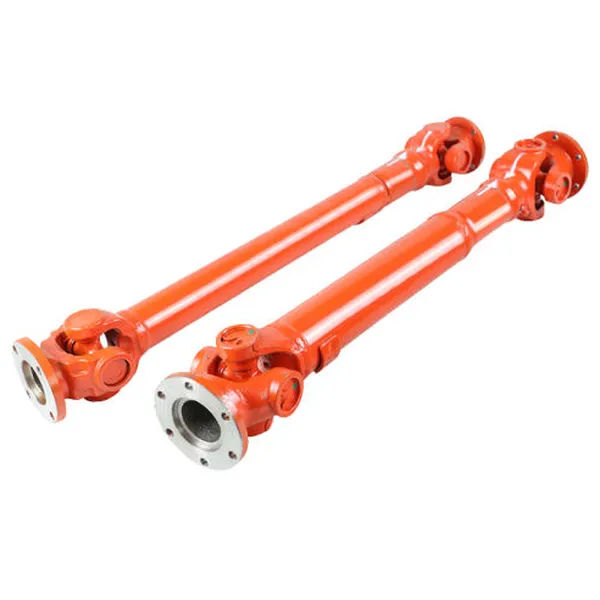

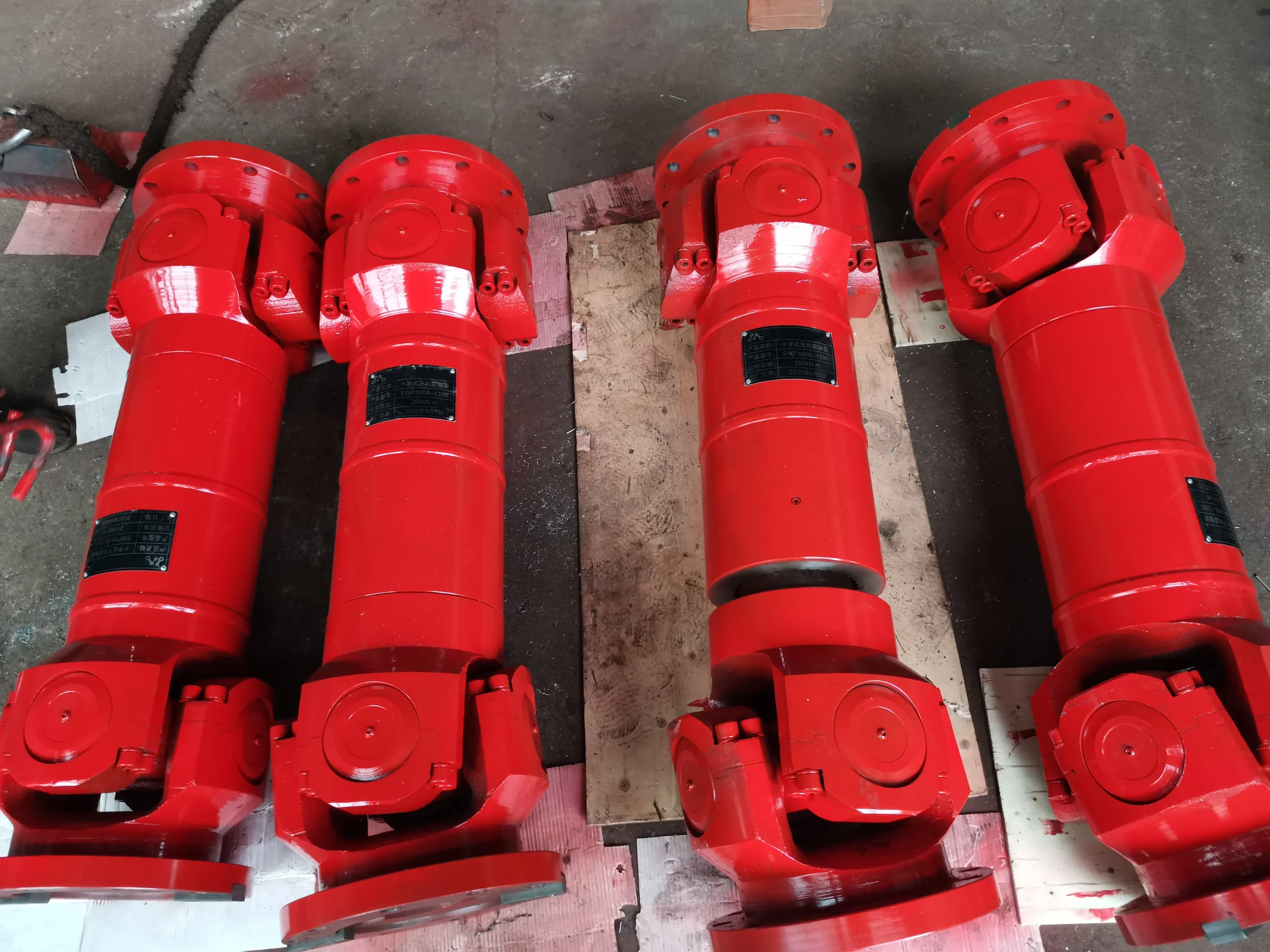

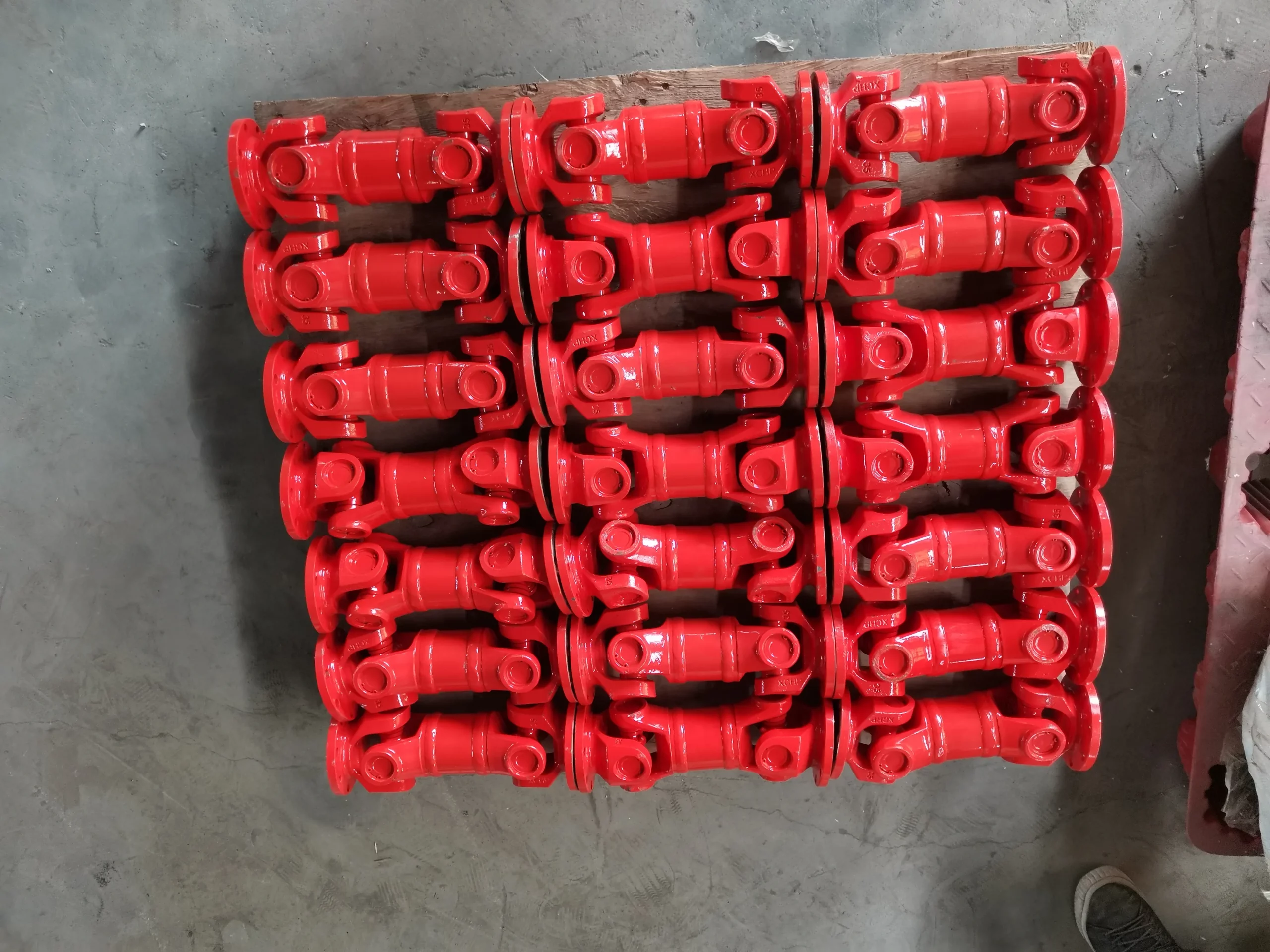

SWP-A Long Flex Type Universal Joint Coupling

SWP-A Long Flex Type Universal Coupling

The SWP-A long flex type universal joint coupling is a type of universal joint that is designed to allow for a large amount of angular misalignment between the input and output shafts. This makes it ideal for applications where the shafts are not perfectly aligned, such as in agricultural and construction equipment.The SWP-A long flex type universal coupling is a four-bar linkage that consists of two yokes and two crosspieces. The yokes are attached to the input and output shafts, and the crosspieces are connected to the yokes by pins. The crosspieces are offset from each other, which allows for the angular misalignment between the shafts.The SWP-A long flex type universal coupling is a very versatile coupling that can be used in a wide variety of applications. It is a reliable and durable coupling that can withstand the harsh conditions of agricultural and construction equipment.Here are some of the features of the SWP-A long flex type universal joint coupling:

• Long flex length: The SWP-A long flex type universal coupling has a long flex length, which allows for a large amount of angular misalignment between the input and output shafts. This makes it ideal for applications where the shafts are not perfectly aligned.
• High torque capacity: The SWP-A long flex type universal coupling has a high torque capacity, which makes it suitable for use in high-power applications.
• Durable construction: The SWP-A long flex type universal coupling is made from high-quality materials and construction, which makes it a reliable and durable coupling.

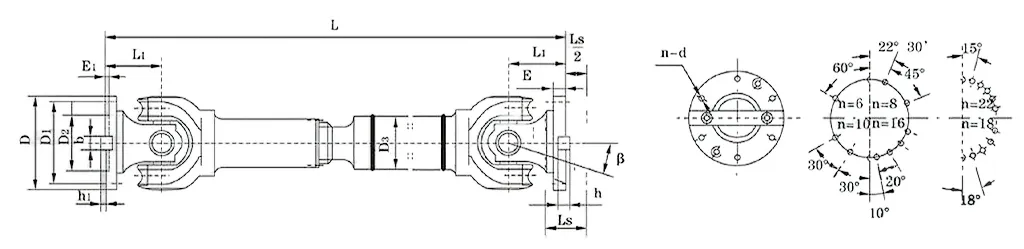

SWP-A Long Flex Type Universal Joint Coupling Dimensions:

Type	Tactical diameterDm	Nominal torqueTnkN·m	Fatigue torqueTfkN·m	Axisangleβ(°)	StretchlengthSmm	Size(mm)										Rotaryinertiakg·m2		Masskg
						Lmin	D1js11	D2H7	D3	E	E1	B×h	h1	L1	n-d	Lmin	Increase100	Lmin	Increase100
SWP160A	160	16	8	≤10	50	660	140	95	114	15	4	20×12	6	85	6-13	0.13	0.0059	47	2.1
SWP180A	180	20	10	≤10	60	752	155	105	121	15	4	24×14	7	95	6-15	0.22	0.0072	60	2.3
SWP200A	200	31.5	16	≤10	70	823	175	125	17	17	5	28×16	8	110	8-15	0.37	0.0114	81	3.4
SWP225A	225	40	20	≤10	76	933	196	135	152	20	5	32×18	9	130	8-17	0.63	0.0290	109	6.6
SWP250A	250	63	31.5	≤10	80	978	218	150	168	25	5	40×25	12.5	135	8-19	1.02	0.0407	147	7.3
SWP285A	285	90	45	≤10	100	1133	245	170	194	27	7	40×30	15	150	8-21	2.17	0.0702	241	9.4
SWP315A	315	140	63	≤10	110	1250	280	185	219	32	7	40×30	15	170	10-23	3.86	0.1144	322	12.0
SWP350A	350	180	90	≤10	120	1380	310	210	245	35	8	50×32	16	185	10-23	6.66	0.1663	428	13.6
SWP390A	390	250	112	≤10	120	1495	345	235	273	40	8	70×36	18	205	10-25	11.53	0.2695	566	18.0
SWP435A	435	355	160	≤10	150	1710	385	255	299	42	10	80×40	20	235	16-28	21.81	0.3645	932	20.0
SWP480A	480	450	224	≤10	170	1910	425	275	351	47	12	90×45	22.5	265	16-31	38.04	0.7028	1294	28.0
SWP550A	550	710	315	≤10	190	2135	492	320	402	50	12	100×45	22.5	290	16-31	61.28	1.1842	1744	35.7
SWP600A	600	1000	500	≤10	210	3580	544	380	450	55	15	90×55	27.5	360	22-34	98.63	1.7159	2330	40.5
SWP640A	640	1250	630	≤10	230	2685	575	385	480	60	15	100×60	30	385	18-38	167.67	2.3080	3153	48.3

Note: marking examples: gyrate ion diameter D=315mm, installment length L=1800mm, A type long flex universal coupling.SWP315A x 1800 coupling

SWP-A Long Flex Type Universal Joint Coupling Applications:

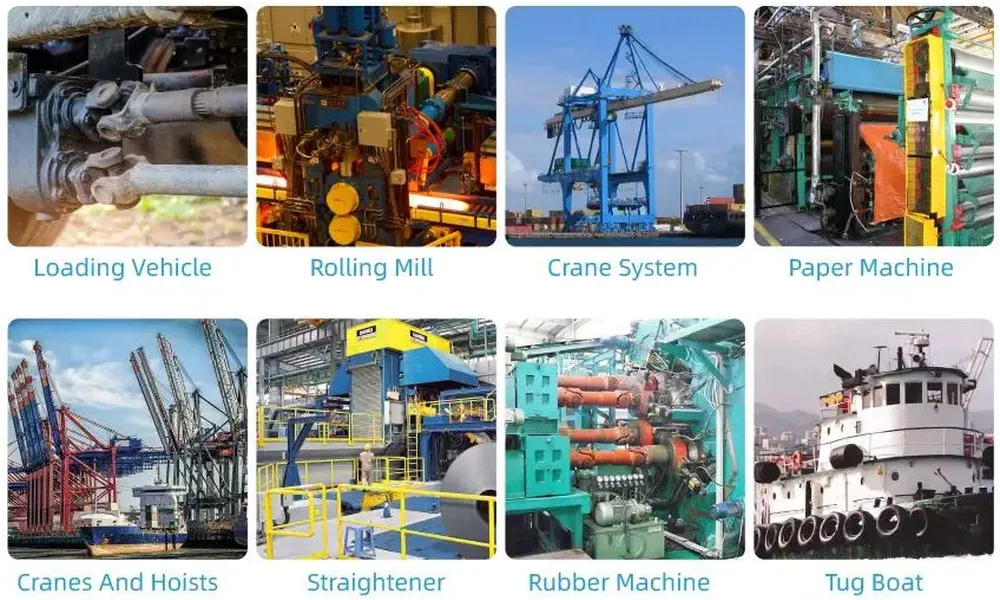

The SWP-A long flex type universal joint coupling is a type of universal joint that is designed to allow for a large amount of angular misalignment between the input and output shafts. This makes it ideal for applications where the shafts are not perfectly aligned, such as in agricultural and construction equipment.Here are some of the applications of the SWP-A long flex type universal joint coupling:1. Agricultural equipment: The SWP-A long flex type universal coupling is commonly used in agricultural equipment, such as tractors, combines, and harvesters. These machines often have to operate in uneven terrain, which can cause the shafts to become misaligned. The SWP-A type universal joint can handle this misalignment without losing power or causing damage to the equipment.2. Construction equipment: The SWP-A long flex type universal joint coupling is also used in construction equipment, such as bulldozers, excavators, and cranes. These machines also operate in uneven terrain and require a high torque capacity. The SWP-A type universal joint can meet the demands of these applications.3. Off-road vehicles: The SWP-A long flex type universal coupling is also used in off-road vehicles, such as jeeps, trucks, and motorcycles. These vehicles often operate on rough terrain, which can cause the shafts to become misaligned. The SWP-A type universal joint can handle this misalignment without losing power or causing damage to the vehicle.4. Marine applications: The SWP-A long flex type universal joint coupling is also used in marine applications, such as ships, boats, and yachts. These vessels are often exposed to rough seas, which can cause the shafts to become misaligned. The SWP-A type universal joint can handle this misalignment without losing power or causing damage to the vessel.5. Industrial machinery: The SWP-A long flex type universal coupling is also used in industrial machinery, such as conveyor belts, machine tools, and robotic arms. These machines often require a high torque capacity and can be subject to a lot of vibration. The SWP-A type universal joint can handle these demands and provide a reliable and durable coupling.Overall, the SWP-A long flex type universal joint coupling is a versatile and reliable coupling that can be used in a wide variety of applications. It is a good choice for applications where the shafts are not perfectly aligned and where a high torque capacity is required.
