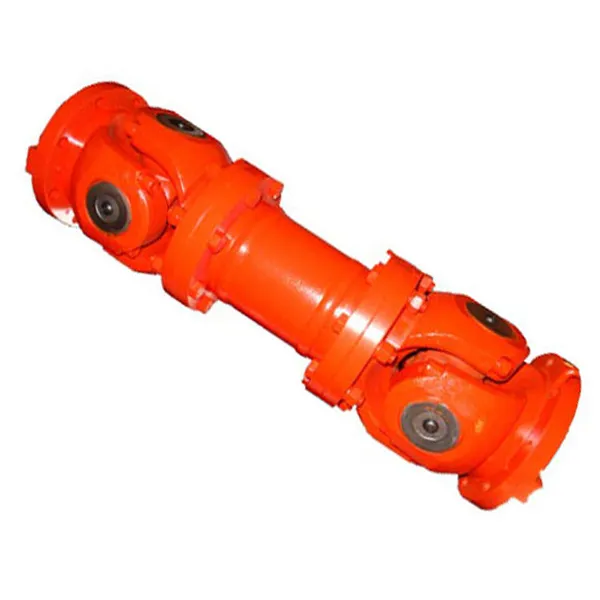

SWP-E Long Flex Double Flange Type Universal Joint Coupling

SWP-E Long Flex Double Flange Type Universal Coupling

The SWP-E long flex double flange type universal joint coupling is a type of universal joint that uses two bending joints to operate at angles up to 90 degrees. It is a long-flex joint, which means that it can accommodate a greater amount of misalignment between the shafts than a short-flex joint. This makes it ideal for applications where there is a lot of vibration or movement.The SWP-E long flex double flange type universal joint coupling is a double-flange joint, which means that it has two flanges that are used to connect to the shafts. This makes it a more secure and rigid connection than a single-flange joint. The flanges are also made of high-quality steel, which makes them durable and resistant to wear. The SWP-E long flex double flange type universal joint coupling is a versatile and reliable coupling that can be used in a wide variety of applications. It is ideal for use in agricultural machinery, construction equipment, and automotive applications.Here are some of the key features of the SWP-E long flex double flange type universal joint coupling:

• Two bending joints for operation at angles up to 90 degrees
• Long-flex design for accommodating greater misalignment between shafts
• Double-flange construction for secure and rigid connection
• High-quality steel construction for durability and wear resistance

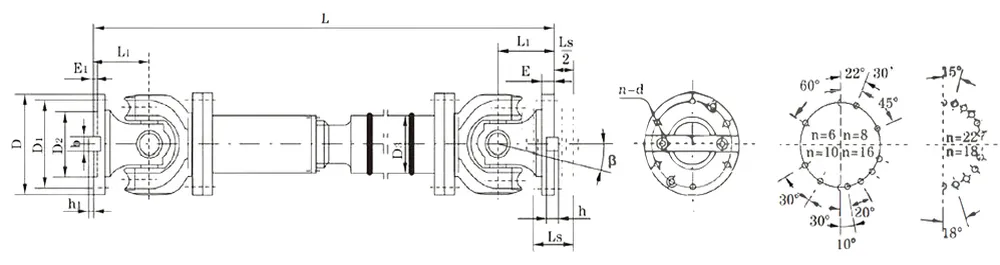

SWP-E Long Flex Double Flange Type Universal Joint Coupling Dimensions:

Model	Dmm	TnKN·m	TfKN·m	β	Smm	mm
						D1	D2	D3	E	E1	b×h	h1	L1	n-d
SWP160E	160	16	8	≤10	50	140	95	114	15	4	20×12	6	85	6-13
SWP180E	180	20	10	≤10	60	155	105	121	15	4	24×14	7	95	6-15
SWP200E	200	31.5	16	≤10	70	175	125	127	17	5	28×16	8	110	8-15
SWP225E	225	40	20	≤10	76	196	135	152	20	5	32×18	9	130	8-17
SWP250E	250	63	31.5	≤10	80	218	150	168	25	5	40×25	12.5	135	8-19
SWP285E	285	90	45	≤10	100	245	170	194	27	7	40×30	15	150	8-12
SWP315E	315	140	63	≤10	110	280	185	219	32	7	40×30	15	170	10-23
SWP350E	350	180	90	≤10	120	310	210	245	35	8	50×32	16	185	10-23
SWP390E	390	250	112	≤10	120	345	235	273	40	8	70×36	18	205	10-25
SWP435E	435	355	160	≤10	150	385	255	299	42	10	80×40	20	235	16-28
SWP480E	480	450	224	≤10	170	425	275	351	47	12	90×45	22.5	265	16-31
SWP550E	550	710	315	≤10	190	492	320	402	50	12	100×45	22.5	290	16-31
SWP660E	600	1000	500	≤10	210	544	380	450	55	15	90×55	27.5	360	22-34
SWP640E	640	1250	630	≤10	230	575	385	480	60	15	100×60	30	385	18-38

* Note: marking examples: gyration diameter D=315mm, installment length L=1800mm, E type- long flex double flange type.SWP315E x 1800 coupling

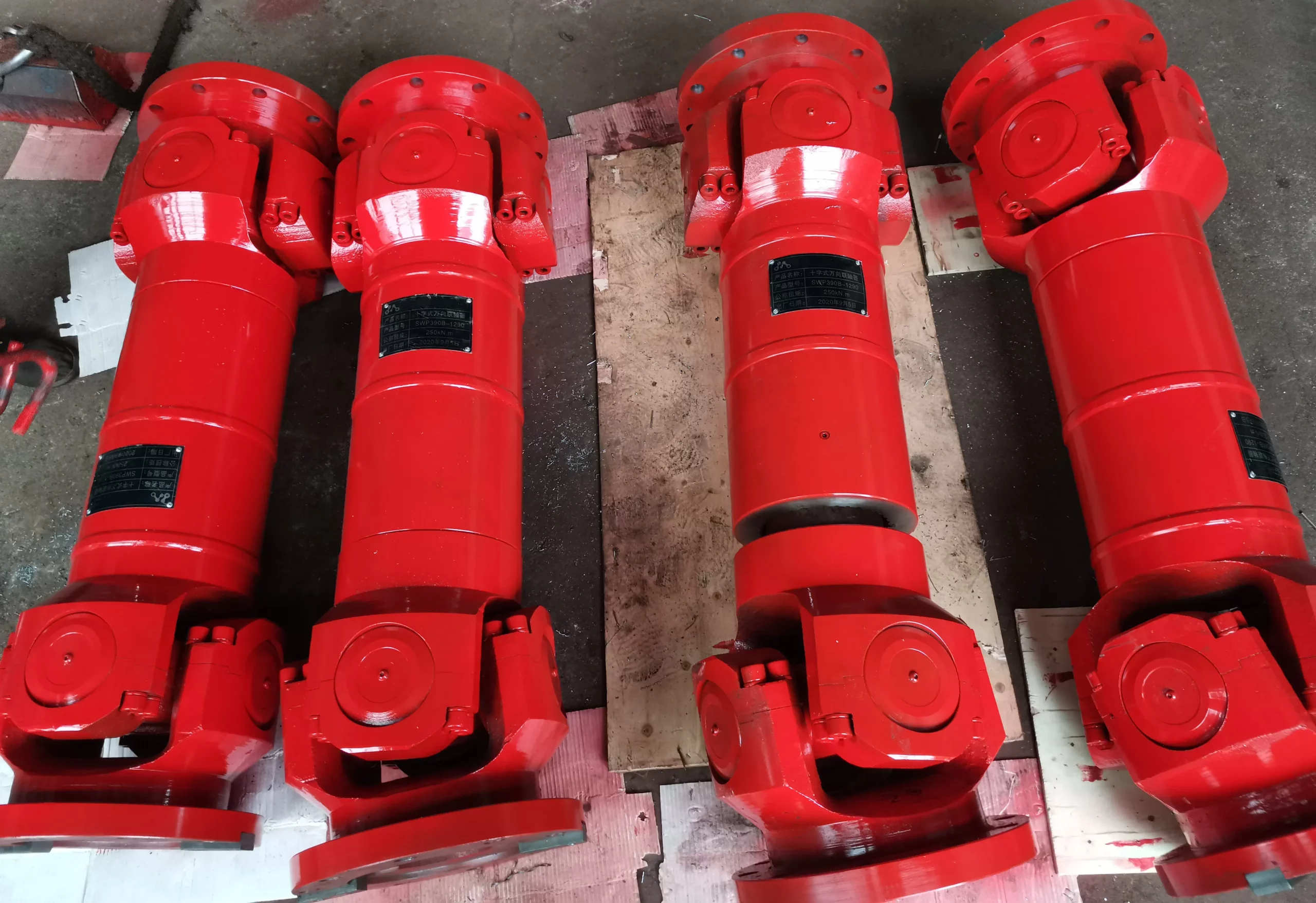

Advantages of SWP-E Long Flex Double Flange Type Universal Joint Coupling:

The SWP-E long flex double flange type universal joint coupling has a number of advantages, including:1. Long flex: The SWP-E long flex double flange type universal joint coupling can accommodate a wide range of angular misalignments between the input and output shafts, up to 10 degrees. This makes it ideal for use in applications where the shafts are not perfectly aligned, such as agricultural equipment, construction machinery, and off-road vehicles.2. Double flange: The double flange design of the SWP-E long flex double flange type universal coupling provides a high degree of rigidity and strength. This makes it suitable for use in applications where high torque loads are present, such as heavy-duty trucks and buses.3. High torque capacity: The SWP-E long flex double flange type universal joint coupling has a high torque capacity of 1250 kN*m. This makes it ideal for use in applications where high power is required, such as mining and construction equipment.4. High efficiency: The SWP-E long flex double flange type universal coupling has a high-efficiency rating of 98.6%. This means that it transfers a high percentage of the input power to the output shaft, which minimizes energy loss.5. Low noise: The SWP-E long flex double flange type universal joint coupling is designed to operate quietly, making it ideal for use in noise-sensitive environments.6. Low vibration: The SWP-E long flex double flange type universal coupling is designed to minimize vibration, which helps to extend the life of the coupling and the equipment it is used in.7. Made from high-quality materials: The SWP-E long flex double flange type universal joint coupling is made from high-quality materials and construction methods. This ensures that it is durable and long-lasting.
