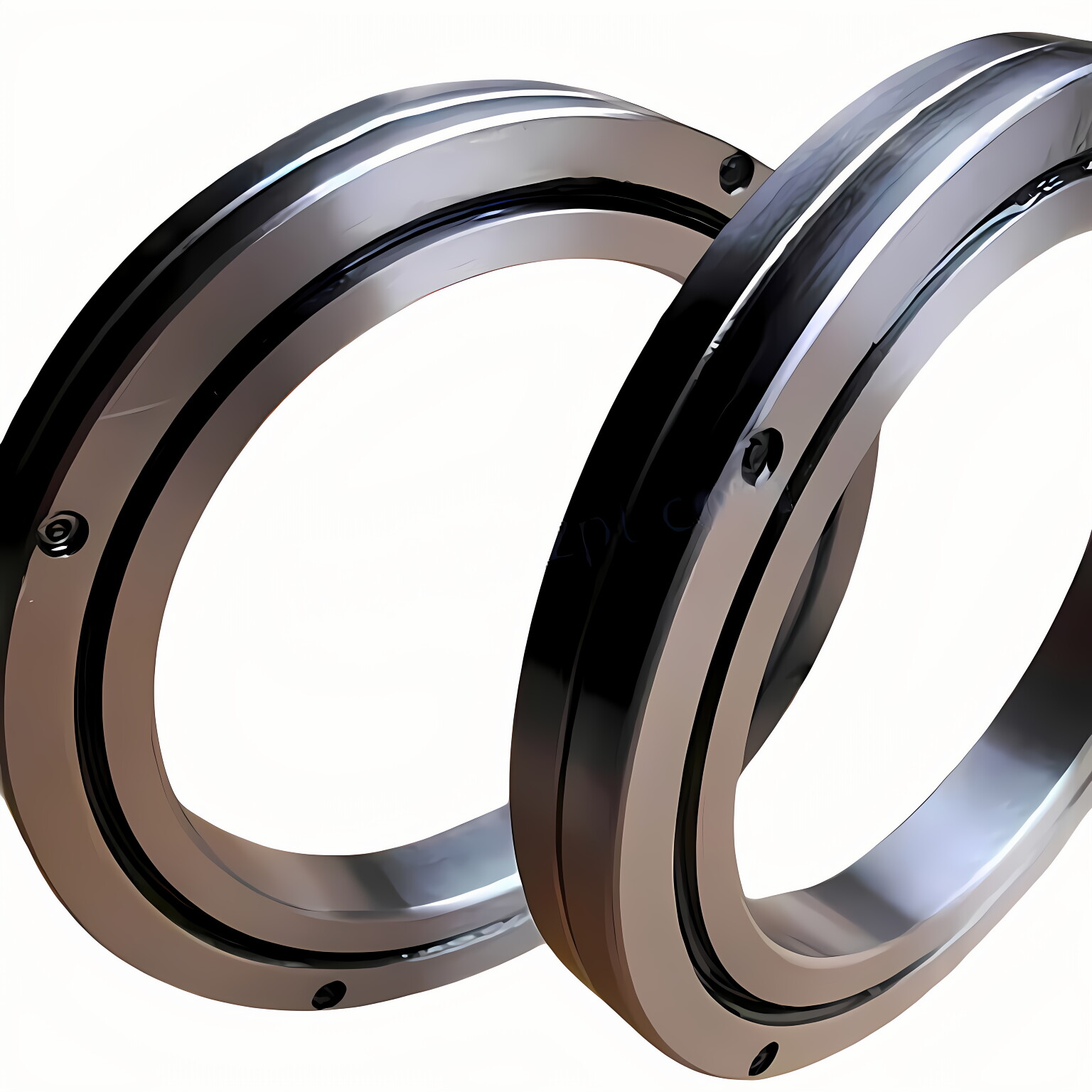

SX Series Crossed Roller Bearings

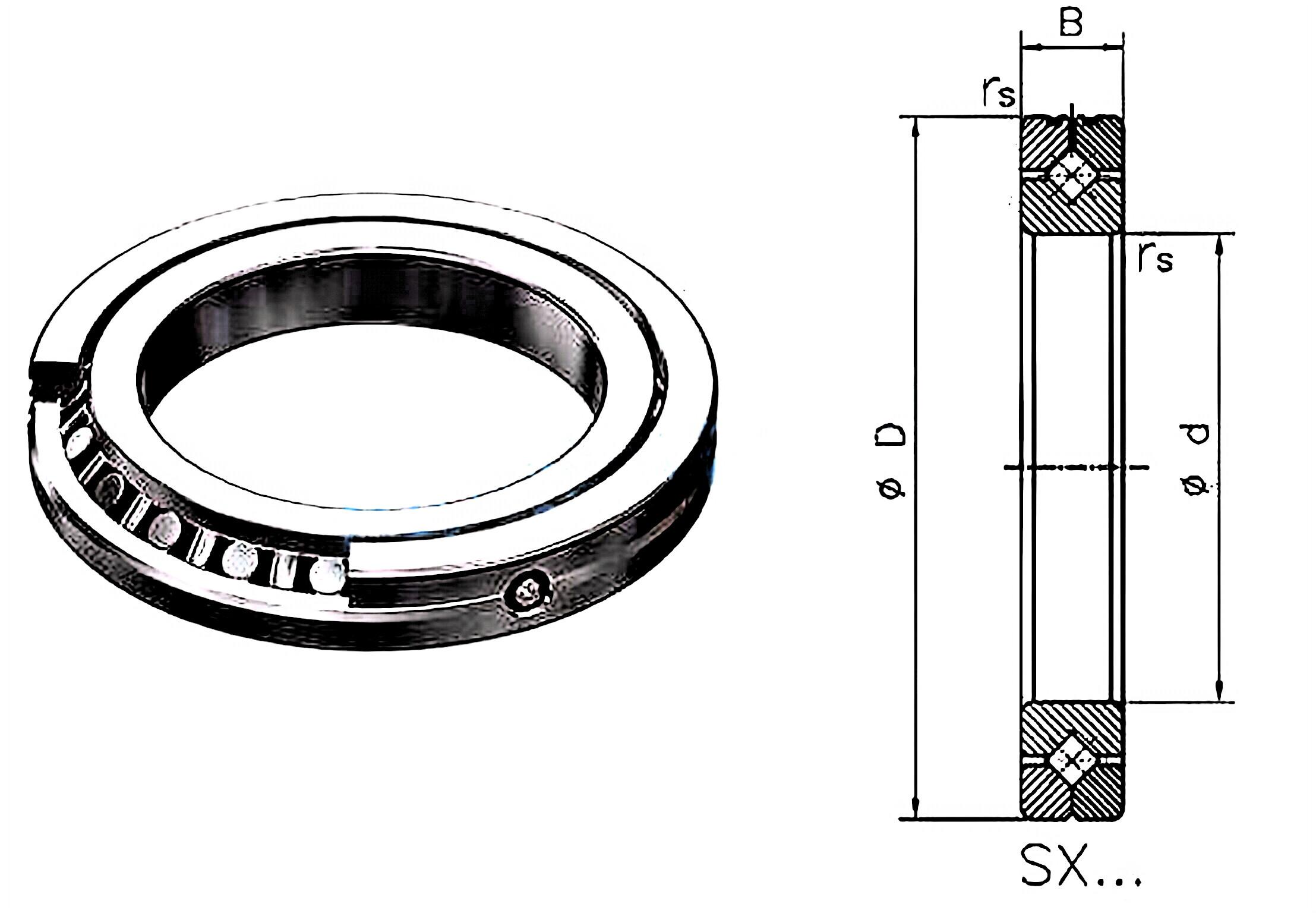

SX Series Crossed Roller BearingsThe SX series crossed roller bearings structure is similar to the RB series; the outer ring is separable and connected with three locating rings. At the same time, the inner circle is integrated with the main body. This model is used for occasions where the rotation accuracy of the outer ring is required.Advantages compared to other bearings:1. Capable to easily assembled in all directions of the main shaft, mass production can be achieved through standardization and serialization, and assembly and use are more convenient.2. Capable to bear both radial and axial loads at the same time, so crossed roller bearings can be much more simplified than multiple sets of combined bearing structures.3. Due to the high rotation efficiency and low heat dissipation of crossed roller bearings, the grease consumption is small.

Technical data

Model number	Main dimensions (mm)						Shoulder height		Basic load rating(axial)		Basic load rating (radial)		weight
	Inner ring d (mm)	Outer ring D	DP	width B		chamfer r(min)	de	Di	Ca kN	Coa kN	Cr kN	Cor kN	Kg
		(mm)			Greasing hole
SX011814	70	90	80	10	1.2	0.6	79.5	80.5	15.4	51	11	20	0.3
SX011818	90	115	102	13	1.2	1	101.5	102.5	26	91	18	37	0.4
SX011820	100	125	112	13	1.2	1	111.5	112.5	28	102	19	41	0.5
SX011824	120	150	135	16	1.5	1	134.4	135.6	41	146	27	59	0.8
SX011828	140	175	157	18	1.5	1.1	156.3	157.7	64	240	45	96	1.1
SX011832	160	200	180	20	1.5	1.1	179.2	180.8	69	275	49	111	1.7
SX011836	180	225	202	22	2	1.1	201.2	202.8	96	381	69	153	2.3
SX011840	200	250	225	24	2	1.5	224.2	225.8	102	425	72	170	3.1
SX011848	240	300	270	28	2	2	269.2	270.8	148	640	105	255	5.3
SX011860	300	380	340	38	2.5	2.1	339.2	340.8	243	1070	173	425	12
SX011868	340	420	380	38	2.5	2.1	379.2	380.8	260	1220	185	485	13.5
SX011880	400	500	450	46	2.5	2.5	449	451	385	1800	275	720	24
SX0118/500	500	620	560	56	2.5	3	558.8	561.2	560	2750	395	1100	44

Features:

Dimensions: ID 70-500mm;Crossed Roller; Thin Section; Small Size;outer ring division type with inner rotating;Pre-loaded (VSP);Unified starting torque；High rigidity;High precision: P4, P2Mounting holes on the outer ring and inner ring.Grease Lubrication: DIN 51825KP2M.Oil groove on the outer ring.

Applications:

- Industrial Robotic arm, Reducer drive- Precision Turntable, CNC rotary table- Rotation part of Machine tools- Inspection instruments, Medical equipment- Aviation equipment, Military radar, etc

Company Information

We are a professional bearing exporter in China, producing many different types and sizes of bearings. We can provide you with excellent service in a wide range of bearings with world-class quality, such as deep groove ball bearings, spherical roller bearings, self-aligning ball bearings, cylindrical roller bearings, tapered roller bearings, thrust ball bearings, angular contact ball bearings, needle roller bearings, crossed roller bearings, pillow block bearing, slewing bearings, plain bearings, etc. Bearings can also provide OEM services according to customer requirements. Our bearings products are widely used in various applications, such as port, ship, vehicle, mining, engineering, lifting, environmental protection, oil, chemicals, light industry, metallurgical machinery, the military, etc. Products are exported to the United States, Germany, Japan, Spain, Canada, Italy, France, Finland, South Korea, India, Singapore, Brazil, Australia, and other countries. If you need crossed roller bearings, please get in touch with us.

FAQ

1. Are you a factory or a trading company?We are a factory, a professional manufacturer of high precision bearings, which has combined researching and developing, producing and marketing together. After years of studying and building experience, we have created an integrated system.2. Do you have a stock for SX series crossed roller bearings?Yes, we have many types of SX series crossed roller bearings in stock. Some are finished with precision grades P5, P4, and P2. Some are half-finished as parts in stock. If there is an offer request, please contact us for a stocklist.3. How about your package of SX series crossed roller bearings?All small size and middle size SX series crossed roller bearings are Vacuum-packed + solid paper carton + plywood box packing outside.4. Can you arrange shipment for customers?Yes, we can. Depending on different requirements on delivery time, we can choose parcel service (FedEx, UPS, TNT, etc., 5-7 days), by air, or by sea for delivery.
