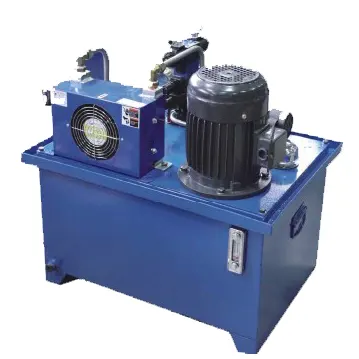

Synchronous Hydraulic System For Conveying Equipment

Synchronous Hydraulic System For Conveying Equipment

The Synchronous Hydraulic System for Conveying Equipment is a cutting-edge solution designed to optimize the operation of conveying systems in various industries. This advanced system offers superior efficiency, precise synchronization, and enhanced productivity, ensuring seamless material handling and overall performance. Let's delve into the key characteristics, usage methods, maintenance requirements, and other essential aspects of the Synchronous Hydraulic System for Conveying Equipment.The synchronous hydraulic system controls multiple cylinders to act simultaneously and requires a certain precision. Synchronizing steps or synchronizing valves maintain synchronization accuracy.Features:1. Vertical installation greatly reduces the space of the system.2. High-power air cooling greatly reduces the temperature of the system.3. Adopt the best domestic manufacturer synchronous valve to achieve multi-cylinder synchronization and improve production efficiency and accuracy.

Synchronous Hydraulic System For Conveying Equipment Parameter:

Motor Power:2.2KWOil Tank:80L

Usage Method of the Synchronous Hydraulic System For Conveying Equipment:

1. System Integration

• Collaborate with experienced professionals to integrate the Synchronous Hydraulic System into your existing conveying setup or during the installation of new conveying equipment.
• Ensure proper alignment and calibration of the hydraulic system with the conveying components for optimal performance.

2. Parameter Configuration

• Utilize the user-friendly control interface to configure the desired synchronization parameters, such as conveying speed, acceleration, and deceleration.
• Adjust the parameters based on the specific material characteristics, conveyor type, and desired throughput.

3. Operational Guidelines

• Train operators on the correct usage and operation of the Synchronous Hydraulic System for Conveying Equipment.
• Emphasize the importance of following safety guidelines, regular equipment inspections, and adhering to recommended conveying practices.

Custom Hydraulic System Model Description:

Structure Of Oil Tank:

Oil Tank Cleaning Cap:

Custom Hydraulic System:

(1)Vertical Hydraulic System

(2)Horizontal Hydraulic System

(3)Side Mounting Hydraulic System

The side mounting hydraulic pump station, that is, the oil pump device, is horizontally installed based on a separate tank, and the side type can be equipped with a spare pump, which is mainly used for the system with a large mailbox capacity of 250 liters and an electric power of 7.5KW or more.

How To Get Air Out Of Hydraulic System?

Having air trapped in a hydraulic system can negatively impact its performance and efficiency. Air bubbles can cause spongy or inconsistent operation, reduced system response, and potential damage to components. Fortunately, several methods can effectively remove air from a hydraulic system. Here is a step-by-step guide to help you get air out of a hydraulic system:

1. Identify Air Symptoms:

• Spongy or inconsistent operation of hydraulic components (cylinders, actuators, etc.).
• It reduced system response or sluggishness.
• Unusual noises such as hissing or gurgling.

2. Check Fluid Level:

• Ensure that the hydraulic fluid reservoir is filled to the recommended level.
• Top up the fluid if necessary, following the manufacturer's guidelines.

3. Locate Air Bleeder Points:

• Consult the hydraulic system's manual or schematics to identify air bleeder points.
• Common locations include bleed screws or valves near hydraulic cylinders, pumps, or other high points in the system.

4. Prepare Tools and Equipment:

• Gather the necessary tools, including wrenches, pliers, or screwdrivers, depending on the type of bleeder screws or valves present.
• Prepare a container to collect any spilled fluid during the bleeding process.

5. Start Bleeding Process:

• Begin at the furthest point from the hydraulic fluid reservoir and work towards it.
• Loosen the air bleeder screw or valve slightly to allow air and fluid to escape.
• Have a helper operate the hydraulic system (e.g., activate a cylinder or actuator) while you monitor the bleeder point.

6. Observe Fluid and Air Release:

• As the hydraulic system is operated, you should see a mixture of fluid and air bubbles expelled from the bleed point.
• Keep the bleeder open until only a steady fluid flow is observed, indicating that the air has been purged.

7. Tighten Bleeder Point:

• Once only fluid is coming out of the bleeder point, close it tightly to prevent air from re-entering the system.
• Use the appropriate tool to ensure a secure seal without over-tightening.

8. Repeat the Process:

• Move to the next farthest bleeder point and repeat the bleeding process.
• Work gradually towards the hydraulic fluid reservoir, bleeding each point in the sequence.

9. Check Fluid Level and Repeat if Necessary:

• After bleeding all the air bleeder points, check the fluid level in the reservoir.
• Top up the fluid if needed and recheck for any remaining air symptoms.
• Repeat the bleeding process to ensure complete air removal from the system if necessary.

10. System Testing:

• With the air removed, operate the hydraulic system through its full range of motion to confirm improved performance and responsiveness.
• Monitor for any abnormal behavior or signs of air re-entering the system.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of hydraulic systems. It maintains a leading position in China's market segment of hydraulic systems. In 2020, the domestic market share was around 29%. We produce Industrial hydraulic systems, Aerial work vehicle hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The hydraulic systems production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
