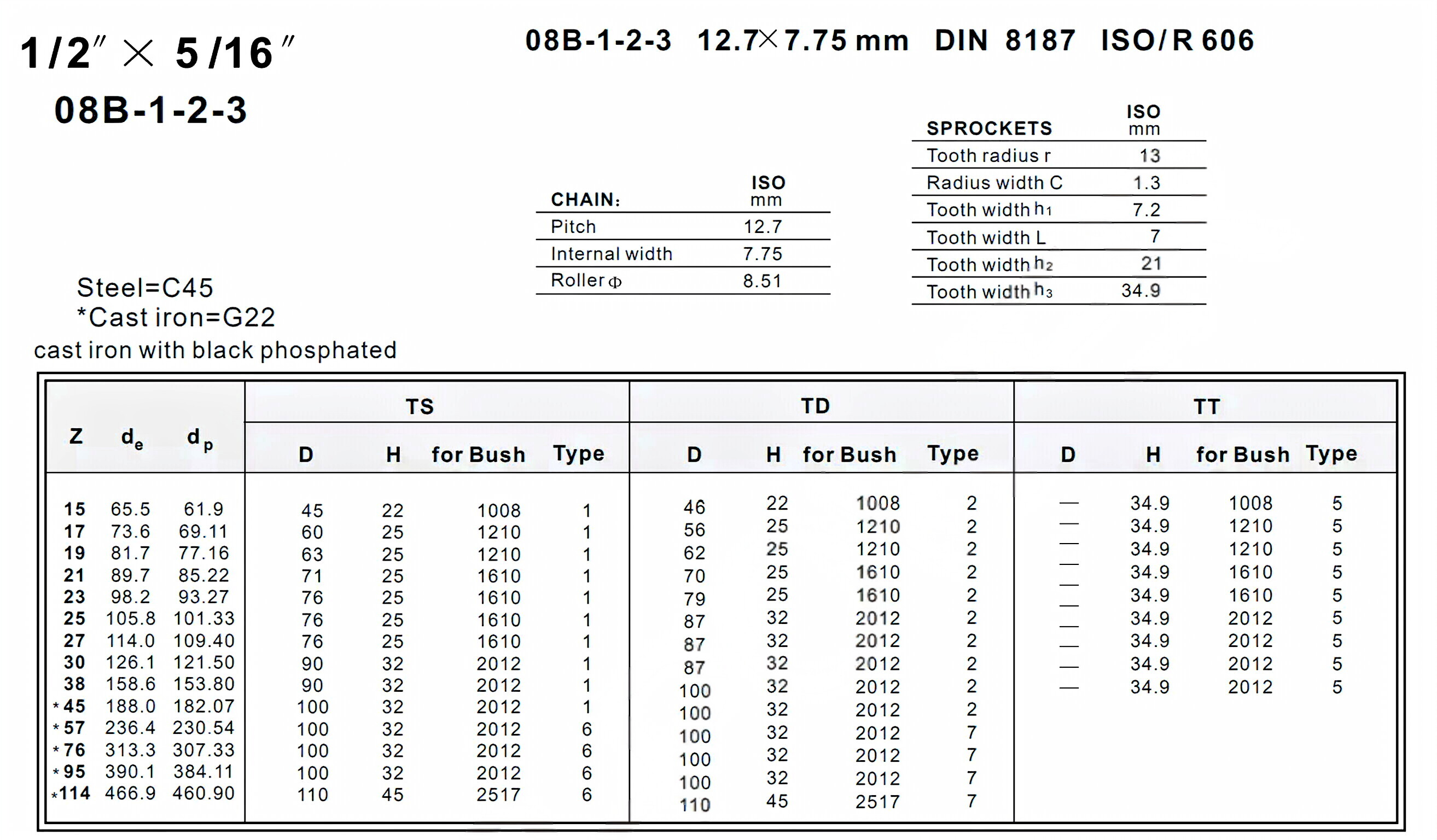

Taper Lock Sprocket 08B-1-2-3 European Standard

Taper Lock Sprocket 08B-1-2-3 European Standard

The Taper Lock Sprocket 08B-1-2-3 European Standard is a type of sprocket commonly used in power transmission systems. It is designed with a taper lock mechanism, which allows for easy installation and removal. This sprocket is widely used in various industries due to its versatility and reliability.

Definition and Basic Structure

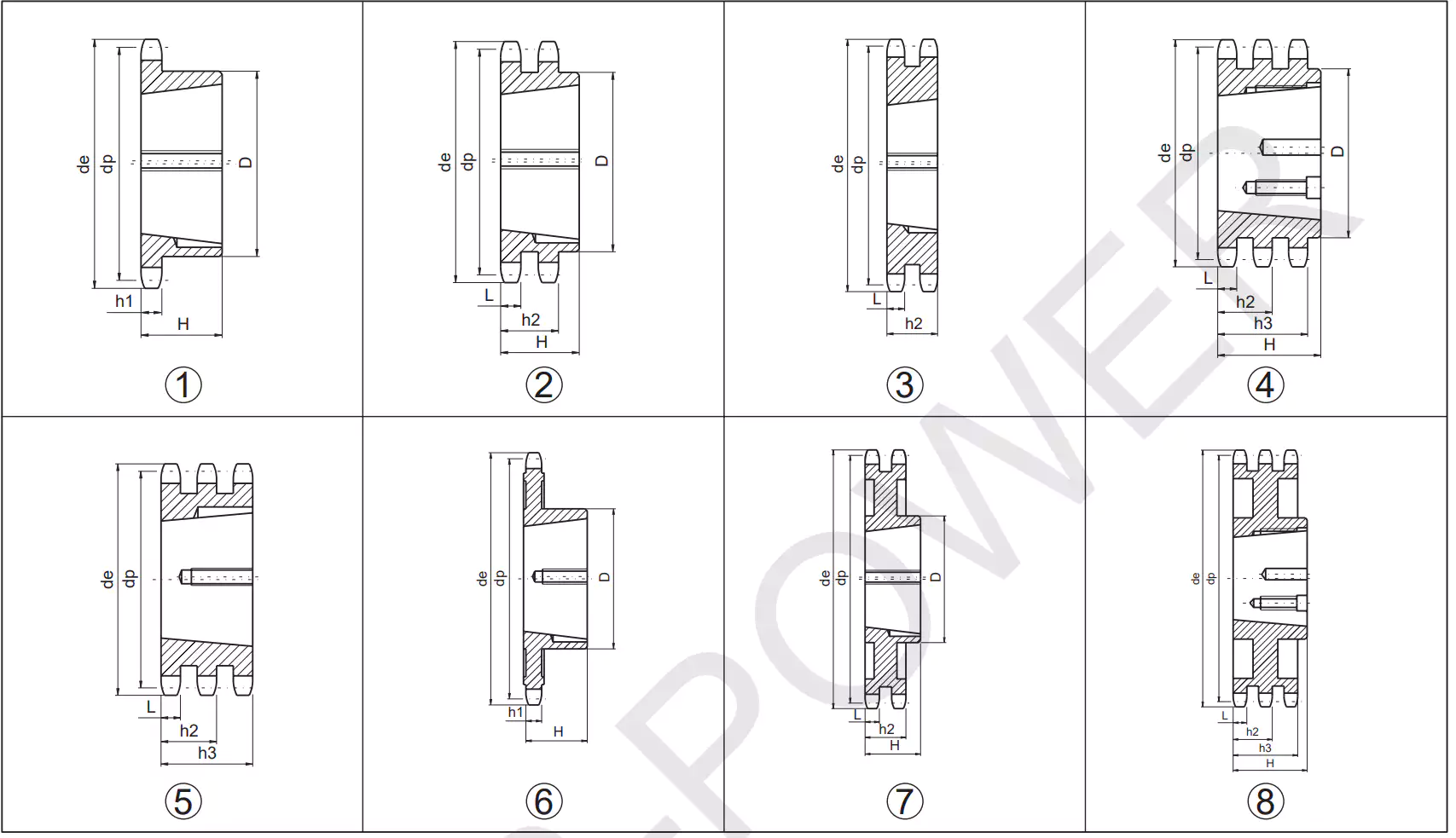

The taper lock sprocket is a type of chain wheel that is used in power transmission systems. It consists of a sprocket with teeth and a taper lock bushing. The teeth on the sprocket engage with the links of the chain, transmitting rotary motion and power.

Features and Benefits

• Easy Installation: The taper lock sprocket features a taper lock bushing that allows for quick and easy installation without the need for additional tools.
• Precise Positioning: The taper lock mechanism ensures precise positioning of the sprocket, reducing the risk of misalignment and improving overall system performance.
• Wide Applicability: The taper lock sprocket is suitable for various power transmission applications, making it a versatile choice for different industries.
• Reliability: The taper lock mechanism provides a secure and reliable connection between the sprocket and the shaft, minimizing the risk of slippage or failure.
• Low Maintenance Cost: The taper lock sprocket requires minimal maintenance, resulting in cost savings over the lifespan of the system.

Installation and Removal Process

1. Prepare Tools and Materials: Gather the necessary tools and materials for the installation, including the taper lock bushing, sprocket, locknut, and appropriate wrenches.
2. Clean Shaft and Sprocket Surface: Ensure that the shaft and sprocket surface are clean and free from debris to ensure a proper fit and secure connection.
3. Place Taper Lock Bushing: Slide the taper lock bushing onto the shaft, ensuring it fits snugly.
4. Install Sprocket: Position the sprocket over the taper lock bushing and align the teeth with the chain links.
5. Tighten Locknut: Use a wrench to securely tighten the locknut, ensuring that the sprocket is firmly attached to the shaft.

QD Sprocket Manufacturing Process

1. Raw Material Preparation: Obtain the required materials for manufacturing the QD sprocket.
2. Cutting: Cut the raw material into the desired shape and size.
3. Forging or Casting: Use either forging or casting methods to shape the sprocket.
4. Machining: Use machining processes to further refine the sprocket, ensuring precise dimensions and smooth surfaces.
5. Gear Cutting: Cut the teeth on the sprocket using specialized gear cutting tools.
6. Heat Treatment: Apply heat treatment to enhance the hardness and strength of the sprocket.
7. Surface Treatment: Apply surface treatments such as coating or plating to improve corrosion resistance and aesthetics.
8. Quality Inspection: Conduct thorough quality inspections to ensure the sprocket meets the required standards and specifications.

Frequently Asked Questions (FAQ)

1. Q: How easy is it to install a taper lock sprocket?

A: Installing a taper lock sprocket is very easy due to its taper lock bushing mechanism. It can be done quickly without the need for additional tools.

2. Q: What are the advantages of using a taper lock sprocket?

A: Some advantages of using a taper lock sprocket include easy installation, precise positioning, wide applicability, reliability, and low maintenance cost.

3. Q: How do you remove a taper lock sprocket?

A: To remove a taper lock sprocket, simply loosen the locknut using an appropriate wrench and slide the sprocket off the taper lock bushing.

4. Q: What is the purpose of a taper lock bushing in a taper lock sprocket?

A: The taper lock bushing provides a secure and reliable connection between the sprocket and the shaft, ensuring efficient power transmission.

5. Q: Can a taper lock sprocket be used in different industries?

A: Yes, the taper lock sprocket is widely used in various industries due to its versatility and reliability in power transmission applications.

Author: Miya
