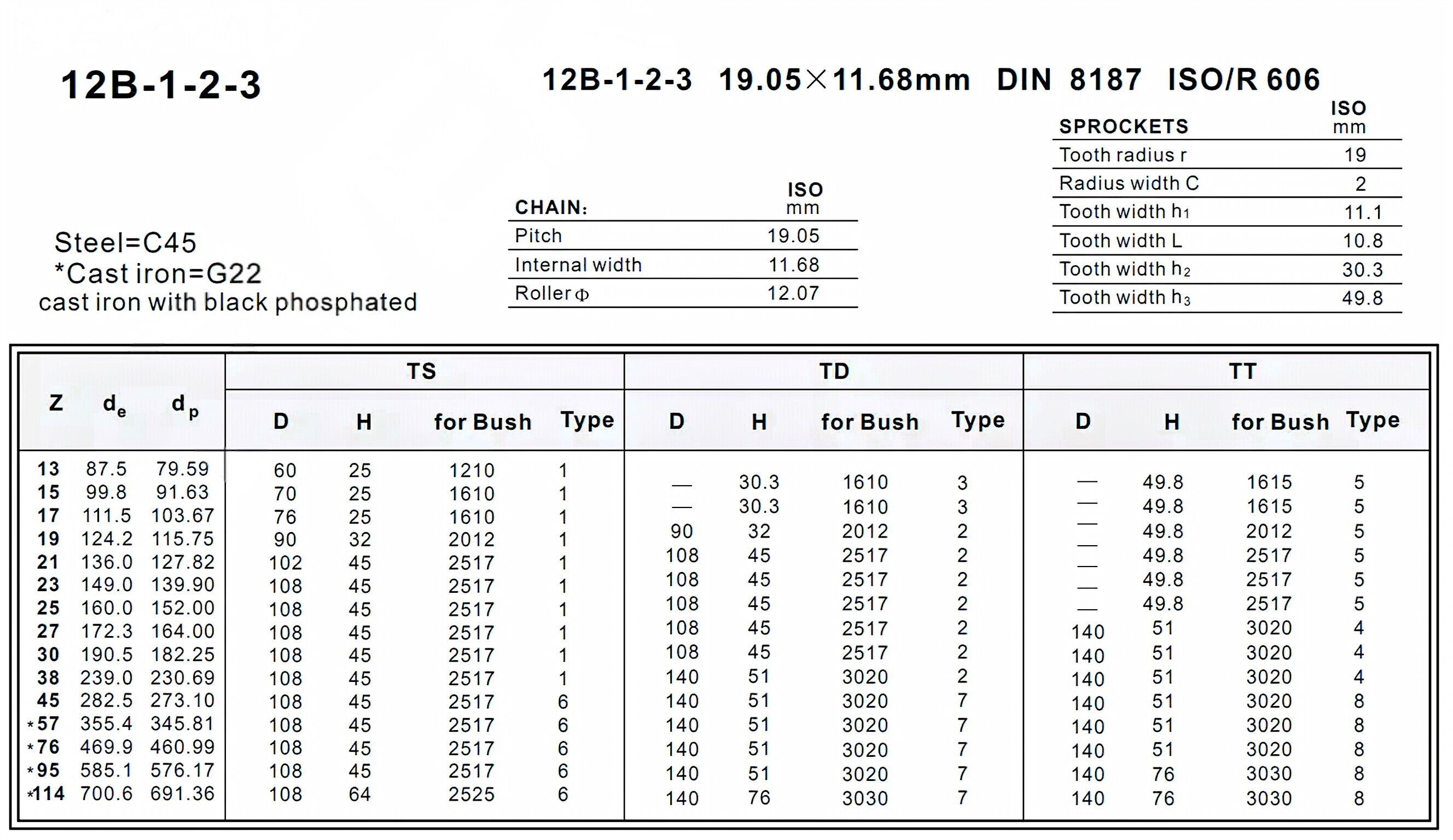

Taper Lock Sprocket 12B-1-2-3 European Standard

Taper Lock Sprocket 12B-1-2-3 European Standard

The Taper Lock Sprocket 12B-1-2-3 European Standard is a type of sprocket that utilizes the taper lock design for easy installation and removal. It is commonly used in various transmission systems.

Definition and Basic Structure

Taper Lock Sprocket is a type of sprocket that features a tapered bore. It is designed to fit onto a corresponding tapered bushing, providing a secure and precise connection. The sprocket consists of teeth that engage with the chain, transmitting rotational motion.

Characteristics and Functions

• Easy Installation: The taper lock design allows for quick and effortless installation onto the bushing, saving time and effort.
• High Precision Positioning: The taper lock connection ensures accurate alignment, reducing the risk of misalignment during operation.
• Wide Applicability: Taper Lock Sprockets are suitable for various transmission systems, making them versatile and adaptable to different applications.
• Reliability: The taper lock connection provides a secure and stable connection, minimizing the chance of slippage or disengagement.
• Low Maintenance Cost: The reliable connection and durable construction of taper lock sprockets contribute to lower maintenance expenses over time.

Installation and Removal Process

1. Prepare Tools and Materials: Gather the necessary tools and materials for the installation, including the taper lock bushing, sprocket, and locking nut.
2. Clean Shaft and Sprocket Surface: Ensure the shaft and sprocket surface are free from dirt, debris, and any contaminants that may affect the connection.
3. Place Taper Lock Bushing: Slide the taper lock bushing onto the shaft, ensuring it is properly positioned.
4. Install Sprocket: Place the sprocket onto the bushing, aligning the teeth with the chain. Make sure it fits securely onto the bushing.
5. Tighten Locking Nut: Use the appropriate tools to tighten the locking nut, firmly securing the sprocket in place.

Manufacturing Process of QD Sprockets

1. Prepare Raw Materials: Gather the required raw materials for the manufacturing process.
2. Cutting: Cut the raw materials into the desired shape and size.
3. Forging or Casting: Depending on the manufacturing method, the sprocket can be forged or cast to achieve the desired structure.
4. Machining: Use machining processes to refine the sprocket's dimensions and create the teeth profiles.
5. Teeth Rolling: Roll the teeth onto the sprocket to ensure precise and durable engagement with the chain.
6. Heat Treatment: Apply heat treatment to enhance the sprocket's hardness and overall strength.
7. Surface Treatment: Perform surface treatments, such as coating or plating, to improve corrosion resistance and appearance.
8. Quality Inspection: Conduct thorough quality inspections to ensure the sprockets meet the required standards.

FAQ (Frequently Asked Questions)

1. Q: Are Taper Lock Sprockets compatible with different chain sizes?

A: Yes, Taper Lock Sprockets are available in various sizes to accommodate different chain sizes.

2. Q: Can I reuse a Taper Lock Sprocket on a different shaft?

A: Yes, Taper Lock Sprockets can be easily removed and reinstalled on a different shaft using a new taper lock bushing.

3. Q: How do I determine the correct size of the taper lock bushing?

A: The size of the taper lock bushing should match the shaft diameter and the corresponding sprocket's bore size.

4. Q: Can Taper Lock Sprockets withstand high-speed applications?

A: Yes, Taper Lock Sprockets are designed to handle high-speed rotations, providing reliable power transmission.

5. Q: Are Taper Lock Sprockets suitable for heavy-duty industrial applications?

A: Absolutely, Taper Lock Sprockets are commonly used in heavy-duty industrial settings due to their excellent durability and reliability.

Author: Miya
