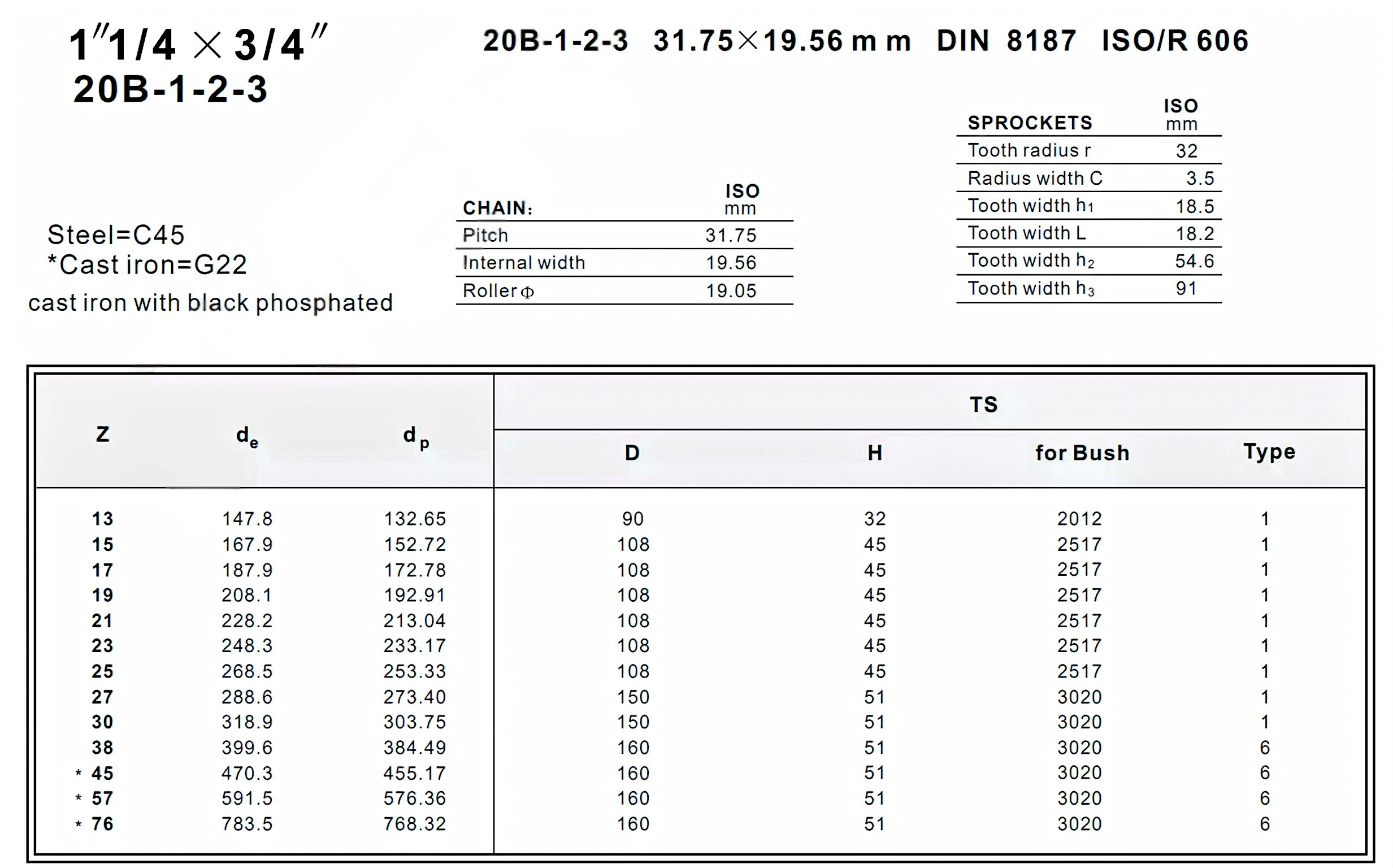

Taper Lock Sprocket 20B-1-2-3 European Standard

Taper Lock Sprocket 20B-1-2-3 European Standard

Taper Lock Sprocket 20B-1-2-3 European Standard is a type of sprocket that is widely used in power transmission systems. It features a taper lock design which allows for easy installation and removal. The sprocket is commonly used in applications where precise positioning and reliable performance are required.

Definition and Basic Structure

Taper lock sprocket is a type of sprocket that uses a taper lock bushing to securely attach to a shaft. It consists of a toothed wheel with evenly spaced teeth and a central hub. The taper lock bushing allows for easy mounting and dismounting of the sprocket.

Characteristics and Functions

- Easy Installation: The taper lock design simplifies the installation process, saving time and effort.- High Precision Positioning: The sprocket ensures accurate positioning of the chain, resulting in efficient power transmission.- Wide Applicability: Taper lock sprockets are suitable for various industrial applications, making them versatile and adaptable.- Reliability: The sprocket provides a reliable and durable solution for power transmission systems.- Low Maintenance Cost: Taper lock sprockets require minimal maintenance, reducing overall operating costs.

Installation and Removal Process

To install a taper lock sprocket, follow these steps:1. Prepare Tools and Materials: Gather the necessary tools and materials for the installation process.2. Clean Shaft and Sprocket Surface: Ensure that the shaft and sprocket surfaces are clean and free from dirt or debris.3. Place Taper Lock Bushing: Insert the taper lock bushing into the sprocket hub.4. Install Sprocket: Slide the sprocket onto the shaft, aligning it with the taper lock bushing.5. Tighten Locking Nut: Use the appropriate tool to tighten the locking nut, securing the sprocket in place.

QD Sprocket Manufacturing Process

The manufacturing process of QD sprockets involves the following steps:1. Raw Material Preparation: Select suitable materials for sprocket production.2. Cutting: Cut the raw material into the desired shape and size.3. Forging or Casting: Depending on the manufacturing method, the sprocket can be forged or cast to achieve the required strength and structural integrity.4. Machining: Use precision machining techniques to refine the sprocket's dimensions and tooth profile.5. Teeth Rolling: Roll the teeth on the sprocket to ensure proper engagement with the chain.6. Heat Treatment: Apply heat treatment processes to enhance the sprocket's hardness and durability.7. Surface Treatment: Apply surface coatings or treatments to protect the sprocket from corrosion and wear.8. Quality Inspection: Perform rigorous quality checks to ensure the sprocket meets the required specifications.

FAQ - Frequently Asked Questions

1. Q: How do I choose the right taper lock sprocket size for my application? A: The selection of the taper lock sprocket size depends on factors such as the power transmission requirements, shaft diameter, and chain pitch. It is recommended to consult the manufacturer's guidelines or seek professional advice for accurate sizing.2. Q: Can I reuse a taper lock bushing after removing the sprocket? A: Taper lock bushings are designed for single-use. It is recommended to replace the bushing whenever the sprocket is removed to ensure proper fit and performance.3. Q: Are taper lock sprockets compatible with all types of chains? A: Taper lock sprockets are compatible with various types of chains, including ANSI and ISO standard chains. However, it is important to ensure compatibility between the sprocket and the specific chain type being used.4. Q: Can taper lock sprockets be used in high-speed applications? A: Taper lock sprockets are suitable for a wide range of operating speeds. However, it is important to consider factors such as the sprocket material, tooth profile, and lubrication to ensure safe and reliable operation at high speeds.5. Q: How often should I inspect and maintain taper lock sprockets? A: Regular inspection and maintenance are essential to ensure optimal performance and extend the lifespan of taper lock sprockets. It is recommended to follow the manufacturer's maintenance guidelines and conduct inspections at regular intervals.Author: Miya
