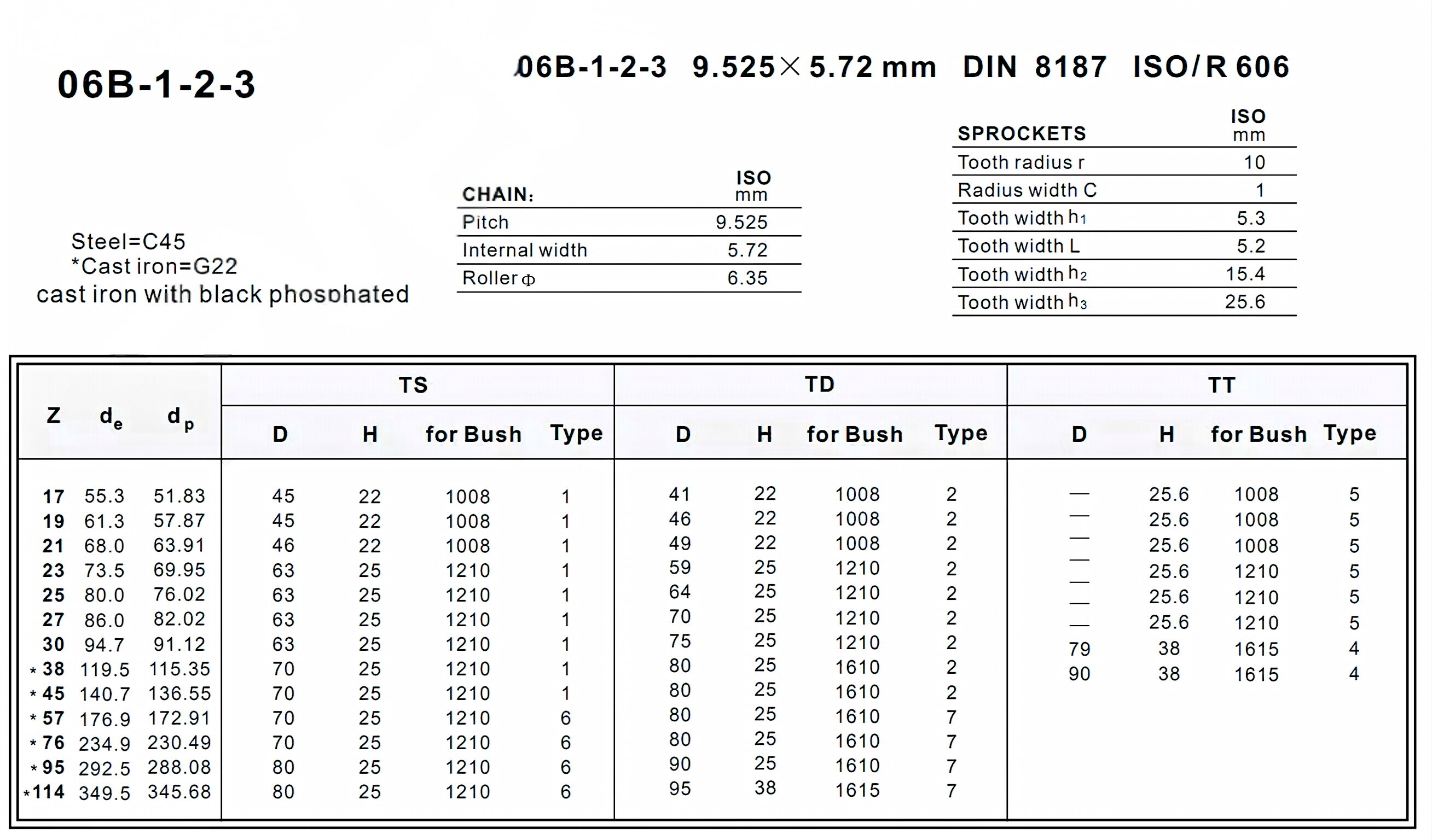

Taper Lock Sprocket 06B-1-2-3 European Standard

Taper Lock Sprocket 06B-1-2-3 European Standard

Taper Lock Sprocket 06B-1-2-3 European Standard is a type of sprocket used in power transmission systems. It is designed with a tapered bore and can be mounted easily on shafts with different sizes. Taper lock sprockets are widely used in various industries, including agriculture, mining, and construction.

Definition and Basic Structure

Taper lock sprocket is a type of chain wheel that has a tapered bore and is designed to fit on a shaft with a matching taper. It consists of a hub, teeth, and a taper bore that can match different sizes of shafts. The hub of the sprocket is typically made of steel, while the teeth are made of hardened steel or other materials.

Features and Functions

• Easy installation: Taper lock sprockets are designed for easy installation and removal, which can save time and labor costs.
• High precision positioning: The taper bore of the sprocket can provide accurate shaft positioning and reduce vibration and noise.
• Wide applicability: Taper lock sprockets can be used with different shaft sizes and are compatible with various types of chains.
• Reliability: Taper lock sprockets are durable and can withstand harsh operating conditions.
• Low maintenance cost: Taper lock sprockets require minimal maintenance and can reduce the overall maintenance cost of the system.

Taper lock sprockets are particularly advantageous due to their easy installation and removal. They do not require special tools or skills to mount on a shaft, and the taper bore can provide a secure and reliable connection between the sprocket and the shaft.

Installation and Removal Process

The following steps can be taken to install and remove a taper lock sprocket:

1. Prepare tools and materials: Make sure you have the necessary tools and materials, including a torque wrench, a hammer, and a taper lock bushing.
2. Clean the shaft and sprocket surface: Remove any dirt, debris, or rust from the shaft and inside of the sprocket hub.
3. Place the taper lock bushing: Slide the taper lock bushing onto the shaft and position it according to the manufacturer's instructions.
4. Install the sprocket: Slide the sprocket onto the taper lock bushing and align it with the keyway on the shaft.
5. Tighten the locking nut: Use a torque wrench to tighten the locking nut to the recommended torque value.

QD Sprocket Manufacturing Process

The manufacturing process of QD sprocket typically involves the following steps:

• Raw material preparation: Select high-quality steel or other materials for the sprocket.
• Cutting: Use cutting machines to obtain the desired shape and size of the sprocket blank.
• Forging or casting: Use forging or casting processes to shape the sprocket and improve its strength.
• Machining: Use CNC machines to perform precise machining operations, such as drilling, turning, and milling.
• Tooth-cutting: Use specialized machines to cut the teeth on the sprocket and ensure their accuracy and smoothness.
• Heat treatment: Use heat treatment processes to improve the hardness, wear resistance, and toughness of the sprocket.
• Surface treatment: Apply coating or plating to the sprocket surface to enhance its corrosion resistance and aesthetic appeal.
• Quality inspection: Perform various tests and inspections to ensure the sprocket meets the required specifications and standards.

FAQs

1. What is the maximum torque a taper lock sprocket can handle? The maximum torque a taper lock sprocket can handle depends on its size, material, and application. You should refer to the manufacturer's specifications for the recommended torque value.
2. What is the difference between a taper lock sprocket and a QD sprocket? A taper lock sprocket has a tapered bore that can match different sizes of shafts, while a QD sprocket has a quick-detachable bushing that can allow easy installation and removal.
3. What is the recommended lubrication for a taper lock sprocket? The recommended lubrication for a taper lock sprocket depends on the operating conditions, such as temperature, speed, and load. You should use a lubricant that can provide good adhesion, penetration, and protection.
4. How do I select a taper lock sprocket for my application? You should consider various factors, such as the shaft size, chain type, number of teeth, operating conditions, and load capacity. You can consult the manufacturer or a professional engineer for guidance.
5. How do I remove a taper lock sprocket from a shaft? You should follow the manufacturer's instructions and use a hammer or a puller to remove the sprocket from the taper lock bushing.

Author: Miya
