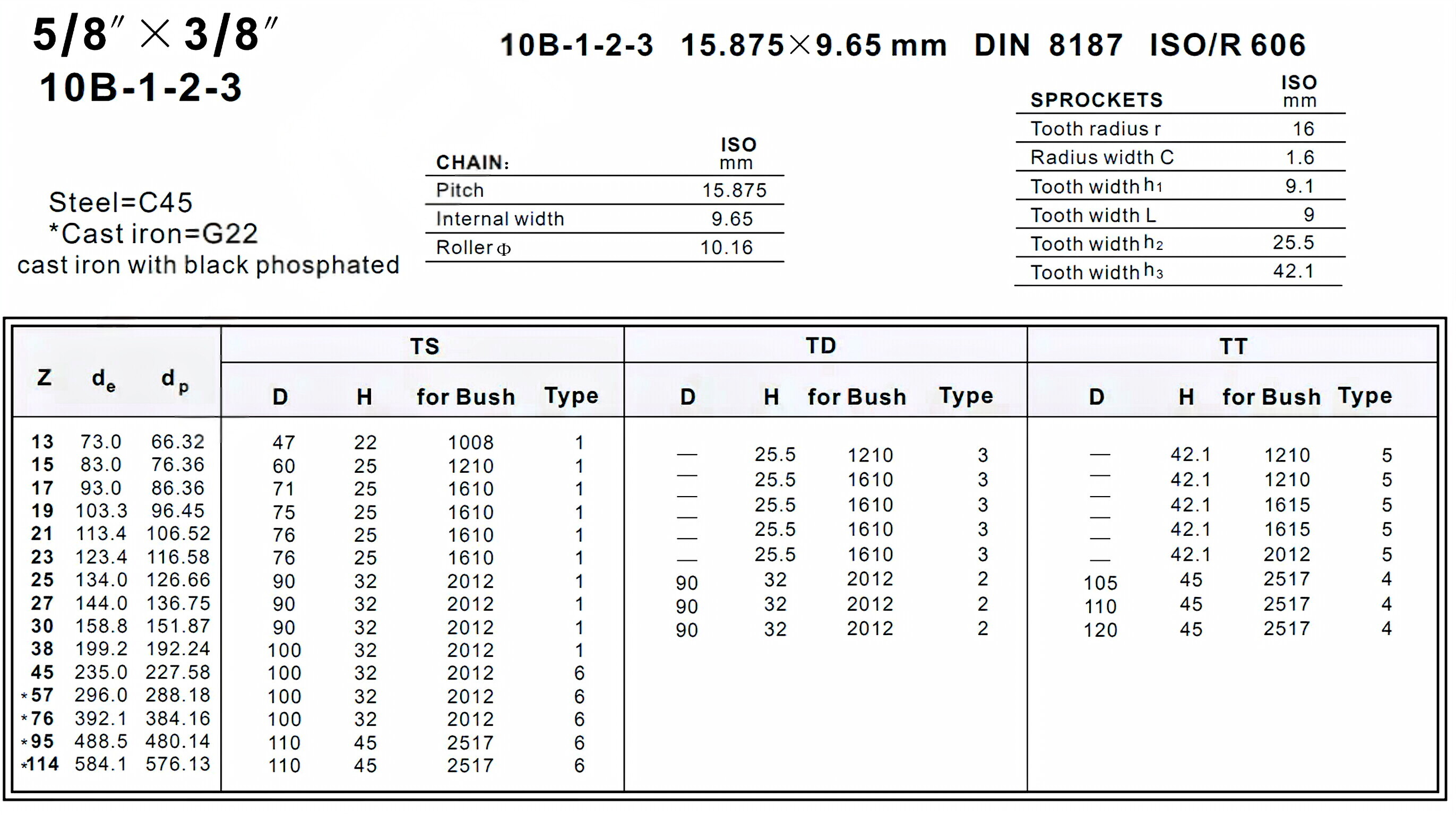

Taper Lock Sprocket 10B-1-2-3 European Standard

Taper Lock Sprocket 10B-1-2-3 European Standard

The Taper Lock Sprocket 10B-1-2-3 European Standard is a type of sprocket that is commonly used in transmission systems. It features a taper lock design, which allows for easy installation and removal. The sprocket is used in various applications to transmit power and motion.

Definition and Basic Structure

Taper lock sprockets are sprockets that have a tapered bore and are designed to be mounted on a shaft using a taper lock bushing. The basic structure of a taper lock sprocket consists of teeth that engage with a chain or belt, a hub with a tapered bore, and a taper lock bushing that provides a secure and precise fit on the shaft.

Characteristics and Functions

• Easy Installation: Taper lock sprockets are easy to install due to their taper lock design, which allows for quick and hassle-free mounting on the shaft.
• High Precision Positioning: The taper lock bushing ensures a precise fit on the shaft, resulting in accurate positioning of the sprocket.
• Wide Applicability: Taper lock sprockets are suitable for a wide range of applications, making them versatile in various industries.
• Reliability: Due to their secure fit and sturdy construction, taper lock sprockets offer high reliability in transmitting power and motion.
• Low Maintenance Cost: Taper lock sprockets require minimal maintenance, contributing to cost savings in the long run.

Installation and Removal Process

1. Prepare Tools and Materials: Gather the necessary tools and materials required for the installation, including the taper lock bushing, sprocket, and locking nut.
2. Clean Shaft and Sprocket Surface: Ensure that the shaft and sprocket surface are clean and free from any dirt or debris.
3. Place Taper Lock Bushing: Slide the taper lock bushing onto the shaft, ensuring that it is properly aligned.
4. Install Sprocket: Position the sprocket onto the taper lock bushing, making sure that the teeth engage with the chain or belt.
5. Tighten Locking Nut: Securely tighten the locking nut to fix the sprocket in place.

QD Sprocket Manufacturing Process

The manufacturing process of QD sprockets involves several steps:

1. Raw Material Preparation: Select and prepare the appropriate raw materials, such as steel or cast iron.
2. Cutting: Cut the raw material into the desired shape and size.
3. Forging or Casting: Use forging or casting methods to create the sprocket's basic structure.
4. Machining: Use machining techniques to refine the sprocket's shape and dimensions.
5. Tooth Rolling: Form the teeth of the sprocket through a rolling process.
6. Heat Treatment: Apply heat treatment to enhance the sprocket's hardness and strength.
7. Surface Treatment: Apply surface treatments, such as coating or plating, to improve the sprocket's corrosion resistance.
8. Quality Inspection: Conduct rigorous quality inspections to ensure that the sprockets meet the required standards.

FAQ (Frequently Asked Questions)

1. Q: What is the maximum torque capacity of the Taper Lock Sprocket 10B-1-2-3 European Standard?

A: The maximum torque capacity of the Taper Lock Sprocket 10B-1-2-3 European Standard depends on the specific model and size. Please refer to the manufacturer's specifications for detailed information.

2. Q: Can a taper lock sprocket be used with a different type of bushing?

A: No, taper lock sprockets are designed to be used specifically with taper lock bushings. Using a different type of bushing may result in compatibility issues and compromised performance.

3. Q: Are taper lock sprockets suitable for high-speed applications?

A: Yes, taper lock sprockets are suitable for high-speed applications as they provide secure and reliable power transmission.

4. Q: How often should taper lock sprockets be inspected for maintenance?

A: It is recommended to inspect taper lock sprockets periodically, depending on the operating conditions and usage. Regular inspections can help identify any signs of wear or damage and ensure optimal performance.

5. Q: Can taper lock sprockets be reused after removal?

A: Yes, taper lock sprockets can be reused after removal. However, it is important to carefully inspect the sprocket and taper lock bushing for any signs of wear or damage before reinstallation.

Author: Miya
