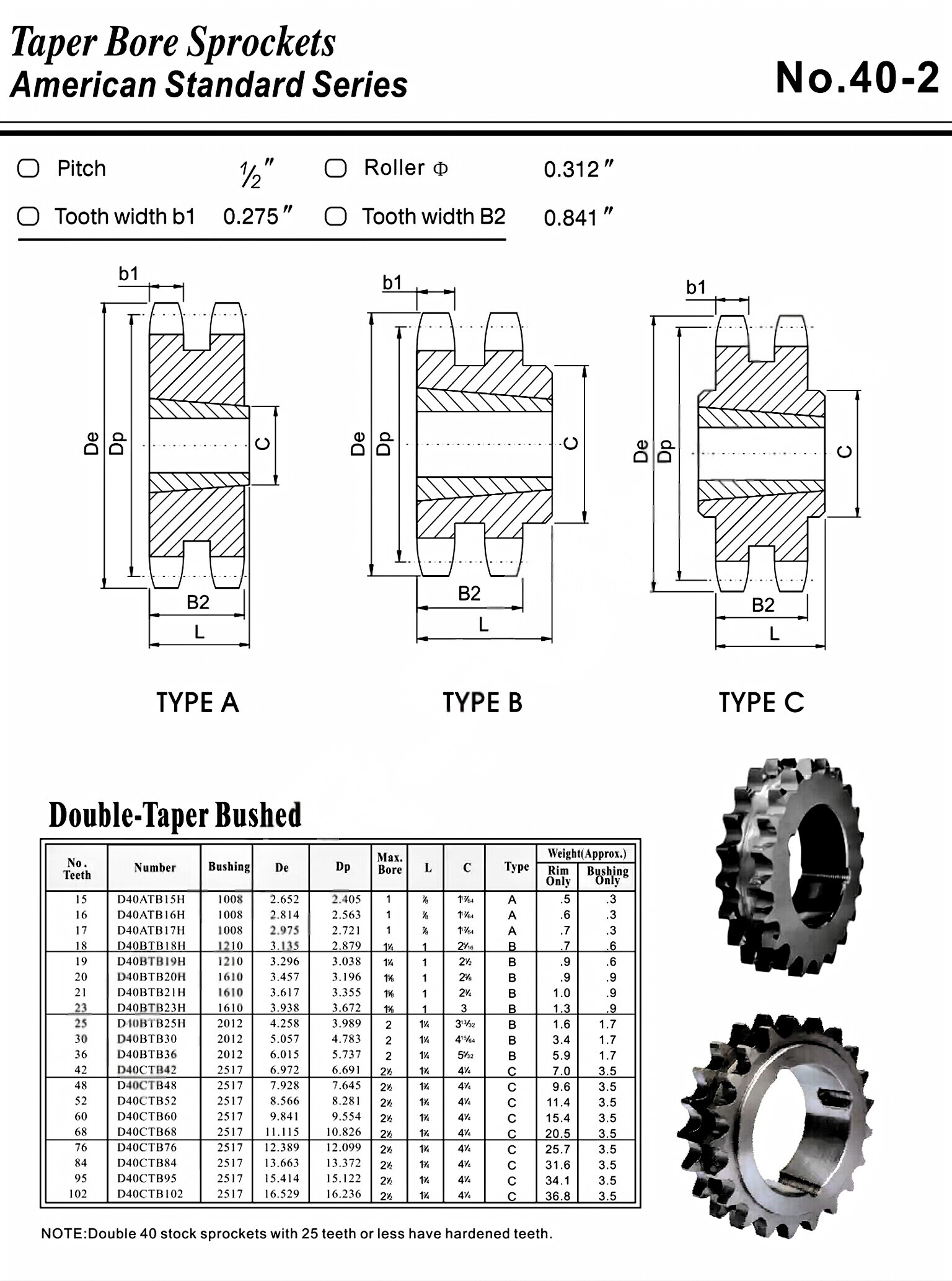

Taper Lock Sprocket No.40-2 American Standard

Taper Lock Sprocket No.40-2 American Standard

Taper Lock Sprocket No.40-2 American Standard refers to a sprocket that is designed to work with a taper lock bushing. The taper lock sprocket is a type of chain sprocket that is used in a power transmission system. It is an essential part of the system that helps to transfer power from one rotating shaft to another. The taper lock sprocket is designed to fit onto the shaft of a machine, and the chain runs over the sprocket to transmit power.

Taper Lock Sprocket: Definition and Basic Structure

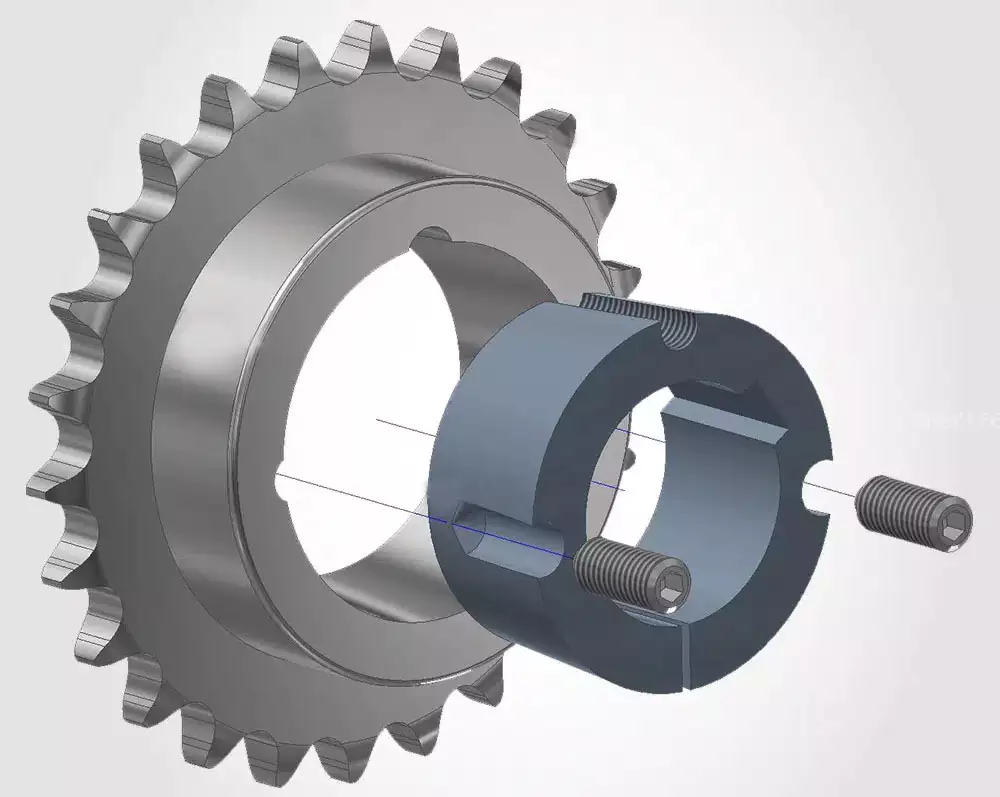

A taper lock sprocket is a type of sprocket that is designed to be mounted on a shaft using a taper lock bushing. The basic structure of a taper lock sprocket consists of a hub, a set of teeth, and a bore that is designed to fit the shaft. The taper lock bushing is mounted on the shaft, and the sprocket is mounted onto the bushing.

Features and Functions of Taper Lock Sprocket

The taper lock sprocket has a number of features and functions that make it an important part of a power transmission system. These include:

1. Easy to install: The taper lock sprocket is designed to be easy to install, which makes it a popular choice for many different types of machines.
2. High precision positioning: The taper lock sprocket allows for high precision positioning, which is important for machines that need to work with high levels of accuracy.
3. Widely applicable: The taper lock sprocket can be used in a wide variety of machines and applications.
4. Reliability: The taper lock sprocket is designed to be reliable, which means that it can be used in machines that need to run continuously for long periods of time.
5. Low maintenance costs: The taper lock sprocket is designed to be low maintenance, which means that it can be used in machines that need to be worked on infrequently.

The key advantage of the taper lock sprocket is its ease of installation and removal. This makes it a popular choice for machines that need to be maintained or repaired frequently.

Installation and Removal of Taper Lock Sprocket

The installation and removal of a taper lock sprocket is a simple process that can be completed in a few steps:

1. Prepare tools and materials: Gather all the necessary tools and materials, including the taper lock bushing, a torque wrench, and a socket set.
2. Clean shaft and sprocket surface: Clean the shaft and the bore surface of the sprocket to ensure that there is no dirt or debris that could affect the installation process.
3. Place taper lock bushing: Slide the taper lock bushing onto the shaft and tighten the set screws until they are snug against the shaft.
4. Install sprocket: Slide the sprocket onto the taper lock bushing, making sure that the keyway in the bushing aligns with the keyway in the sprocket.
5. Tighten locking nut: Tighten the locking nut on the end of the bushing with a torque wrench until the recommended torque value is reached.

Manufacturing Process of QD Sprocket

The manufacturing process of a QD sprocket involves a number of steps:

1. Prepare raw materials: The first step in the manufacturing process is to prepare the raw materials. This involves selecting the appropriate type of steel or other material that will be used to make the sprocket.
2. Cut material: The material is then cut into the appropriate size and shape using a saw or other cutting tool.
3. Forge or cast: The material is then either forged or cast into the rough shape of the sprocket.
4. Machine: The sprocket is then machined to its final size and shape, including the bores and teeth.
5. Roll teeth: The teeth of the sprocket are then rolled into place using a special rolling machine.
6. Heat treat: The sprocket is then heat treated to increase its strength and durability.
7. Surface treatment: The final step in the manufacturing process is to apply a surface treatment, such as plating or painting, to protect the sprocket from corrosion and wear.

FAQ

1. What size taper lock bushing do I need for my sprocket? The size of the taper lock bushing you need depends on the size of the shaft and the bore of the sprocket. Consult the manufacturer's specifications to determine the correct size.
2. What torque should I use to tighten the locking nut on the taper lock bushing? The recommended torque value will vary depending on the size of the sprocket and the shaft. Consult the manufacturer's specifications for the correct torque value.
3. Can I use a taper lock sprocket with any type of chain? Taper lock sprockets are designed to work with specific types of chain, so it is important to use the correct type of chain for your sprocket.
4. How do I know if my sprocket needs to be replaced? Signs that your sprocket may need to be replaced include wear on the teeth, cracks or breaks in the sprocket, and difficulty in engaging or disengaging the chain.
5. Can I install a taper lock sprocket myself, or do I need to hire a professional? If you have the necessary tools and experience, you can install a taper lock sprocket yourself. However, if you are unsure about the installation process, it is always best to hire a professional to avoid damaging your machine or causing injury.

Author: Miya
