The Taper Lock Sprocket No.50-2 American Standard is a type of sprocket that is commonly used in power transmission systems. It is designed with a taper lock mechanism, allowing for easy installation and removal. The sprocket is an essential component in transmitting power from one shaft to another, providing smooth and efficient operation.

Definition and Basic Structure

A taper lock sprocket is a type of sprocket that features a tapered bore. It is typically made of high-quality steel and consists of teeth that engage with the drive chain. The taper lock mechanism allows for easy mounting and dismounting of the sprocket on the shaft, ensuring a secure and reliable connection.

Characteristics and Functions

• Easy Installation: The taper lock design simplifies the installation process, reducing the time and effort required.
• High Precision Positioning: The taper lock mechanism ensures precise alignment of the sprocket on the shaft, minimizing potential misalignment issues.
• Wide Applicability: Taper lock sprockets are widely used in various industries, including manufacturing, agriculture, and mining.
• Reliability: The secure and robust connection provided by the taper lock ensures reliable power transmission, even under heavy loads.
• Low Maintenance Cost: Taper lock sprockets require minimal maintenance, resulting in cost savings for businesses.

One of the key advantages of taper lock sprockets is their ease of installation and removal. The taper lock mechanism allows for quick and hassle-free mounting and dismounting of the sprocket on the shaft. This eliminates the need for complex tools or time-consuming procedures, making maintenance and replacement tasks more efficient.

Installation and Removal Process

1. Prepare Tools and Materials: Gather the necessary tools and materials required for the installation, including a torque wrench, hex keys, and anti-seize compound.
2. Clean Shaft and Sprocket Surface: Ensure that the shaft and sprocket surfaces are clean and free from any debris or contaminants that may affect the installation process.
3. Place Taper Lock Bushing: Insert the taper lock bushing into the sprocket bore, ensuring it fits securely and aligns with the keyway on the shaft.
4. Install Sprocket: Slide the sprocket onto the shaft, engaging the teeth with the drive chain. Make sure the sprocket is aligned correctly with other components in the power transmission system.
5. Tighten Locking Nut: Use a torque wrench to tighten the locking nut, ensuring proper tension and secure attachment of the sprocket to the shaft.

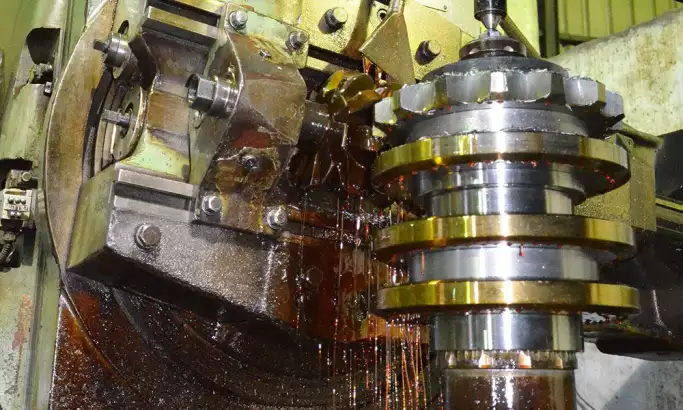

QD Sprocket Manufacturing Process

1. Prepare Raw Materials: Select high-quality steel or other suitable materials for the manufacturing of QD sprockets.
2. Cutting: Cut the raw material into the desired shape and size to form the base structure of the sprocket.
3. Forging or Casting: Use forging or casting techniques to shape the sprocket, ensuring the desired strength and durability.
4. Machining: Perform precise machining operations to create the teeth and other intricate details on the sprocket.
5. Gear Cutting: Use specialized gear cutting tools to create precise gear teeth on the sprocket, ensuring smooth and efficient power transmission.
6. Heat Treatment: Subject the sprocket to heat treatment processes to enhance its hardness, strength, and wear resistance.
7. Surface Treatment: Apply surface treatments such as coating or plating to protect the sprocket from corrosion and improve its aesthetics.
8. Quality Inspection: Conduct thorough quality inspections to ensure that the manufactured QD sprockets meet the required standards and specifications.

FAQ (Frequently Asked Questions)

1. Q: What is the purpose of a taper lock sprocket?

A: A taper lock sprocket is used to transmit power from one shaft to another in a power transmission system.

2. Q: What are the advantages of taper lock sprockets?

A: Taper lock sprockets are easy to install, provide high precision positioning, have wide applicability, offer reliability, and have low maintenance costs.

3. Q: How do I install a taper lock sprocket?

A: To install a taper lock sprocket, clean the shaft and sprocket surface, place the taper lock bushing, install the sprocket, and tighten the locking nut.

4. Q: What is the manufacturing process of QD sprockets?

A: The manufacturing process of QD sprockets involves raw material preparation, cutting, forging or casting, machining, gear cutting, heat treatment, surface treatment, and quality inspection.

5. Q: What are some key features of QD sprockets?

A: QD sprockets are known for their high strength, durability, and precise gear teeth, ensuring optimal performance in power transmission systems.
