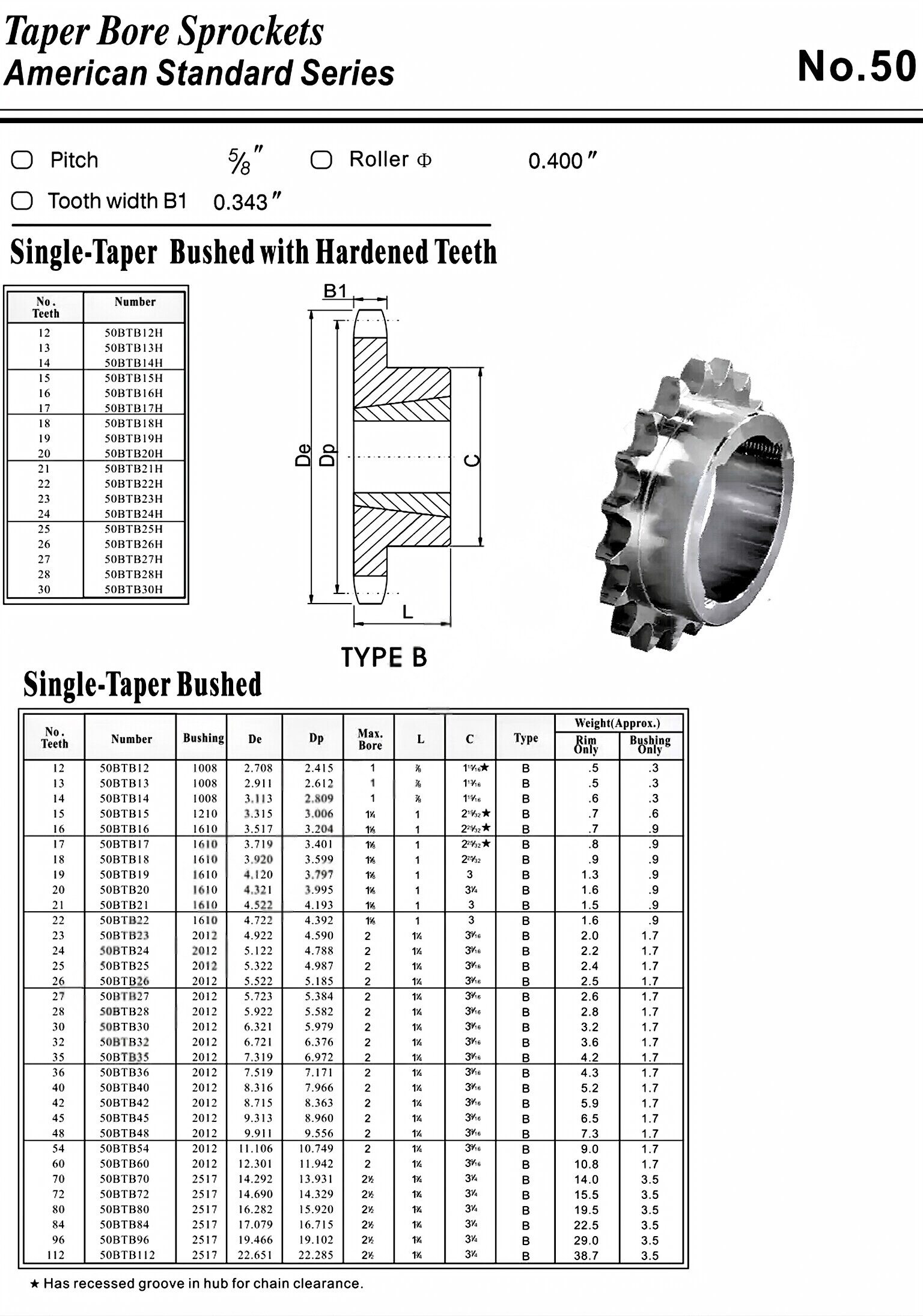

Taper Lock Sprocket No.50 American Standard

Taper Lock Sprocket No.50 American Standard

Taper Lock Sprocket No.50 American Standard is a type of sprocket that uses the taper lock system for easy installation and removal. It is commonly used in power transmission systems to transfer torque from a driving shaft to a driven shaft. The sprocket is designed with a tapered bore and a hub that can be easily mounted and dismounted using a taper lock bushing.

Definition and Basic Structure

A taper lock sprocket is a mechanical device consisting of teeth (sprocket) and a hub that can be securely attached to a shaft. The sprocket has a tapered bore that matches the taper of the taper lock bushing. When the tapered bushing is inserted into the bore and tightened, it creates a strong and reliable connection between the sprocket and the shaft.

Characteristics and Functions

• Easy installation: The taper lock system allows for quick and simple installation of the sprocket without the need for extensive tools or expertise.
• High precision positioning: The taper lock mechanism ensures accurate positioning of the sprocket on the shaft, minimizing misalignment and ensuring efficient power transmission.
• Wide applicability: Taper lock sprockets are compatible with various shaft sizes and can be used in a wide range of industrial applications.
• Reliability: The taper lock connection provides a secure and reliable attachment, reducing the risk of slippage or disengagement during operation.
• Low maintenance cost: The easy installation and removal of taper lock sprockets facilitate maintenance and replacement, resulting in cost savings.

Installation and Removal Process

1. Prepare tools and materials: Gather the necessary tools such as wrenches and a taper lock bushing. Clean the surface of the shaft and the sprocket to remove any debris.
2. Place the taper lock bushing: Insert the taper lock bushing into the tapered bore of the sprocket, ensuring a snug fit.
3. Install the sprocket: Slide the sprocket with the attached bushing onto the shaft, aligning it with any other components in the power transmission system.
4. Tighten the locking nut: Using a wrench, tighten the locking nut on the taper lock bushing to securely fasten the sprocket to the shaft.

QD Sprocket Manufacturing Process

1. Raw material preparation: Select high-quality materials such as steel or cast iron for the sprocket manufacturing process.
2. Cutting: Cut the raw material into the desired shape and size for the sprocket.
3. Forging or casting: Depending on the manufacturing method, the sprocket can be either forged or cast to achieve the required strength and durability.
4. Machining: Use precision machining techniques to refine the sprocket's dimensions and create the teeth profiles.
5. Tooth rolling: Roll the teeth of the sprocket to ensure precise and consistent tooth profiles.
6. Heat treatment: Apply heat treatment processes such as quenching and tempering to enhance the hardness and strength of the sprocket.
7. Surface treatment: Apply surface coatings or treatments to improve corrosion resistance and aesthetics.
8. Quality inspection: Conduct thorough quality inspections to ensure that the sprockets meet the required standards and specifications.

FAQ (Frequently Asked Questions)

1. Q: What is the maximum torque that a Taper Lock Sprocket No.50 American Standard can handle?

A: The maximum torque capacity depends on the specific design and material of the sprocket. Please refer to the manufacturer's specifications for accurate information.

2. Q: Can a taper lock sprocket be used with different shaft sizes?

A: Yes, taper lock sprockets are designed to accommodate various shaft sizes by using different taper lock bushings.

3. Q: Are taper lock sprockets suitable for high-speed applications?

A: Taper lock sprockets can be used in both low-speed and high-speed applications, as long as the design and material meet the required specifications.

4. Q: How often should I inspect and maintain a taper lock sprocket?

A: Regular inspection and maintenance are recommended to ensure optimal performance. The frequency of maintenance depends on factors such as operating conditions and usage intensity.

5. Q: Can I reuse a taper lock bushing?

A: Taper lock bushings are generally designed for single-use. It is recommended to replace the bushing whenever you remove the sprocket from the shaft.
