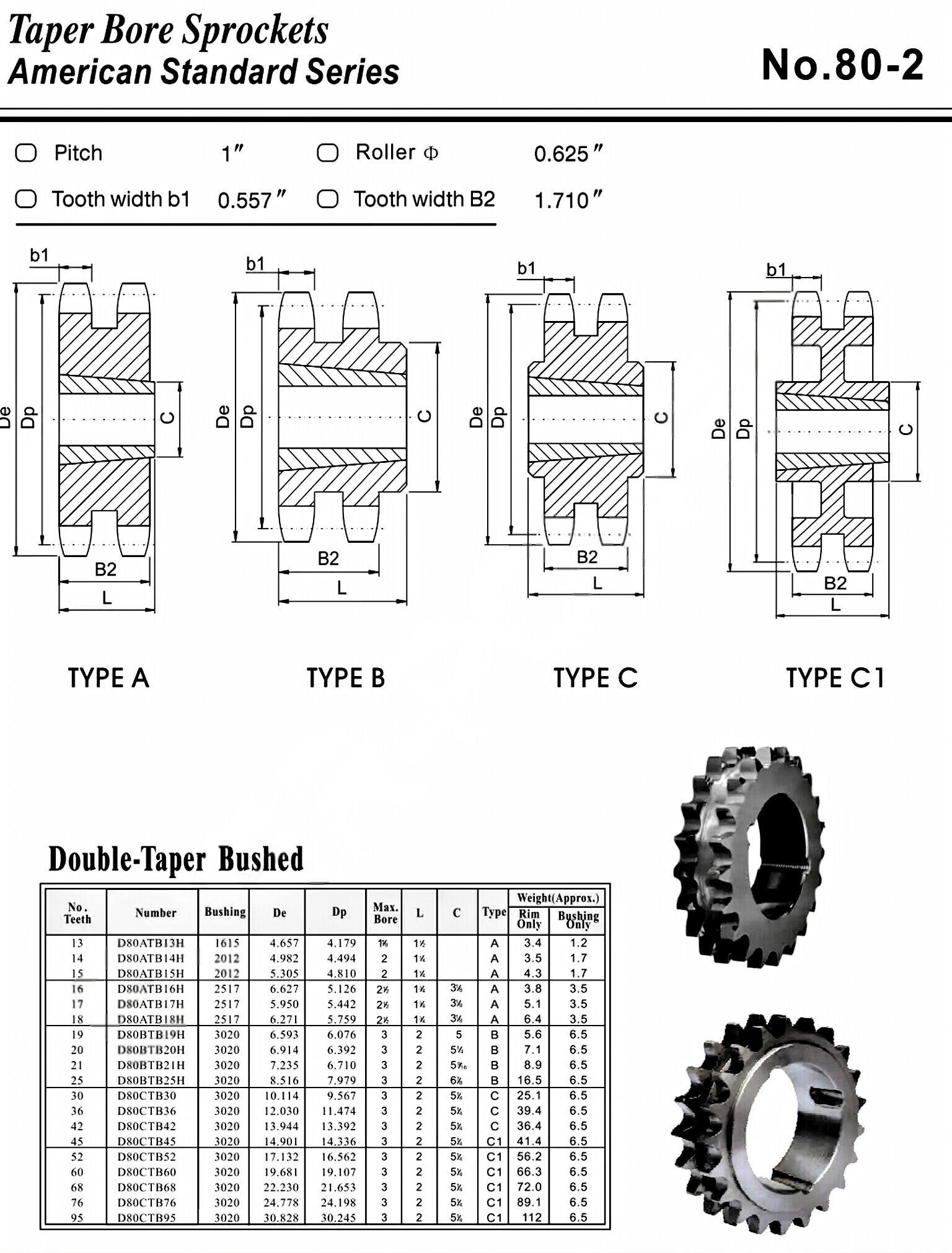

Taper Lock Sprocket No.80-2 American Standard

Taper Lock Sprocket No.80-2 American Standard

The Taper Lock Sprocket No.80-2 American Standard is a type of sprocket used in power transmission systems. It features a tapered bore and is designed to be easily installed and removed from a shaft. This sprocket is commonly used in various industries for its reliability, precision positioning, and wide applicability.

Definition and Basic Structure

A taper lock sprocket is a type of sprocket that has a tapered bore. It is designed to be mounted on a shaft using a tapered bushing, which ensures a secure and precise fit. The basic structure of a taper lock sprocket consists of teeth that engage with a chain, a hub, and a tapered bore for mounting.

Characteristics and Functions

Taper lock sprockets have the following characteristics and functions:

1. Easy Installation: Taper lock sprockets are designed for easy installation on a shaft. The tapered bore and bushing allow for a tight and secure fit.
2. High Precision Positioning: The taper lock mechanism ensures precise positioning of the sprocket on the shaft, minimizing misalignment and improving overall power transmission efficiency.
3. Wide Applicability: Taper lock sprockets are widely used in various power transmission systems, including conveyors, industrial machinery, and agricultural equipment.
4. Reliability: The taper lock design provides a secure and reliable connection between the sprocket and the shaft, reducing the risk of slippage or disengagement during operation.
5. Low Maintenance Cost: Taper lock sprockets require minimal maintenance due to their robust design and reliable connection, resulting in cost savings over time.

Installation and Removal Process

The installation and removal process of a taper lock sprocket involves the following steps:

1. Prepare Tools and Materials: Gather the necessary tools, including a hex key or wrench, and ensure the taper lock bushing and sprocket are clean and free from debris.
2. Clean Shaft and Sprocket Surface: Clean the shaft and sprocket surface to ensure a smooth and clean contact surface for the taper lock bushing.
3. Place Taper Lock Bushing: Slide the taper lock bushing onto the shaft, ensuring it is fully seated against the shoulder or face of the shaft.
4. Install Sprocket: Position the sprocket onto the taper lock bushing, aligning the hub with the bushing's tapered bore.
5. Tighten Locking Nut: Use the provided hex key or wrench to tighten the locking nut on the taper lock bushing, ensuring it is securely fastened.

QD Sprocket Manufacturing Process

The manufacturing process of a QD sprocket involves the following steps:

1. Prepare Raw Materials: Gather the necessary raw materials for the sprocket, such as steel or alloy.
2. Cutting: Cut the raw material into the desired shape and size for the sprocket.
3. Forging or Casting: Depending on the manufacturing method, the sprocket can be forged or cast to obtain the desired strength and shape.
4. Machining: Machine the sprocket to achieve precise dimensions and tooth profiles.
5. Teeth Rolling: Roll the teeth on the sprocket to ensure accurate and smooth engagement with the chain.
6. Heat Treatment: Apply heat treatment processes, such as quenching and tempering, to enhance the sprocket's hardness and durability.
7. Surface Treatment: Treat the sprocket's surface to improve corrosion resistance and appearance.
8. Quality Inspection: Conduct thorough quality inspections to ensure the sprocket meets the required standards and specifications.

Frequently Asked Questions (FAQ)

1. Q: How do I choose the right taper lock sprocket size for my application?

A: The selection of the taper lock sprocket size depends on factors such as the shaft diameter, chain pitch, and required power transmission capacity. It is recommended to consult the manufacturer's specifications or seek professional advice to ensure the correct size.

2. Q: Can a taper lock sprocket be reused after removal?

A: Yes, taper lock sprockets can be reused multiple times as long as they are in good condition and the taper lock bushing remains intact. Proper inspection and cleaning should be conducted before reinstalling.

3. Q: How do I maintain a taper lock sprocket?

A: Regular inspection and cleaning of the sprocket and taper lock bushing are recommended. Ensure that the sprocket teeth are free from debris or wear that can affect chain engagement. Lubrication may be required depending on the application.

4. Q: Can I use a taper lock sprocket in a high-speed application?

A: Taper lock sprockets are suitable for a wide range of speeds. However, it is important to consider the specific requirements of your application and consult the manufacturer or an engineer to ensure the sprocket's suitability for high-speed operation.

5. Q: What are the advantages of taper lock sprockets over other sprocket types?

A: Taper lock sprockets offer easy installation and removal, precise positioning, wide applicability, reliability, and low maintenance costs. These advantages make them a preferred choice in many power transmission systems.

Author: Miya
