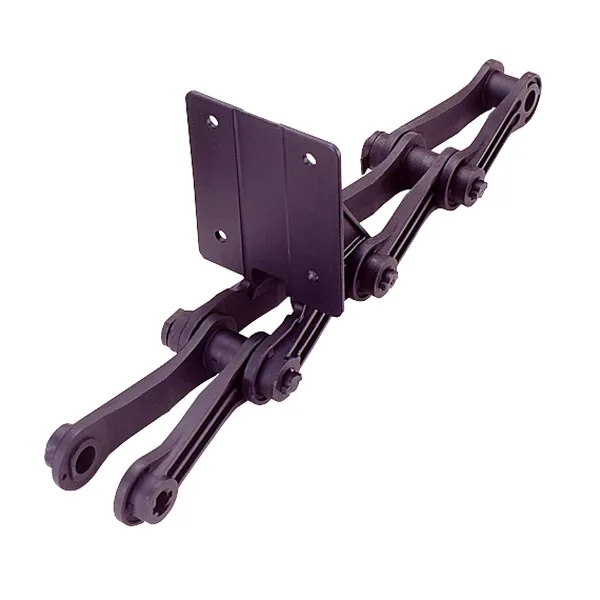

TAW710 Wastewater Treatment Chain

TAW710 Wastewater Treatment Chain

The TAW710 Wastewater Treatment Chain is a new type of chain that is specifically designed for use in wastewater treatment plants. It is made from a special alloy steel that is resistant to corrosion and abrasion, making it ideal for the harsh conditions of wastewater treatment. The TAW710 Wastewater Treatment Chain is also designed to be strong and durable, able to withstand heavy loads and long hours of operation.

Benefits of the TAW710? Wastewater Treatment Chain:

• Corrosion and abrasion-resistant
• Strong and durable
• Easy to install and maintain
• Available in a variety of sizes

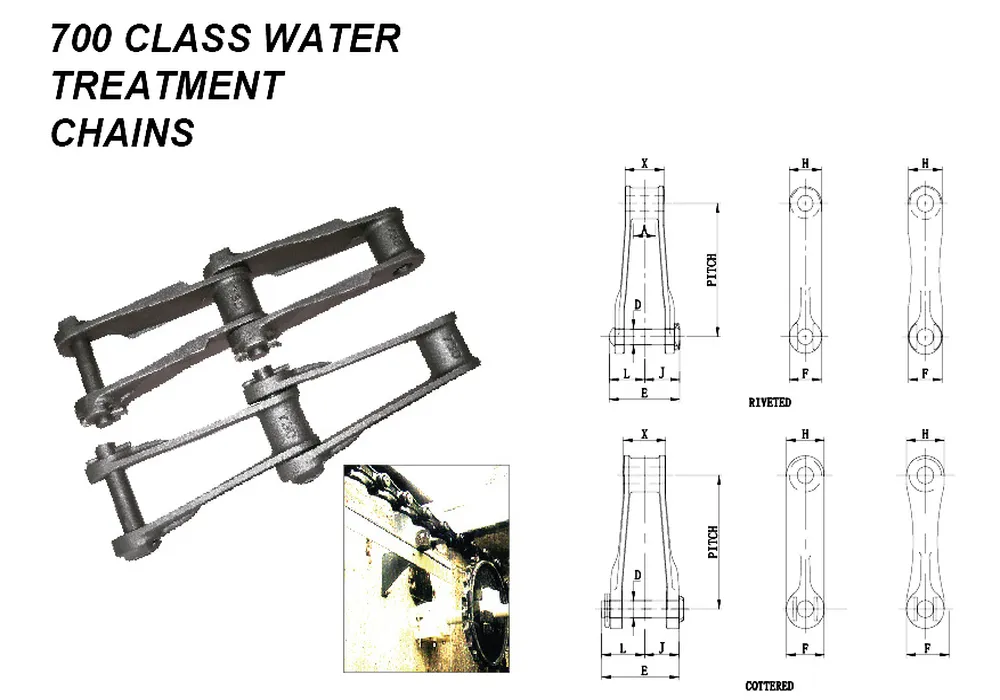

TAW710 Wastewater Treatment Chain Dimensions:

Chain No.	Pitch in Inches	Weight Per Foot LBS.	Average Ultimate Strength LBS.	Maximum Working Load LBS.	A	C	D	E	F	H	X	Available Attachments
TAW710	6.000	6.30	27500	4220	5.63	3.81	0.69	2.38	1.38	1.13	3.03	A2,K2

TAW710 Wastewater Treatment Chain Attachments:

TAW710 Wastewater Treatment Chain is manufactured with a full cast link and hardened carbon-steel pins for ultimate strength while maintaining a lightweight. Raydafon offers a premium TAW710 chain in either riveted or cottered construction. This chain is primarily used in wastewater applications such as rectangular clarifiers, as well as other conveying applications. Attachments available for the TAW710 chain are A2, and K2, as well as custom attachments upon request. We can supply the chain with attachments already assembled onto the chain in any configuration needed, and within a fast assembly time.

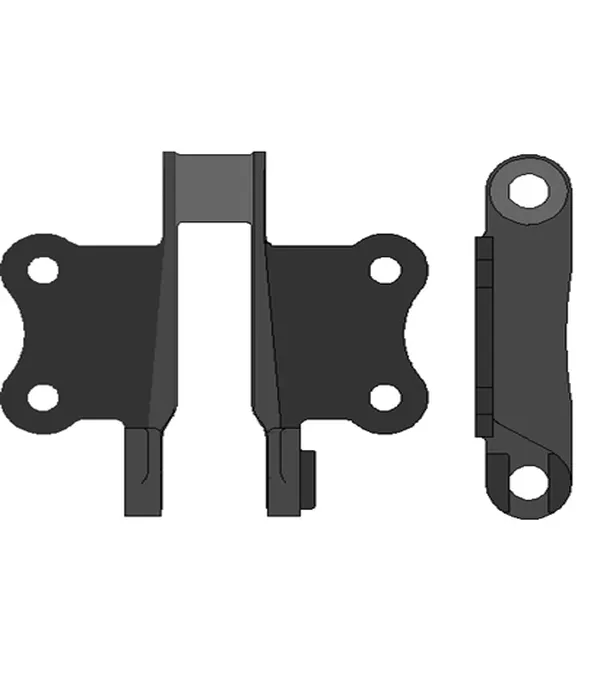

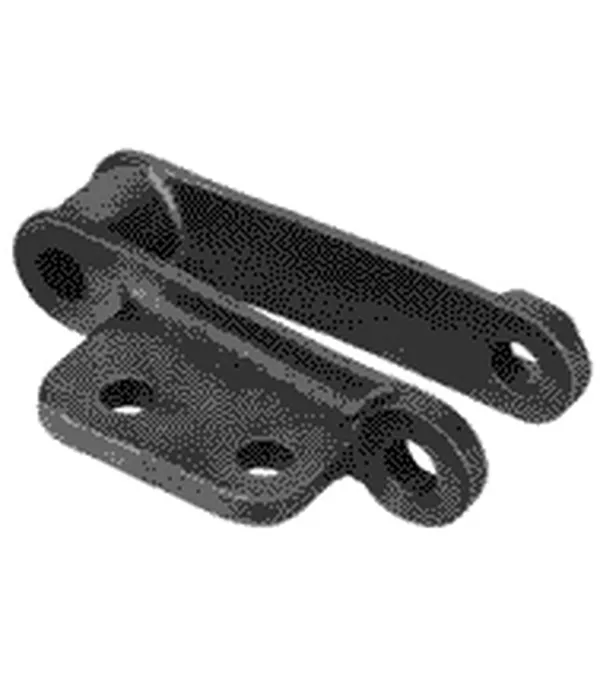

TAW710 Wastewater Chain A2 Attachments	TAW710 Wastewater Chain K2 Attachments

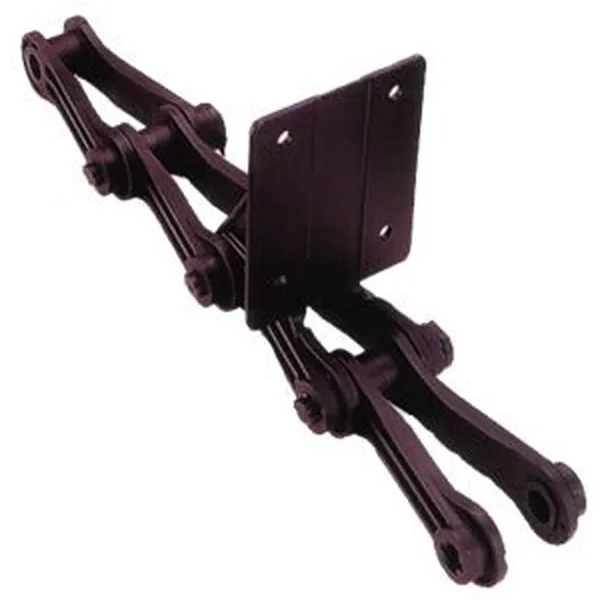

TAW710 Wastewater Treatment Chain Advantages:

The TAW710 Wastewater Treatment Chain has a number of advantages over other wastewater treatment processes, including:

• High efficiency: The TAW710 Wastewater Treatment Chain is highly efficient at removing a wide range of pollutants from wastewater.
• Reliability: The TAW710 Wastewater Chain is a reliable and well-proven process that has been used for many years.
• Flexibility: The TAW710 Wastewater Treatment Chain can be tailored to meet the specific needs of different communities and industries.
• Cost-effectiveness: The TAW710 Wastewater Chain is a cost-effective way to treat wastewater, especially when compared to the cost of environmental damage caused by untreated wastewater.

In addition to these general advantages, the TAW710 Wastewater Treatment Chain also offers a number of specific benefits, such as:

• Reduced environmental impact: The TAW710 Wastewater Treatment Chain helps to protect the environment by reducing the discharge of pollutants into rivers, lakes, and oceans.
• Improved public health: The TAW710 Wastewater Chain helps to improve public health by reducing the risk of waterborne diseases.
• Water conservation: The TAW710 Wastewater Treatment Chain can be used to produce recycled water that can be used for irrigation, industrial purposes, and other non-potable applications.

700 Series Wastewater Chain Sprockets for 700 Class Wastewater Chain:

700 Series Wastewater Chain Sprockets are designed to work with 700 Class Wastewater Chain. They are typically made of stainless steel or corrosion-resistant materials to withstand the harsh environments in wastewater treatment plants. 700 Series Wastewater Chain Sprockets are available in a variety of bore sizes, configurations, and hub types to meet the specific needs of your application.

Some of the most common types of 700 Series Wastewater Chain Sprockets include:

• Drive sprockets: These sprockets are used to transmit power from the motor to the chain.
• Idler sprockets: These sprockets guide the chain and help to maintain proper tension.
• Tensioner sprockets: These sprockets are used to adjust the tension of the chain.
• Shear pin sprockets: These sprockets are designed to break in the event of an overload, protecting the chain and other components from damage.

700 Series Wastewater Chain Sprockets are typically used in a variety of applications in wastewater treatment plants, including:

• Conveying systems
• Elevators and lifts
• Clarifiers
• Thickeners
• Digesters
• Screens
• Grit classifiers

When selecting 700 Series Wastewater Chain Sprockets, it is important to consider the following factors:

• Chain size: The sprockets must be sized to match the chain that they will be used with.
• Bore size: The bore size of the sprocket must match the shaft that it will be mounted on.
• Configuration: Sprockets are available in a variety of configurations, such as single-strand, double-strand, and triple-strand.
• Hub type: Sprockets are available with a variety of hub types, such as solid hub, split hub, and taper lock hub.
• Material: Sprockets are typically made of stainless steel or other corrosion-resistant materials.

700 Class Wastewater Treatment Chain?Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X conveyor chains,?agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains,?grip chains (film gripper chains), PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain,?steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, "H" Class mill chain, CC Class crate conveyor chain,??"H" Class refuse drag chain,?600 Class ley bushed chain, combination transfer chain, "H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
