TDI Type Double-row Inch Size Tapered Roller Bearings

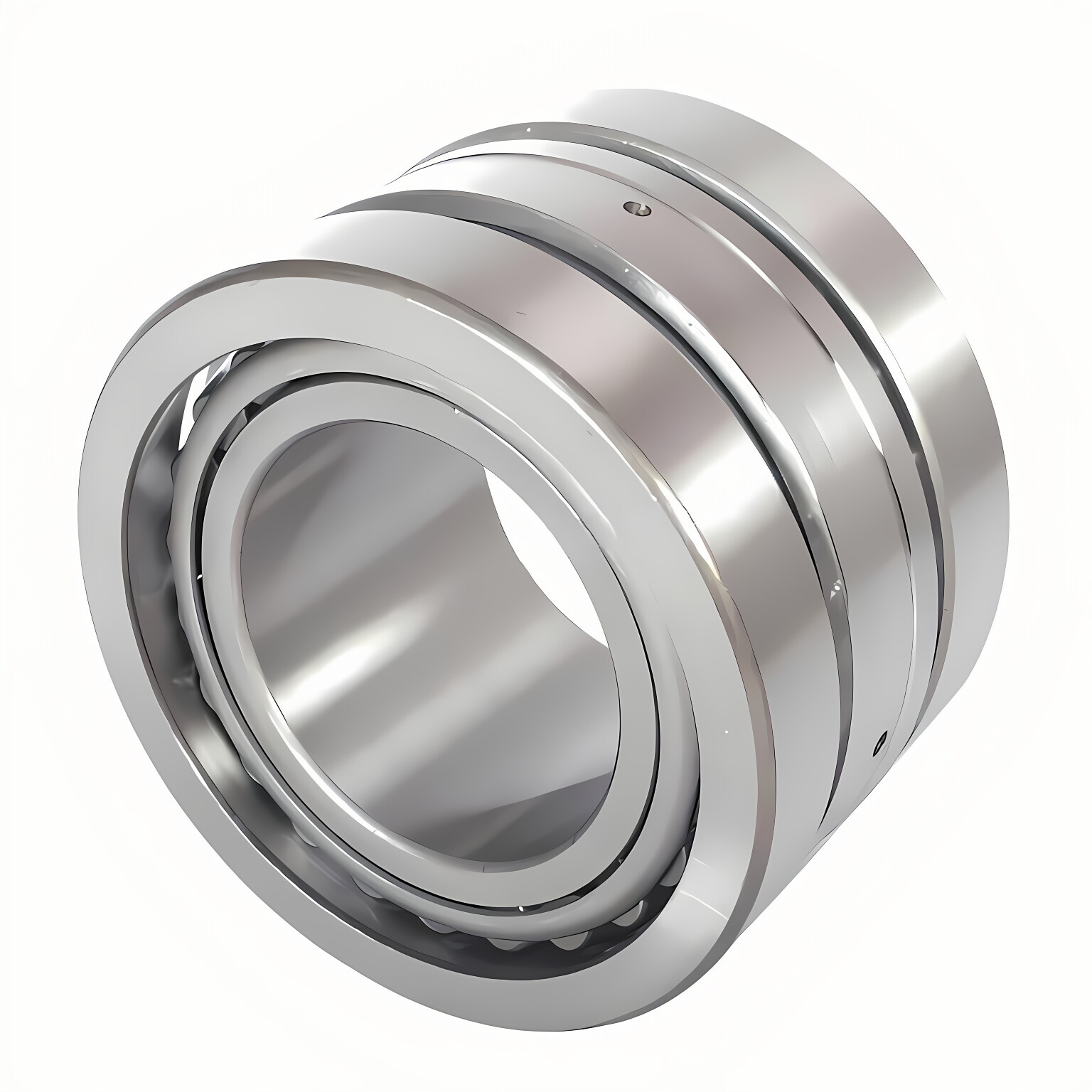

TDI Type Double-row Inch Size Tapered Roller BearingsTDI Type double row inch size tapered roller bearings are a common type of tapered roller bearings. TDI Type double row inch tapered roller bearings consist of a single-piece (double) inner ring and two single outer rings. It is usually supplied complete with an outer-ring spacer as a pre-set assembly. TDI bearings can be used at fixed (locating) positions on rotating shaft applications. For revolving housing applications, the double inner ring of type TDI can be used to float on the stationary shaft.

Product parameter

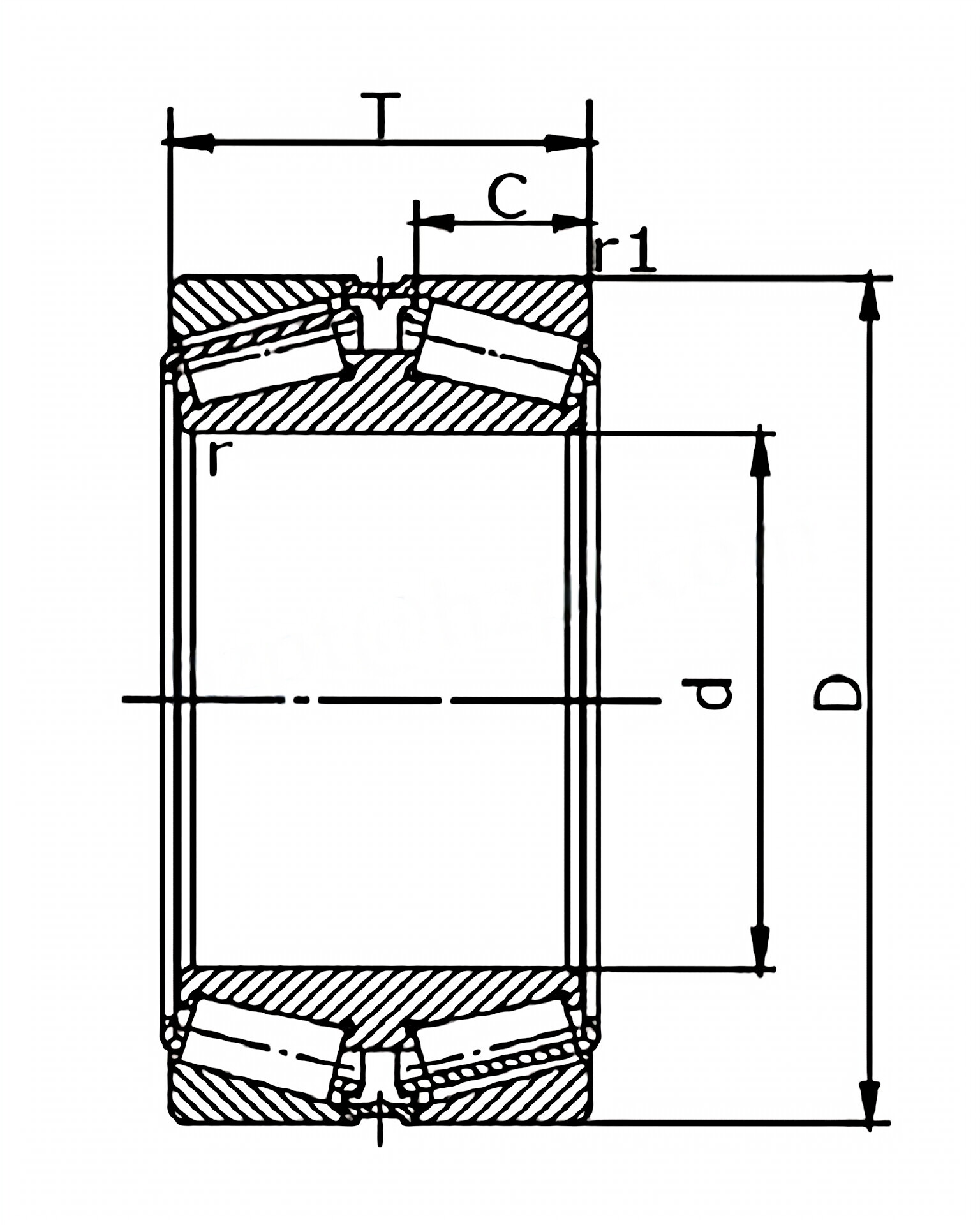

Boundary dimensions(mm)				Mass(kg)	Bearing NO.
d	D	T	B		Raydafon
31.750	69.012	39.705	39.182	0.71	14126D/14276
42.862	80.962	34.925	31.750	0.77	13169D/13318
44.450	80.962	34.925	31.750	0.74	13176D/13318
46.037	80.962	34.925	31.750	0.73	13182D/13318
50.800	93.264	50.013	53.188	1.40	375D/374
50.800	96.838	53.188	53.188	1.61	375D/372A
55.562	96.838	51.298	53.188	2.05	389DE/382A
63.500	112.712	60.325	60.325	2.59	39585D/39520
63.500	136.525	66.091	65.989	4.59	78251D/78537
63.500	140.030	66.090	65.989	4.83	78251D/78551
64.987	136.525	66.091	65.989	4.55	78255D/78537
64.987	140.030	66.091	65.989	4.91	78255D/78551
80.962	133.350	60.325	59.538	3.25	496D/492A
80.962	136.525	60.325	59.538	3.53	496D/493
80.962	139.992	80.962	80.134	5.31	581D/572
85.725	123.825	41.278	44.450	1.74	L217845D/L217810
85.725	127.000	41.278	44.450	1.93	L217845D/L217813
88.900	161.925	101.549	107.950	8.77	767D/752
92.075	148.430	57.150	57.942	3.87	42362D/42584
95.250	136.525	57.150	57.150	2.68	LM119348D/LM119311

Series of TDI Type double row tapered roller bearings

Popular types of TDI Type:

• 14126D/14276
• 13169D/13318
• 13176D/13318

Features of TDI Type double row tapered roller bearings

• High load-carrying capacityTDI Type Double row tapered roller bearings are suitable for heavy radial and axial loads. The axial load carrying capacity of tapered roller bearings increases with increasing contact angle α. The contact angle size, usually between 10° and 30°, is related to the calculation factor e (from the product tables): the larger the value of e, the larger the contact angle.
• Axial loads in both directionsTDI Type Double row tapered roller bearings locate the shaft in both directions with a specific axial clearance or preload.
• High stiffnessTDI Type Double row tapered roller bearings provide a stiff bearing arrangement.
• Low frictionThe flange's optimized roller end design and surface finish promote lubricant film formation, resulting in lower friction. This also reduces frictional heat and flange wear. In addition, the bearings can better maintain preload and run at reduced noise levels.
• Long service lifeThe crowned raceway profiles of basic design bearings and the logarithmic raceway profiles optimize the load distribution along the contact surfaces, reduce stress peaks at the roller ends, and reduce the sensitivity to misalignment and shaft deflection compared with conventional straight raceway profiles.
• Enhanced operational reliabilityThe optimized surface finish on the contact surfaces of the rollers and raceways supports the formation of a hydrodynamic lubricant film.
• Consistency of roller profiles and sizesThe rollers incorporated in our TDI Type double row tapered roller bearings are manufactured to such close dimensional and geometrical tolerances that they are practically identical. This provides optimal load distribution, reduces noise and vibration, and enables preload to be set more accurately.

Application of TDI Type double row tapered roller bearings

• mining
• petroleum
• heavy machinery
• wind power
• engineering machinery
• and other industries
