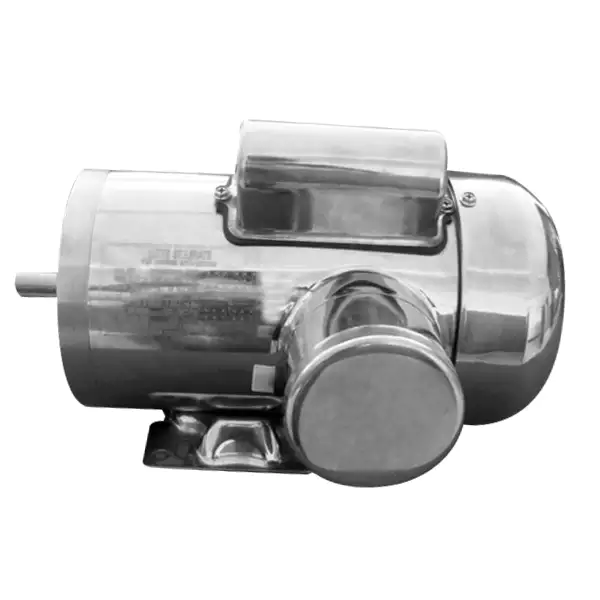

TENV Stainless Steel Washdown NEMA Motor With Single Capacitor

TENV Stainless Steel Washdown NEMA Motor With Single Capacitor

Washable NEMA motor c series stainless steel washable motor is designed and manufactured according to C standard. 80-132m.0.18kw-1 5kW stainless steel frame on all external surfacesApplication: Food processing, packaging, outdoor and highly corrosive environmentFeatures: all outer surfaces of stainless steel motor frames, end plates, conduit boxes, shafts and bases, four condensate drains in each end plate, conduit box gasket lip seals. It is especially suitable for highly corrosive environments where paint or other surface treatments cannot maintain working conditions: the motor is designed and manufactured according to IEC standards, and all external surfaces are stainless steel, which is very suitable for driving food processing, packaging, outdoor and highly corrosive environments.

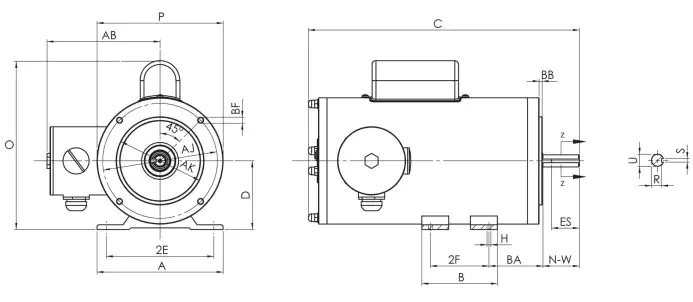

Frame	A	BB	BA	N-W	U	R	S	ES	E	2F	B	H	BF	AJ	AK	P	AB	D	O
56C	6.5	0.16	2.75	1.88	0.625	0.517	0.188	1.41	2.44	3	3.87	0.34	3/8-16	5.875	4.5	6.46	5.79	3.504	8.51
143TC	6.5	0.16	2.75	2.25	0.771	0.771	0.188	1.41	2.75	4	4.87	4.87	3/8-16	5.875	4.5	6.46	5.79	3.504	8.51
145TC	6.5	0.16	2.75	2.25	0.771	0.771	0.188	1.41	2.75	5	5.87	5.87	3/8-16	5.875	4.5	6.46	5.79	3.504	8.51

Feature of stainless steel NEMA motor

• 1/2 - 30 HP (three-phase), 1/2 - 1 HP (single-phase)
• 56C – 286tc frame
• 115/230, 230/460, 575 Volts
• Enclosure: tefc /tenv
• Ip69 water
• Available inverter operation
• All stainless steel structure
• Epoxy resin encapsulated winding and conduit box
• Two mechanical seals on the output shaft
• 360-degree rotating junction box (three-phase)
• Laser marking nameplate
• Independent welding leg
• Polished stainless steel finish
• 3-year warranty

We know that your flushing motor has to face a harsh environment. Due to frequent exposure to high-pressure spray and irritant chemicals, the slightest opening may cause motor damage or bacterial accumulation. That's why we didn't leave any chance to design a more waterproof motor than ever. The entire motor housing, including the end cap, is encapsulated for unparalleled sealing. All of this is to help you avoid downtime and reduce replacement costs by maintaining an external state.

1. All external surfaces are stainless steel.
2. Low noise, low vibration, and lightweight
3. Completely smooth surface
4. Suitable for food processing, packaging, outdoor and highly corrosive environment, suitable for frequent washing

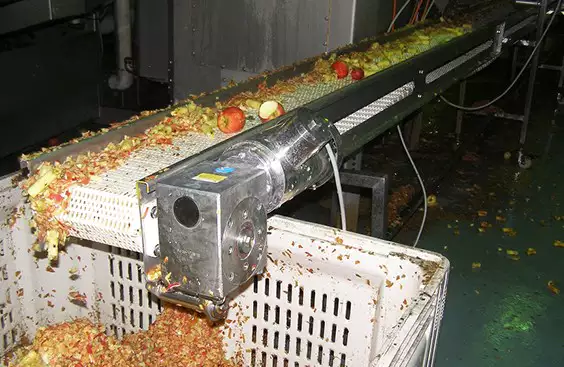

Application of stainless steel NEMA motor

• food processing
• waste water
• High-pressure flushing
• Sanitary flushing
• Corrosive environment
• Humid environment
• Pump
• outdoors

Stainless Steel Motor Expert

Hzpt is a world-leading manufacturer of motors and generators, with a wide range of products from ¼ Horsepower ranges from 100000 horsepower.We are also a leader in motor control suppliers, engineering services, Westinghouse original refurbished parts, and significant motor maintenance.Our products are used for driving pumps, fans, compressors, rolling mills, grinders, crushers, and other durable applications.Headquartered in Ningbo, Zhejiang Province, hzpt serves the petrochemical, power, pulp and paper, water/wastewater treatment, air conditioning, shipbuilding, mining, and metal industries.Our products include the design, manufacture, service, and maintenance of medium and high voltage rotating electrical equipment, including induction, DC, and synchronous motors and generators, from small horsepower to 100000 horsepower, and the design, manufacture, and service of medium and high voltage variable frequency drives and the manufacture of wind turbines.We provide analysis, redesign, manufacturing and remanufacturing, service, and repair of parts and accessories for these same products. We widely stock and customize low-voltage motors, starters, controllers, and drives, as well as various gear products, and provide system solutions, including these products.
