THG085 Series Precision Hollow Rotating Platform

THG085 Series Precision Hollow Rotating Platform

The THG085 series precision hollow rotating platform is a state-of-the-art solution that provides exceptional precision, versatility, and reliability in rotational motion applications. With its cutting-edge design and robust construction, this rotating platform sets a new standard for precision engineering. Whether you require precise positioning, smooth rotation, or multi-axis motion control, the THG085 series delivers outstanding performance and flexibility for various industrial and research applications.The THG085 series precision hollow rotating platform offers exceptional precision, versatility, and reliability for a wide range of rotational motion applications. With its high-precision performance, hollow structure with a large aperture, and robust construction, it is the ideal choice for industries seeking superior motion control solutions. By following the recommended usage method and maintenance practices, you can ensure optimal performance and longevity of this rotating platform. Experience the precision and versatility of the THG085 series precision hollow rotating platform and elevate your rotational motion applications to new heights.

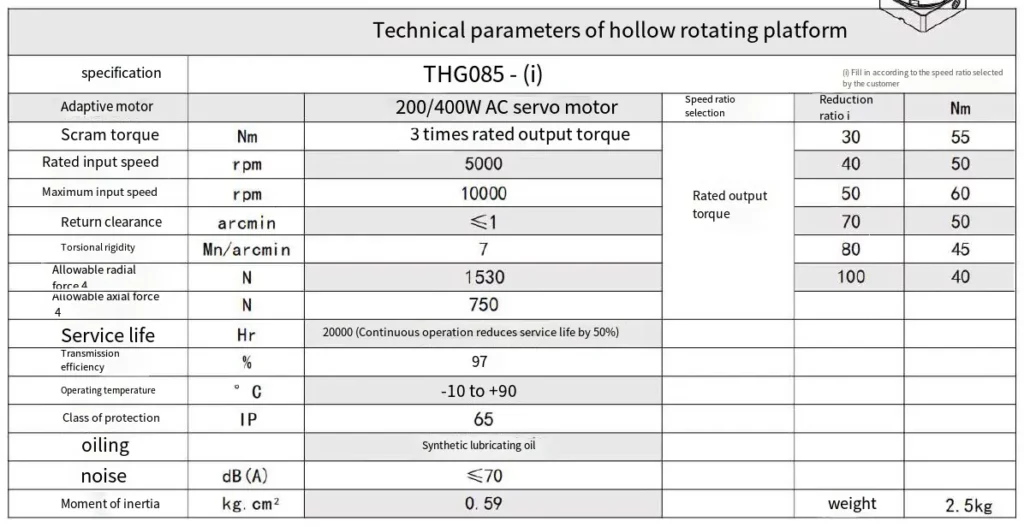

THG085 Series Precision Hollow Rotating Platform Parameter:

Key Characteristics and Benefits of THG085 Series Precision Hollow Rotating Platform:

1. High-Precision Performance

• The THG085 series precision hollow rotating platform offers unparalleled precision, ensuring accurate and repeatable rotational motion.
• Its advanced motor control technology and high-resolution encoders enable precise positioning and seamless motion control.

2. Hollow Structure with Large Aperture

• Featuring a hollow structure with a large aperture, the THG085 series allows for the passage of cables, optics, or other elements through the center.
• The large aperture provides ample space for internal routing, cable management, and integration of additional components, enhancing overall flexibility and convenience.

3. Modular Design and Versatility

• The THG085 Series employs a modular design, allowing easy customization and configuration to meet specific application requirements.
• It can be seamlessly integrated with other motion control systems, making it an ideal choice for multi-axis setups and complex applications.

4. Robust Construction for Reliable Performance

• Built with high-quality materials and precision manufacturing, the THG085 series ensures long-lasting durability and reliable performance.
• Its robust construction enables it to withstand demanding industrial environments and deliver consistent results over an extended period.

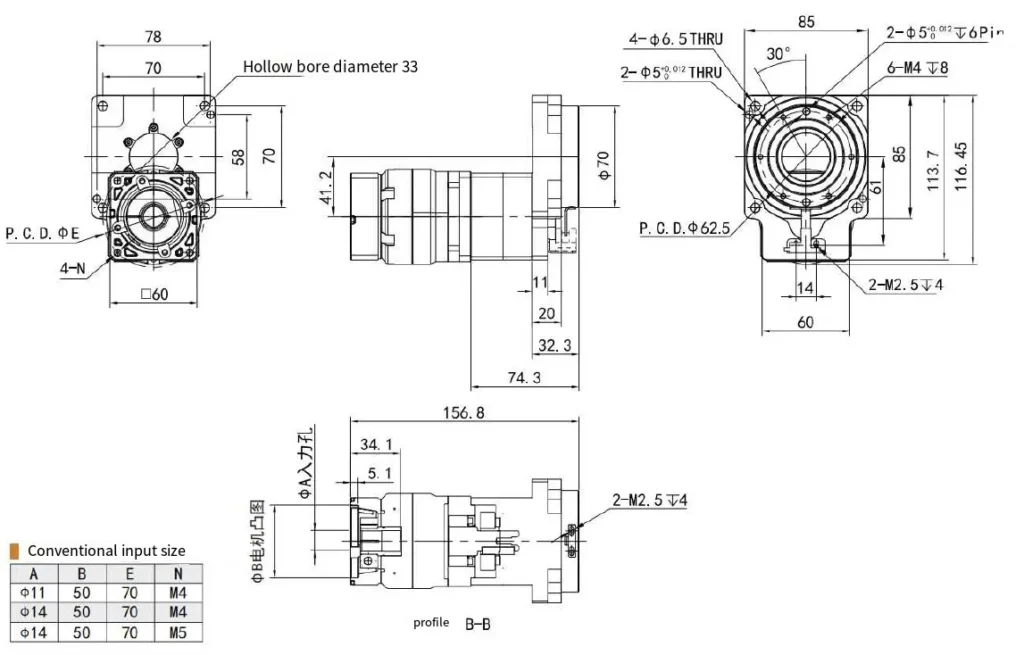

THG085-(i) Series Precision Hollow Rotating Platform Diagram:

Usage Method of THG085 Series Precision Hollow Rotating Platform:

Using the THG085 series precision hollow rotating platform is straightforward and user-friendly. Here's a step-by-step guide to help you get started:

1. Mounting

• Begin by securely mounting the rotating platform to a stable surface or structure, following the manufacturer's instructions and guidelines.
• Ensure proper alignment and stability to achieve accurate and stable rotational motion.

2. Power and Control Connection

• Connect the rotating platform to a suitable power supply, following the manufacturer's instructions and local electrical codes.
• Establish the necessary control connections through a dedicated controller or integration with a more extensive motion control system.

3. Configuration and Programming

• Configure the rotational parameters, such as speed, acceleration, and positioning, based on your specific application requirements.
• Program the platform's motion control system to achieve the desired rotational behavior and control options.

4. Operation

• Once the platform is mounted, powered, and properly configured, you can initiate rotational motion according to your programmed parameters.
• Experience the precision and versatility of the THG085 series precision hollow rotating platform.

Characteristics Of Hollow Rotating Platform:

Mono Product

TH series is a combination of hollow, rotating platforms and servo motor products. The internal structure of the platform is a deceleration ratio, which can realize off-output drive.

Short Time Positioning

Inertial load positioning can be realized in a short time.

High Precision Positioning Without Backlash

No backlash helical helical teeth, grinding machine gear, gear module to achieve high torque repeated positioning accuracy ±5arcsrc (±0.001°)* Accuracy is the value at a certain load and a certain temperature (normal temperature)

Reduce Design Time And Delivery Time

Output platform A workbench or robotic arm for mounting equipment directly. Compared with the use of belt, belt pulley and other mechanism parts, it can reduce the time of mechanism design, parts allocation, belt tension adjustment and cost saving equipment design time, which helps to shorten the delivery time.

Large Diameter Hollow Output Platform Saves Wiring And Piping

The large diameter hollow hole (through) can be used in the distribution pipe around the shuttle, which can simplify the equipment design.

Internal Structure Of The Hollow Rotating Platform:

Example of Use:

Installation direction free designTH rotating platform, in addition to horizontal installation, can be installed vertically or upside down; the device design range is wide.Please note when using:The hollow rotary transmission occasionally has a small amount of oil leaking out.If the oil leakage causes pollution to the surrounding environment, please check regularly.Check to confirm or install the oil tray and other devices.

Model Identification Method:

Hollow rotating platform:The motor can refer to the example diagram to provide the relevant size.

About Us:

Our company is a research and development, design, production, processing, sales in one of the transmission enterprises.Since its establishment, the company has introduced advanced production equipment and precision testing equipment to continuously develop, improve and perfect products. Strive to create perfect high-end transmission products and supporting solutions for customers.
