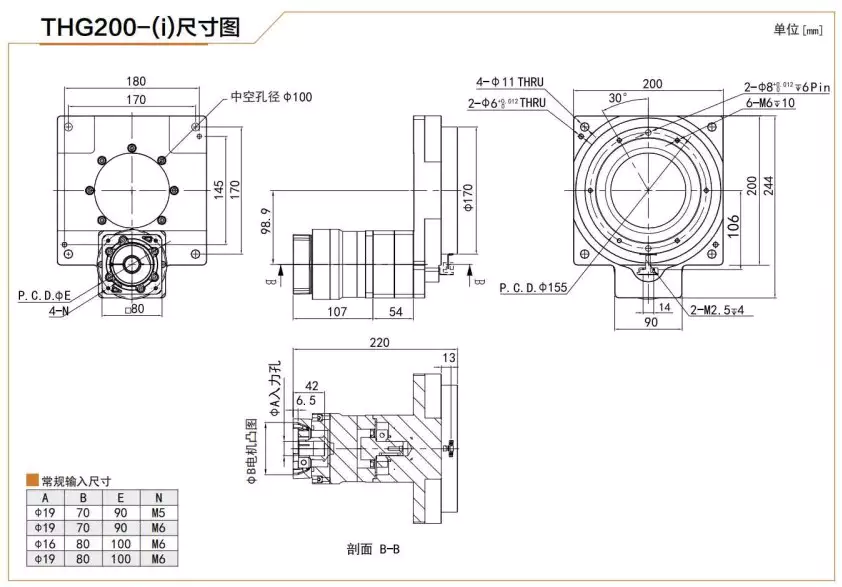

THG200 Hollow Rotary Actuator Rotating Platform Table With High Precision Planetary Gearbox

THG200 Hollow Rotary Actuator Rotating Platform Table With High Precision Planetary Gearbox

THG200 hollow rotary actuator Rotating Platform Table With High Precision Planetary Gearbox is a type of rotary actuator that has a hollow core which allows cables, fluid lines, or other necessary components to pass through the center of the actuator without affecting the rotation of the actuator itself. It is also known as Hollow Rotary Platform and Hollow Rotary Table. This product has a high precision planetary gearbox and is widely used in various applications due to its compact design and high torque output.

Technical Parameter

Specifications	THG200(i)
Reduction ratio	30/40/50/70/80/100
Rated torque	130/140/160/140/120/100Nm
Adapted motor	750W AC Servo motor
Emergency stop torque	3x rated torque
Rated input speed	4000rpm
Maximum input speed	8000rpm
Return gap	≤1arcmin
Torsional rigidity	14Mn/arcmin
Permissible radial force	3520N
Permissible axial force	1625N
Service life	20000hr （Continuous operation reduces service life by 50%)
Transmission efficiency	97%
Working temperature	-10-+90℃
Protection level	IP65
Lubrication	synthetic lubricating oil and grease
Noise	≤60dB(A)
Moment of inertia	0.48kg.cm²
Weight	11.7kg

Basic Construction of Hollow Rotary Actuator

The basic construction of the Hollow Rotary Actuator includes:

1. Cross roller bearing
2. Precision gear
3. Input mounting flange
4. Input shaft
5. Sensing device

Cross Roller Bearing

The cross roller bearing is designed to handle both radial and axial loads. It provides high rigidity and accuracy for the actuator.

Precision Gear

The precision gear is used to transmit power from the input shaft to the output shaft. It is a high-precision component that ensures the accuracy and efficiency of the actuator.

Input Mounting Flange

The input mounting flange is used to connect the actuator to the driving source, such as a motor or a gearbox.

Input Shaft

The input shaft is used to transmit power from the driving source to the actuator. It is connected to the precision gear.

Sensing Device

The sensing device is used to detect the position of the actuator and provide feedback to the control system. This allows for precise position control of the actuator.The Hollow Rotary Actuator uses a driving source, a transmission mechanism, a hollow shaft design, position control and feedback, and load application to achieve precise and continuous rotation in various applications.

Working Principle of Hollow Rotary Actuator

The working principle of Hollow Rotary Actuator can be divided into five parts:

1. Driving source
2. Transmission mechanism
3. Hollow shaft design
4. Position control and feedback
5. Load application

The driving source is usually a motor, such as a servo motor, stepper motor, or DC motor. The motor converts electrical energy into mechanical energy and transmits it to the transmission system. The transmission system usually includes a set of precision gears, such as a planetary gearbox. The power from the motor is transmitted to the sun gear, which drives a set of planetary gears that rotate around the sun gear and also rotate around their own axis. This achieves torque amplification and reduces the rotation speed. The hollow shaft design allows cables, fluid lines, or other necessary components to pass through the center of the actuator without affecting the rotation of the actuator itself. The position control and feedback system includes position sensors, such as encoders or magnetostrictive displacement sensors, which detect the rotation angle of the actuator and provide data to the control system. Load application is achieved by connecting the output end of the actuator to the load through a flange or other interface.The Hollow Rotary Actuator provides high torque output in a compact size, which makes it suitable for various applications that require precise and continuous rotation.

Design and Selection Considerations for Hollow Rotary Actuator

Consideration	Description
Load Characteristics	The weight, size, shape, and rotation speed of the load
Operating Environment	The temperature, humidity, dust, and other environmental factors
Mounting Position	The orientation and direction of the actuator with respect to the load
Accuracy Requirements	The precision and repeatability required for the application
Power Requirements	The voltage, current, and power source required for the driving source

Applications of Hollow Rotary Actuator

The Hollow Rotary Actuator has a wide range of applications in various fields, including:

1. Robotics
2. Aerospace
3. Medical equipment
4. Military equipment
5. Optical instruments
6. Industrial automation

In robotics, the Hollow Rotary Actuator is used in robot joints to achieve precise and continuous rotation. In aerospace, it is used in satellite and telescope positioning systems. In medical equipment, it is used in CT scanners and radiation therapy machines. In military equipment, it is used in surveillance cameras and missile guidance systems. In optical instruments, it is used in telescopes and cameras. In industrial automation, it is used in assembly line equipment and packaging machinery.
