UCTB200 Pillow Block Bearings

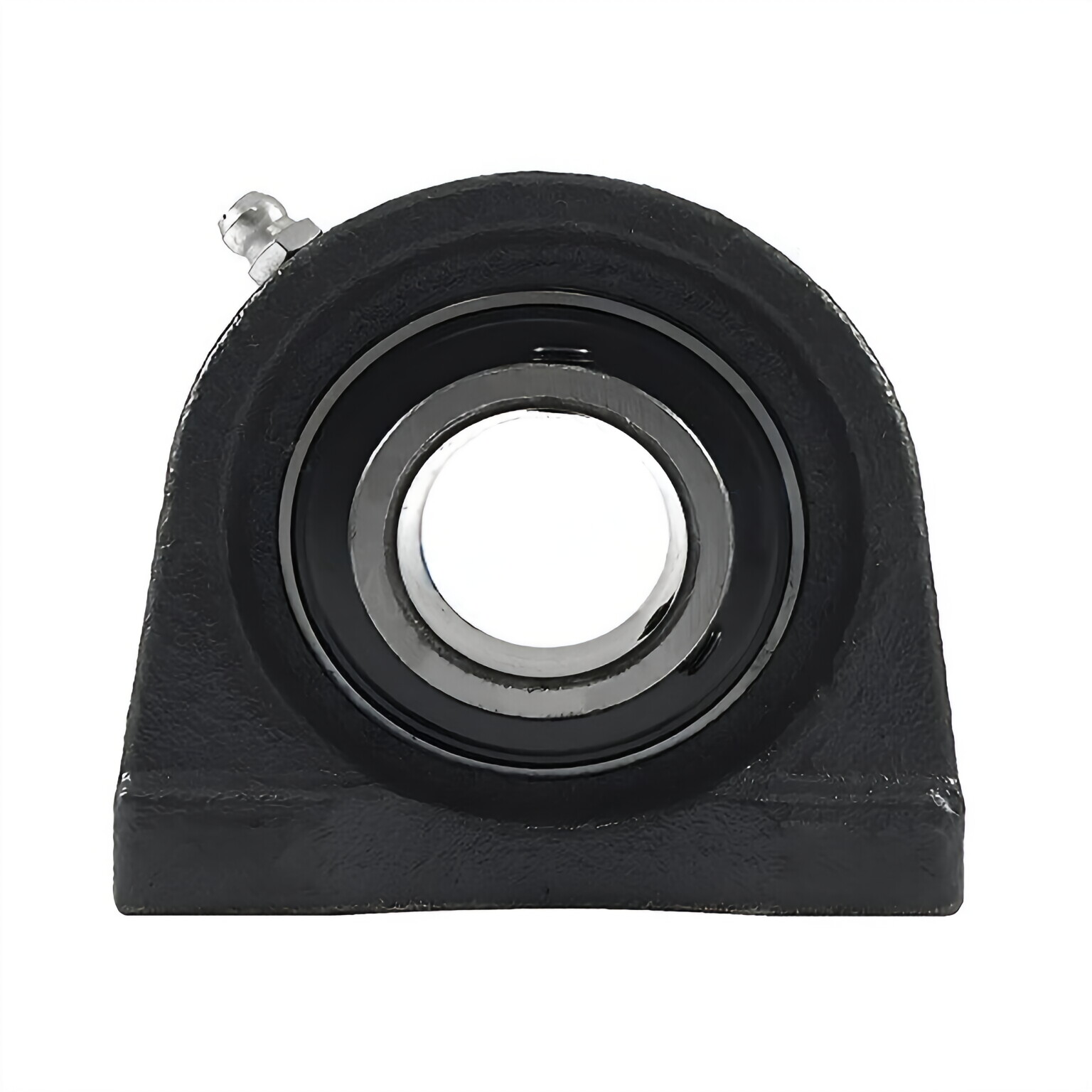

UCTB200 Pillow Block BearingsUCTB200 bearings are threaded base housing bearings secured to the shaft with set screws. Our premium UCTB200 bearings feature C3 precision inserts mounted in high-strength cast iron housings with an easy-access grease nipple for relubrication and bearing maintenance. We stock a full range of UCTB200 bearings in both imperial and metric bores. For more information or to get a quote, please get in touch with our customer service team, and we will be happy to assist you!

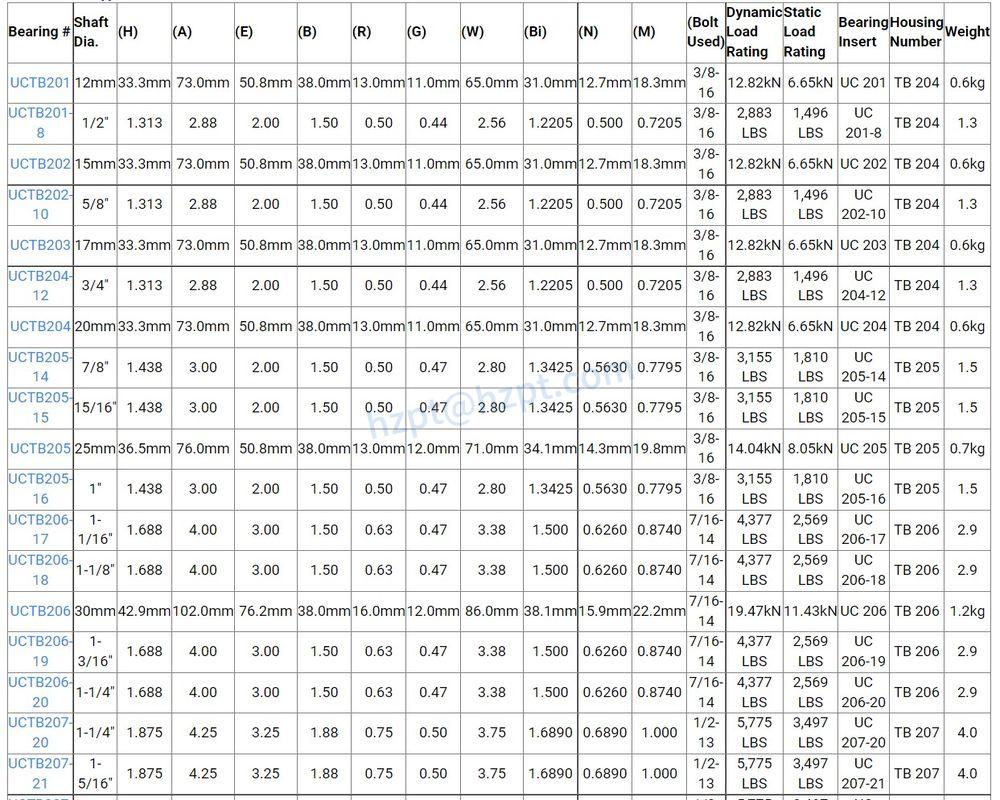

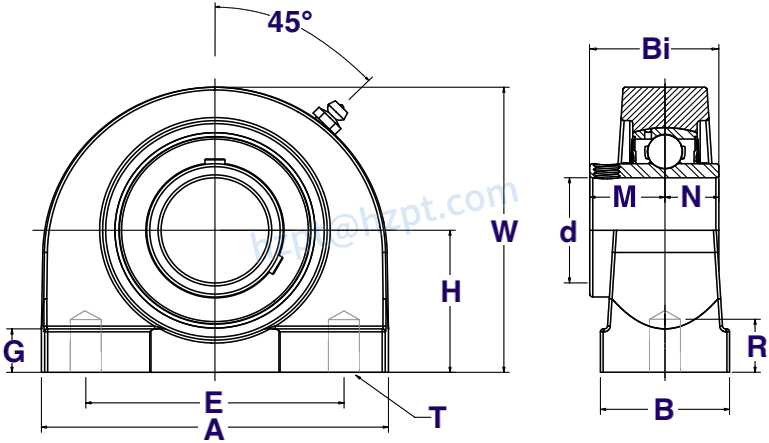

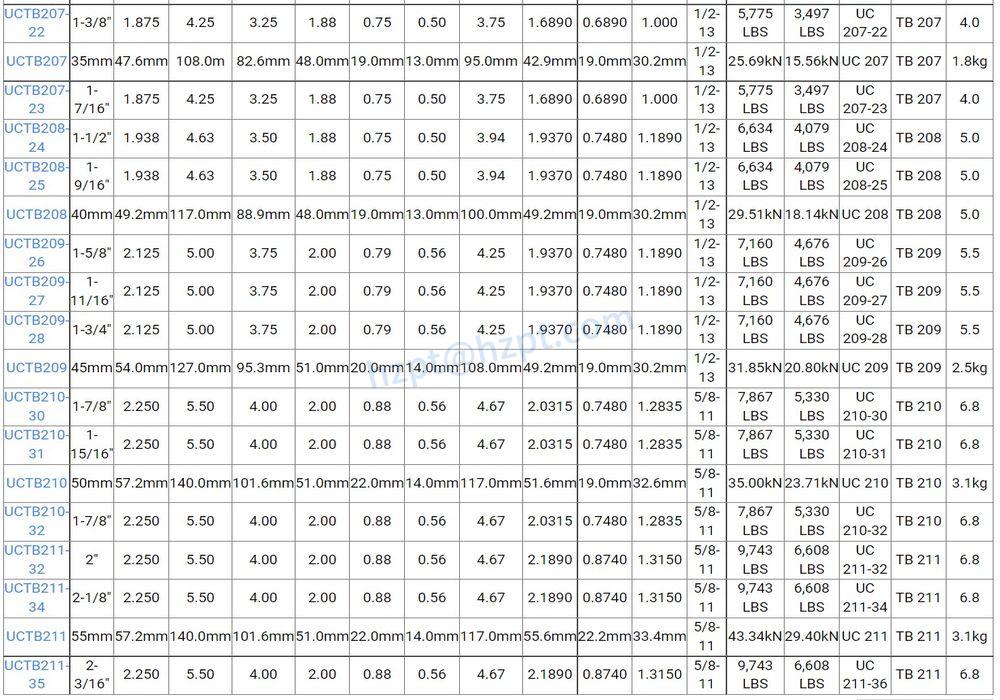

UCTB200 Bearing Sizes

Product parameters

Applications of UCTB200 Pillow Block Bearings

These bearings are standard bearings and are commonly found in the following applications:

• Automotive
• Agriculture
• Construction
• Conveyors
• Plant machinery

How to Choose Pillow Block Bearing?

1. Shaft diameter or bore of pillow block bearing: calculate the loads according to the customer's selection, and determine the shaft diameter or the bore of pillow block bearing with sufficient rigidity and deflection.
2. Shaft height position: Determine the height of the shaft center from the mounting base of the pillow block bearing according to the structure size of the mechanism.
3. The maximum shaft speed: According to the operating speed of the shaft, Raydafon, as a professional pillow block bearing supplier, determines whether the limit speed of the bearing with a seat can meet the application requirements.
4. The maximum load of the pillow block bearing: According to the limitation of the entire shafting system, the burden of the pillow block bearing would be verified, including the fatigue life of the bearing and the strength of the pillow blocks.
5. Misalignment performance: According to the misalignment information required in the shafting design, select the appropriate type and configuration of pillow block bearing.
