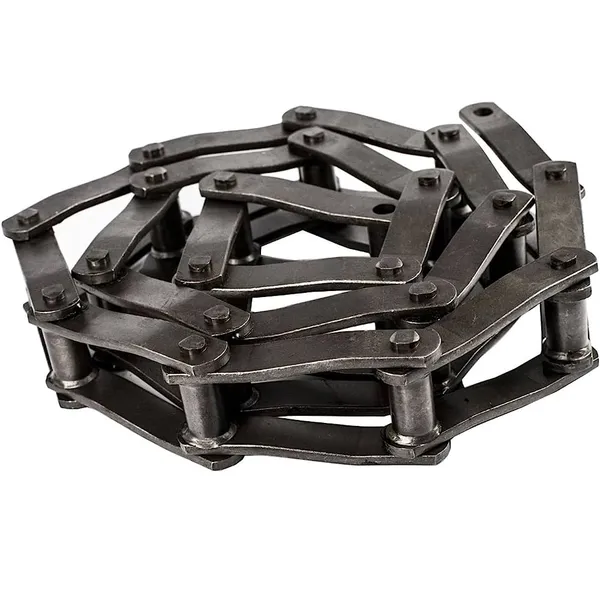

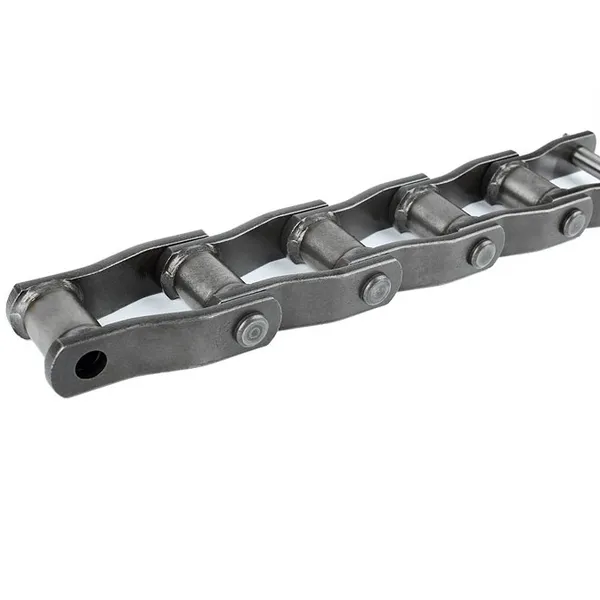

WH124 Chain WH124 Welded Steel Mill Chain

WH124 Chain WH124 Welded Steel Mill Chain

The WH124 welded steel mill chain is a high-strength, rollerless chain that is designed for use in demanding applications. It is made of heat-treated steel and has an offset link design that allows for high speeds and minimal lubrication. The WH124 chain is commonly used in the wood and paper processing industries, as well as in conveying and elevating applications.Here are some of the key features of the WH124 welded steel mill chain:

• High tensile strength: The WH124 chain has a tensile strength of 60,000 pounds, which makes it ideal for use in high-load applications.
• Offset link design: The offset link design allows the chain to run smoothly at high speeds and reduces the amount of lubrication required.
• Heat-treated steel: The heat-treated steel components of the WH124 chain provide excellent wear resistance and durability.
• Wide range of applications: The WH124 chain is versatile and can be used in a variety of applications, including conveying, elevating, and wood and paper processing.

If you are looking for a high-strength, rollerless chain for use in demanding applications, the WH124 welded steel mill chain is a great option. It is made of heat-treated steel, has an offset link design, and is available in a wide range of sizes.

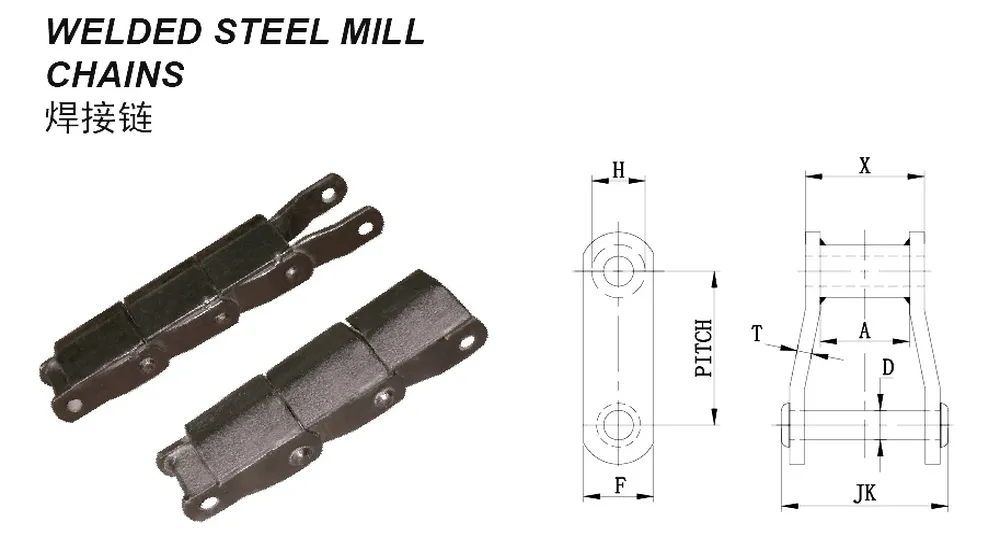

▍WH124 Chain?(Welded Steel Mill Chain) Dimensions:

Chain No.	Pitch	Average Ultimate Strength LBS.	Rated Working Load LBS.	?Approx Link in 10 Feet	Average Weight Per Foot	X	D	T	F	H	A
WH124 Chain	4.000	69000	7200	30	8.3	2.75	0.75	0.38	1.50	1.25	1.50

▍Benefits of WH124 Welded Steel Mill Chain:

The WH124 welded steel mill chain offers a number of benefits, including:1. High tensile strength:?The WH124 chain has a tensile strength of 60,000 pounds, which makes it ideal for use in high-load applications.2. Offset link design: The offset link design allows the WH124 chain to run smoothly at high speeds and reduces the amount of lubrication required.3. Heat-treated steel:?The heat-treated steel components of the WH124 chain provide excellent wear resistance and durability.4. Wide range of applications:?The WH124 chain is versatile and can be used in a variety of applications, including conveying, elevating, and wood and paper processing.5. Low maintenance:?The WH124 chain requires minimal lubrication, which can save you time and money in the long run.6. Long lifespan:?The WH124 chain is built to last, so you can expect many years of reliable service.Overall, the WH124 welded steel chain is a high-quality chain that offers a number of benefits. If you are looking for a strong, durable, and low-maintenance chain for your industrial application, the WH124 chain is a great option.

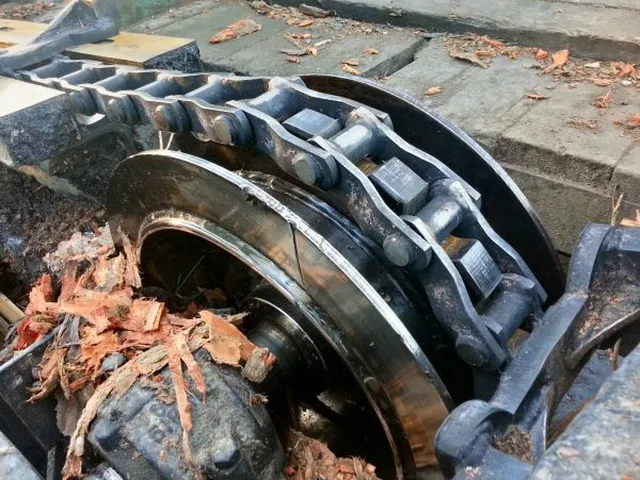

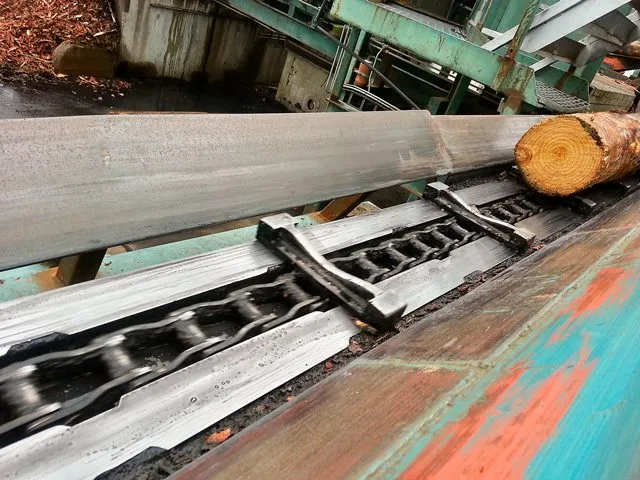

▍Applications of WH124 Welded Steel Mill Chain:

The WH124 welded steel mill chain is a versatile chain that can be used in a variety of applications. Some of the most common applications for the WH124 chain include:(1) Conveying:?The WH124 chain is commonly used in conveyor systems for transporting materials such as coal, grain, and wood.(2) Elevating:?The WH124 chain is also used in elevating systems for lifting materials such as pallets and containers.(3) Wood and paper processing:?The WH124 chain is a good choice for use in wood and paper processing applications due to its high strength and durability.(4) Mining:?The WH124 chain is also used in mining applications for transporting and elevating materials.(5) Wastewater treatment: The WH124 chain can also be used in wastewater treatment applications for transporting and elevating materials.(6) Material handling:?The WH124 chain can be used to handle a variety of materials, including heavy loads, abrasive materials, and materials that are prone to clogging.(7) Power transmission:?The WH124 chain can be used to transmit power in a variety of applications, including conveyor systems, hoists, and winches.(8) Construction:?The WH124 chain can be used in a variety of construction applications, including building materials handling, scaffolding, and excavation.The WH124 welded steel mill chain is a high-quality chain that is designed for use in demanding applications. It is made of heat-treated steel and has an offset link design that allows for high speeds and minimal lubrication. The WH124 chain is versatile and can be used in a variety of applications, including conveying, elevating, and wood and paper processing.We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like?roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains, agricultural chains, silent chains, PIV chains,?stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain,?drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
