WH150 Chain WH150 Welded Steel Mill Chain

Discover Raydafon Group's WH150 Chain, a welded steel mill chain built for durability and precision. Engineered with high-grade steel, it excels in heavy-duty applications like milling and conveying, offering unmatched strength and long-lasting performance. Ideal for industrial professionals and manufacturers, this chain ensures reliable operation, reducing downtime and boosting efficiency. Feel confident with a product that withstands extreme conditions, solving wear-and-tear issues effortlessly. Its superior welding and robust design set it apart from competitors. Choose Raydafon Group for quality you can trust.

Send Inquiry

Product Description

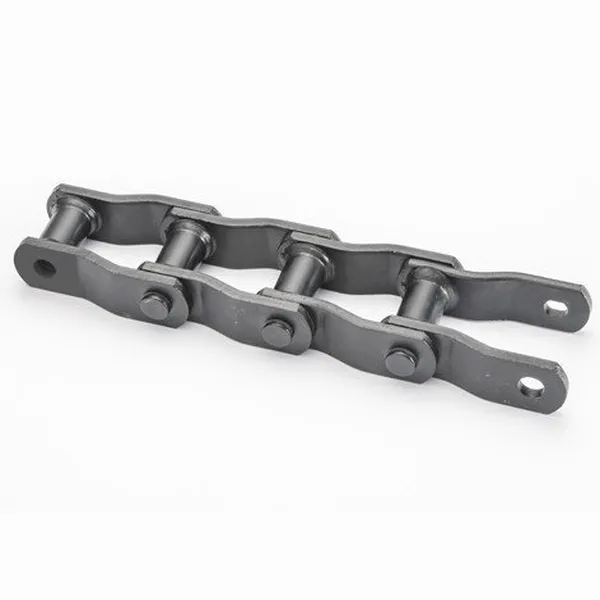

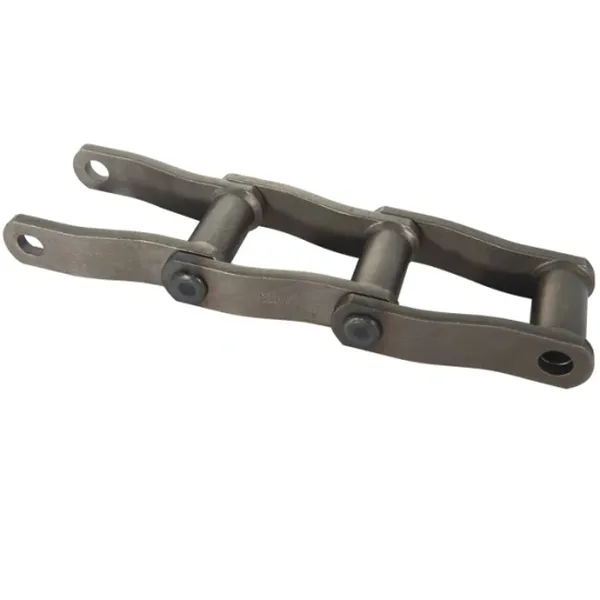

WH150 Chain WH150 Welded Steel Mill Chain

The WH150 welded steel mill chain is a high-strength, rollerless chain that is used in a variety of applications, including conveying, driving, and elevating. It is made of welded steel with an offset link design, which makes it more versatile and durable than other types of chains. The WH150 chain has a tensile strength of 144,000 pounds and a low per-foot weight of 16.8 pounds, making it an efficient and cost-effective choice for many applications.Here are some of the key features of the WH150 welded steel mill chain:

High tensile strength: 144,000 pounds
Low per foot weight: 16.8 pounds
Offset link design
Fully heat-treated pins, barrels, and side-plates
High-precision strengthened welds
Easy attachment weldability

The WH150 welded steel mill chain is a versatile and durable chain that is well-suited for a variety of applications. It is commonly used in the wood and paper processing industries, as well as in mining, construction, and other demanding environments.

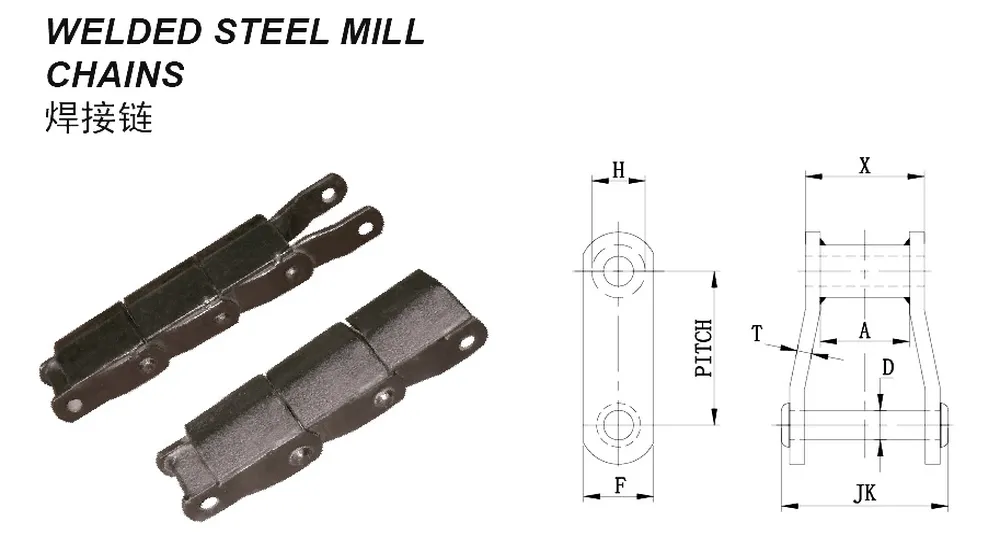

▍WH150 Welded Steel Mill Chain Dimensions:

Chain No.	Pitch	Average Ultimate Strength LBS.	Rated Working Load LBS.	?Approx Link in 10 Feet	Average Weight Per Foot	X	D	T	F	H	A
WH150 Chain	6.050	116000	15300	20	16.8	4.38	1.00	0.50	2.50	1.62	2.88

▍WH150 Welded Steel Mill Chain Design Features:

The WH150 welded steel mill chain is designed with several features that make it well-suited for heavy-duty industrial applications. Here are some of its key design features:(1) Offset link designThe WH150 chain has an offset link design, which means that the pins are offset from the center of the link plates. This design provides a number of benefits, including:

Increased strength: The offset design makes the chain more resistant to bending and twisting, which can improve its overall strength.
Reduced wear: The offset design helps to distribute the load more evenly across the chain, which can help to reduce wear on the pins and link plates.
Improved chain alignment: The offset design helps to keep the chain aligned properly, which can improve its efficiency and reduce the risk of chain breakage.

(2) Fully heat-treated pins, barrels, and side-platesThe pins, barrels, and side plates of the WH150 chain are all fully heat treated. This process increases the hardness of these components, which makes them more resistant to wear and tear.(3) High-precision strengthened weldsThe welds on the WH150 chain are made with high precision and are strengthened to improve their durability. This helps to ensure that the chain will not break or come apart under heavy loads.(4) Easy attachment weldabilityThe WH150 chain is designed to be easily welded to sprockets and other attachments. This makes it easy to customize the chain for specific applications.Overall, the WH150 welded steel mill chain is a high-strength, durable, and versatile chain that is well-suited for demanding applications. Its offset link design, fully heat-treated components, and high-precision strengthened welds all contribute to its strength and durability. The WH150 chain is also easy to weld to sprockets and other attachments, making it easy to customize for specific applications.

▍WH150 Chain Attachments:

WH150 chain attachments can be supplied onto the WH150 chain in any spacing/ configuration needed.

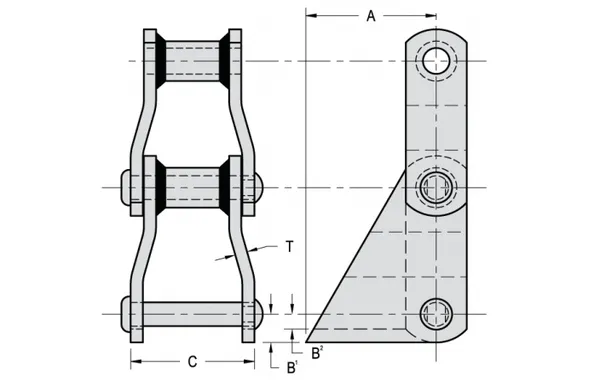

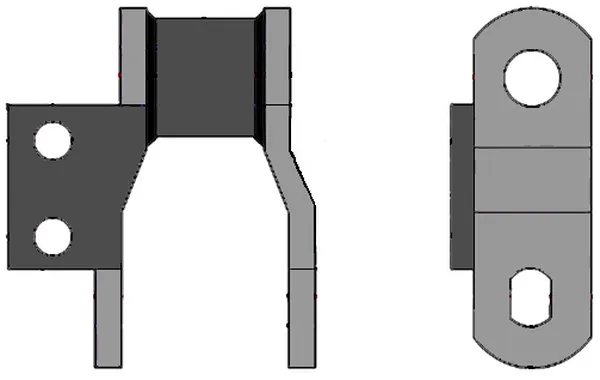

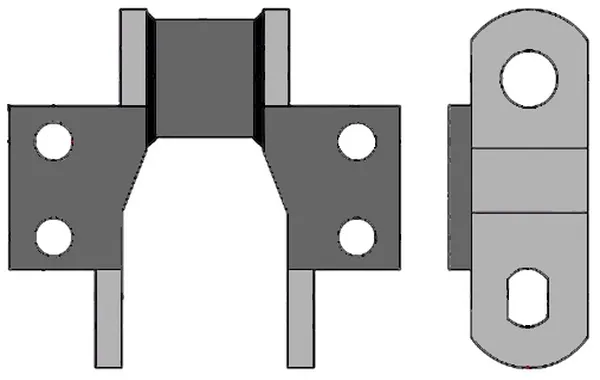

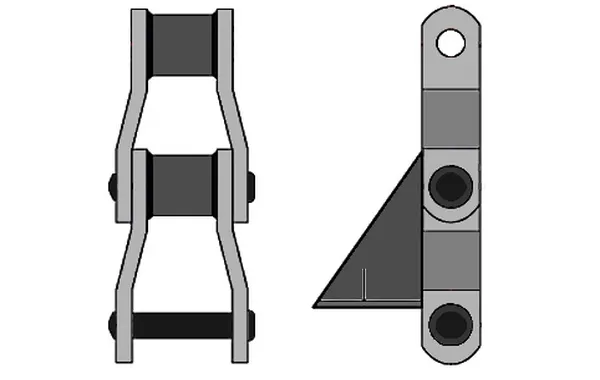

WH150 Chain A2 Attachment	WH150 Chain K2 Attachment	WH150 Chain S1 Attachment	WH150 Chain S2 Attachment

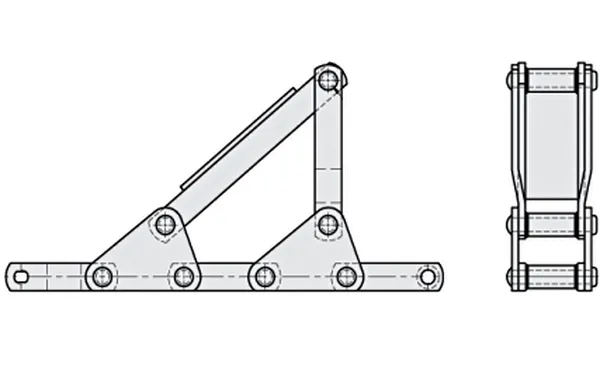

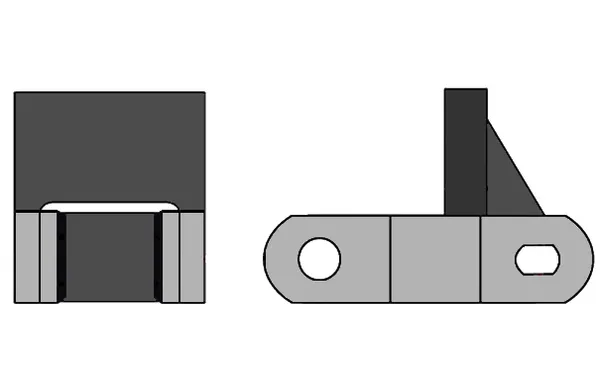

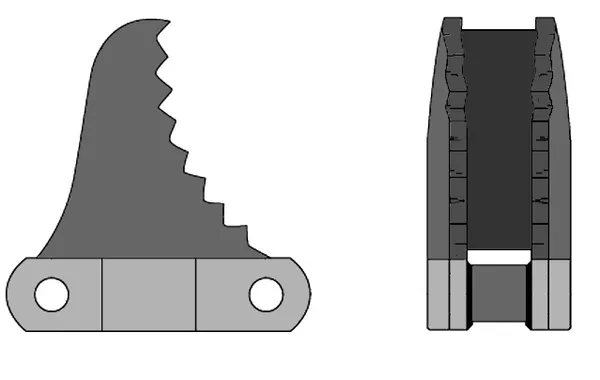

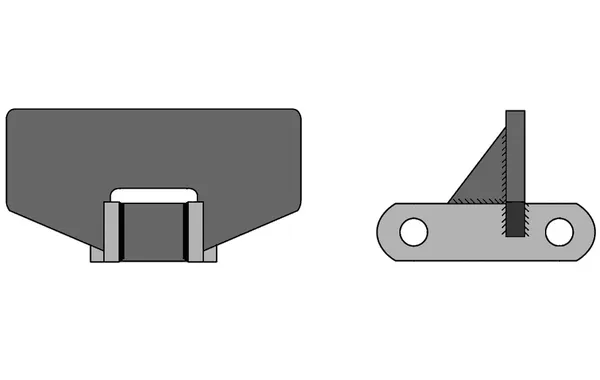

WH150 Chain RF2 Attachment	WH150 Chain RF12 Attachment	WH150 Chain Slasher Attachment	WH150 Chain Log Chair Attachment

▍WH150 Chain Sprockets and WH150 Welded Steel Chain

WH150 chain sprockets are made of steel and have a tooth profile that is designed to match the offset link design of the WH150 chain. They are available in a variety of sizes and tooth counts to accommodate different applications.WH150 welded steel chain is made of high-quality steel and has an offset link design that makes it more resistant to bending and twisting. It is also heat treated to improve its strength and durability. WH150 welded steel chain is available in a variety of lengths and sizes to accommodate different applications.Here are some of the key features of WH150 chain sprockets and WH150 welded steel chain:

High strength: Both WH150 chain sprockets and WH150 welded steel chains are made of high-quality steel, which gives them a high tensile strength.
Durability: Both WH150 chain sprockets and WH150 welded steel chains are heat treated to improve their strength and durability.
Versatile: WH150 chain sprockets and WH150 welded steel chains are available in a variety of sizes and tooth counts to accommodate different applications.
Easy to install: WH150 chain sprockets and WH150 welded steel chains are easy to install and maintain.

If you are looking for a high-strength, durable, and versatile chain and sprocket system, the WH150 chain is a good option to consider.

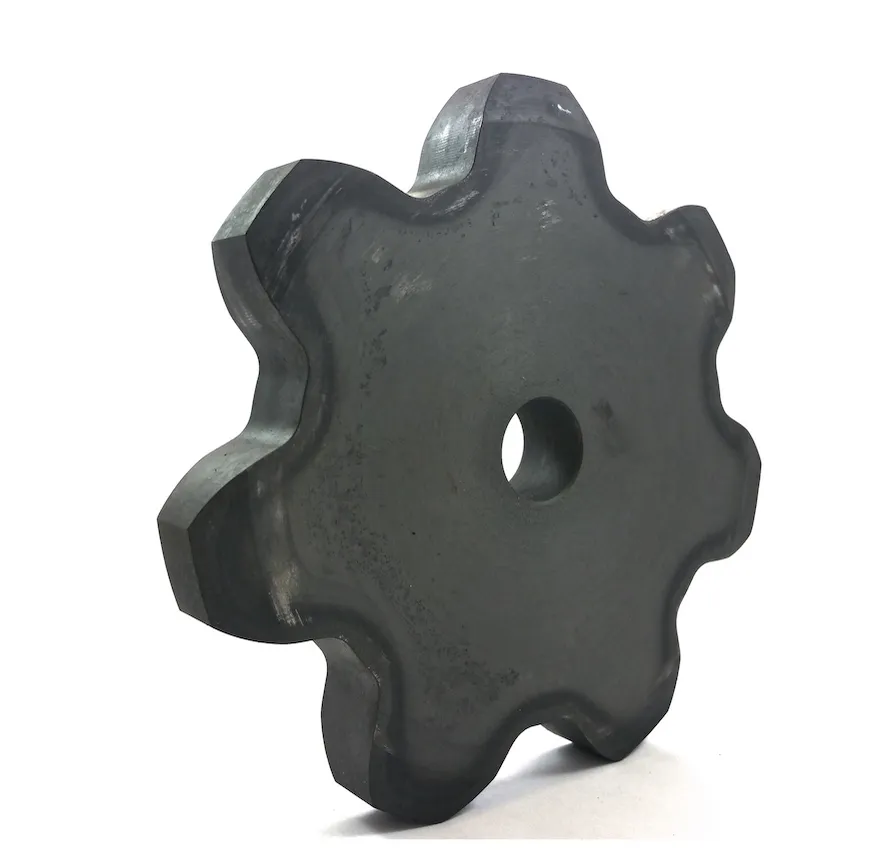

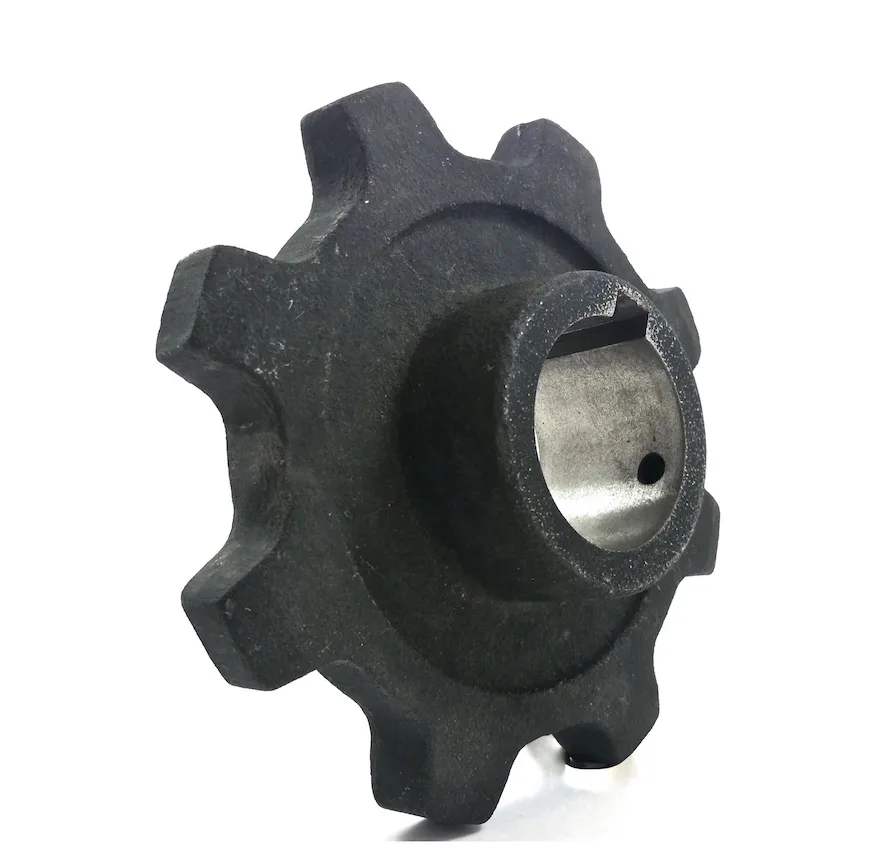

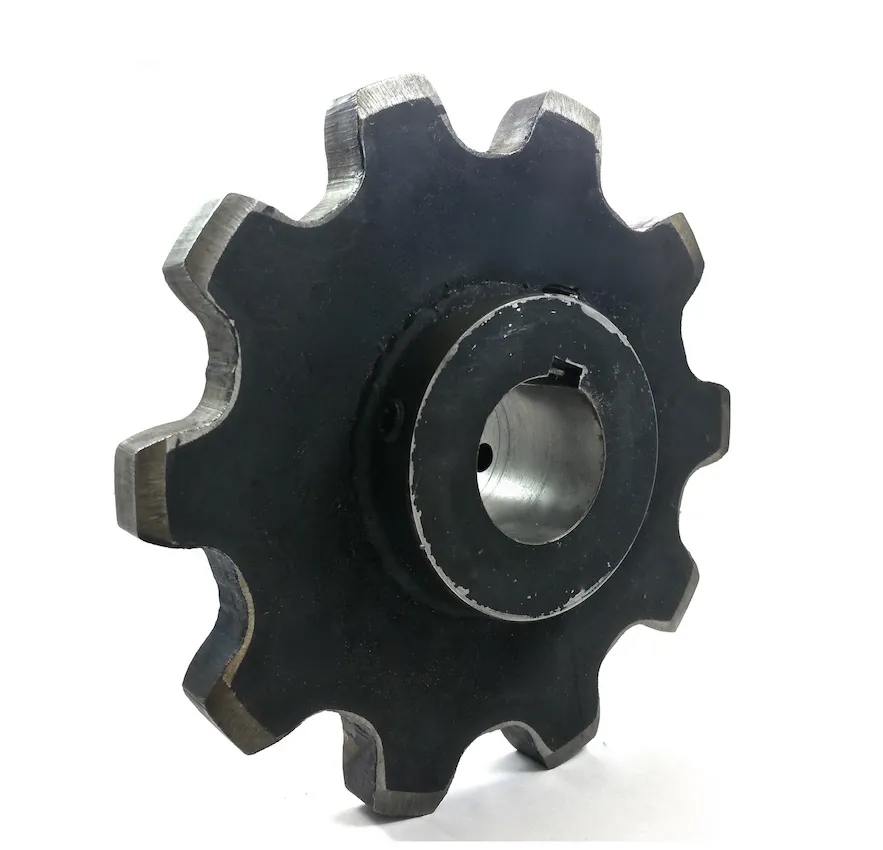

A-Plate WH150 Chain Sprockets	B-Hub WH150 Chain Sprockets	C-Hub WH150 Chain Sprockets

▍WH150 Welded Steel Mill Chain Lubrication:

Proper lubrication is essential for the long life and performance of the WH150 welded steel mill chain. The type of lubricant you use will depend on the application and the environment in which the chain is operating. However, there are some general guidelines that you can follow:

Use a lubricant that is compatible with the materials of the chain and sprockets.?Some lubricants can damage the chain or sprockets, so it is important to choose one that is specifically designed for use with steel chains.
Use a lubricant that will provide adequate lubrication in the operating environment.?If the chain is operating in a dusty or dirty environment, you will need to use a lubricant that can resist contamination.
Lubricate the chain regularly.?The frequency of lubrication will depend on the application and the environment, but it is generally recommended to lubricate the chain every 8 to 12 hours of operation.

Here are some additional tips for lubricating WH150 welded steel mill chain:

Apply the lubricant evenly to all of the chain links.?Be sure to get into the nooks and crannies of the chain.
Reapply the lubricant as needed.?The frequency of lubrication will depend on the application and the environment, but it is generally recommended to lubricate the chain every 8 to 12 hours of operation.
Clean the chain before lubricating it.?This will help to remove any dirt or debris that could interfere with the lubrication process.
Dispose of used lubricant properly.?Used lubricant can be harmful to the environment, so it is important to dispose of it properly.

By following these tips, you can help to ensure that your WH150 welded steel mill chain lasts for many years to come.

▍China Welded Steel Mill Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like?roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains,?agricultural chains, silent chains, PIV chains,?stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain,?drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
