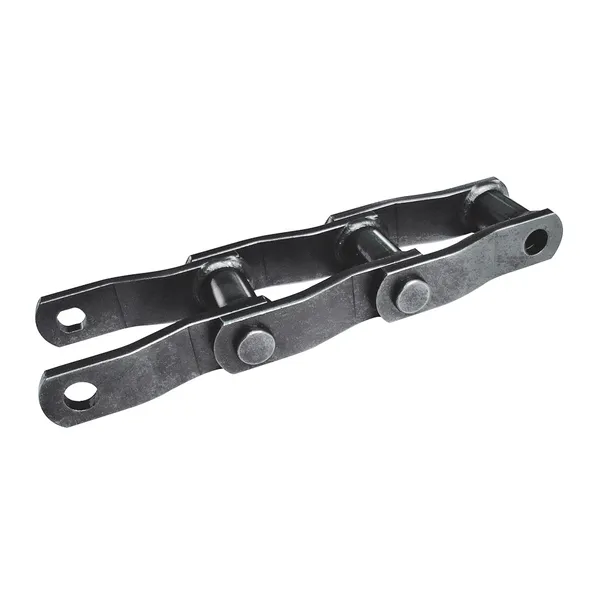

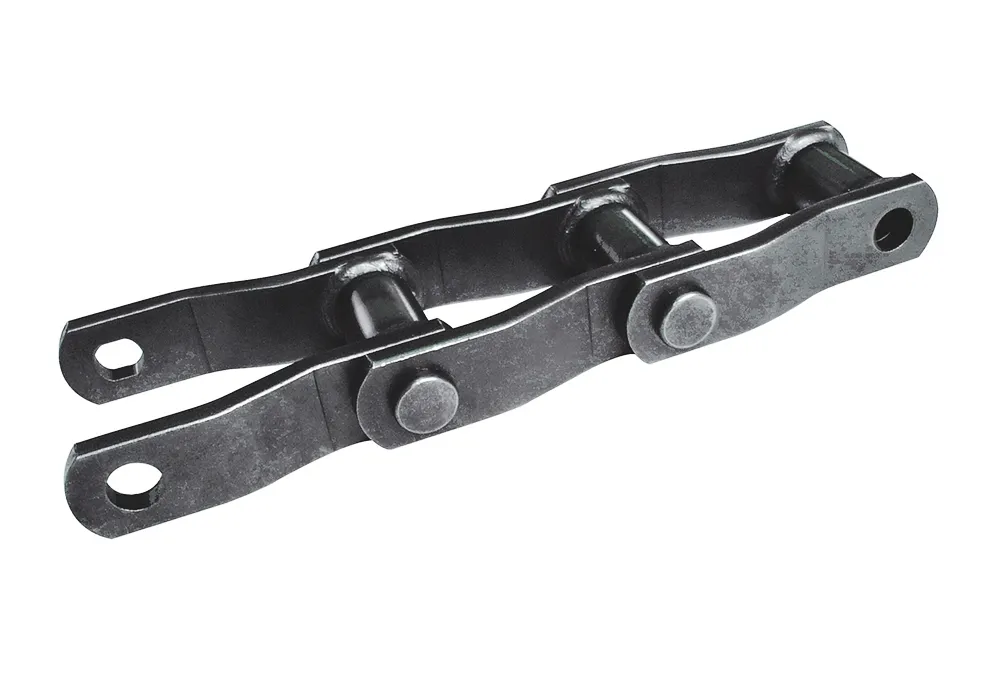

WH188 Welded Steel Mill Chain WH188 Chain

WH188 Welded Steel Mill Chain WH188 Chain

WH188 welded steel mill chain is a specific type of welded steel mill chain that is commonly used in heavy-duty industrial applications. It is a high-strength chain that is designed to withstand heavy loads and resist wear and tear in harsh operating conditions. The WH188 welded steel mill chain features a straight sidebar design, which provides increased strength and durability. The links of the chain are welded together at each end, which provides a more secure connection than other types of chains that use pins and cotter pins to connect the links.The WH188 welded steel mill chain has a pitch of 2.609 inches and a width between the inner plates of 1.500 inches. It is typically made from high-quality alloy steel, which provides excellent strength and durability. This type of welded steel chain is commonly used in heavy-duty applications such as steel mills, lumber mills, mining and quarrying, and other industries that require a strong and reliable chain to handle heavy loads. It may also come with various attachments, such as extended pins or pusher dogs, to allow for the attachment of other equipment or materials.Overall, the WH188 welded steel mill chain is a high-quality and reliable option for heavy-duty industrial applications that require a strong and durable chain.

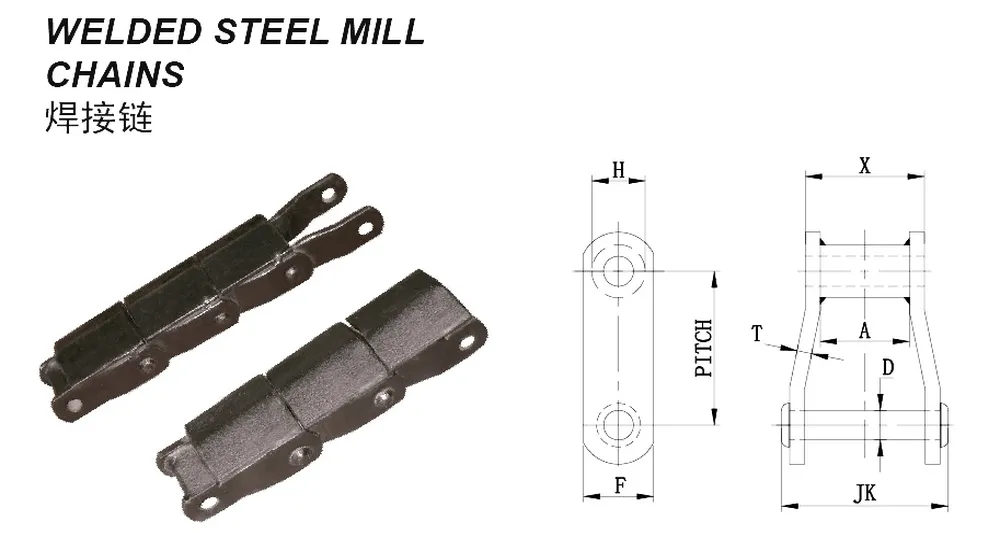

▍WH188 Welded Steel Mill Chain Specifications:

Chain No.	Pitch	Average Ultimate Strength LBS.	Rated Working Load LBS.	?Approx Link in 10 Feet	Average Weight Per Foot	X	D	T	F	H	A
WH188 Chain	2.609	30000	2850	46	3.8	1.62	0.50	0.25	1.12	0.88	0.88

▍WH188 Welded Steel Mill Chain Features:

The WH188 welded steel mill chain has several features that make it a popular choice for heavy-duty industrial applications. Here are some of its key features:1. High Strength: The WH188 welded steel mill chain is made from high-quality alloy steel, which provides excellent strength and durability. This makes it ideal for heavy-duty applications that require a strong and reliable chain.2. Straight Sidebar Design: The straight sidebar design of the WH188 welded steel mill chain provides increased strength and durability. This design also allows for better engagement with sprockets and other equipment, which can help to reduce wear and tear.3. Welded Construction: The links of the WH188 welded steel mill chain are welded together at each end, which provides a more secure connection than other types of chains that use pins and cotter pins to connect the links. This welded construction also helps to reduce the risk of chain failure.4. Wide Variety of Attachments: The WH188 welded steel mill chain is available with a wide variety of attachments, such as extended pins or pusher dogs. These attachments allow for the attachment of other equipment or materials, which can help to increase the versatility of the chain.5. Corrosion Resistance: The WH188 welded steel mill chain may also be coated or plated to provide additional corrosion resistance, which can help to extend the life of the chain in harsh operating conditions.Overall, the WH188 welded steel chain is a high-quality and reliable option for heavy-duty industrial applications that require a strong and durable chain. Its straight sidebar design, welded construction, and a wide variety of attachments make it a versatile choice for many different applications.

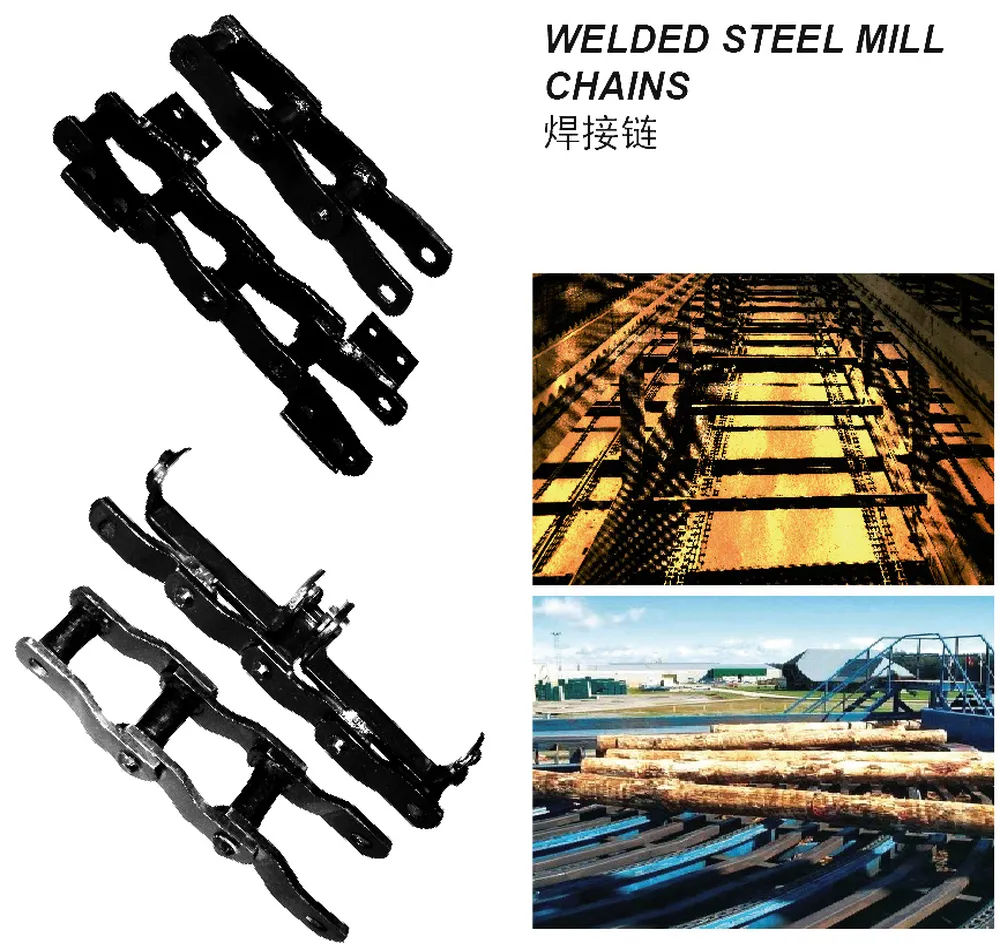

▍WH188 Welded Steel Mill Chain Applications:

The WH188 welded steel mill chain is a popular choice for heavy-duty industrial applications that require a strong and reliable chain. Here are some of the common applications of this type of WH188 chain:(1) Steel Mills: The WH188 welded steel mill chain is commonly used in steel mills for applications such as conveying raw materials, finished products, and waste materials. Its high strength and durability make it ideal for handling heavy loads in harsh operating conditions.(2) Lumber Mills: The WH188 welded steel mill chain is also used in lumber mills for applications such as conveying logs, finished lumber, and waste materials. Its straight sidebar design and welded construction make it well-suited to handling the rough and heavy materials used in lumber mills.(3) Mining and Quarrying: The WH188 chain is used in mining and quarrying for applications such as conveying materials and equipment. Its high strength and durability make it ideal for handling heavy loads in challenging environments.(4) Cement Plants: The WH188 welded steel mill chain is also used in cement plants for applications such as conveying raw materials, finished products, and waste materials. Its ability to handle heavy loads and resist wear and tear makes it well-suited to the demanding environment of cement plants.(5) Heavy Machinery: The WH188 welded steel chain is used in heavy machinery for applications such as power transmission and conveying. Its straight sidebar design and welded construction make it well-suited to handling the high loads and stresses associated with heavy machinery.

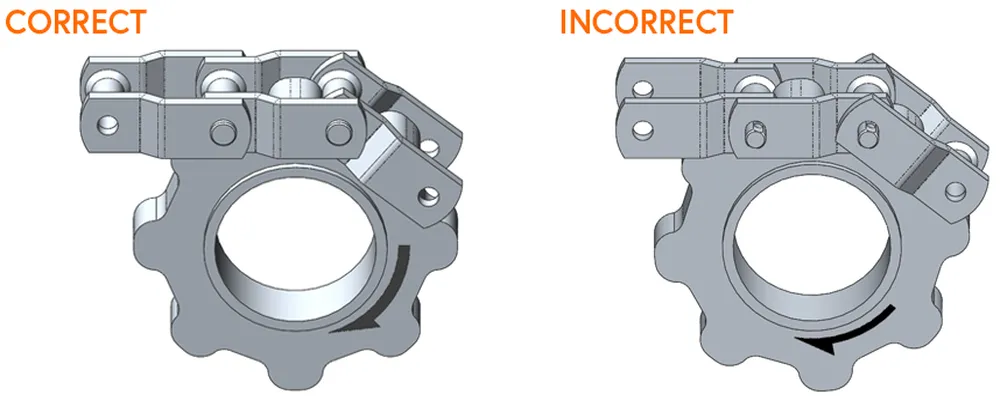

▍Welded Steel Mill Chain Sprockets for WH188 Chain

Welded steel mill chain sprockets are designed to work in conjunction with welded steel mill chains, such as the WH188 chain. Welded steel mill chain sprockets is a toothed wheel that is mounted on a shaft and is used to transmit rotary motion between two shafts or between a shaft and a chain. The WH188 welded steel chain is commonly used with sprockets that have 188 teeth, which corresponds to the pitch of the chain. The welded steel mill chain sprockets are typically made from high-quality steel and are designed to withstand the high loads and stresses associated with heavy-duty industrial applications.The teeth on the welded steel mill chain sprockets mesh with the links on the chain to transmit torque and power between the two shafts. The number of teeth on the sprocket determines the speed and torque ratio between the two shafts. The welded steel mill chain sprockets used with the WH188 welded steel chain typically have a straight-tooth design, which provides increased strength and durability. The teeth on the welded steel mill chain sprockets are also typically hardened to resist wear and tear and extend the life of the sprocket.Overall, the combination of the WH188 welded steel mill chain and welded steel mill chain sprockets is a reliable and durable solution for heavy-duty industrial applications that require the transmission of rotary motion between two shafts.We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like?roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, agricultural chains, silent chains, PIV chains,?stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
