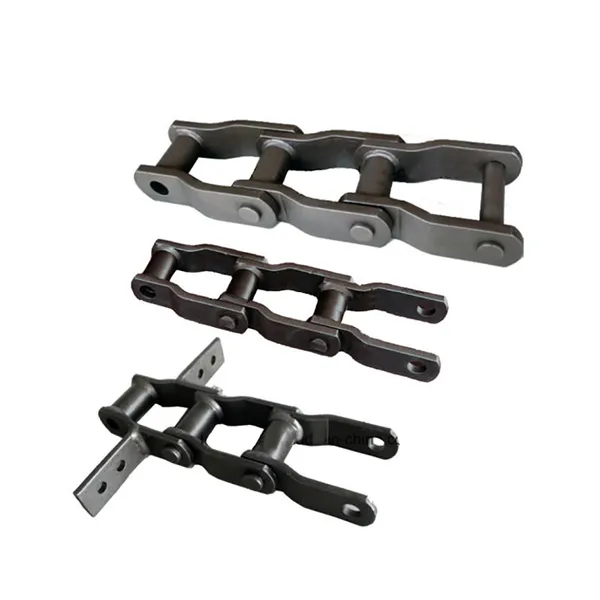

WH78-4 Chain WH78-4 Welded Steel Mill Chain

WH78-4 Chain WH78-4 Welded Steel Mill Chain

The WH78-4 welded steel mill chain is a high-strength, durable rollerless chain that is often recommended for most conveying, driving, and elevating applications. It is made of alloy steel parts and has heat-treated pins, which makes it a consistent and reliable part of everyday operations. WH78-4 chain is commonly used in forestry and lumber applications where heavy-duty conveyor applications are required. It is also available in stainless steel.Here are some of the key features of the WH78-4 welded steel mill chain:

• High strength and durability
• Rollerless design for smooth operation
• Heat-treated pins for long wear life
• Preloaded chain for accurate pitch control
• Available in alloy steel or stainless steel

If you are looking for a high-quality, durable, and reliable rollerless chain for your conveying, driving, or elevating applications, then the WH78-4 welded steel mill chain is a great option.

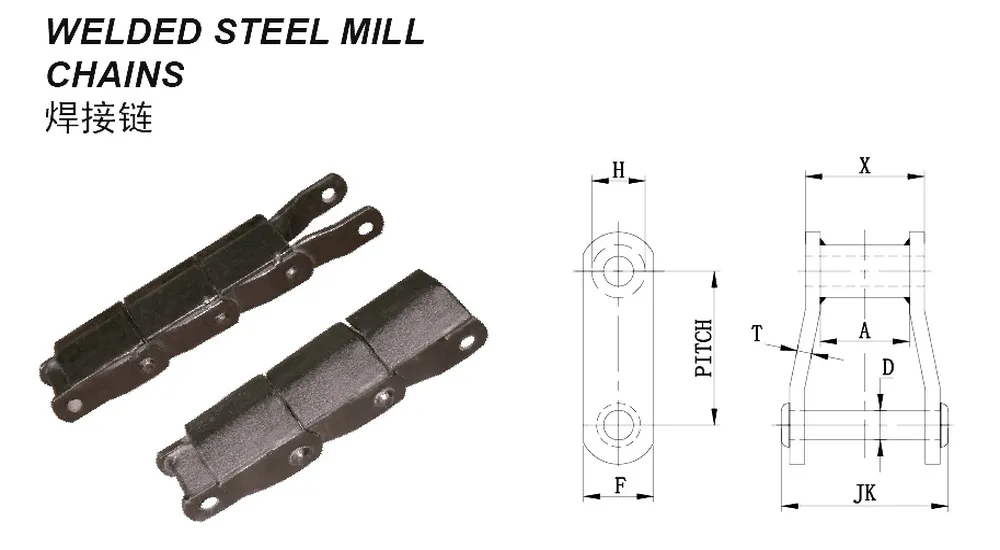

▍WH78-4 Welded Steel Mill Chain Dimensions:

Chain No.	Pitch	Average Ultimate Strength LBS.	Rated Working Load LBS.	?Approx Link in 10 Feet	Average Weight Per Foot	X	D	T	F	H	A
WH78-4 Chain	4.000	30000	3500	30	4.0	2.00	0.50	0.25	1.12	0.88	1.12

▍Advantages of WH78-4 Welded Steel Mill Chain:

The WH78-4 welded steel mill chain has many advantages over other types of chains, including:1. High strength and durability: The WH78-4 welded steel mill chain is made of alloy steel parts and has heat-treated pins, which makes it very strong and durable. It can withstand heavy loads and harsh conditions.2. Rollerless design for smooth operation:?The WH78-4 chain does not have rollers, which makes it very smooth to operate. This is important in applications where there is a lot of vibration or shock.3. Heat-treated pins for long wear life: The pins in the WH78-4 welded steel mill chain are heat-treated, which makes them very strong and resistant to wear. This means that the chain will last longer and require less maintenance.4. Preloaded chain for accurate pitch control:?The WH78-4 chain is preloaded, which means that the links are always in the correct position. This ensures accurate pitch control and smooth operation.5. Available in alloy steel or stainless steel: The WH78-4 welded steel mill chain is available in both alloy steel and stainless steel. This makes it suitable for a wide range of applications, including those where corrosion resistance is important.Overall, the WH78-4 welded steel mill chain is a high-quality, durable, and reliable chain that is ideal for a variety of applications.

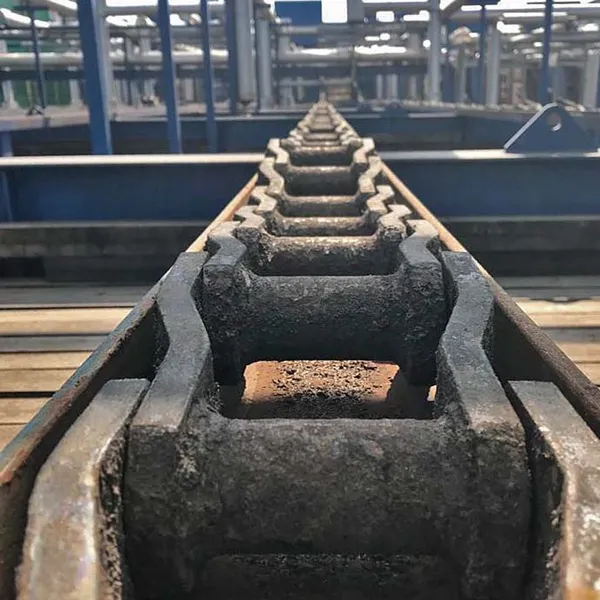

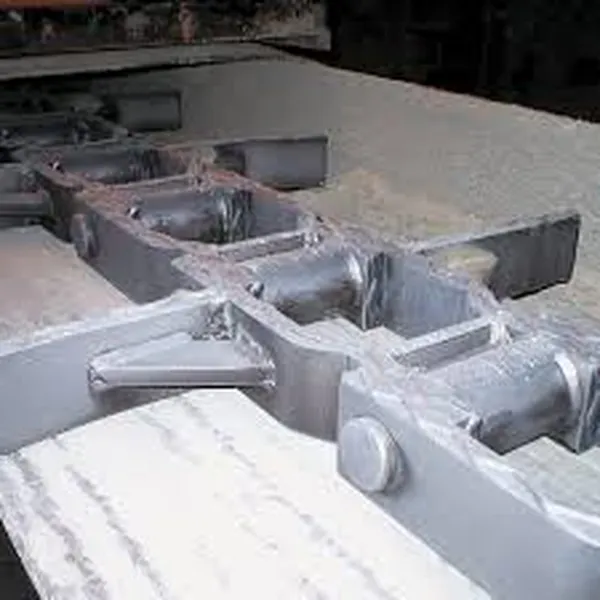

▍WH78-4 Welded Steel Mill Chain Common Applications:

The WH78-4 welded steel mill chain is a high-strength, durable rollerless chain that is often recommended for most conveying, driving, and elevating applications. It is made of alloy steel parts and has heat-treated pins, which makes it a consistent and reliable part of everyday operations. WH78-4 chain is commonly used in forestry and lumber applications where heavy-duty conveyor applications are required. It is also available in stainless steel.Here are some of the common applications for WH78-4 welded steel mill chains:Heavy-duty conveyors: The WH78-4 welded steel mill chain is often used in heavy-duty conveyors because it can withstand the high loads and harsh conditions that are common in these applications. For example, it is often used in conveyors that transport materials such as coal, ore, and sand.Forest products: The WH78-4 welded steel chain is also commonly used in forest products applications, such as log handling and lumber processing. For example, it is often used in conveyors that transport logs to sawmills or lumber yards.Grain handling: The WH78-4 welded steel mill chain is also a good choice for grain handling applications because it can withstand the dust and dirt that are common in these applications. For example, it is often used in conveyors that transport grain to silos or elevators.Pulp and paper: The WH78-4 welded steel chain is also a good choice for pulp and paper applications because it can withstand the high temperatures and humidity that are common in these applications. For example, it is often used in conveyors that transport pulp and paper products to mills or manufacturing facilities.

▍Welded Steel Mill Chain Sprockets for WH78-4 Chain

Welded steel mill chain sprockets and WH78-4 chains are commonly used in industrial machinery and equipment, particularly in heavy-duty applications such as mining, construction, and agriculture. Welded steel mill chain sprockets are designed to work with welded steel mill chains, which are often used in high-stress applications. The sprockets are made from high-quality steel and are precision machined to ensure a proper fit with the chain. The teeth on the sprockets are designed to engage with the chain, providing the necessary power transmission for the equipment.WH78-4 welded steel mill chain is a type of welded steel mill chain that is commonly used in heavy-duty applications. It is made from high-quality steel and is designed to withstand high-stress loads. The WH78-4 chain is built with four strands of welded steel plates, which provide the necessary strength to handle heavy loads and resist wear and tear.When used together, welded steel mill chain sprockets and WH78-4 chains can provide a reliable and durable power transmission solution for heavy-duty machinery and equipment. It is important to choose the right sprocket and chain combination based on the specific application and operating conditions to ensure optimal performance and longevity.Additionally, we offer a full line of high-quality sprockets that range in tooth size, bore size, and hub configuration and are manufactured specifically for the WH78-4 chain. We can even supply Made To Order (MTO) and custom chain sprockets to meet your exact application needs. We also offer a full line of attachments for this chain that can be assembled in any configuration needed.

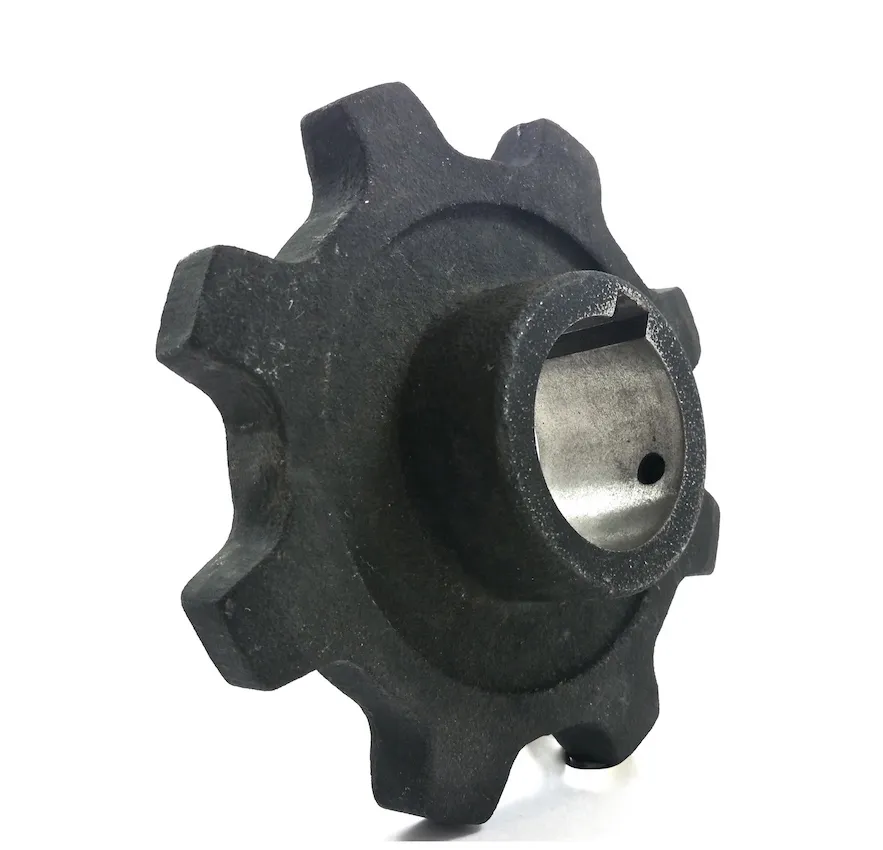

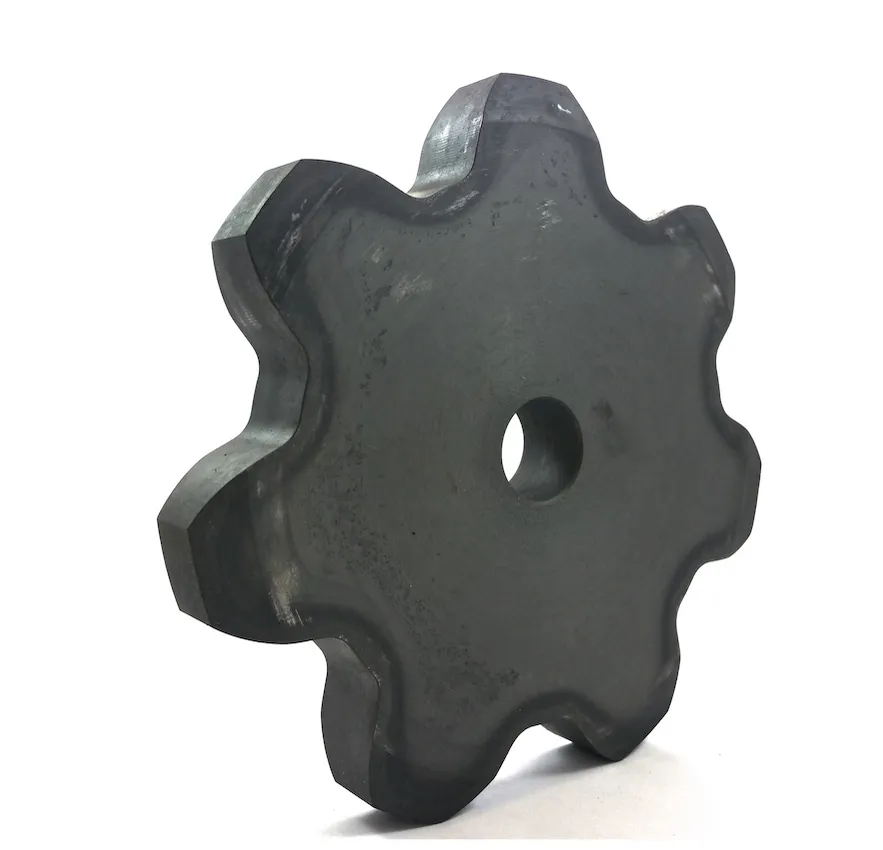

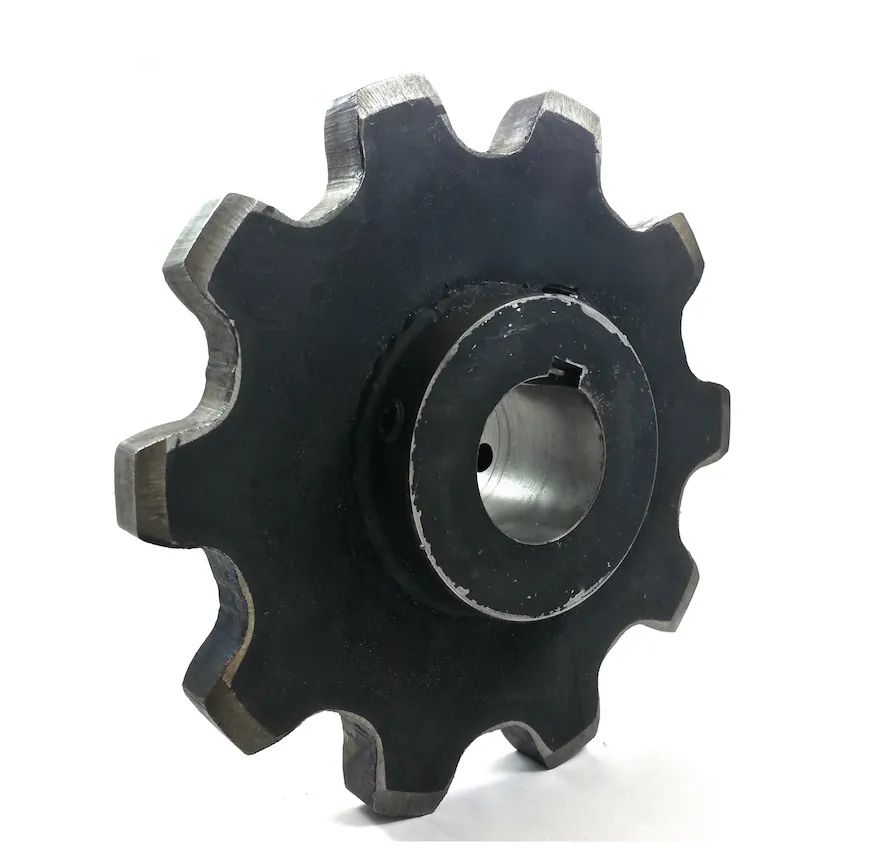

A-Plate WH78-4 Chain Sprockets	B-Hub WH78-4 Chain Sprockets	C-Hub WH78-4 Chain Sprockets
