Wheel Drive Planetary Gearbox for Street Sweeper Truck

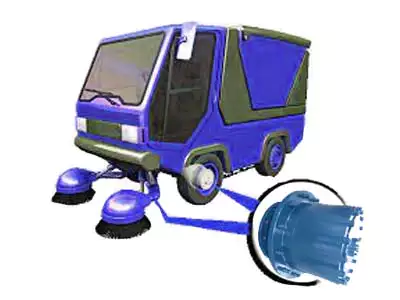

Where is Wheel Drive Planetary Gearbox in Street Sweeper Truck?

Wheel Drive Planetary Gearbox is usually installed inside the vehicle's drive wheel transmission system in Street Sweeper Trucks. Specifically, these gearboxes are integrated into the drive shaft or axle assembly of the sweeper and directly participate in driving the sweeper.Their main roles include:

• Efficient power transmission: Through its unique gear structure, the planetary gearbox can effectively transmit the power output from the engine or electric motor to the wheels, ensuring efficient power transmission even when high torque output is required. This is crucial for the sweeper to be able to continue and move forward stably when it is fully loaded or faced with cleaning operations with greater resistance.
• Enhanced traction and passability: When performing tasks, sweepers often need to work on complex roads full of dust, gravel, slippery or snowy terrain. The Wheel Drive Planetary Gearbox can provide enhanced traction to help the vehicle maintain good passing performance under these adverse conditions, ensuring the continuity and efficiency of cleaning operations.
• Compact design and space saving: Given that sweepers need space to carry various cleaning equipment and store garbage, the miniaturized design of the planetary gearbox helps save space, allowing the vehicle to layout its internal structure more rationally without sacrificing necessary Sweeping capabilities or operator comfort.
• Improved durability and maintenance convenience: Due to its load dispersion characteristics, the planetary gearbox can withstand higher impact loads and extend its service life. At the same time, part of the design allows for easy maintenance and replacement of wear parts, reducing sweeper downtime and maintenance costs.

How Wheel Drive Works with Street Sweeper Truck

The working principle of the Wheel Drive system in Street Sweeper Trucks is to efficiently transmit the power generated by the engine or electric motor to the vehicle's drive wheels to achieve the traction, maneuverability and stability required for sweeping operations. This process specifically involves the following key links:

Power source

Street Sweeper Truck is usually powered by an internal combustion engine or electric motor. Internal combustion engines convert thermal energy into mechanical energy via a crankshaft, while electric motors convert electrical energy directly into rotational motion.

Transmission system

After the power comes out of the engine or electric motor, it passes through the transmission system, including the gearbox, transfer case (if any), final drive, etc., to gradually reduce the speed and increase the torque. Wheel Drive Planetary Gearbox is a member of this transmission chain, which uses a planetary gear mechanism to achieve efficient torque amplification and power distribution.

Driving wheels

The torque amplified by the gearbox is finally transmitted to the driving wheels of the vehicle. In a Street Sweeper Truck, it is usually available in front-wheel drive, rear-wheel drive, or all-wheel drive configurations. Wheel Drive ensures that even when fully loaded or in poor road conditions, the sweeper can maintain sufficient grip and traction, ensuring the continuity and efficiency of cleaning operations.

Operational controls

The driver adjusts the vehicle's speed and direction by operating indoor controls such as the accelerator pedal, brake pedal, and steering system. The Wheel Drive system responds to these operations and instantly adjusts power output to meet different driving and cleaning needs.

Synchronization of cleaning operations

When performing cleaning operations, the traveling speed of the vehicle needs to be coordinated with the working rate of the cleaning devices (such as brooms, vacuum cleaners, sprinkler systems, etc.). The smoothness and responsiveness of the Wheel Drive system help achieve this synchronization, ensuring cleaning results while reducing unnecessary impact on the road surface and surrounding environment.

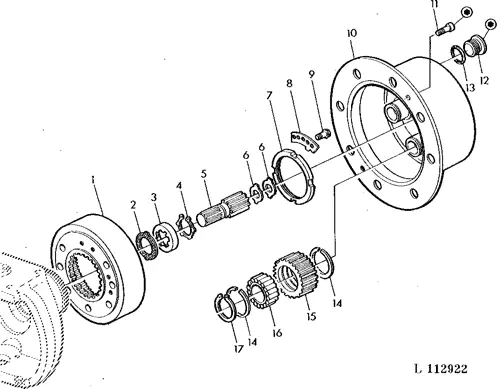

Structure of Wheel Drive

1.Ring Gear  2. Washer  3.  Washer  4. Snap Ring  5.Shaft  6.Washer  7. Nut   8. Washer   9. Screw  10.Planet Pinion Carrier  11.Screw  12. Drain Plug  13.O-Ring  14.Snap Ring  15.Planet Pinion  16.Cylindrical Roller Bearing  17. Snap Ring

Why Street Sweeper Truck Needs Planetary Gearbox

The reasons why Street Sweeper Trucks require Wheel Drive Planetary Gearboxes are mainly related to the working characteristics and performance requirements of the sweeper, including the following aspects:

1. High torque requirements: When street sweepers are operating, they often need to travel with a full load (carrying cleaning tools, water tanks, garbage collection containers, etc.), and may encounter accumulation of garbage, slippery or uneven road surfaces, all of which require The drive system provides powerful, instant torque to overcome additional resistance. Due to its structural characteristics, Planetary Gearboxes can efficiently transmit high torque in a small volume to meet the power needs of sweepers.
2. Space limitations and weight distribution: The internal space of the sweeper body is limited because it also needs to accommodate the cleaning device, water tank, garbage collection system, etc. Due to their compact structure, Wheel Drive Planetary Gearboxes can provide the required power transmission performance without significantly increasing the weight of the vehicle or taking up too much space, helping to maintain good weight distribution and operational flexibility of the vehicle.
3. Durability and low maintenance: Street sweepers often operate in harsh environments, such as dust, rain, snow, or road construction zones, which places higher requirements on the durability of the drive system. Planetary Gearboxes can effectively extend service life and reduce wear due to the even load distribution of their gears. At the same time, some designs facilitate maintenance and reduce long-term operating costs.
4. Smooth driving and operating comfort: The planetary gearbox produces lower vibration and noise during operation, which means better operating comfort and reduced fatigue for drivers who operate for a long time. Lower noise levels are also more environmentally friendly when working on city streets.
5. Power efficiency, energy conservation and emission reduction: Efficient power transmission helps improve fuel economy or electric energy utilization (for electric sweepers), reduce energy consumption and emissions, and meet modern city expectations for green cleaning tools.

Our gearbox can adapt to most Street Sweepers

Our high-performance Wheel Drive Planetary Gearboxes are specially designed to fit most Street Sweepers (street sweepers) on the market. Whether you are using products from internationally renowned brands or domestic high-quality manufacturers, we can ensure gap-free docking and optimization. performance. The following are several common Street Sweeper brands and models on the market. Our gearboxes are all perfectly compatible and improve their operating performance:

brand	model
Elgin	Pelican
Johnston	VT651
Dulevo	5000
Bucher	CityCat 2020
Zoomlion	ZLJ5180TXSE4
Aebi-Schmidt	SF2000
FULONGMA	FLM5180TXSE
Scarab	M6000
TENNANT	S30
Hako	Citymaster 2200
