X458 Trolley Conveyor Chain

Raydafon Guoup’s X458 Trolley Conveyor Chain is a durable solution for efficient material transport in industries like manufacturing and logistics. Featuring high-tensile steel and smooth operation, it enhances productivity while reducing downtime. Ideal for engineers and facility managers, this chain ensures reliable performance, offering peace of mind with its advanced design and long-lasting quality—upgrade your operations today.

Send Inquiry

Product Description

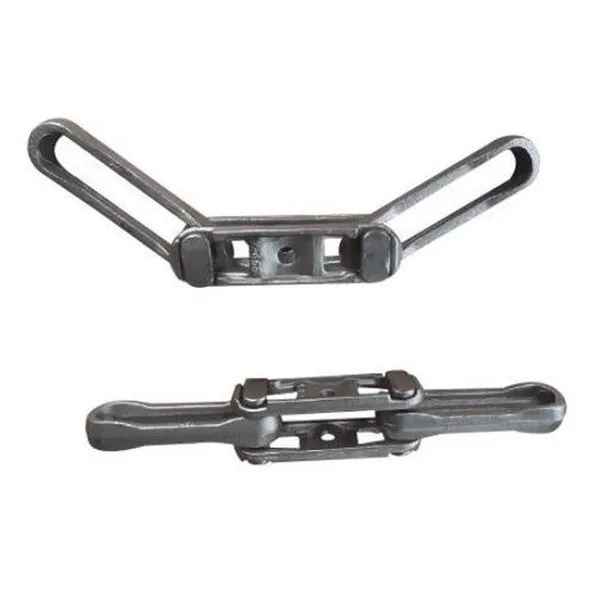

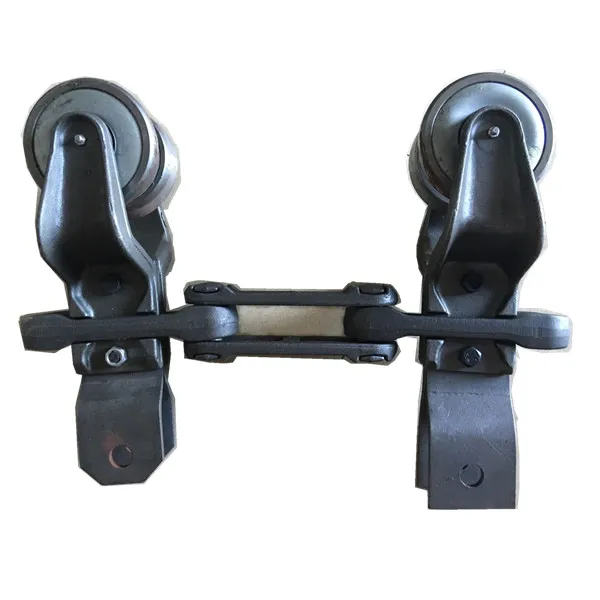

X458 Trolley Conveyor Chain

This X458 trolley conveyor chain features fully heat-treated and solid components that are manufactured using high-quality steel and has an ultimate strength of 48,000 lbs. Additionally, this X458 trolley conveyor chain is designed to have increased flexibility, transverse pitch strength, and the best overall operating performance. X458 trolley conveyor chain is used in a wide range of trolley conveyor applications and more. We also offer a full line of X458 trolley chain sprockets and X458 chain attachments. Thanks to our sourcing experts, partners, and engineers, this chain is normally in stock at a great price. For pricing and availability, please contact us and we will be happy to assist you.

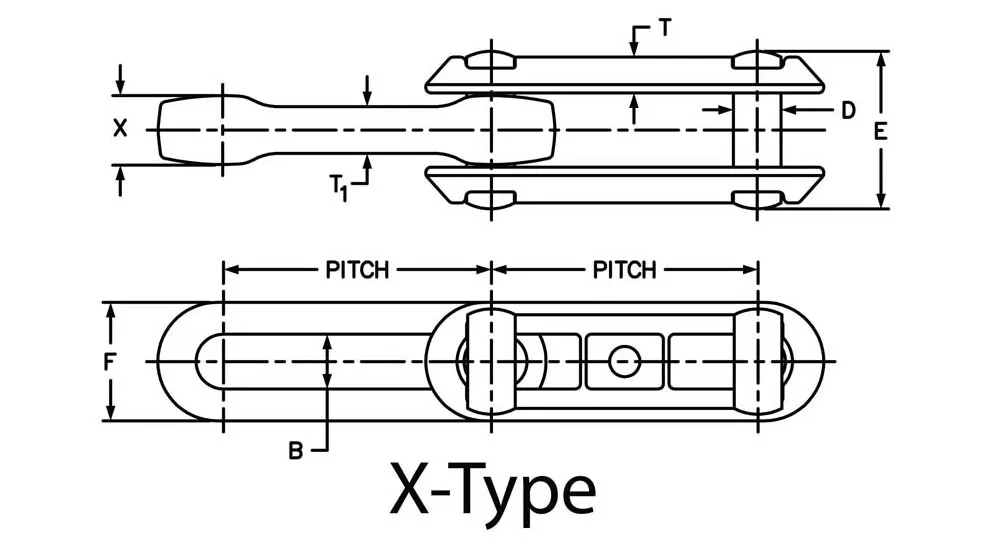

▍X458 Trolley Conveyor Chain?Dimensions:

Pitch:?	4.031"
Dimension (D):	0.625"
Dimension (E):?	2.19"
Dimension (F):?	1.44"
Dimension (T):	0.48"
Dimension (T1):?	0.66"
Dimension (X):?	1.02"
Dimension (B):?	0.69"
Ultimate Strength:?	48,000 LBS
Links Per 10ft:?	30
Weight:?	3.2 lbs/ft

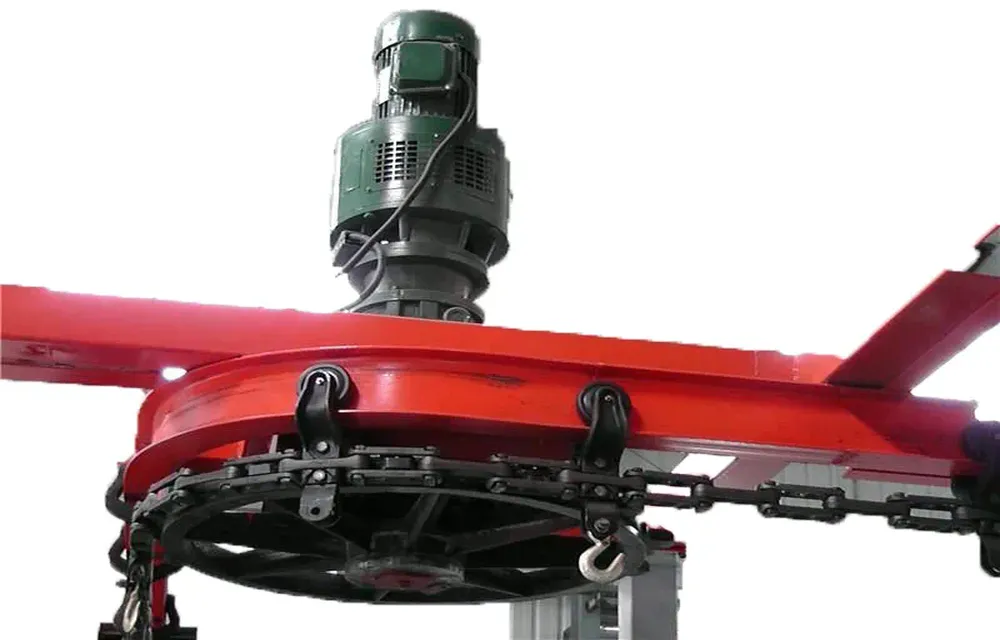

▍X458 Trolley Conveyor Chain Design Features

The X458 trolley conveyor chain is designed with a number of features that make it ideal for use in trolley conveyor applications. These features include:1. High strength: The X458 trolley conveyor chain has an ultimate strength of 48,000 lbs, making it one of the strongest rivetless drop-forged chains on the market. This strength makes it ideal for use in applications where heavy loads are present.2. Durability: The X458 trolley conveyor chain is made from high-quality SAE 5140 alloy steel and is designed to withstand heavy loads and harsh environments. The steel is also heat-treated to improve its strength and durability.3. Flexibility: The X458 trolley conveyor chain has increased flexibility, which makes it ideal for applications where there are tight bends or curves. This flexibility allows the chain to move smoothly around corners and bends without binding or breaking.4. Transverse pitch strength: The X458 trolley conveyor chain has increased transverse pitch strength, which makes it more resistant to wear and tear. This strength is achieved by increasing the thickness of the sidebars and the pins.5. Overall operating performance: The X458 trolley conveyor chain is designed to provide the best overall operating performance, even in demanding applications. This is achieved through a combination of the chain's strength, durability, flexibility, and transverse pitch strength.In addition to these design features, the X458 trolley conveyor chain is also available in a variety of sizes and lengths to meet the specific needs of each application. The chain is also available with a variety of wear strips to protect the chain from wear and tear.Overall, the X458 trolley conveyor chain is a high-quality chain that is designed to provide years of reliable service in demanding applications. The chain's strength, durability, flexibility, and transverse pitch strength make it ideal for use in trolley conveyor applications where heavy loads, tight bends, and harsh environments are present.

▍X458 Trolley Conveyor Chain Application Scenarios

The X458 trolley conveyor chain is a versatile chain that can be used in a wide range of trolley conveyor applications. Some of the most common application scenarios include:Automotive industry: The X458 trolley conveyor chain is commonly used in the automotive industry to move heavy parts and components along assembly lines.Car washes: The X458 trolley conveyor chain is also used in car washes to move vehicles through the washing process.Material handling: The X458 trolley conveyor chain is a good choice for material handling applications where heavy loads need to be moved over long distances.Meat packing: The X458 trolley conveyor chain is used in meat packing plants to move carcasses and other heavy products.Overhead conveyors:?The X458 Trolley Conveyor Chain is also used in overhead conveyor systems to move products and materials through warehouses and other facilities.Poultry processing: The X458 trolley conveyor chain is used in poultry processing plants to move chickens and other poultry products.Sugar processing: The X458 trolley conveyor chain is used in sugar processing plants to move sugar cane and other sugar products.These are just a few of the many application scenarios where the X458 trolley conveyor chain can be used. The chain's strength, durability, flexibility, and transverse pitch strength make it ideal for use in demanding applications where heavy loads, tight bends, and harsh environments are present.

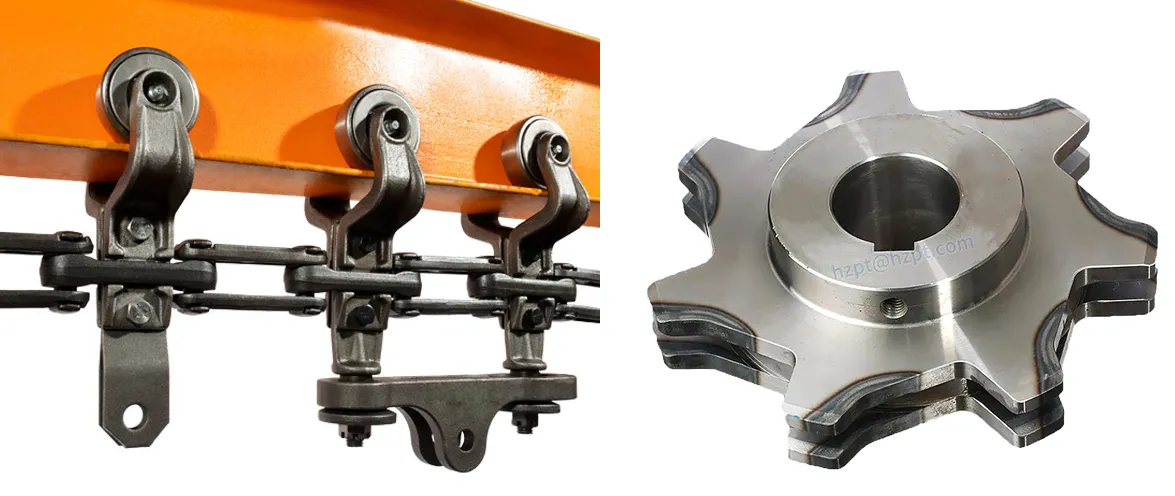

▍X458 Chain Sprockets and X458 Trolley Conveyor Chain

The chart below shows standard X458 chain sprocket sizes and tooth counts. Please note that we offer two tooth-profile styles of X458 chain sprockets (style 1 & style 2), be sure to specify which style is needed, or style 1 will be provided. Additionally, X458 chain sprockets can be supplied in other configurations such as; split, shear-pin, b-hub, and from materials like stainless steel or plastic.

Sprocket Size	Sprocket Type	Plate Thickness	Tooth Count	Stock Bore	Maximum Bore	Pitch Diameter	Hub Diameter	Length Thru Bore	Weight (LBS)
X458A4	A	0.875"	4	1.500"	--	--	--	0.875"	--
X458A5	A	0.875"	5	1.500"	--	13.045"	--	0.875"	33.0
X458A6	A	0.875"	6	1.500"	--	15.575"	--	0.875"	47.0
X458A7	A	0.875"	7	1.500"	--	18.115"	--	0.875"	64.0
X458A8	A	0.875"	8	1.500"	--	20.662"	--	0.875"	83.0
X458A9	A	0.875"	9	1.500"	--	23.214"	--	0.875"	105.0
X458A10	A	0.875"	10	1.500"	--	25.768"	--	0.875"	130.0
X458A11	A	0.875"	11	1.500"	--	28.325"	--	0.875"	157.0
X458A12	A	0.875"	12	1.500"	--	30.883"	--	0.875"	186.0
X458C5	C	0.875"	5	1.500"	3.440"	13.045"	5.500"	4.250"	54.0
X458C6	C	0.875"	6	1.500"	3.440"	15.575"	5.500"	4.250"	68.0
X458C7	C	0.875"	7	1.500"	3.440"	18.115"	5.500"	4.250"	85.0
X458C8	C	0.875"	8	1.500"	3.940"	20.662"	6.500"	5.000"	120.0
X458C9	C	0.875"	9	1.500"	3.940"	23.214"	6.500"	5.000"	141.0
X458C10	C	0.875"	10	1.500"	3.940"	25.768"	6.500"	5.000"	166.0
X458C11	C	0.875"	11	1.500"	3.940"	28.325"	6.500"	5.000"	193.0
X458C12	C	0.875"	12	1.500"	3.940"	30.883"	6.500"	5.000"	222.0

▍Choose the Right X458 Chain Sprockets for X458 Trolley Conveyor Chain

The X458 trolley conveyor chain is commonly used with various types of sprockets, which are designed to match the pitch and tooth profile of the chain. Here are some key considerations when selecting X458 chain sprockets for the X458 trolley conveyor chain:Pitch and tooth profile: The sprockets used with the X458 chain should have the same pitch and tooth profile as the chain. This ensures proper engagement between the chain and sprockets and smooth operation of the conveyor system.Material: Sprockets for the X458 trolley conveyor chain are typically made of high-strength steel, which provides durability and wear resistance. The X458 chain sprockets should also be heat-treated to ensure maximum strength.Number of teeth: The number of teeth on the sprockets will depend on the specific application and the desired speed ratio between the chain and sprockets. A higher number of teeth on the X458 chain sprockets will result in a slower conveyor speed, while a lower number of teeth will result in a faster conveyor speed.Alignment: Proper alignment between the X458 trolley conveyor chain and sprockets is essential for smooth operation and to prevent premature wear. The X458 chain sprockets should be mounted on shafts that are parallel to each other and perpendicular to the direction of chain travel.Lubrication: Adequate lubrication is important to ensure the smooth operation of the X458 trolley conveyor chain and sprockets and to minimize wear. The type and amount of lubrication required will depend on the specific application and operating conditions.

▍Other Conveyor Chains Related Products

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like?roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, agricultural chains, silent chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
