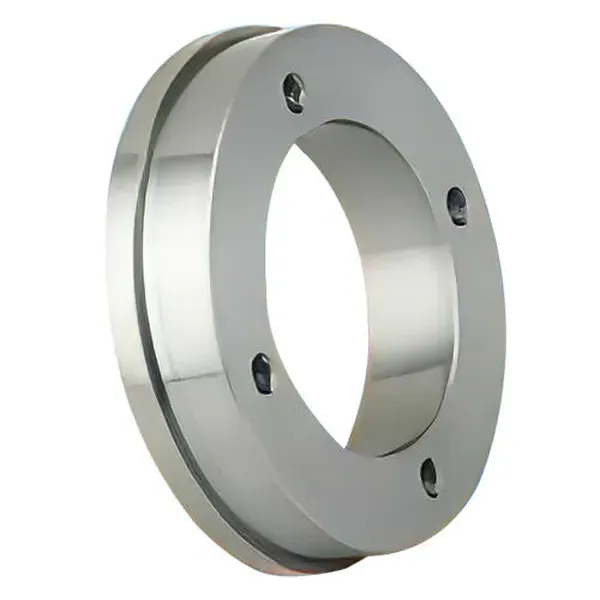

XTH70 Weld-On Hubs

XTH70 Weld-On Hubs

The XTH70 weld-on hubs are designed to be used in conjunction with XTB70 bushings, providing a reliable and efficient solution for connecting shafts and components in various mechanical applications. These hubs are specifically engineered to ensure a secure and robust connection between the hub and the bushing, enabling the transmission of torque and rotational forces.The XTH70 weld-on hubs are manufactured using high-quality materials, such as steel or other suitable alloys, to ensure durability and strength. They are precision-machined to meet tight tolerances, ensuring a proper fit with the corresponding XTB70 bushings.One of the key advantages of the XTH70 weld-on hubs is their weld-on design. This design feature allows for a straightforward installation process, where the hub is welded onto the shaft or component, creating a permanent and reliable connection. This eliminates the need for additional fasteners or complex coupling mechanisms, simplifying the assembly and reducing the chances of component failure.The XTB70 bushings, designed to work in conjunction with the XTH70 weld-on hubs, offer excellent load-bearing capabilities and provide a secure fit between the hub and the shaft. These bushings typically feature a split design, allowing for easy installation and removal without the need to disassemble adjacent components.The combination of XTH70 weld-on hubs and XTB70 bushings offers a versatile and robust solution for various applications, including power transmission systems, conveyor systems, industrial machinery, and more. It ensures reliable torque transmission, minimizes downtime, and enhances the overall efficiency and performance of the mechanical system.

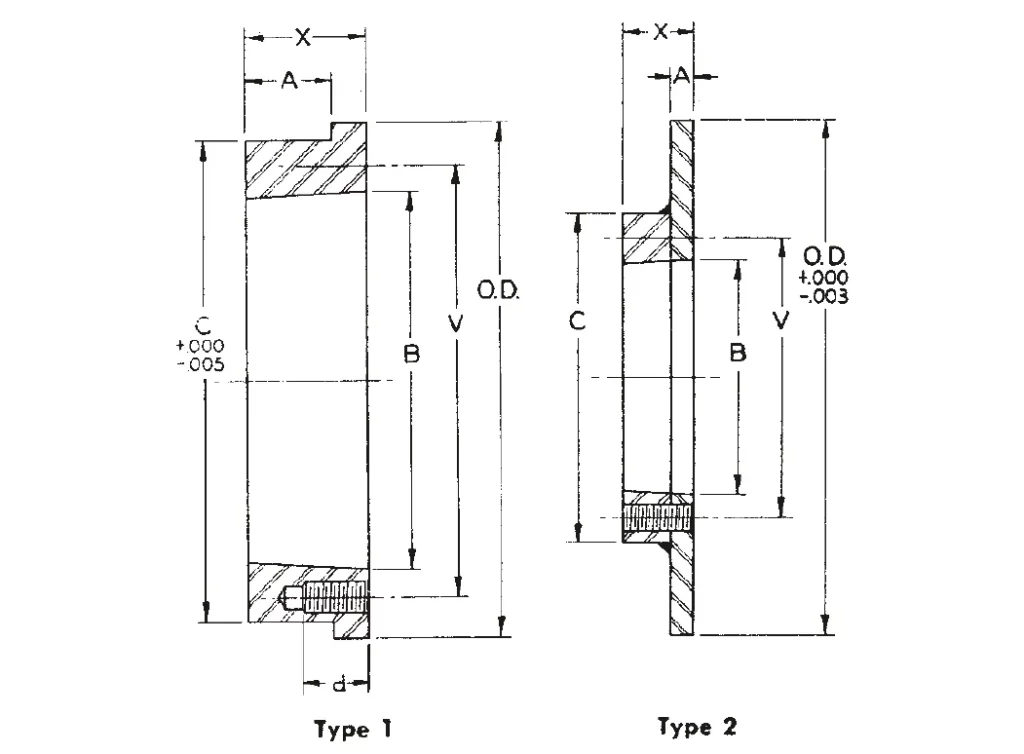

XTH70 Weld-On Hubs Dimensions:

Part No.		XTH70 Hubs (Type 1 Hubs)
For Bushing		XTB70 Bushings
Dimensions	O.D.	13 11/16"
	A	2 3/16"
	B	10.000"
	C	13 3/16"
	V	11 9/16"
	X	3 1/8"
	d	1 15/16"
	No.	4
	Size	1" - 8UNC
Wt lbs.		57.7

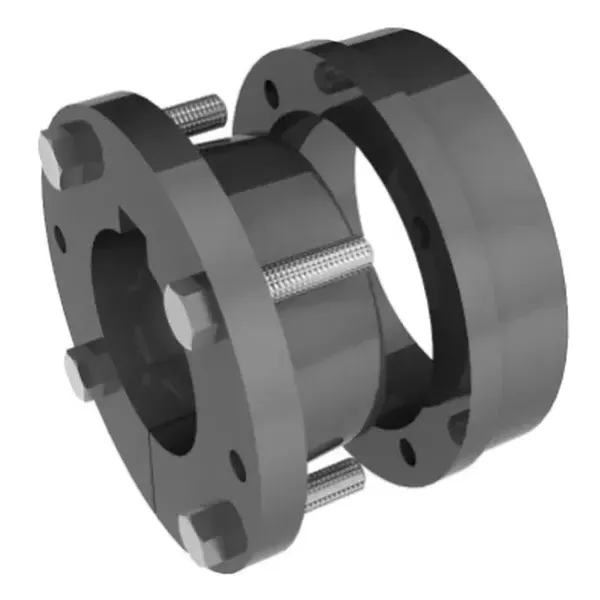

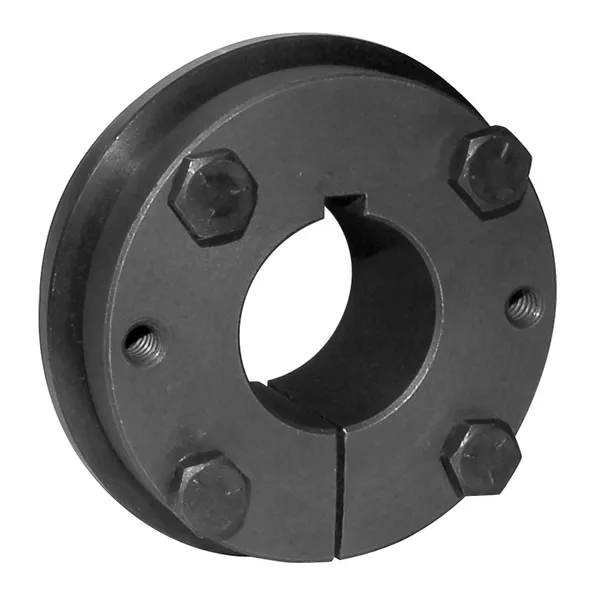

XTH70 Weld-On Hubs Characteristics:

The XTH70 weld-on hubs exhibit several key characteristics that make them suitable for connecting shafts and components in mechanical applications. Here are some of their notable features:1. Material: XTH70 weld-on hubs are typically constructed using high-quality materials such as steel or other durable alloys. These materials offer excellent strength, reliability, and resistance to wear and tear.2. Precision Machining: XTH70 weld-on hubs undergo precision machining processes to ensure accurate dimensions and tight tolerances. This precision allows for a proper fit with the corresponding bushings, enhancing the overall performance and reliability of the connection.3. Load-Bearing Capacity: These XTH70 weld-on hubs are engineered to handle significant loads and transmit torque efficiently. They are designed to withstand high forces and ensure reliable power transmission in various applications.4. Versatility: XTH70 weld-on hubs are versatile and can be used in a wide range of mechanical systems and industries. They are commonly found in power transmission systems, conveyor systems, machinery, and other equipment that require secure shaft connections.5. Compatibility: The XTH70 weld-on hubs are specifically designed to work in conjunction with XTB70 bushings. These bushings are typically split-type, allowing for easy installation and removal without needing to disassemble adjacent components.6. Maintenance: Proper maintenance is essential for the longevity and performance of the XTH70 weld-on hubs. Regular inspections, lubrication, and adherence to manufacturer guidelines ensure optimal operation and prevent premature wear or failure.

China XT Bushing Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT bushing hubs, steel hubs for split taper bushings, XH hubs, QD-type weld-on hubs, and welding hubs for taper bushings will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
