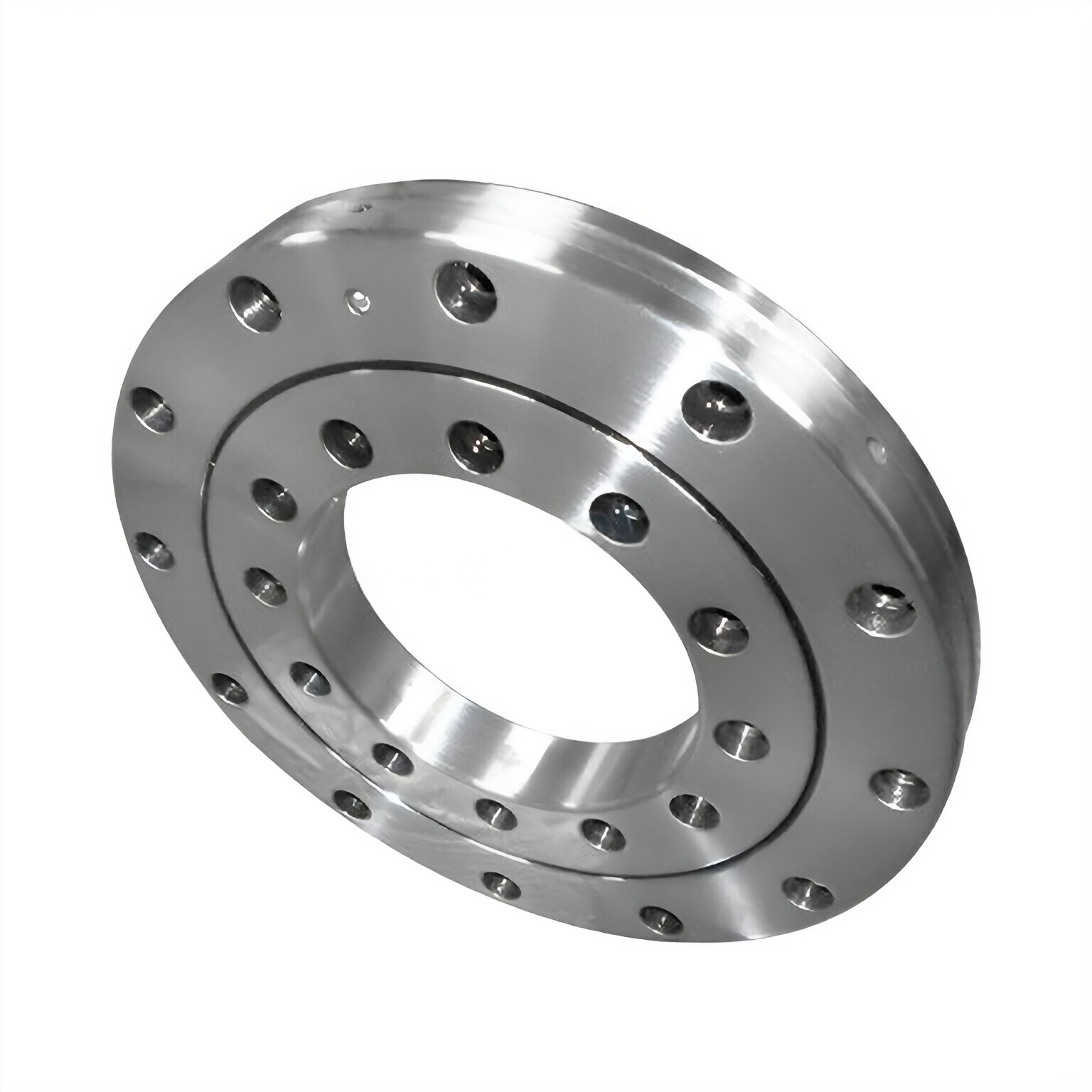

XU Series Crossed Roller Bearings

XU Series Crossed Roller BearingsThis model can be used for both inner-ring rotation and outer-ring rotation. XU Series Crossed Roller Bearings (Integrated Inner/Outer Ring Type, both for inner-ring rotation and outer-ring rotation) Since the mounting holes are provided, this model does not require a presser flange or housing. In addition, because it has an integrated inner/outer ring structure and is equipped with washers, its performance is minimally affected by the mounting procedure, ensuring stable rotation accuracy and torque.

Advantage of XU crossed roller slew bearings.

1. Crossed roller bearings can withstand radial and axial loads at the same time. One bearing equals two standard bearings.2. Rollers of crossed roller bearings are in line contact with the raceway, while steel balls of the ball slewing bearings are in point contact with the raceway, so cross roller bearings have higher loading capacity and stiffness.3. Cross roller bearings have low grease consumption due to high rotation efficiency and low heat dissipation, so their maintenance interval is longer.4. Provide extremely high rotation accuracy, negative clearance available.

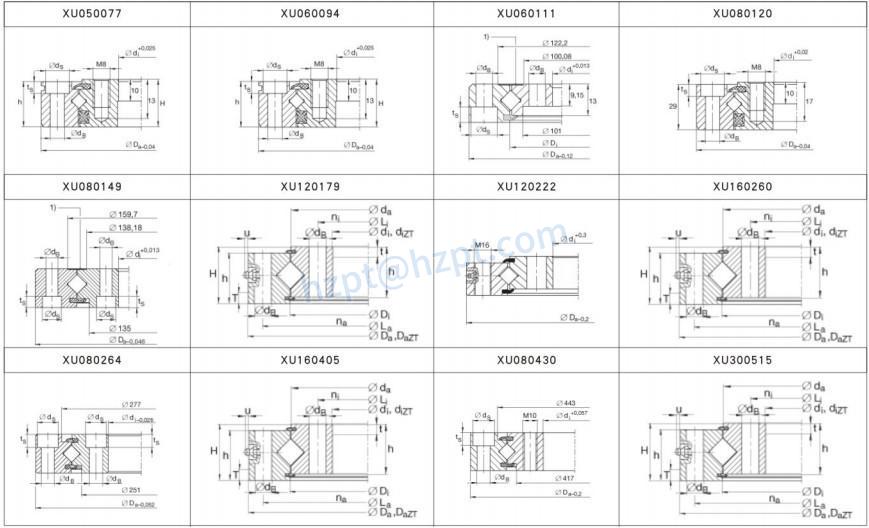

Technical data

Model number	Main dimensions (mm)								Basic load rating(axial)		Basic load rating(Radial)		weight
	inner ring	outer ring	DP	width		na		ni	Ca KN	Coa KN	Cr KN	Cor KN	Kg
					La		Li
XU050077	40	112	77	22	97	6-φ6.6	56	6-M8	22.4	29	14.3	14.2	1.4
XU060094	57	140	94	26	120	6-φ9	70	6-M8	32.5	37.5	20.7	18.4	2.4
XU060111	76.2	145.79	111	15.87	133.1	8-φ6.9	88.9	8-φ6.9	36	44.5	22.8	21.5	1.2
XU080120	69	170	120	30	148	6-φ9	90	6-M8	56	53	35.5	26	4
XU080149	101.6	196.85	149.6	22.22	177.8	16-φ6.9	115.8	16-φ6.9	63	66	40	32.5	3.6
XU120179	124.5	234	179	35	214	12-φ11	144.5	12-φ11	118	179	75	88	7
XU120222	140	300	222	36	270	12-M16	170	12-φ18	133	275	85	131	12
XU160260	191	329	260	46	305	20-φ14	215	2O-φ14	212	350	135	173	16
XU080264	215.9	311	264	25.4	295.3	12-φ8.7	231.8	12-φ8.7	85	117	54	57	6.9
XU160405	336	474	405	46	450	30-φ14	360	30-φ14	270	550	172	270	25
XU080430	380	480	430	26	462	20-φ9	398	20-M10	110	280	70	138	12
XU300515	384	646	515	86	598	18-φ26	432	18-φ26	720	1370	455	670	115

Features

Inner Diameter(mm) :40-382 (Inner Ring)Outer Diameter(mm) :112-646 (Outer Ring)Height(mm): 22-86Weight(Kg) :1.4-115Material: GCR15/GCR15SiMnPrecision: P5/P4/P2 (Accuracy )Lubrication: grease lubricationRotation: inner ring and outer ring togetherLoading capacity direction: axial and radialApplication: CNC machine tool, Industrial robot, CNC turntable, CNC vertical lathe. Precision rotary table, Instrumentation, Precision equipment.2. Package as your requirements.3. Small size Bearings: Plastic vacuum packaging bag+Paper Box/Neutral Carton4. Large size Bearings: Plastic film+pergamyn paper+Roll tape+Wooden Box5. Shipping: By air or By sea: DHL/TNT/UPS/EMS etc

Company Information

We are a professional bearing exporter in China, producing many different types and sizes of bearings. We can provide you with excellent service in a wide range of bearings with world-class quality, such as deep groove ball bearings, spherical roller bearings, self-aligning ball bearings, cylindrical roller bearings, tapered roller bearings, thrust ball bearings, angular contact ball bearings, needle roller bearings, crossed roller bearings, pillow block bearing, slewing bearings, plain bearings, etc. Bearings can also provide OEM services according to customer requirements. Our bearings products are widely used in various applications, such as port, ship, vehicle, mining, engineering, lifting, environmental protection, oil, chemicals, light industry, metallurgical machinery, the military, etc. Products are exported to the United States, Germany, Japan, Spain, Canada, Italy, France, Finland, South Korea, India, Singapore, Brazil, Australia, and other countries. If you need crossed roller bearings, please get in touch with us.

FAQ

1. Are you a factory or a trading company?We are a factory, a professional manufacturer of high precision bearings, which has combined researching and developing, producing and marketing together. Taking advantage of the solid industrial basis of Ningbo city, we grew up rapidly under the guidance of the pioneer in the bearing industry. After years of researching and producing experience, we have developed an integrated system. We have solid technical strength, excellent processing facilities, and a completed quality control system.2. Do you have a stock for XU series crossed roller bearings?Yes, we have many types of crossed roller bearings in stock. Some are finished with precision grade P5 or P4. Some are half-finished as parts in stock. If there is an offer request, please contact us for a stocklist.3. How about your package of XU series crossed roller bearings?All small size and middle size crossed roller bearings are Vacuum-packed + solid paper carton + plywood box packing outside.4. Can you arrange shipment for customers?Yes, we can. Depending on different requirements on delivery time, we can choose parcel service (FedEx, UPS, TNT, etc., 5-7 days), by air, or by sea for delivery.
