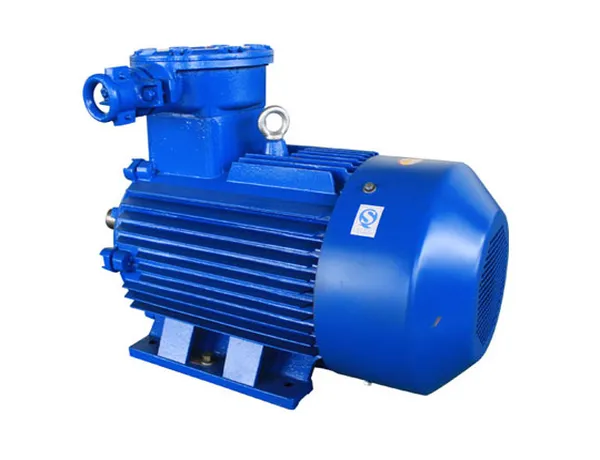

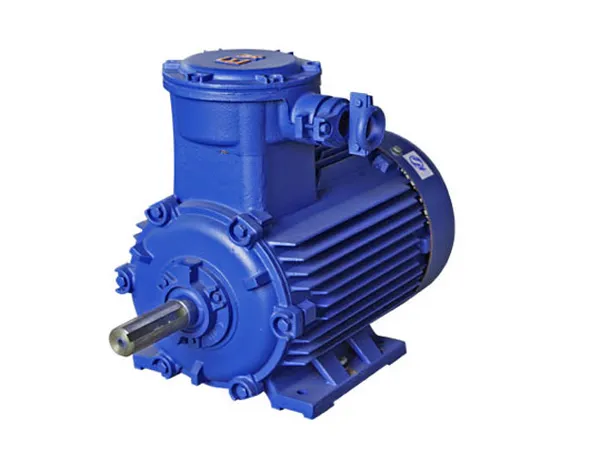

YB2 Series Explosion-proof Three Phase Asynchronous Motor

YB2 Series Explosion-proof Three Phase Asynchronous Motor

YB2 series high voltage explosion-proof three-phase asynchronous motors are the new series products designed and manufactured by our company based on the advanced technologies at home and abroad with the integration of our actual experience in producing the high voltage explosion-proof three-phase asynchronous motors. The electric motor is made of cast iron as the base, which is of compact structure, higher protection level, and is easy to be installed and maintained. Additionally, the motors are granted all advantages, such as high efficiency and energy saving, reliable performance, low noise, small vibration, long service life, and others through further optimized design and elaborate manufacturing process.The YB2 series high voltage explosion-proof three-phase asynchronous motors are suitable for driving all kinds of fans, compressors, water pumps, machine tools, transport machines, and other general mechanical equipment and are used for the industry of mine, steel works, mechanisms, petroleum, chemical products, power station, and others as the prime mover.

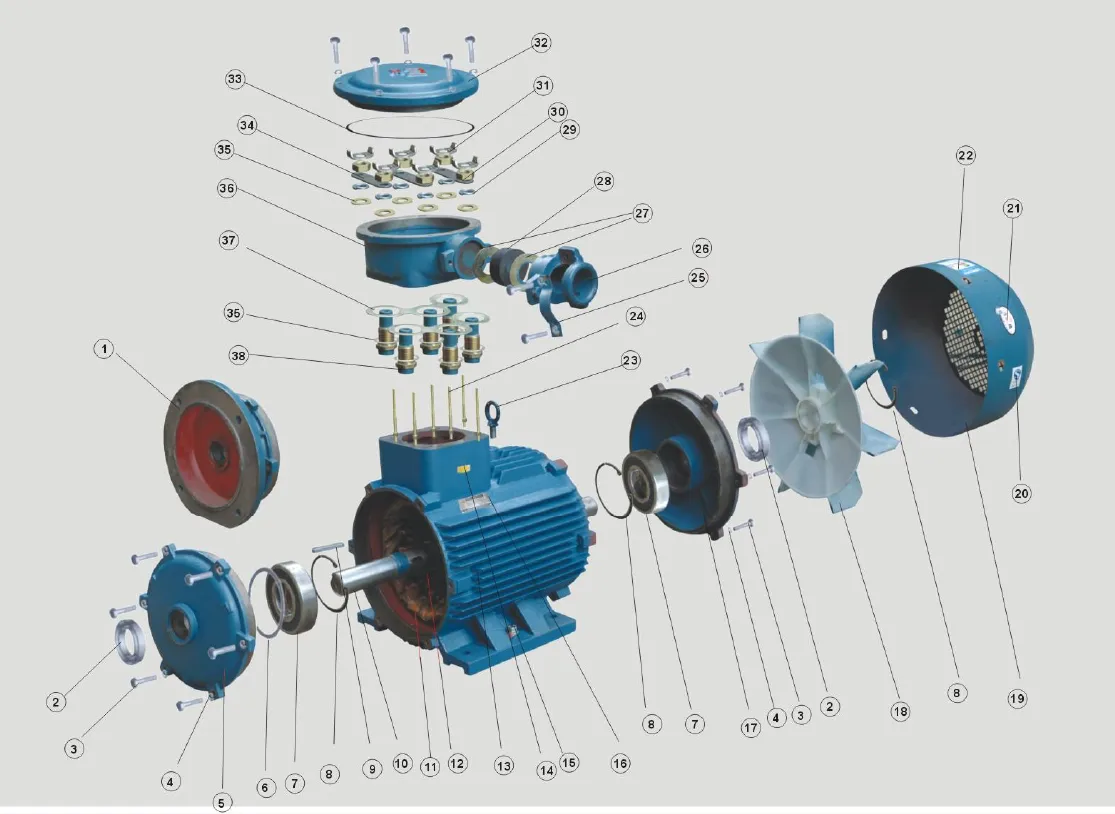

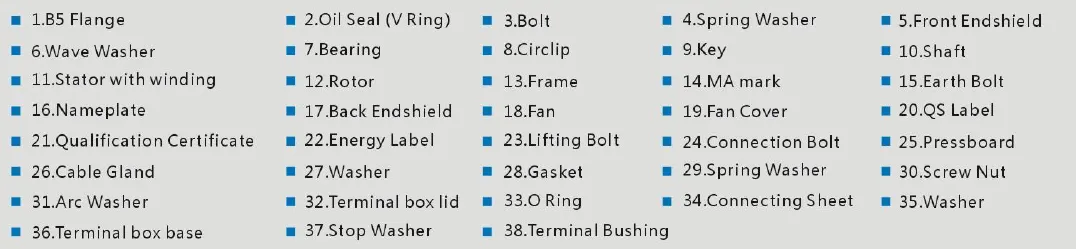

YB2 Series Explosion-proof Three Phase Asynchronous Motor Parts:

Characteristics of YB2 Series Explosion-proof Three-phase Asynchronous Motor

1 ) Highly standardized, universal design. The installation size is basically the same as the YB series.2 ) The motor has a unique design of parallel and vertical radiating slices, which not only improve the radiating capability but also make the appearance more elegant.3 ) Insulation class: F

YB2 Series Explosion-proof Three-phase Asynchronous Motor Working Conditions:

• Ambient temperature: d ll type -15℃≤0≤40℃. d I type -15℃≤0≤35℃
• Elevation: Be lower than 1000 meters
• Relative humidity: Not higher than 95% for d I. Not higher than 90% for d II
• Rated voltage: 380V, 660V , 380 / 660V.
• Frequency: 50 HZ.
• Cooling method: IC411.
• Protection class: IP55

YB2 Series Explosion-proof Three-phase Asynchronous Motor Technical Data:

1. For the data sheet of YB2 6kV series of explosion-proof high-voltage three-phase induction motors
