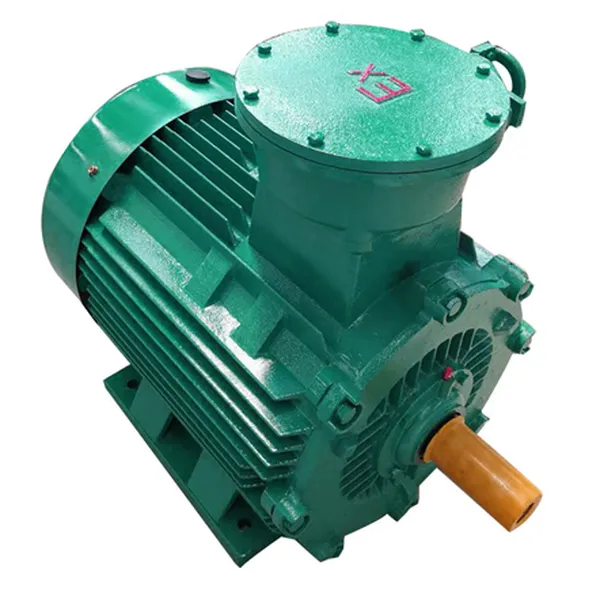

YBX4 Series Explosion Proof Three Phase Asynchronous Motor

Raydafon Group's YBX4 Series Explosion-Proof Three-Phase Asynchronous Motor delivers robust performance in hazardous environments, combining advanced safety features with durable construction. Its explosion-proof design ensures reliable operation in industries like oil and gas, offering peace of mind through enhanced protection and efficiency. Stand out with superior quality and trusted engineering for a safer, more productive workplace.

Send Inquiry

Product Description

YBX4 Series Explosion Proof Three Phase Asynchronous Motor

YBX4 series of explosion proof three-phase asynchronous motors are the basic series of fully enclosed, fan-cooled, squirrel cage and explosion proof three-phase asynchronous motors developed by our company. And it has the characteristics of excellent performance, safe and reliable use, lower vibration and noise than similar products, and meets environmental protection requirements. The energy efficiency ratings of the motors are YBX4-IE4.This series of electric motor is mainly applied in areas with mixed dangerous and explosive gases, such as underground coal mine (non-excavation working faces), petroleum, chemical engineering, mining industry, metallurgical industry, power, and natural gas areas that contains gases like methane.

YBX4 Series Explosion Proof Three Phase Asynchronous Motor Main Technical Parameters:

Frame:	H132~H355
Power Scope:	2.2KW~315KW
Voltage:	380V, 400V, 415V, 460V, 490V, 660V, 690V,1140V
Frequency:	50Hz, 60Hz
Number of Poles:	2P, 4P, 6P, 8P, 10P
Speed:	3000rpm, 1500rpm, 1000rpm, 750rpm, 600rpm
Cooling Method	IC411
Protection Grade	IP55
Insulation Class	F(155℃), H(180℃)
Duty:	S1, S4, S5, S6, S9
Mounting Type	B3/ B5/ B35/ V1
Standard:	IEC
Efficiency Grade:	IE4

YBX4 Series Explosion Proof Three Phase Asynchronous Motor Technical Data:

Hot Tags: YBX4 explosion proof motor, explosion proof three phase motor, ATEX certified motor supplier

Send Inquiry

Contact Info



Address

Luotuo Industrial Area, Zhenhai District, Ningbo City, China


Tel

86-574-87167707


E-mail

[email protected]

Get customized quotes for transmission components, gearboxes, and machinery. Our engineers will respond within 24 hours.

News Recommendations

How to maintain and troubleshoot an industrial vibrating screen?View More >>

Can locking assemblies be used in high-speed or high-temperature applications?View More >>

Can a PTO shaft be repaired or should it always be replaced?View More >>

What are the differences between single-acting and double-acting boom cylinders?View More >>

What are the design considerations for selecting a universal joint?View More >>

What factors affect the holding power of a shaft collar?View More >>

Online

Raydafon

We use cookies to offer you a better browsing experience, analyze site traffic and personalize content. By using this site, you agree to our use of cookies. Privacy Policy

Reject Accept

Type	Rated Power (kW)	Rated Current (A)	Speed (r/min)	Efficiency (%)	Power Factor (Cosφ)	Locked Torque	Locked Current	Max. Torque	Rated torque (N•m)	Moment of Inertia (kg•m²⁾	No-load Noised B(A)	Weight (Kg)
Type	Rated Power (kW)	Rated Current (A)	Speed (r/min)	Efficiency (%)	Power Factor (Cosφ)	RatedTorque	Rated Current	Rated Torque	Rated torque (N•m)	Moment of Inertia (kg•m²⁾	No-load Noised B(A)	Weight (Kg)
Synchronous Speed 3000(r/min)
YBX4-132S1-2	5.5KW	10.4	2945	90.9	0.88	2.0	9.5	2.3	18	0.02	79	90
YBX4-132S2-2	7.5KW	14.0	2945	91.7	0.89	2.0	9.5	2.3	24	0.03	79	95
YBX4-160M1-2	11KW	20.3	2950	92.6	0.89	2.0	9.5	2.3	35	0.06	81	185
YBX4-160M2-2	15KW	27.4	2950	93.3	0.89	2.0	9.5	2.3	48	0.08	81	195
YBX4-160L-2	18.5KW	33.7	2950	93.7	0.89	2.0	9.5	2.3	59	0.09	81	210
YBX4-180M-2	22KW	40.0	2960	94.0	0.89	2.0	9.5	2.3	70	0.13	83	236
YBX4-200L1-2	30KW	54.2	2970	94.5	0.89	2.0	9.0	2.3	96	0.22	84	330
YBX4-200L2-2	37KW	66.6	2975	94.8	0.89	2.0	9.0	2.3	118	0.26	84	350
YBX4-225M-2	45KW	80.9	2980	95.0	0.89	2.0	9.0	2.3	143	0.34	86	425
YBX4-250M-2	55KW	98.5	2980	95.3	0.89	2.0	9.0	2.3	175	0.76	89	575
YBX4-280S-2	75KW	133.9	2980	95.6	0.89	1.8	8.5	2.3	239	0.92	91	660
YBX4-280M-2	90KW	160.4	2980	95.8	0.89	1.8	8.5	2.3	287	1.11	91	700
YBX4-315S-2	110KW	195.6	2980	96.0	0.89	1.8	8.5	2.3	350	1.58	92	1090
YBX4-315M-2	132KW	234.2	2980	96.2	0.89	1.8	8.5	2.3	420	1.78	92	1145
YBX4-315L1-2	160KW	283.6	2980	96.3	0.89	1.8	8.5	2.2	509	2.04	92	1230
YBX4-315L2-2	200KW	353.8	2980	96.5	0.89	1.8	8.5	2.2	637	2.33	92	1285
YBX4-355M1-2	220KW	389.2	2980	96.5	0.89	1.6	8.5	2.2	700	2.87	100	1824
YBX4-355M2-2	250KW	432.5	2980	96.5	0.91	1.6	8.5	2.2	796	3.27	100	1925
YBX4-355L1-2	280KW	484.4	2980	96.5	0.91	1.6	8.5	2.2	891	3.83	100	2068
YBX4-355L2-2	315KW	545.0	2980	96.5	0.91	1.6	8.5	2.2	1003	4.04	100	2088
Synchronous Speed 1500(r/min)
YBX4-132S-4	5.5KW	11.4	1470	91.9	0.80	2.0	9.5	2.3	35	0.06	71	105
YBX4-132M-4	7.5KW	15.2	1470	92.6	0.81	2.0	9.5	2.3	48	0.07	71	115
YBX4-160M-4	11KW	21.6	1475	93.3	0.83	2.0	9.5	2.3	70	0.13	73	185
YBX4-160L-4	15KW	28.9	1475	93.9	0.84	2.0	9.5	2.3	96	0.17	73	210
YBX4-180M-4	18.5KW	35.1	1480	94.2	0.85	2.0	9.5	2.3	118	0.23	76	242
YBX4-180L-4	22KW	41.6	1480	94.5	0.85	2.0	9.5	2.3	140	0.25	76	250
YBX4-200L-4	30KW	56.5	1485	94.9	0.85	2.0	9.0	2.3	191	0.45	76	325
YBX4-225S-4	37KW	69.5	1490	95.2	0.85	2.0	9.0	2.3	236	0.64
