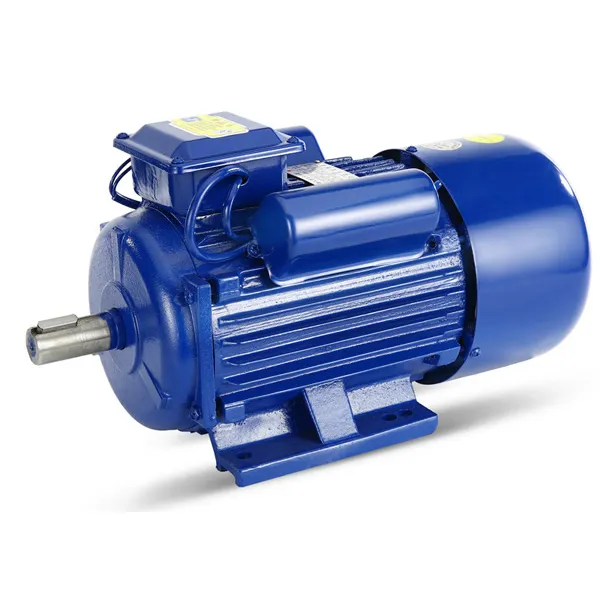

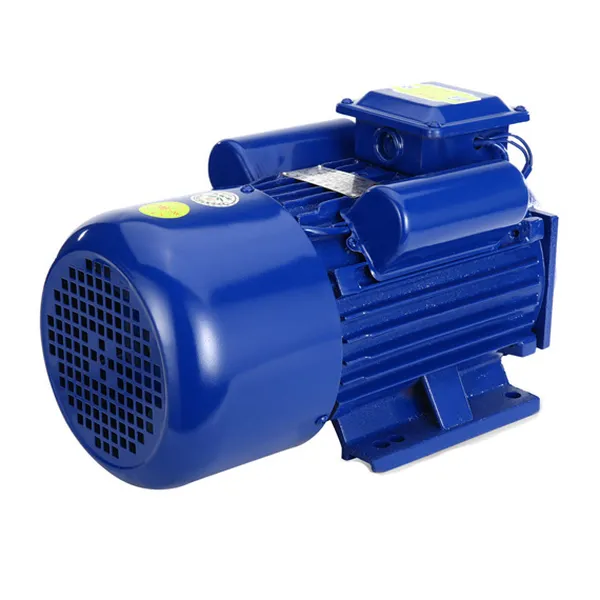

YCL Series Heavy Duty Capacitor Start Single Phase Induction Motor

YCL Series Heavy Duty Capacitor Start Single Phase Induction Motor

YCL series heavy-duty single-phase capacitor start asynchronous motor is suitable for driving small lathes, pumps, and only single-phase power supply family workshops where applicable. These series motors adopt advanced technology design, suitable for high-quality materials, with beautiful appearance and advanced performance, easy maintenance and reliable operation, low temperature, low noise, small starting current, and starting torque. The YCL series electric motors are similar to the YC series electric motors in appearance. The YCL series single-phase electric motors run cooler, and have higher efficiency and starting torque than the YC series electric motors.

YCL Series Capacitor Start Single Phase Induction Motor Operating Conditions:

• Rated power: 0.25-7.5kw, 1/3-10HP
• Ambient temperature:-15ºC-40ºC
• Altitude: not exceed 1000m
• Rated voltage:110V,115V,120V,220V,230V,240V
• Rated frequency: 50Hz or 60Hz
• Protection class: IP44,IP54
• Insulation class: B,F
• Cooling method: IC0141
• Duty:S1(continuous)

YCL Series Capacitor Start Single Phase Induction Motor Technical Data:

Type	Output		Voltage(V)	Current(A)	Frequency(HZ)	Power Factor	Efficiency(%)	Speed(R/MIN)	Tstart/TN	Ist/LN	Tmax/TN
	KW	HP
YCL80A-2	0.37	1/2	220	2.7	50	0.94	68.5	2830	2.3	6.0	1.8
YCL80B-2	0.55	3/4	220	4.0	50	0.95	71.0	2840	2.4	6.0	1.8
YCL80C-2	0.75	1	220	5.4	50	0.95	72.5	2850	2.5	6.0	1.8
YCL90S-2	1.1	1.5	220	7.2	50	0.95	73.2	2880	2.8	6.0	1.8
YCL90L-2	1.5	2	220	8.9	50	0.97	76	2900	2.8	7.0	1.8
YCL100L-2	2.2	3	220	13.2	50	0.96	78.8	2900	3.0	6.5	1.8
YCL80A-4	0.25	1/3	220	1.25	50	0.93	67.0	1410	2.3	6.0	1.8
YCL80B-4	0.37	1/2	220	2.6	50	0.93	69.0	1420	2.4	6.0	1.8
YCL80C-4	0.55	3/4	220	3.8	50	0.93	71.0	1430	2.5	6.0	1.8
YCL90S-4	0.75	1	220	5.0	50	0.93	73.3	1450	2.8	6.5	1.8
YCL90L-4	1.1	1.5	220	7.8	50	0.90	75	1450	2.5	6.0	1.8
YCL100L-4	1.5	2	220	9.3	50	0.92	79.4	1450	2.8	7.0	1.8
YCL112M-4	2.2	3	220	13.6	50	0.90	81.6	1450	2.3	6.5	1.8
YCL132S1-4	3	4	220	18.2	50	0.90	83.2	1450	2.1	6.5	1.8
YCL132S2-4	3.7	5	220	22.0	50	0.90	84.9	1450	2.1	6.5	1.8
YCL132M1-4	5.5	7.5	220	32.5	50	0.90	85.0	1460	2.0	6.5	1.8
YCL132M2-4	7.5	10	220	40	50	0.90	85.5	1460	2.0	6.5	1.8

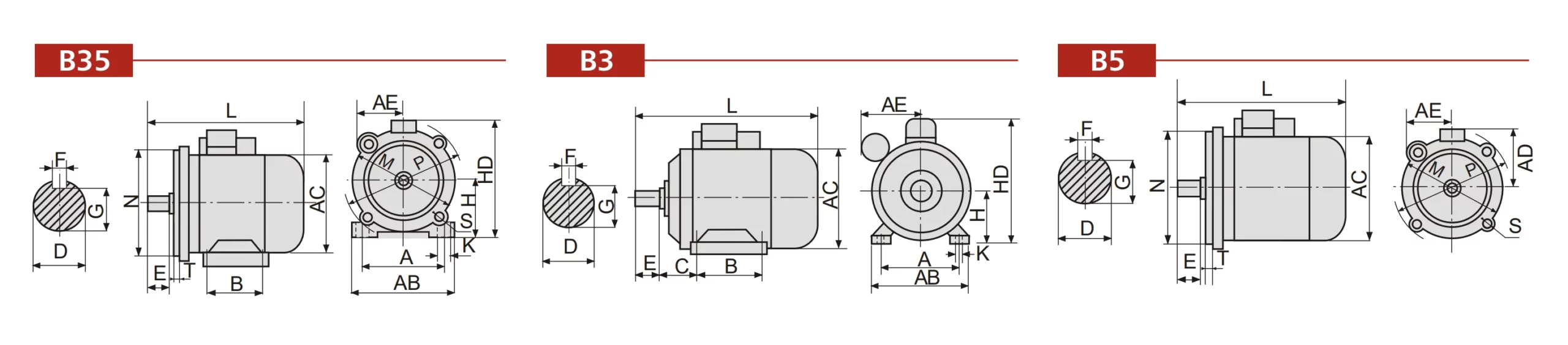

YCL Series Capacitor Start Single Phase Induction Motor Installation Dimension:
