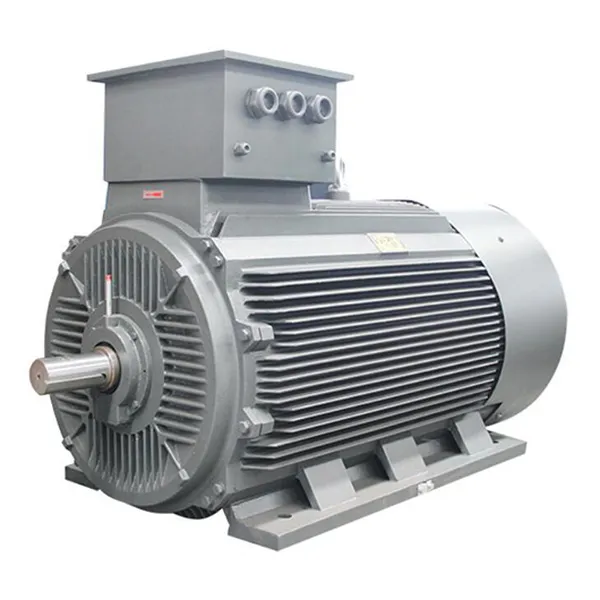

YE4/IE4 Series Super Premium Efficiency Three Phase Asynchronous Motor

Raydafon Group's YE4/IE4 Series Super Premium Efficiency Three Phase Asynchronous Motor delivers exceptional energy savings and reliable performance for industrial applications. Featuring advanced design and superior materials, it reduces operational costs and environmental impact, making it ideal for manufacturers and businesses seeking sustainable solutions. Experience enhanced efficiency and long-term value, setting a new standard in motor technology.

Send Inquiry

Product Description

YE4/IE4 Series Super Premium Efficiency Three Phase Asynchronous Motor

YE4/IE4 series electric motor is a newly designed super high-efficiency low voltage three-phase asynchronous motor with high strength cast iron structure, featuring high efficiency, high reliability, beautiful appearance, low noise, small vibration, etc. YE4 (IE4) series three-phase asynchronous motor meets the standard of the grade 2 energy efficiency in accordance with the stipulation of GB 18613-2020 “Minimum allowable values of energy efficiency and the energy efficiency grades for small and medium three-phase asynchronous motors”.It also meets the IE4 energy efficiency grade in accordance with IEC 60034-30 standard. The design of improving energy efficiency is in line with the requirement of the manufacturing industry of saving energy and reducing consumption put forward by the state. The installation dimensions meet the IEC 60034 standard.

YE4/IE4 Series Super Premium Efficiency Three Phase Asynchronous Motor Operating Conditions:

Output power: 0.12kW-315kWFrame size: 63 – 355Poles: 2,4,6,8,10Degree of protection: IP55 or IP65Voltage: 380V or 220/380V 380/660V, 230/400V 400/690VFrequency: 50HZ or 60HzInsulation Class: “F” class as standardTemperature: Class B(80K)Enclosure: TEFCBasic type of Construction: B3, B5, B35, B14, B34, V1Cooling Method: IC411Efficiency levels: IE4

YE4/IE4 Series Super Premium Efficiency Three Phase Asynchronous Motor Technical Data:

IE4/YE4 Series Super Premium Efficiency Electric Motor
Type	Rated Power		Rated Speed	Efficiency (IE4)			Power Factor	Rated current (A)			Rated Torque	Ist/In	Tst/Tn	Tmax/Tn	Weight
Type	(kW)	(HP)	(r/min)	100%	75%	50%	(cosφ)	380V	400V	415V	(N.m)	(times)	(times)	(times)	(kg)
Synchronous Speed 3000 r/min = 2 poles (50Hz)
IE4/YE4-631-2	0.18KW	0.25HP	2745	70.8	70.8	69.4	0.8	0.48	0.46	0.44	0.63	2.2	2.2	5.5	11.3
IE4/YE4-632-2	0.25KW	0.37HP	2745	74.3	74.3	72.8	0.81	0.63	0.60	0.58	0.87	2.2	2.2	5.5	11.8
IE4/YE4-711-2	0.37KW	0.5HP	2765	78.1	78.1	76.5	0.81	0.89	0.84	0.81	1.28	2.2	2.2	6.1	13.2
IE4/YE4-712-2	0.55KW	0.75HP	2765	81.5	81.5	79.9	0.82	1.25	1.19	1.14	1.9	2.3	2.3	6.1	14.5
IE4/YE4-801-2	0.75KW	1HP	2920	83.5	83.5	81.8	0.82	1.66	1.58	1.52	2.46	2.3	2.3	7	20
IE4/YE4-802-2	1.1KW	1.5HP	2925	85.2	85.2	83.5	0.83	2.36	2.25	2.16	3.6	2.2	2.3	7.3	21
IE4/YE4-90S-2	1.5KW	2HP	2925	86.5	86.5	84.8	0.84	3.14	2.98	2.87	4.89	2.2	2.3	7.6	24
IE4/YE4-90L-2	2.2KW	3HP	2930	88	88	86.2	0.85	4.47	4.25	4.09	7.17	2.2	2.3	7.6	29
IE4/YE4-100L-2	3KW	4HP	2935	89.1	89.1	87.3	0.87	5.88	5.59	5.38	9.76	2.2	2.3	7.8	37
IE4/YE4-112M-2	4KW	5.5HP	2940	90	90	88.2	0.88	7.67	7.29	7.03	13	2.2	2.3	8.3	48
IE4/YE4-132S1-2	5.5KW	7.5HP	2945	90.9	90.9	89.1	0.88	10.4	9.9	9.57	17.8	2	2.3	8.3	76
IE4/YE4-132S2-2	7.5KW	10HP	2950	91.7	91.7	89.9	0.88	14.1	13.4	12.9	24.3	2	2.3	7.9	85
IE4/YE4-160M1-2	11KW	15HP	2960	92.6	92.6	90.7	0.89	20.3	19.3	18.6	35.5	2	2.3	8.1	133
IE4/YE4-160M2-2	15KW	20HP	2960	93.3	93.3	91.4	0.89	27.4	26.1	25.1	48.4	2	2.3	8.1	146
IE4/YE4-160L-2	18.5KW	25HP	2960	93.7	93.7	91.8	0.89	33.7	32.0	30.9	59.7	2	2.3	8.2	160
IE4/YE4-180M-2	22KW	30HP	2965	94	94	92.1	0.89	40.0	38.0	36.6	70.9	2	2.3	8.2	221
IE4/YE4-200L1-2	30KW	40HP	2970	94.5	94.5	92.6	0.89	54.2	51.5	49.6	96.5	2	2.3	7.6	260
IE4/YE4-200L2-2	37KW	50HP	2970	94.8	94.8	92.9	0.89	66.6	63.3	61.0	119	2	2.3	7.6	309
IE4/YE4-225M-2	45KW	60HP	2975	95	95	93.1	0.9	80.0	76.0	73.2	144.5	2	2.3	7.7	370
IE4/YE4-250M-2	55KW	75HP	2975	95.3	95.3	93.4	0.9	97.4	92.6	89.2	176.6	2	2.3	7.7	520
IE4/YE4-280S-2	75KW	100HP	2980	95.6	95.6	93.7	0.9	132	126	121	240.4	1.8	2.3	7.1	570
IE4/YE4-280M-2	90KW	125HP	2982	95.8	95.8	93.9	0.9	159	151	145	288.2	1.8	2.3	7.1	630
IE4/YE4-315S-2	110KW	150HP	2980	96	96	94.1	0.9	193	184	177	352.5	1.8	2.3	7.1	985
IE4/YE4-315M-2	132KW	180HP	2980	96.2	96.2	94.3	0.9	232	220	212	423	1.8	2.3	7.1	1050
IE4/YE4-315L1-2	160KW	200HP	2980	96.3	96.3	94.4	0.91	277	264	254	512.8	1.8	2.3	7.2	1160
IE4/YE4-315L2-2	200KW	270HP	2980	96.5	96.5	94.6	0.91	346	329	317	640.9	1.8	2.2	7.2	1200
IE4/YE4-355M-2	250KW	340HP	2985	96.5	96.5	94.6	0.91	433	411	396	799.8	1.6	2.2	7.2	2050
IE4/YE4-355L-2	315KW	430HP	2982	96.5	96.5	94.6	0.91	545	518	499	1009	1.6	2.2	7.2	2380
Synchronous Speed 1500 r/min = 4 poles (50Hz)
IE4/YE4-631-4	0.12KW	0.18HP	1340	69.8	69.8	68.4	0.72	0.36	0.34	0.33	0.86	2.1	2.2	4.4	11.8
IE4/YE4-632-4	0.18KW	0.25HP	1340	74.7	74.7	73.2	0.73	0.50	0.48	0.46	1.28	2.1	2.2	4.4	12.6
IE4/YE4-711-4	0.25KW	0.37HP	1355	77.9	77.9	76.3	0.74	0.66	0.63	0.60	1.76	2.1	2.2	5.2	18
IE4/YE4-712-4	0.37KW	0.5HP	1355	81.1	81.1	79.5	0.75	0.92	0.88	0.85	2.61	2.1	2.2	5.2	19.5
IE4/YE4-801-4	0.55KW	0.75HP	1420	83.9	83.9	82.2	0.75	1.33	1.26	1.22	3.7	2.4	2.3	5.2	21
IE4/YE4-802-4	0.75KW	1HP	1430	85.7	85.7	84	0.75	1.77	1.68	1.62	5.01	2.3	2.3	6.6	24
IE4/YE4-90S-4	1.1KW	1.5HP	1445	87.2	87.2	85.5	0.76	2.52	2.40	2.31	7.27	2.3	2.3	6.8	30
IE4/YE4-90L-4	1.5KW	2HP	1450	88.2	88.2	86.4	0.77	3.36	3.19	3.07	9.88	2.3	2.3	7	34
IE4/YE4-100L1-4	2.2KW	3HP	1455	89.5	89.5	87.7	0.81	4.61	4.38	4.22	14.4	2.3	2.3	7.6	47
IE4/YE4-100L2-4	3KW	4HP	1455	90.4	90.4	88.6	0.82	6.15	5.84	5.63	19.7	2.3	2.3	7.6	53
IE4/YE4-112M-4	4KW	5.5HP	1460	91.1	91.1	89.3	0.82	8.1	7.7	7.45	26.2	2.2	2.3	7.8	60
IE4/YE4-132S-4	5.5KW	7.5HP	1470	91.9	91.9	90.1	0.83	11.0	10.4	10.0	35.7	2
