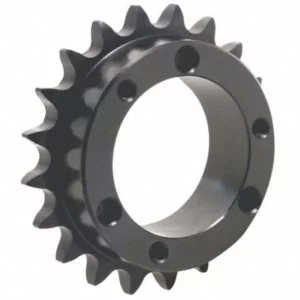

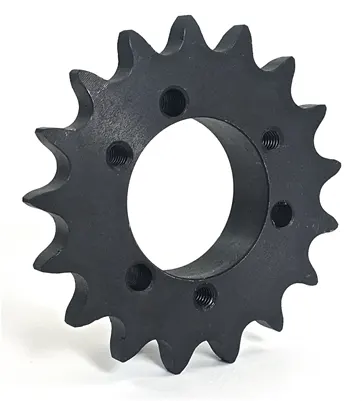

#35 QD-Bushed Roller Chain Sprocket

#35 QD-Bushed Roller Chain Sprocket

Trust our quality assurance process for #35 roller chain sprockets from roller chain. We offer a variety of materials, including plastic, stainless steel, and black-oxide-coated hardened metal. Our products support various industries, including government entities, small businesses, OEMs, and major resellers.In our inventory, every top configuration, including #35 roller chain sprockets with qd-bushed designs. Each sprocket features precision-cut teeth, ensuring your assembly operates smoothly throughout the workday.Explore our extensive selection of #35 roller chain sprockets! We offer various designs, including taper bushed, H-bushed, A-plate, B-hub, C-hub, and split types. You’ll also find idler parts in our sprocket collection.Our parts are designed for universal compatibility, providing you with unmatched versatility. Each sprocket is made from hardened steel, ensuring durability and reliable performance for your daily operations.With tooth quantities ranging from 19 to over 112, our #35 sprockets are perfect for keeping your machinery running smoothly.

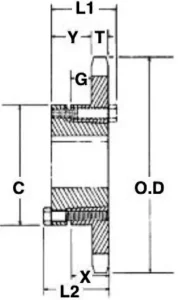

#35 QD-Bushed Roller Chain Sprocket Parameter:

#35 QD-Bushed Roller Chain Sprocket Characteristic:

Design and Construction

35 qd-bushed roller chain sprockets are designed for optimal performance in power transmission systems. The taper bushed configuration allows for a secure mounting option, making them easy to install on shafts or other components. They are often made from high-quality materials such as:

• Plastic: Lightweight and corrosion-resistant, suitable for less demanding applications.
• Stainless Steel: It offers high resistance to corrosion and wear and is ideal for food processing and chemical applications.
• Black-Oxide-Coated Hardened Metal: Provides enhanced durability and protection against rust, commonly used in heavy-duty environments.

Precision Engineering

These sprockets feature precision-cut teeth that ensure smooth engagement with roller chains, reducing wear and tear. This precision contributes to the overall efficiency of the machinery, minimizing downtime and maintenance costs.

Compatibility

#35 sprockets are compatible with standard #35 roller chains, making them versatile for various setups. This compatibility allows for easy replacement and integration into existing systems.

#35 QD-Bushed Roller Chain Sprocket Application:

Automotive Timing Systems

• Function: In internal combustion engines, roller chain sprockets are part of the timing chain mechanism. They ensure the engine's camshaft and crankshaft rotate in sync, allowing for precise timing of the engine's intake and exhaust valves. This synchronization is crucial for optimal performance and efficiency.

Bicycle Drivetrains

• Function: Sprockets connect to the pedals and rear wheel through bicycle roller chains. When the rider pedals, the front sprocket turns, transferring motion through the chain to the rear sprocket, propelling the bike forward. Different sizes of sprockets allow for various gear ratios, making it easier to climb hills or gain speed.

Conveyor Systems

• Function: Roller chain sprockets drive conveyor belts in industrial settings, facilitating the movement of goods and materials along assembly lines. The sprockets engage with the chain to provide consistent motion, which is essential for efficiently transporting products from one production stage to another.

Agricultural Equipment

• Function: In farming machinery like combines and tractors, roller chain sprockets power various attachments such as plows, seeders, and harvesters. This mechanism allows for efficient equipment operation, improving productivity in planting and harvesting crops.

How Do You Ensure Proper Alignment When Installing A Qd-Bushed Sprocket?

Ensuring proper alignment when installing a QD-bushed sprocket is crucial for optimal performance and longevity of the system. Here are the key steps and best practices to achieve proper alignment:

Steps for Ensuring Proper Alignment

1. Clean the Shaft and Sprocket:

• Before installation, clean the shaft and the bore of the sprocket to remove any debris, rust, or grease that could interfere with alignment.

2. Check the Shaft and Sprocket Condition:

• Inspect the shaft for any damage or wear. Ensure that the sprocket is free from defects or excessive wear as well.

3. Position the Sprocket:

• Slide the QD-bushed sprocket onto the shaft without fully tightening it yet. Ensure that the sprocket is positioned where it needs to be in relation to the chain or other components.

4. Align with the Chain:

• If applicable, place the chain around the sprocket and check for proper engagement. The chain should sit evenly in the sprocket teeth without binding or excessive slack.



5. Use a Straight Edge or Alignment Tool:

• Utilize a straight edge or laser alignment tool to check the alignment between the sprocket and any adjacent sprockets or pulleys. This helps to ensure that all components are in line with each other.

6. Adjust the Position:

• If the alignment is off, adjust the position of the sprocket on the shaft as needed. This may involve moving the sprocket closer to or further from other components.

7. Tighten the Set Screws:

• Once proper alignment is confirmed, tighten the set screws on the QD-bush to secure the sprocket to the shaft. Make sure to follow the manufacturer’s torque specifications to avoid over-tightening.

8. Recheck Alignment:

• After tightening, recheck the alignment to ensure that it hasn’t shifted during the tightening process. This is especially important in larger systems where movement can occur.

9. Test Run:

• Conduct a test run of the system to listen for any unusual noises and to observe the operation. Check for smooth movement of the chain and sprocket interaction.

How Do You Match A Roller Chain To A Sprocket?

Matching a roller chain to a sprocket is essential for optimal performance in mechanical systems. Here’s a step-by-step guide to ensure compatibility:

1. Determine Chain Size

Identify the Chain Type: Common sizes include #25, #40, #50, etc. The number indicates the chain's pitch (distance between pins).Measure the Pitch: Use calipers to measure the distance between the centers of two adjacent pins. This helps confirm the chain size.

2. Check Sprocket Specifications

Sprocket Size: Ensure the sprocket is designed for the same chain size identified (e.g., a #25 sprocket for a #25 chain).Teeth Count: Determine the number of teeth on the sprocket. This affects speed and torque. More teeth provide more torque but reduce speed.

3. Verify Hub Configuration

B-Hub vs. A-Hub: Check if the sprocket’s hub configuration matches your mounting requirements. B-hubs are typically used for more robust applications.

4. Consider Material Compatibility

Material Choices: Ensure the chain and sprocket are made of materials compatible with your application (e.g., stainless steel for corrosion resistance).Load Requirements: Consider the load and wear resistance needed for your application.

5. Examine Chain and Sprocket Alignment

Alignment: Ensure the chain and sprocket align properly to prevent wear and increase efficiency. Misalignment can lead to premature failure.Tension: Proper chain tension is crucial. Too tight or too loose can cause issues.

6. Consult Manufacturer Guidelines

Manufacturer Recommendations: Always refer to the manufacturer's guidelines for both chain and sprocket, as they provide information on compatibility and performance.

7. Test the Setup

After installation, run the system briefly to ensure smooth operation without unusual noises or vibrations.

Roller Chain Sprocket Manufacturer:

We specialize in chain sprockets made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various chain sprockets like conveyor sprockets, QD sprockets, idler sprockets, cast iron sprockets, bushed sprockets, and many others.
