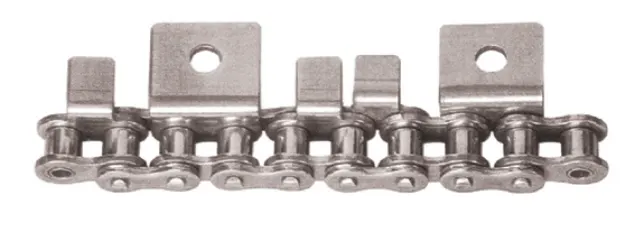

08ASS-K1/A10Jn7.9BSS Stainless Steel Short Pitch Conveyor Chain for Jelly Making Machine

The 08ASS-K1/A10Jn7.9BSS Stainless Steel Short Pitch Conveyor Chain for Jelly Making Machine is a crucial component in the jelly making process, providing a reliable and efficient chain transmission system.

Structure of Stainless Steel Jelly Making Machine Chains

The Stainless Steel Jelly Making Machine Chain is composed of several components, including pins, bushings, rollers, and plates. The pins are designed to hold the chain together, while the bushings provide a smooth interface between the pins and the rollers. The rollers allow the chain to move smoothly along the sprockets, and the plates provide stability and rigidity to the chain.

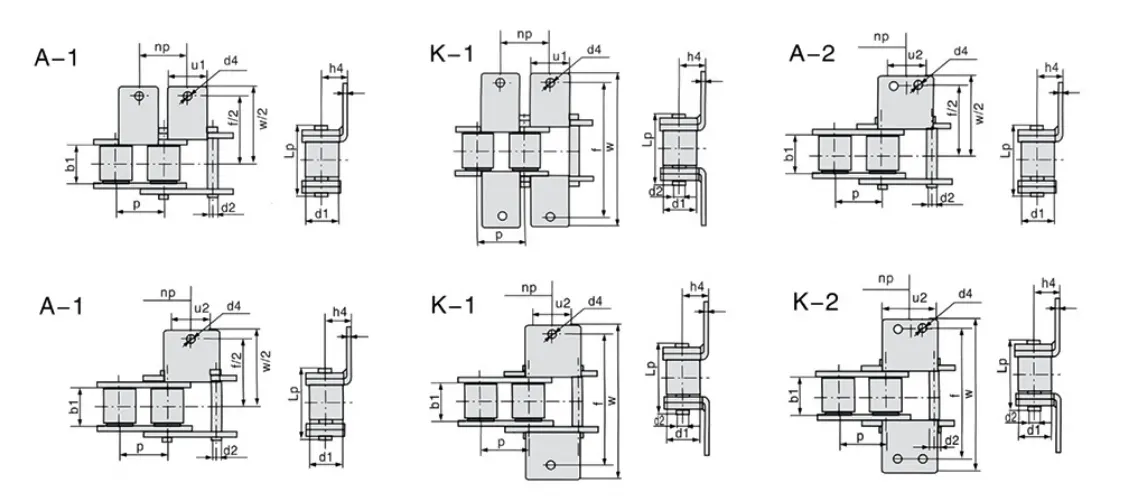

Specifications of 08ASS-K1/A10Jn7.9BSS Stainless Steel Short Pitch Conveyor Chain for Jelly Making Machine

The Stainless Steel Jelly Making Machine Chain comes in various sizes and specifications, including pitch, roller diameter, width between inner plates, and ultimate tensile strength. Refer to the following chart for specific parameters:

ChainNo.	Pitch	Widthbetweeninner plates		Pindiameter	Pinlength	Pinlength	Innerplatedepth
	P	b1	D	d2	Lp	Lc	h2	T
		min	max	max	max	max	max	max
	mm	mm	mm	mm	mm	mm	mm	mm
08ASS-K1/A10Jn7.9BSS	12.7	7.85	7.95	3.96	17.8	21.7	12.07	1.5
Chain No.	h4	f	g	d4	w	U1	U2
	mm	mm	mm	mm	mm	mm	mm
08ASS-K1/A10Jn7.9BSS	7.9	25.4		3.6	35.5	9.5

Features of Stainless Steel Jelly Making Machine Chains

Durability

The Stainless Steel Jelly Making Machine Chain is made of high-quality alloy steel, which provides exceptional durability and wear resistance. It is heat-treated and pre-stressed, ensuring a long service life. The chain is also manufactured with sturdy rollers, which further enhances its durability.

Corrosion Resistance

The Stainless Steel Jelly Making Machine Chain is made of stainless steel, making it highly resistant to corrosion and rust. This feature makes it suitable for use in harsh environments where other chains may fail.

High Precision

The Stainless Steel Jelly Making Machine Chain is manufactured with high precision technology, ensuring that the components fit together perfectly. This precision helps to reduce wear and tear on the chain, prolonging its service life.

Applications

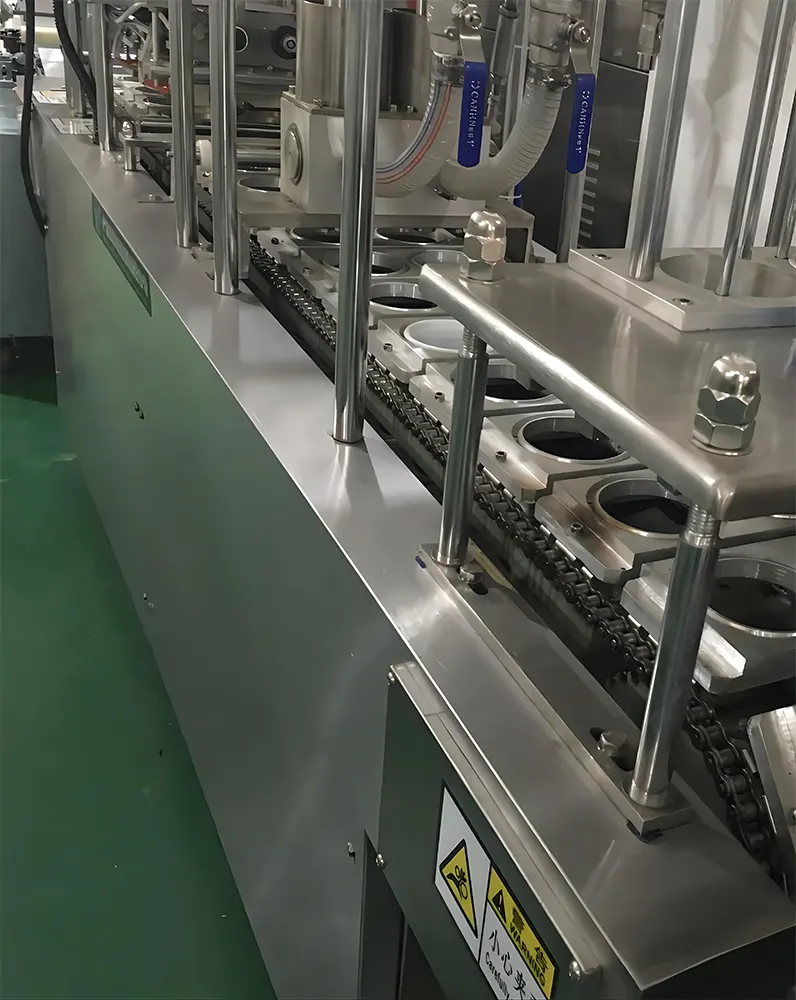

The Stainless Steel Jelly Making Machine Chain is a critical component in the jelly making process. Its primary function is to provide a reliable and efficient chain transmission system that ensures the smooth and consistent movement of the jelly-making machine. It is suitable for use in different types and sizes of jelly-making machines, making it a versatile product.

Installation and Usage Instructions

Proper installation and usage of the Stainless Steel Jelly Making Machine Chain are crucial to ensure maximum performance and longevity. Follow these steps to install and use the chain:

Installation

1. Ensure that the chain is the correct size and type for your jelly-making machine.
2. Clean and lubricate the sprockets and chain before installation.
3. Wrap the chain around the sprockets, ensuring that it is properly tensioned.
4. Insert the connecting link and secure it using a chain tool.
5. Inspect the chain regularly and replace any damaged or worn components.

Usage

1. Ensure that the chain is properly lubricated before use.
2. Monitor the chain regularly for signs of wear or damage.
3. Do not overload the chain beyond its maximum capacity.
4. Do not expose the chain to harsh chemicals or extreme temperatures.

Stainless Steel Sprockets for Chains

The Stainless Steel Jelly Making Machine Chain operates in conjunction with the sprockets. At Raydafon, we offer a range of stainless steel sprockets that are compatible with our chains. Our sprockets are designed with the same attention to detail and quality as our chains, ensuring a reliable and efficient chain transmission system.

About Raydafon

Raydafon is a professional chain manufacturer that specializes in standard chains and custom shaped chains. Our stainless steel roller chains are manufactured in accordance with strict ANSI/DIN/ISO standards. We use high-quality alloy steel in the production of our chains, and our components undergo heat treatment and precision machining. Our chains are suitable for use in various industries, including food processing, agriculture, and packaging.We pride ourselves on our flexible and modernized production and operation model, quick market response, and excellent after-sales service. Our products are exported to various countries and regions worldwide, including Europe, Japan, the United States, Canada, and Southeast Asia.
