08B-GC Grip Chains 08B-GC Film Gripper Chains 08B-GC Film Clamping Chains

Raydafon Group's 08B-GC Grip Chains are essential for securely clamping films in industrial and packaging applications. With durable construction and innovative design, these Film Gripper Chains ensure reliable performance, reducing slippage and enhancing efficiency. Ideal for manufacturers and operators seeking precision, they stand out with superior grip and ease of integration. Elevate your workflow with these trusted Film Clamping Chains and experience seamless operation.

Send Inquiry

Product Description

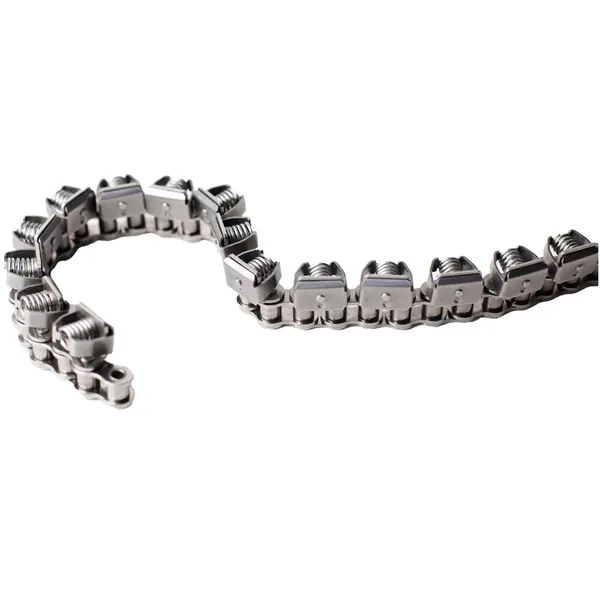

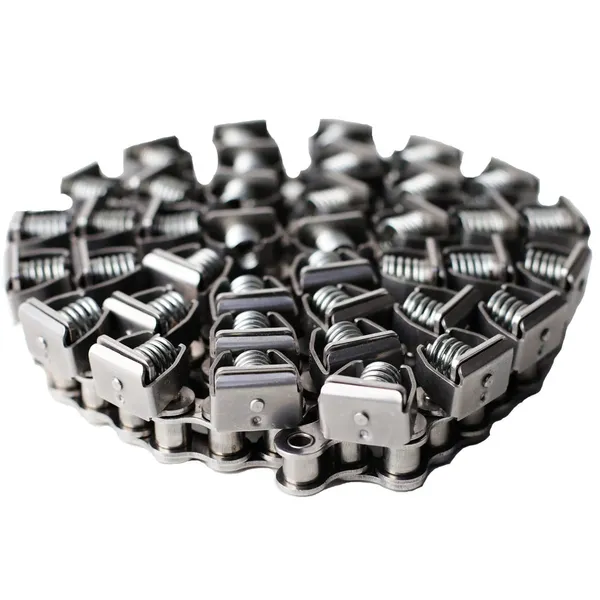

08B-GC Grip Chains 08B-GC Film Gripper Chains 08B-GC Film Clamping Chains

The 08B-GC film gripper chains are a type of chain used in packaging machines to grip and convey plastic film. They are made of stainless steel and have a pitch of 12.7mm. The film grip chains have a K-style clamp that allows for vertical movement combined with side rotation (kick-back) to ensure easy film engagement and scrap release. The wire clip is located on the clamp side, and the universal connecting link fits in all types of chain guides, including C-shaped guide profiles. The 08B-GC film gripper chains also have two springs of 30N each for uniform film clamping and control of film tension.The 08B-GC film gripper chains are typically used in form, fill, and seal (FFS) packaging machines. These machines are used to package a variety of products, including food, beverages, and personal care products. The 08B-GC film grip chains are also used in other applications where the plastic film needs to be gripped and conveyed, such as in the medical and automotive industries. If you are looking for a chain to grip and convey plastic film, the 08B-GC 08B-GC film gripper chains are a good option. They are made of durable materials, have a smooth operating pitch, and are easy to use.

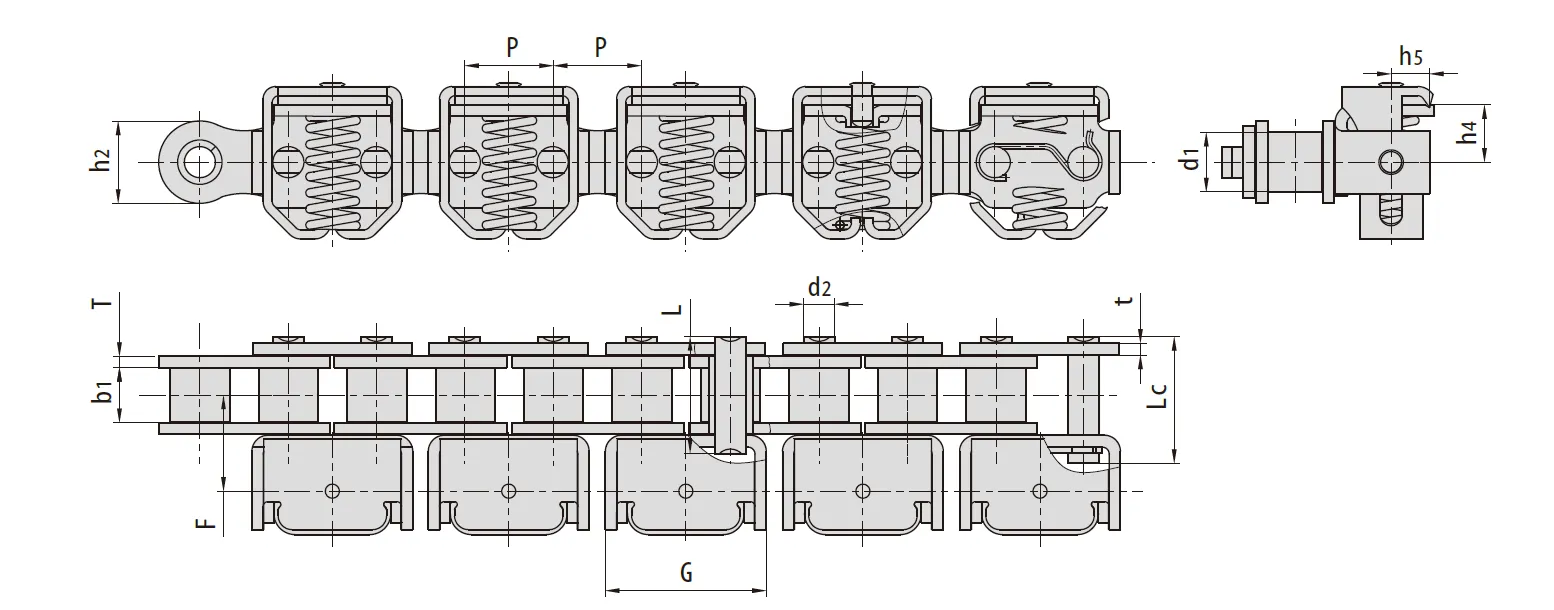

▍08B-GC Grip Chains (Film Gripper Chains) Dimensions:

?Chain No.

?Pitch

?Roller diameter

?Width between inner plates

?Pin diameter

Pin length

?Plate depth

?Plate thickness

?Attachment dimension

Tensile strength

?Average tensile strength

Weight per meter

d1?max

b1?min

d2?max

Lmax

Lc max

h2?max

T/t

Qmin

kN/lbf

kg/m

08B-GC Chain

12.7

8.51

7.75

4.45

16.7

18.2

11.8

1.60

8.5

5.5

13.7

19.8

18.00/4046

19.80

1.20

▍08B-GC Grip Chains (Film Gripper Chains) Specifications:

1. Material: Stainless steel chain / Alloy Carbon Steel2. Surface Treatment: Zinc-Plated / Nickel-Plated / Dacromet-Plated3. Short-pitch stainless steel conveyor chain with attachments.4. Double-pitch stainless steel conveyor chain.5. Double-pitch hollow pin chain.Note: If you have drawings or samples, we can do the special conveyor chains.

Product?name?	08B-GC Grip Chains (08B-GC Film Gripper Chains)
Materials?Available?	1.?Stainless?Steel:?SS304, SS316, etc
	2.?Alloy Steel: 45Mn, 42CrMo, etc
	3. OEM, according to your request
Surface Treatment	Shot peening, Polishing, Oxygenation, Blackening, Zinc-plated, Nickel-plated, Anodized, etc.
Characteristic	Fire?Resistant,?Oil?Resistant,?Heat?Resistant
Application	Mainly used in products transmission
Design criterion	ISO DIN ANSI?& Customer's Drawing
Size	Customer's Drawing & ISO standard
Package	Wooden Case / Container and pallet, or made-to-order
Certificate	ISO9001: 2008
Advantage	First quality, Best service, Competitive price, Fast delivery
Delivery Time	20 days for samples. Forty-five days for official order.

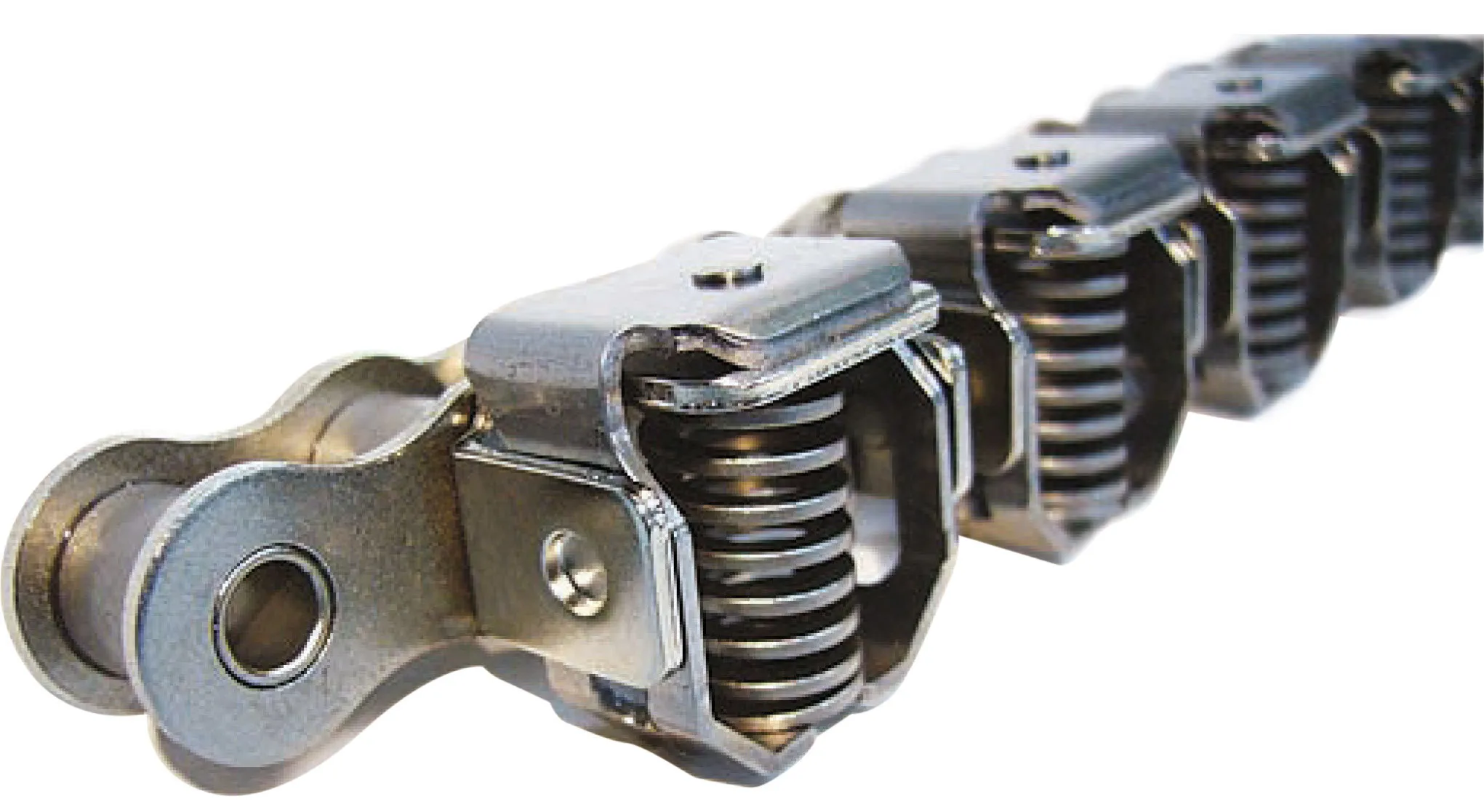

▍Advantages of 08B-GC Grip Chains (Film Gripper Chains)

The 08B-GC film gripper chains have several advantages over other types of chains used in packaging machines. These advantages include:1. Corrosion resistance: The 08B-GC film gripper chains are made of stainless steel, which makes them resistant to corrosion. This is important in packaging machines, which are often exposed to moisture and other corrosive materials.2. Smooth operation: The 08B-GC film grip chains have a pitch of 12.7mm, which allows for smooth operation. This helps to prevent the chains from jamming or binding, which can damage the film or the machine.3. Easy film engagement and scrap release: The K-style clamp on the 08B-GC film gripper chains allows for easy film engagement and scrap release. This helps to ensure that the film is gripped securely and that scrap is released easily.4. Universal connecting link: The universal connecting link on the 08B-GC film grip chains fits all types of chain guides. This makes the film grip chains compatible with a wide variety of packaging machines.5. Two springs of 30N each: The two springs of 30N each on the 08B-GC film gripper chains provides uniform film clamping and control of film tension. This helps to ensure that the film is gripped evenly and that the tension is maintained throughout the packaging process.Overall, the 08B-GC 08B-GC film gripper chains are a reliable and versatile option for gripping and conveying plastic film in packaging machines. They are made of durable materials, have a smooth operating pitch, and are easy to use. These advantages make them a good choice for a variety of packaging applications. 08B-GC Grip Chains 08B-GC Film Gripper Chains 08B-GC Film Clamping Chains

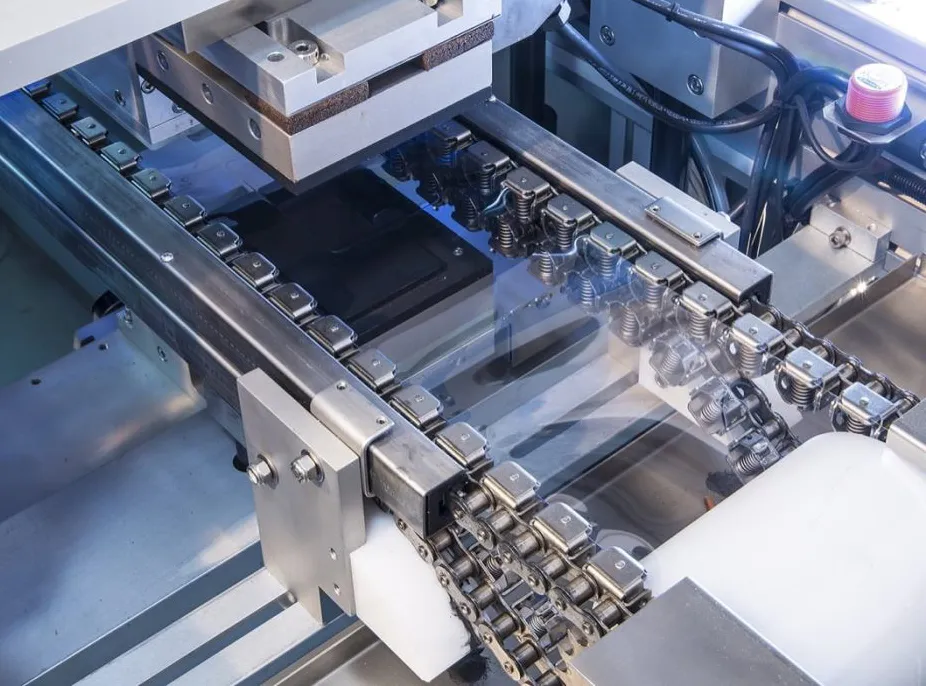

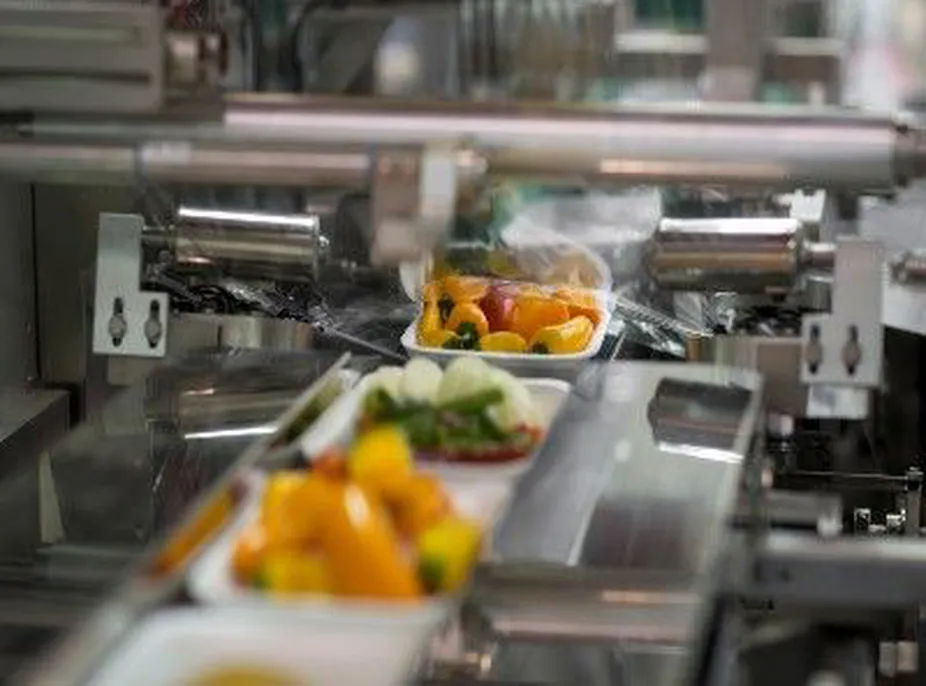

▍Applications of 08B-GC Grip Chains (Film Gripper Chains)

08B-GC film gripper chains are used in a variety of applications where it is necessary to grip and convey plastic film. Some of the most common applications include:(1) Food packaging: 08B-GC film grip chains are used to grip and convey plastic film used in food packaging, such as bags, wrappers, and pouches. This type of chain is often used in conjunction with a vacuum system to ensure that the film is tightly gripped and does not slip.(2) Industrial packaging: 08B-GC film gripper chains are also used in industrial packaging applications, such as the packaging of electronics, medical devices, and other products. This type of chain is often used in conjunction with a conveyor system to move the product along the packaging line.(3) Logistics: 08B-GC film grip chains are also used in logistics applications, such as the loading and unloading of shipping containers. This type of chain is often used in conjunction with a gantry system to move the shipping containers around the warehouse.(4) Flexographic printing: Flexographic printing uses a flexible printing plate and is commonly used to print on materials such as plastic films, paper, and corrugated cardboard. The 08B-GC film grip chain is used to transport the materials through the printing press and hold them in place during the printing process.(5) Gravure printing: Gravure printing uses an engraved cylinder to transfer ink onto the printing substrate. The 08B-GC film grip chains is used to transport the substrate through the printing press and hold it in place during the printing process.(6) Coating and laminating: The 08B-GC film grip chains are used to transport materials through the coating and laminating machines. The grippers hold the materials securely in place as they pass through the machines, ensuring accurate coating and laminating.(7) Other applications: 08B-GC film gripper chains can also be used in other applications where it is necessary to grip and convey plastic films, such as the manufacturing of plastic bags, the production of plastic sheeting, and the recycling of plastic film.

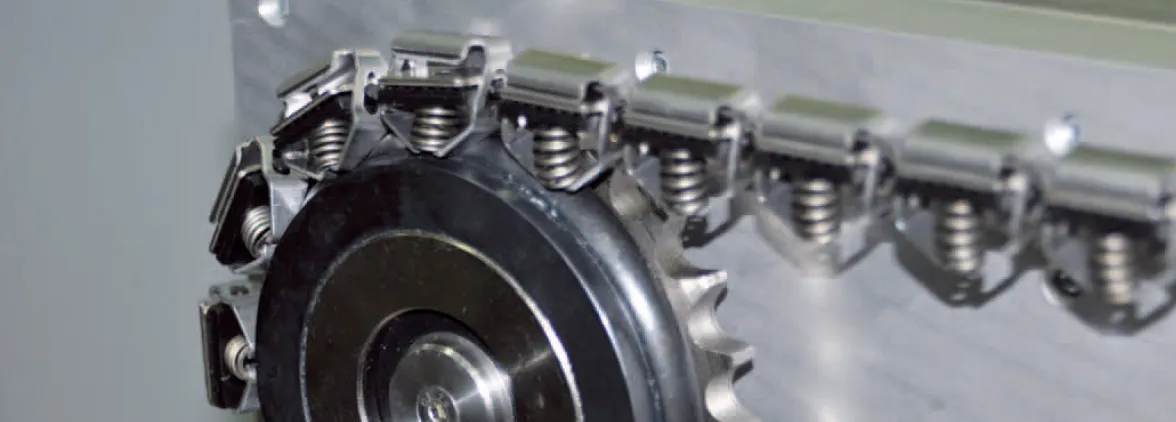

▍08B-GC Grip Chain Sprockets for 08B-GC Grip Chains

08B-GC grip chain sprockets and 08B-GC grip chains are commonly used in the packaging industry for conveying films, papers, and other flexible materials. The 08B-GC grip chain sprockets are designed to mesh with the teeth on the film gripper chains, which are equipped with special grippers that securely hold the material being transported.The 08B-GC film grip chain refers to the chain size, which is a standard roller chain size with a pitch of 1 inch (25.4 mm) and a width of 1/2 inch (12.7 mm). The "GC" stands for "Gripper Chain," indicating that the film grip chain is designed specifically for gripping and conveying flexible materials.The 08B-GC grip chain sprockets are designed with teeth that match the profile of the 08B-GC film gripper chains, ensuring a reliable and smooth operation. They are usually made of steel and can be either plain or with a hub. The hub provides extra support to the sprocket and can help to reduce wear and tear.Overall, the 08B-GC grip chain sprockets and 08B-GC grip chains are essential components in many packaging systems that require the secure and precise handling of flexible materials. 08B-GC Grip Chains 08B-GC Film Gripper Chains 08B-GC Film Clamping Chains

▍08B-GC Film Gripper Chains Maintenance

Here are some tips on how to maintain your 08B-GC film gripper chain:

Inspect the chain regularly. Look for any signs of wear, such as kinks, rust, or missing links. If you see any damage, replace the film gripper chain immediately.
Lubricate the chain regularly. This will help to keep it running smoothly and prevent wear. Use a light oil or grease that is compatible with the grip chain material.
Keep the chain clean. Dirt and debris can build up on the grip chains and cause them to wear prematurely. Wipe down the chain with a clean cloth after each use.
Adjust the chain tension regularly. If the grip chain is too tight, it will wear out prematurely. If it is too loose, it will not grip the film properly.
Store the chain properly. When you are not using the grip chains, store it in a dry, cool place. This will help to prevent rust and corrosion.

By following these simple maintenance tips, you can help to keep your 08B-GC film gripper chain running smoothly and extend its lifespan.Here are some additional tips:

Use the correct type of lubricant for your chain. Some lubricants can be harmful to certain types of grip chains.
Do not over-lubricate the grip chain. This can actually cause more wear.
If the grip chain is exposed to harsh environments, such as high temperatures or chemicals, you may need to inspect it more often and replace it sooner.

▍China Film Gripper Chains Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like?roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains,?agricultural chains, silent chains, PIV chains,?stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain,?drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
