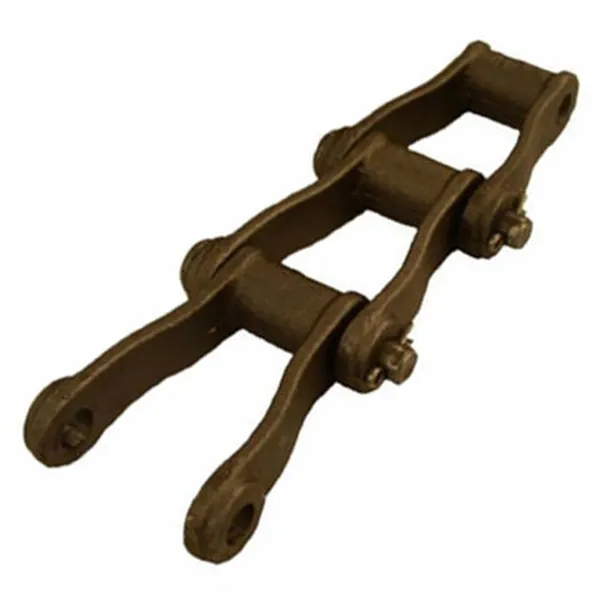

4124 Pintle Chain

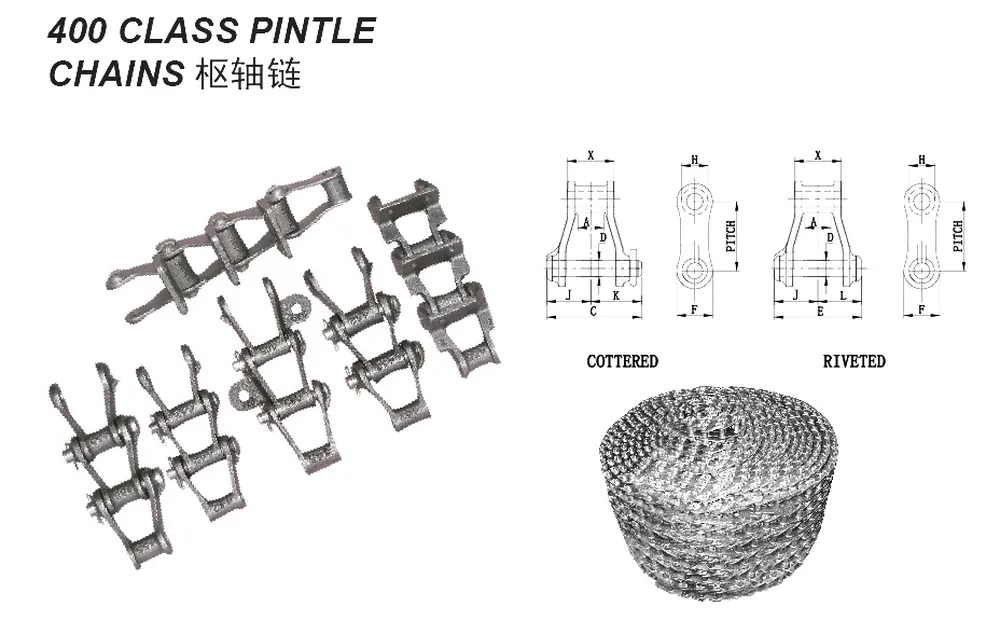

Chain No.	4124 Pintle Chain
Pitch In Inches	4.060
Weight Per Foot LBS	7.30
Average Ultimate Strength	28600
Maximum Working Load LBS.	4860
A	1.25
C	4.32
D	0.79
E	4.02
F	1.72
H	1.52
X	2.26
Available Attachments	F2, F8, K2

4124 Pintle Chain Attachments:

There are a variety of 4124 pintle chain attachments available, each designed for a specific application. Some of the most common attachments include the 4124 F2 attachment, the 4124 F8 attachment, and the 4124 K2 attachment.

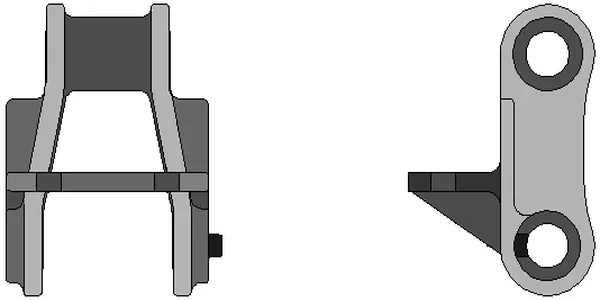

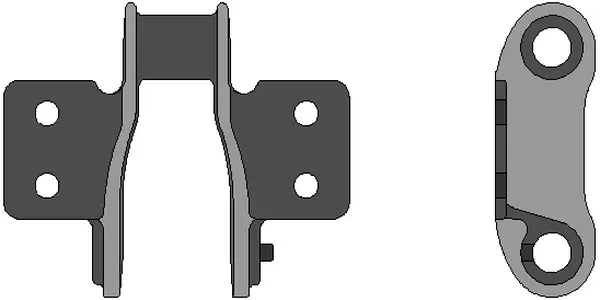

4124 Pintle Chain F2 Attachment	4124 Pintle Chain K2 Attachment

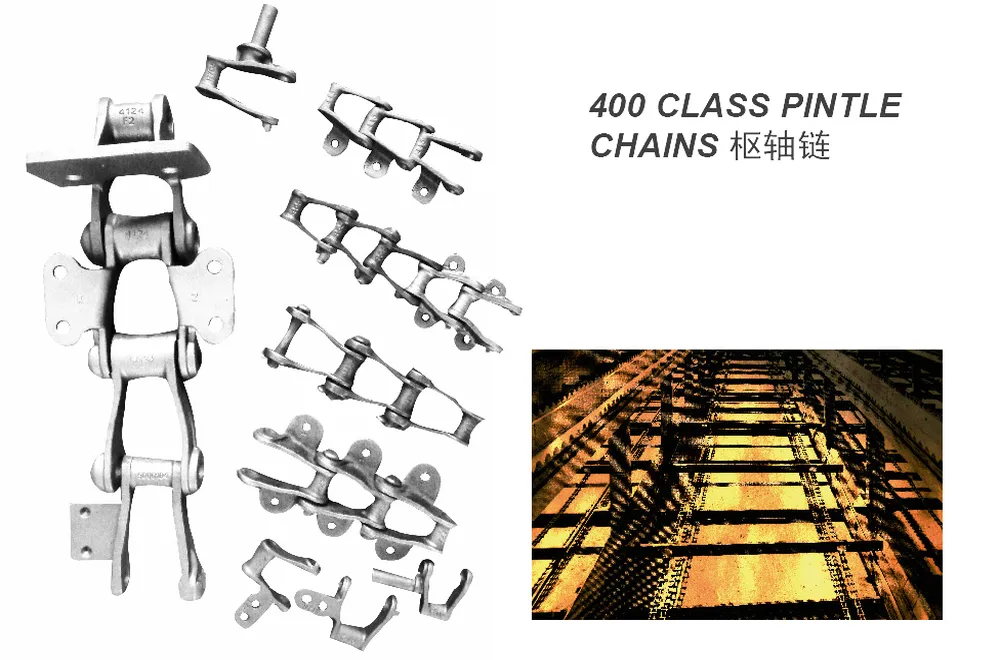

Features of 4124 Pintle Chain:

The 4124 pintle chain possesses several notable features that make it suitable for heavy-duty applications. Here are the key features of the 4124 pintle chain:1. Robust Construction: The 4124 pintle chain is constructed using high-quality alloy steel, ensuring its strength and durability. It is designed to withstand heavy loads, harsh operating conditions, and demanding environments.2. Large Offset Links: This 4124 pintle chain incorporates large offset links with extended pins. These offset links resemble pintle hooks and provide added strength and load-carrying capacity. The design enhances the chain's ability to transmit power efficiently while withstanding high tension and impact loads.3. Heat Treatment: The 4124 pintle chain components undergo heat treatment processes to achieve optimal hardness and toughness. This treatment increases the chain's resistance to fatigue, wear, and impact, extending its service life in challenging operating conditions.4. High Load-Carrying Capacity: The 4124 pintle chain is specifically designed to handle heavy loads. Its robust construction and large offset links allow it to transmit power effectively and reliably, making it suitable for applications requiring substantial load-bearing capabilities.5. Versatility: This 4124 pintle chain finds applications in various industries, including agriculture, forestry, mining, construction, and material handling. It is commonly used in machinery such as combines, grain elevators, balers, forestry equipment, mining machinery, and industrial material handling systems.

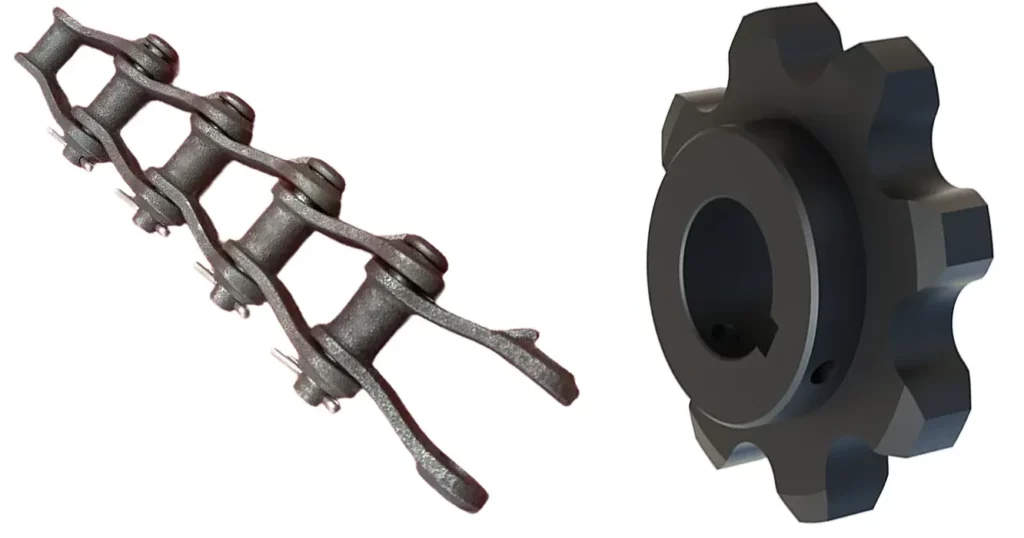

4124 Pintle Chain Sprockets and 4124 Pintle Chains:

4124 pintle chain is a lightweight, economical, and durable pintle chain that is capable of handling average loads at slow or intermediate speeds. It is available in riveted or cottered construction and is found in a wide range of material handling and elevator applications, along with some environmental and wastewater applications.

The 4124 pintle chain sprockets are designed to work with 4124 pintle chains. They are available in a variety of materials, sizes, and tooth counts to meet the specific requirements of your application.

To match a sprocket to a 4124 pintle chain, you need to know the chain pitch. The pitch is the distance between the centers of two consecutive pins. You can measure the pitch of the chain using calipers. Once you know the pitch, you can select a sprocket with the same pitch.

Here are some of the factors to consider when choosing 4124 pintle chain sprockets:

• Chain pitch: The sprocket pitch must match the chain pitch.
• Sprocket material: The sprocket material should be strong enough to handle the loads and conditions of the application.
• Sprocket size: The sprocket size must be large enough to accommodate the number of chain links required.
• Sprocket tooth count: The sprocket tooth count must be compatible with the chain speed and load.
• Sprocket type: The sprocket type (A-plate, B-hub, C-hub, etc.) must match the application requirements.

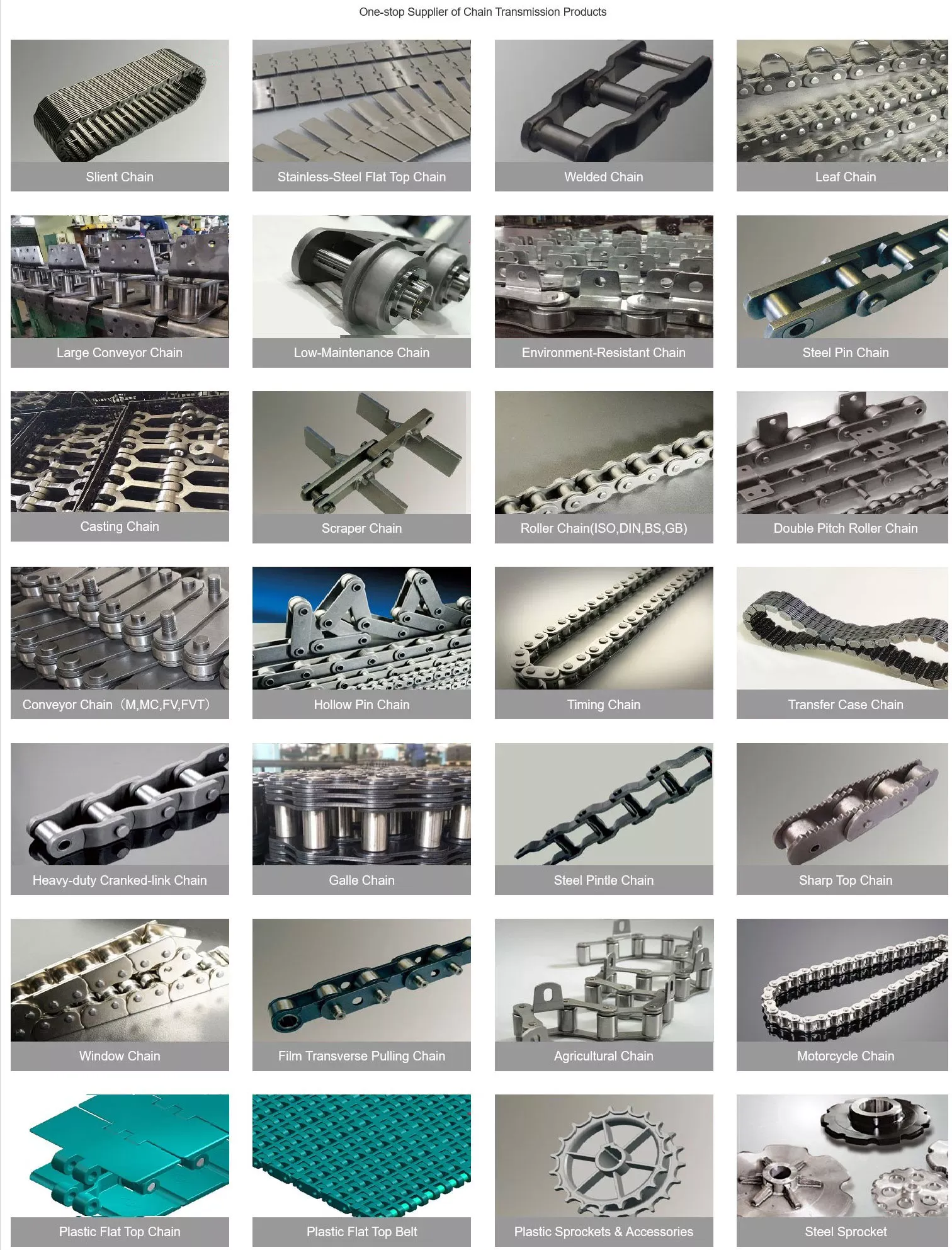

China 400 Class Pintle Chain?Manufacturers
