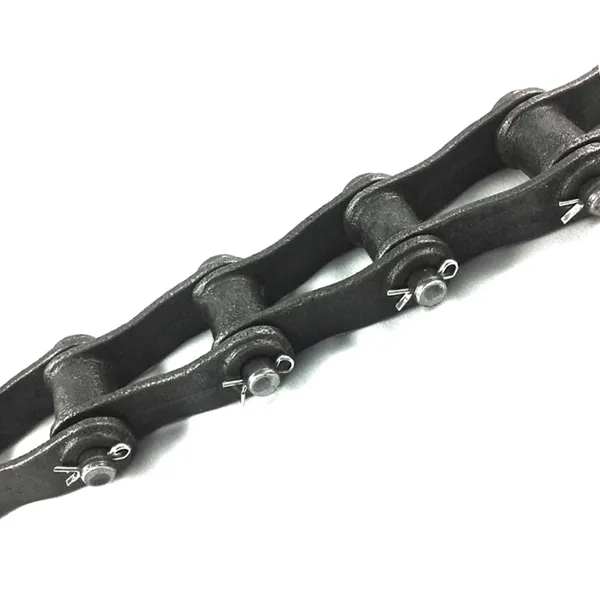

442 Pintle Chain

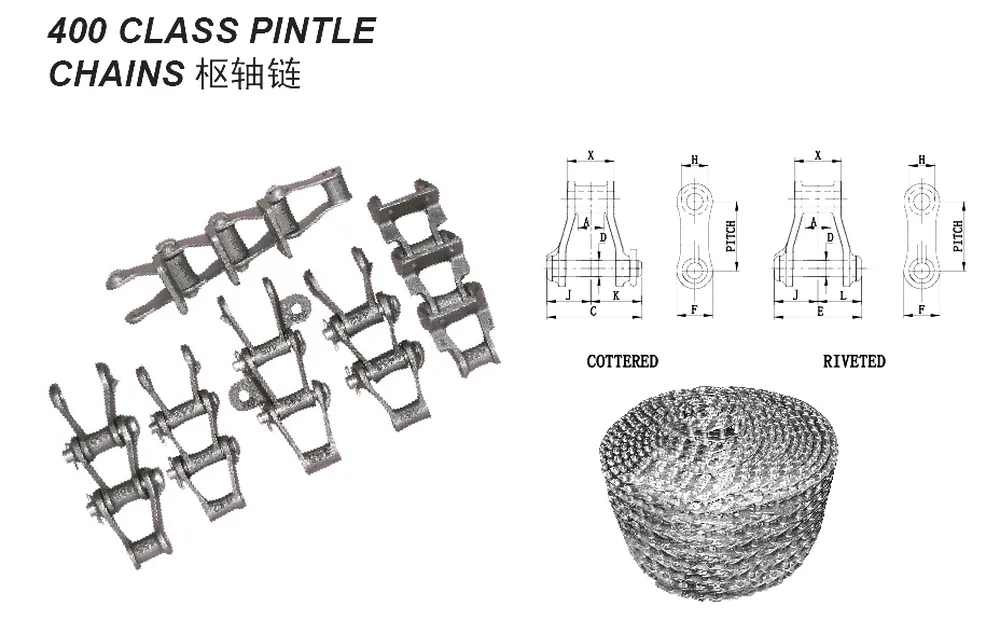

Chain No.	442 Pintle Chain
Pitch In Inches	1.375
Weight Per Foot LBS	1.40
Average Ultimate Strength	6000
Maximum Working Load LBS.	1000
A	0.62
C	2.03
D	0.31
E	1.88
F	0.75
H	0.56
X	1.06
Available Attachments	None

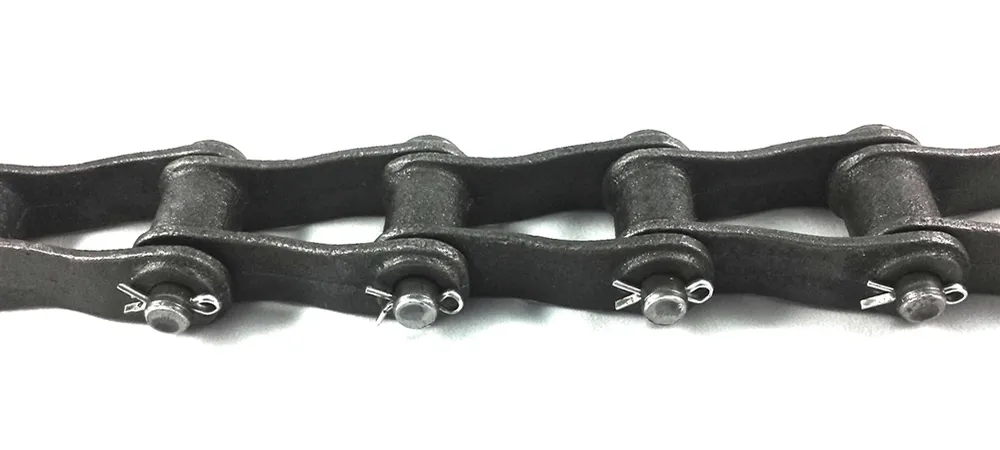

442 Pintle Chain Features:

Here are the key features of the 442 pintle chain:

1. Lightweight and economical: The 442 pintle chain is made of high-quality precision components, but it is still lightweight and economical. This makes it a good choice for applications where weight and cost are important considerations.2. Durable and long-lasting: The 442 pintle chain is made of heat-treated carbon steel pins, which makes it durable and long-lasting. The heat treatment process improves the strength and wear resistance of the pins, which helps to extend the life of the chain.3. Available in riveted or cottered construction: The 442 pintle chain is available in both riveted and cottered construction. Riveted construction is more common, but cottered construction is more secure and can be used in applications where there is a lot of vibration.4. Wide range of applications: The 442 pintle chain is found in a wide range of applications, including material handling, elevator, agricultural, and environmental. It is a versatile chain that can be used in a variety of environments and conditions.

442 Pintle Chain Applications:

The 442 pintle chain is found in a wide range of applications, including:

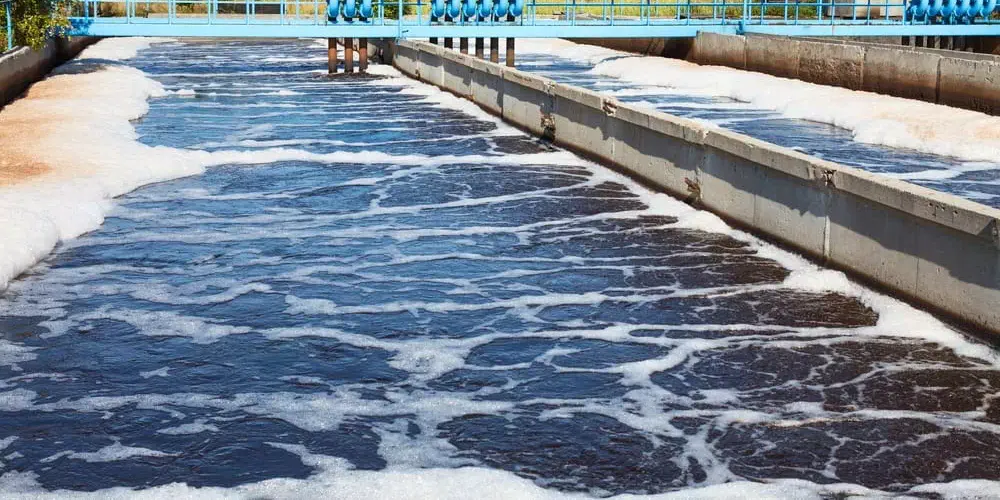

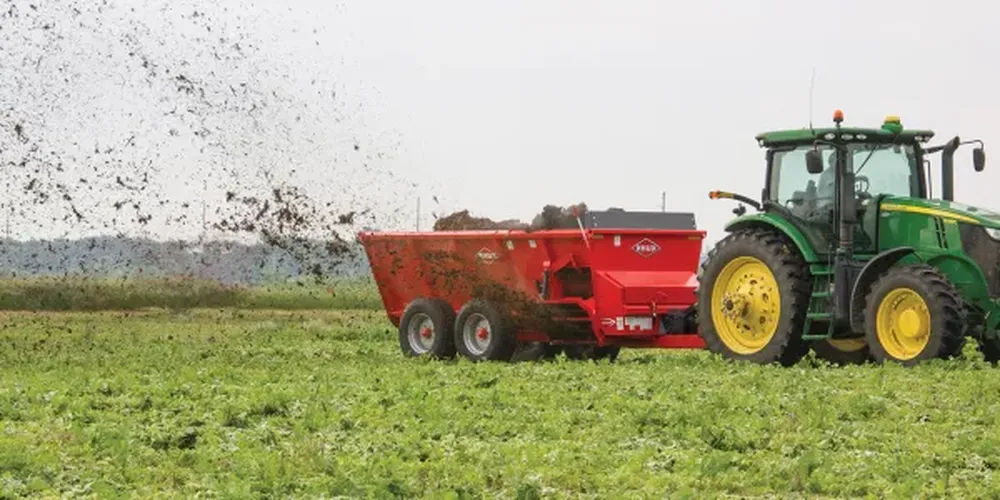

(1) Material handling: The 442 pintle chain is used in a variety of material handling applications, such as conveyors, elevators, and hoists. It is a good choice for applications where there is a need for a lightweight and durable chain that can handle moderate loads.(2) Elevator: The 442 pintle chain is used in elevators to lift people and materials. It is a good choice for elevators because it is strong and durable, and it can handle the high loads and vibrations that are common in elevator applications.(3) Agricultural: The 442 pintle chain is used in agricultural applications, such as manure spreaders, sand spreaders, and conveyors. It is a good choice for agricultural applications because it is strong and durable, and it can handle the harsh conditions that are common in agricultural environments.(3) Environmental and wastewater: The 442 pintle chain is used in environmental applications, such as wastewater treatment plants and sewage pumps. It is a good choice for environmental applications because it is corrosion-resistant and can handle the wet and dirty conditions that are common in these environments.

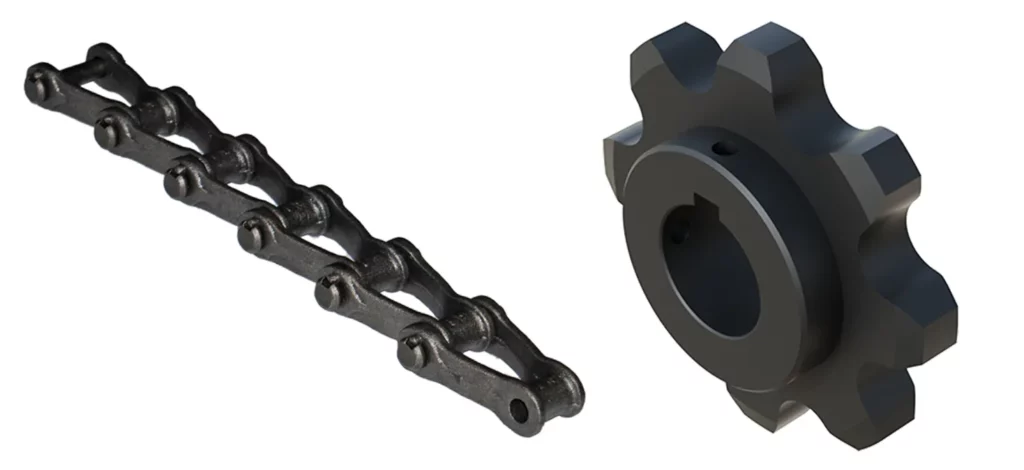

400 Class Pintle Chain Sprockets for 400 Class Pintle Chain:

A 400 class pintle chain sprocket is a sprocket designed to work with a 400 class pintle chain. The 400 class pintle chain is a high-strength chain that is used in a variety of applications, including agricultural machinery, conveyors, and waste water treatment. The sprockets are made of high-quality steel and are designed to withstand the rigors of these applications.

There are many different 400 class pintle chain sprockets available, so it is important to choose the right one for your application. The following factors should be considered when choosing a 400 class pintle chain sprocket:

• Pitch:?The pitch is the distance between the centers of adjacent pins. The pitch of the sprocket teeth must be the same as the pitch of the chain.
• Number of teeth:?The number of teeth on the sprocket determines the speed of the chain. A sprocket with more teeth will turn the chain more slowly than a sprocket with fewer teeth.
• Bore size:?The bore size is the diameter of the hole in the center of the sprocket. The bore size must match the shaft size of the machine.
• Material:?The sprocket can be made of steel, cast iron, or aluminum. Steel sprockets are the most durable, but they are also the most expensive. Cast iron sprockets are less expensive than steel sprockets, but they are not as durable. Aluminum sprockets are the least expensive, but they are also the least durable.
• Load capacity:?The load capacity is the maximum amount of weight that the sprocket can support. The load capacity of the sprocket must be sufficient for the application.

Once you have considered these factors, you can choose the right 400 class pintle chain sprocket for your application.

China 400 Class Pintle Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains,?81X conveyor chains, agricultural chains,?CA550 roller chains,?S55 roller chains, silent chains,?X458 conveyor chains,?grip chains (film gripper chains), PIV chains,?stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain,?steel pintle chain, welded steel chain, drop forged chain, malleable iron chain,?“H” Class mill chain, CC Class crate conveyor chain, ?“H” Class refuse drag chain,?"H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
