45° Male Elbows-NPT Flared Tube Fittings

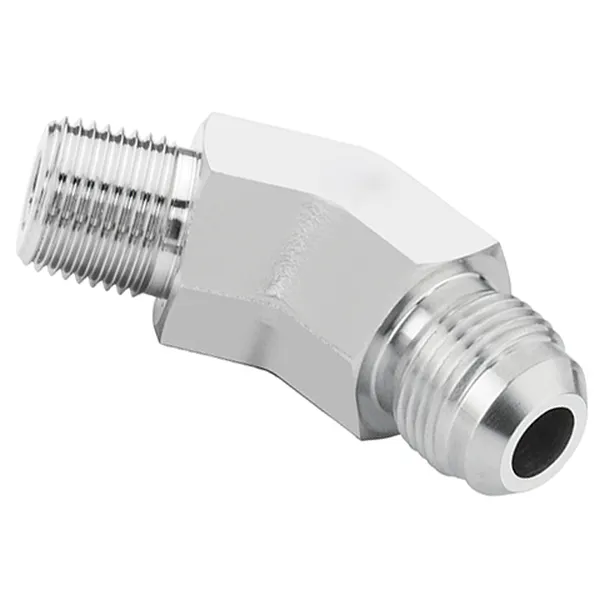

45° Flared Male Elbows

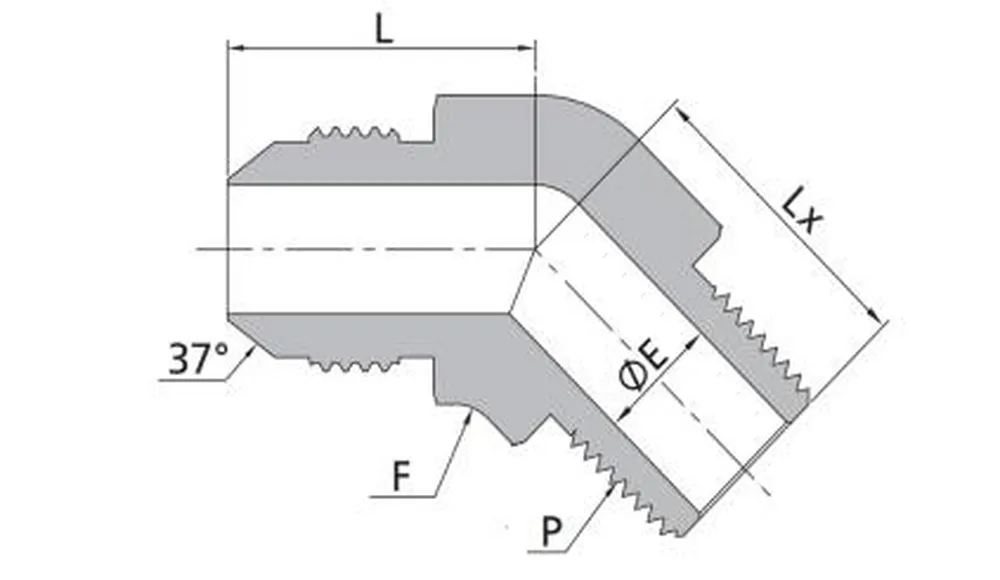

45° Flared Male Elbows Size Chart:

T-Tube O.D		P-NPTSize	Basic Ordering Number	Dimension, in. (mm)
In.	mm			L	E	F (Flat)	Lx
1/8	3	1/8	-JMV-AN2-MN2	0.69 (17.5)	0.06 (1.6)	0.44 (11.1)	0.52 (13.2)
3/16	4	1/8	-JMV-AN3-MN2	0.69 (17.5)	0.13 (3.2)	0.44 (11.1)	0.52 (13.2)
1/4	6	1/8	-JMV-AN4-MN2	0.72 (18.3)	0.17 (4.4)	0.50 (12.7)	0.64 (16.3)
5/16	8	1/8	-JMV-AN5-MN2	0.77 (19.6)	0.19 (4.8)	0.56 (14.3)	0.64 (16.3)
3/8	10	1/4	-JMV-AN6-MN4	0.83 (21.1)	0.28 (7.1)	0.56 (14.3)	0.86 (21.8)
1/2	12	3/8	-JMV-AN8-MN6	0.98 (24.9)	0.39 (9.9)	0.69 (17.5)	0.95 (24.1)
5/8	16	1/2	-JMV-AN10-MN8	1.11 (28.2)	0.48 (12.3)	0.81 (20.6)	1.17 (29.7)
3/4	18	3/4	-JMV-AN12-MN12	1.28 (32.5)	0.61 (15.5)	1.06 (27.0)	1.20 (30.5)
7/8	22	3/4	-JMV-AN14-MN12	1.45 (36.8)	0.72 (18.3)	1.25 (31.8)	1.30 (33.0)
1	25	1	-JMV-AN16-MN16	1.47 (37.3)	0.85 (21.5)	1.37 (34.9)	1.48 (37.6)
1 1/4	32	1 1/4	-JMV-AN20-MN20	1.59 (40.4)	1.08 (27.5)	1.69 (42.9)	1.67 (42.4)
1 1/2	38	1 1/2	-JMV-AN24-MN24	1.78 (45.2)	1.30(33.0)	2.00 (50.8)	1.77 (45.0)
2	50	2	-JMV-AN32-MN32	2.22 (56.4)	1.77 (45.0)	2.50 (63.5)	2.11 (53.6)

Advantages of 45 Degree Flared Male Elbows:

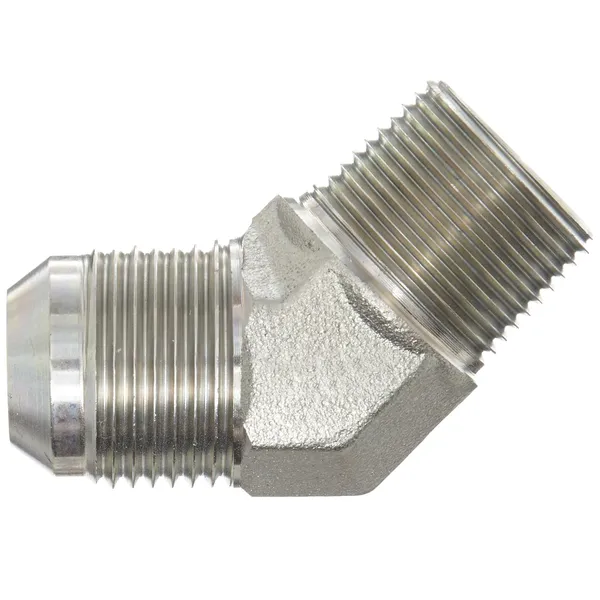

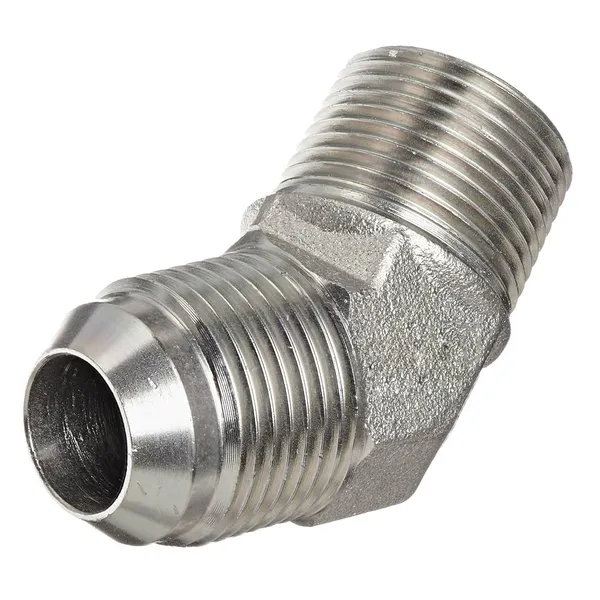

The 45° flared male elbows offer several advantages in plumbing and fluid systems. Here are some key benefits:1. Change in Direction: The primary advantage of a 45° flared male elbow is its ability to change the direction of fluid flow by 45 degrees. This allows for smooth and gradual redirection of the fluid without creating excessive turbulence or pressure drop.2. Compact Design: The compact design of the 45° flared male elbows makes it suitable for applications where space is limited. It allows for efficient routing of pipes or tubing in tight areas, maximizing the use of available space.3. Leak-Free Connection: The flared ends of the tubing or pipe, combined with the male threads on the elbow, create a secure and leak-free connection. The flared ends provide a larger surface area for sealing, reducing the risk of leaks or failures in the system.4. Easy Installation: The threaded male end of the elbow simplifies the installation process. It can be easily screwed into a compatible female threaded opening without the need for specialized tools or techniques.5. Versatility: 45° flared male elbows are available in various sizes, materials, and thread types, making them versatile for different applications. They can be used with a wide range of fluids, including gases, liquids, and chemicals.6. Durability: These 45° flared male elbows are typically made from durable materials such as brass, stainless steel, or aluminum, which offer excellent resistance to corrosion and wear. This ensures long-lasting performance and reliability in demanding environments.7. Compatibility: 45° flared male elbows are designed to meet industry standards, making them compatible with a range of fittings, tubing, and pipe systems. This allows for easy integration into existing setups or the creation of new systems.8. Maintenance-Friendly: If maintenance or repairs are required, the threaded connection of the elbow allows for easier disassembly and reassembly compared to other types of connections. This can save time and effort during maintenance procedures.
