4545B Taper Lock Adapter

4545B Taper Lock Adapter

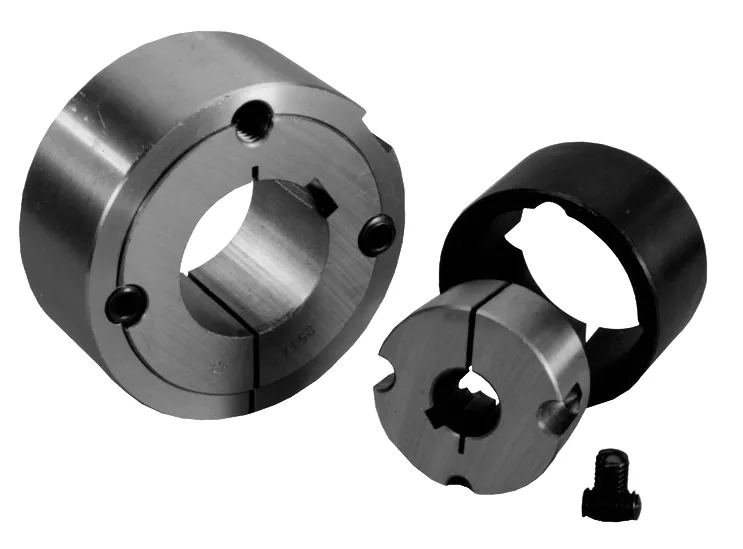

The 4545B taper lock adapter is designed to work with the 4545 taper lock bushing. Taper lock adapters are used to connect components such as pulleys, sprockets, or gears to a shaft in a secure and efficient manner. The 4545B taper bush adapter is specifically manufactured to fit the dimensions and specifications of the 4545 taper lock bushing. It is typically made from high-quality steel and features a tapered bore that matches the taper of the bushing. This allows for a tight and reliable fit between the adapter and the bushing.To install the 4545B taper lock adapter, you would first slide it onto the shaft, followed by the 4545 taper lock bushing. Then, using the appropriate tools, you would tighten the locking screws or bolts on the adapter to securely fasten it to the bushing and shaft. This creates a strong connection that can transmit torque and rotational forces effectively. It's important to ensure that the 4545B taper bore adapter and 4545 taper lock bushing are compatible and have matching dimensions.

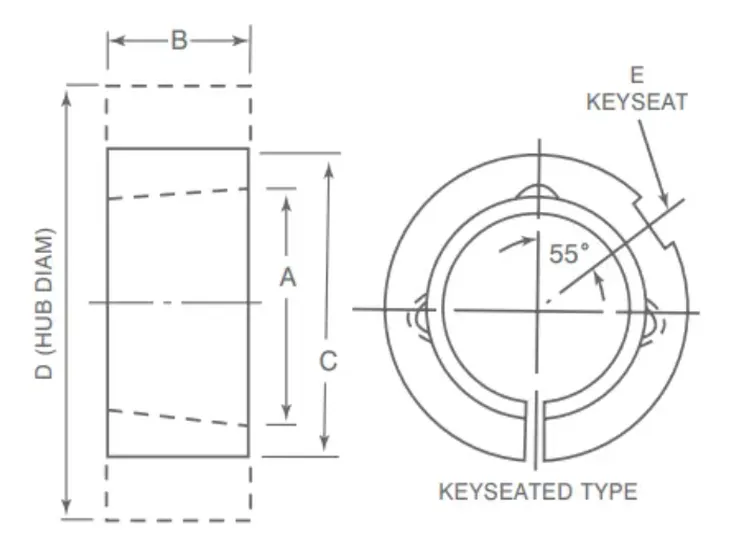

4545B Taper Lock Adapter Dimensions:

Adapter No.		4545B Taper Lock Adapter
For Bush No.		4545 Taper Lock Bushing
A		6 3/8"
B		4 1/2"
C		7 7/8"
D	Class 20 Gray Iron	12"
	Class 30 Gray Iron	11"
	Steel	10 1/4"
E Keyseat		1" x 3/16"
Wt		21.9

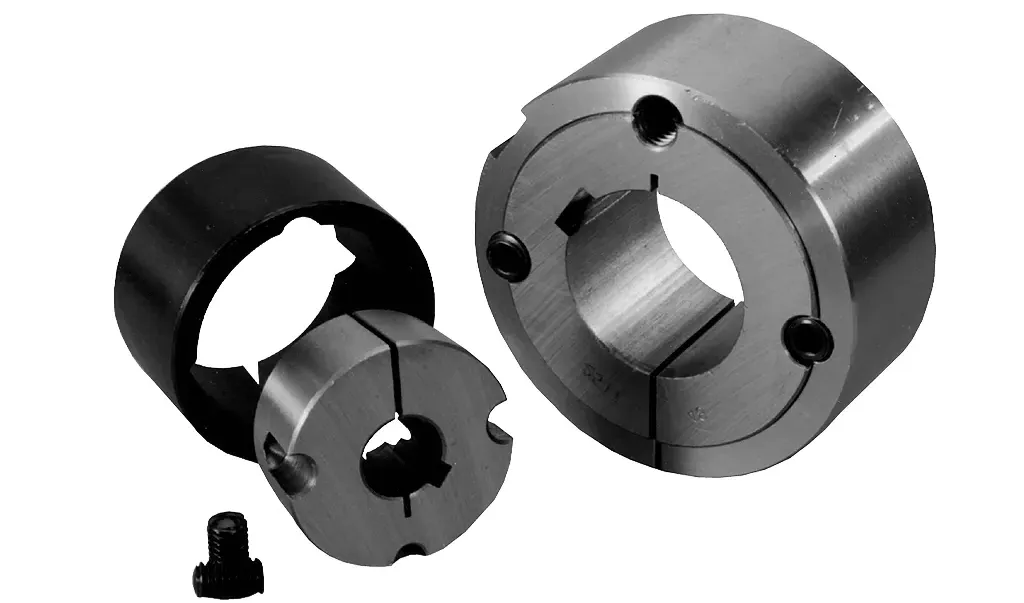

4545B Taper Lock Adapter Features:

The 4545B taper lock adapter is a mechanical component used in power transmission systems to connect a shaft to a hub or pulley. Here are some common features of the 4545B taper bush adapter:1. Tapered Design: The 4545B taper lock adapter has a tapered shape, which allows for easy installation and removal. The taper provides a tight fit between the adapter and the corresponding tapered bore of the hub or pulley.2. High-Quality Material: The 4545B taper bush adapter is typically made from high-strength materials such as steel or ductile iron. These materials offer excellent durability, strength, and resistance to wear and tear.3. Interchangeability: 4545B taper bore adapters are designed to be interchangeable, meaning that a single adapter can be used with different hubs or pulleys of the same taper size. This feature allows for versatility and ease of maintenance.4. Wide Range of Sizes: 4545B taper lock adapters are available in various sizes to accommodate different shaft and hub diameters.5. Corrosion Resistance: 4545B taper bush adapters are coated or treated to enhance their resistance to corrosion. This feature is particularly important in applications where the adapter may be exposed to moisture, chemicals, or harsh environments.6. Easy Installation: 4545B taper lock adapters are designed for simple and straightforward installation. They typically require only basic tools, such as a torque wrench, to tighten the locking screws or bolts and create a secure connection between the adapter, shaft, and hub.

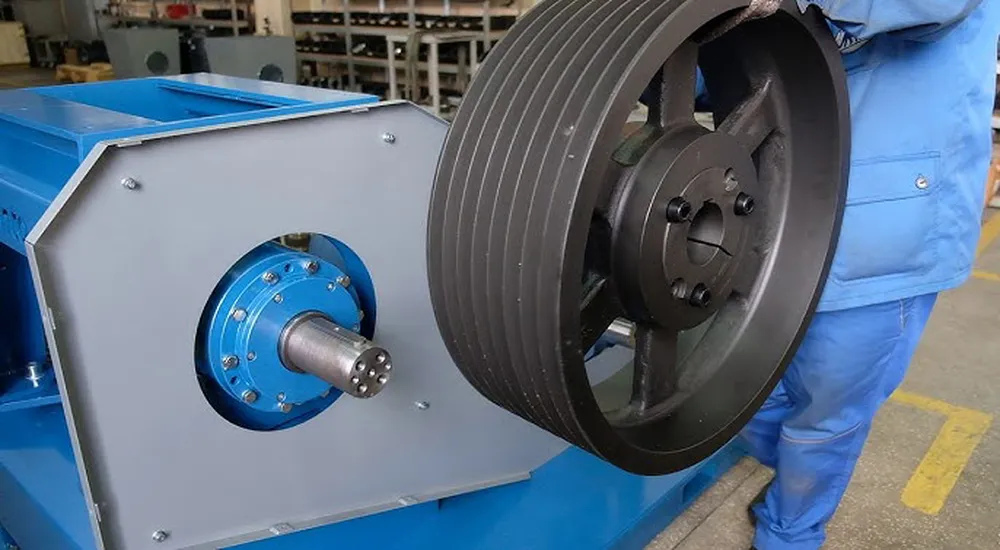

4545B Taper Lock Adapter Applications:

The 4545B taper lock adapter, like other taper lock adapters, is widely used in various industrial applications where a secure and reliable connection between a shaft and a hub/pulley is required. Some common applications of the 4545B taper lock adapter include:(1) Power Transmission Systems: 4545B taper lock adapters are frequently used in power transmission systems such as belt drives, chain drives, and gear drives. They enable the transfer of torque from the shaft to the hub or pulley, ensuring efficient power transmission.(2) Conveyor Systems: 4545B adaptor for taper bush find application in conveyor systems used in industries like manufacturing, mining, agriculture, and logistics. They are used to connect shafts to conveyor pulleys, allowing for the movement of materials along the conveyor belt.(3) Pump Drives: 4545B taper bore adapters are employed in pump drives, where they facilitate the connection between the pump shaft and the impeller or the drive shaft. This ensures a secure and precise transfer of rotational motion, enabling efficient pumping operations.(4) Industrial Fans and Blowers: 4545B taper lock adapters are commonly used in industrial fans and blowers to connect the shaft to the fan or blower wheel. This allows for the transfer of rotational motion, enabling the generation of airflow for ventilation, cooling, or material handling purposes.(5) Compressors: 4545B taper bush adapters are utilized in compressors for connecting the motor shaft to the compressor's rotor or piston assembly. This ensures reliable transmission of rotational motion, enabling the compression of gases or air.(6) Mining Equipment: 4545B taper lock adapters are used in mining equipment such as crushers, conveyors, and mills. They provide a secure connection between the shafts and the equipment components, enabling the efficient processing and movement of minerals and ores.
