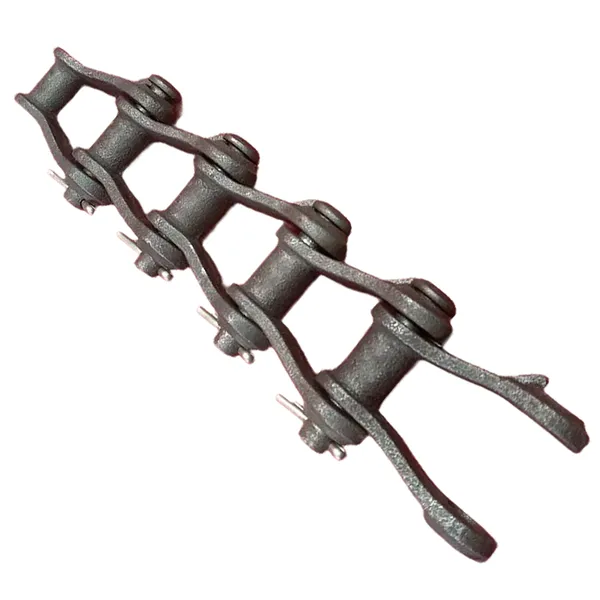

455 Pintle Chain

Chain No.	455 Pintle Chain
Pitch In Inches	1.630
Weight Per Foot LBS	1.90
Average Ultimate Strength	7000
Maximum Working Load LBS.	1260

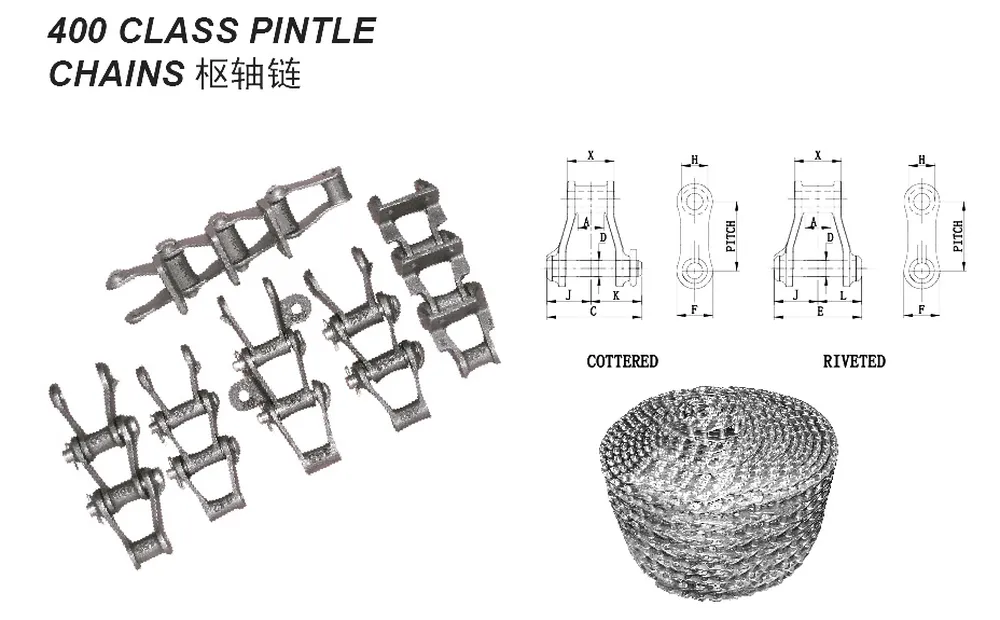

A	0.69
C	2.22
D	0.38
E	2.06
F	0.84
H	0.62
X	1.12
Available Attachments	D15, F2, K1

455 Pintle Chain Attachments:

There are a variety of 455 pintle chain attachments available, each designed for a specific application. Some of the most common attachments include the F2 attachment, the D15 attachment, and the K1 attachment.

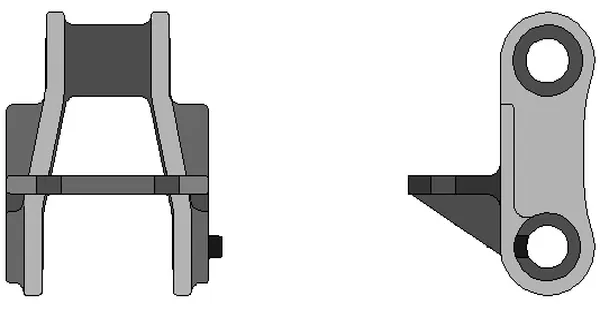

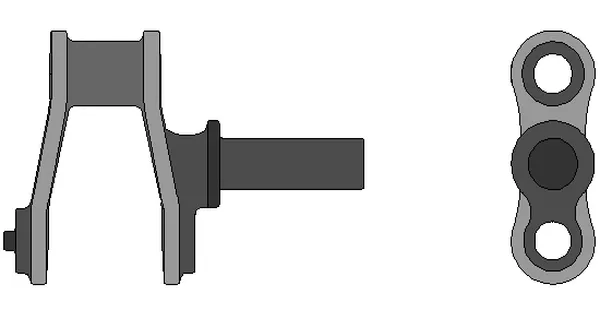

455 Pintle Chain D15 Attachment	455 Pintle Chain F2 Attachment

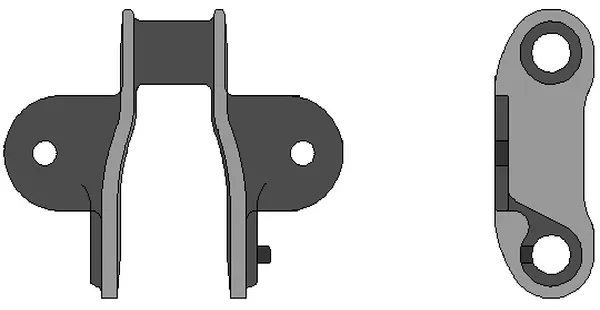

455 Pintle Chain K1 Attachment

455 Pintle Chain Common Applications:

The 455 pintle chain is a versatile chain that can be used in a variety of applications. Some of the most common applications for 455 pintle chain include:

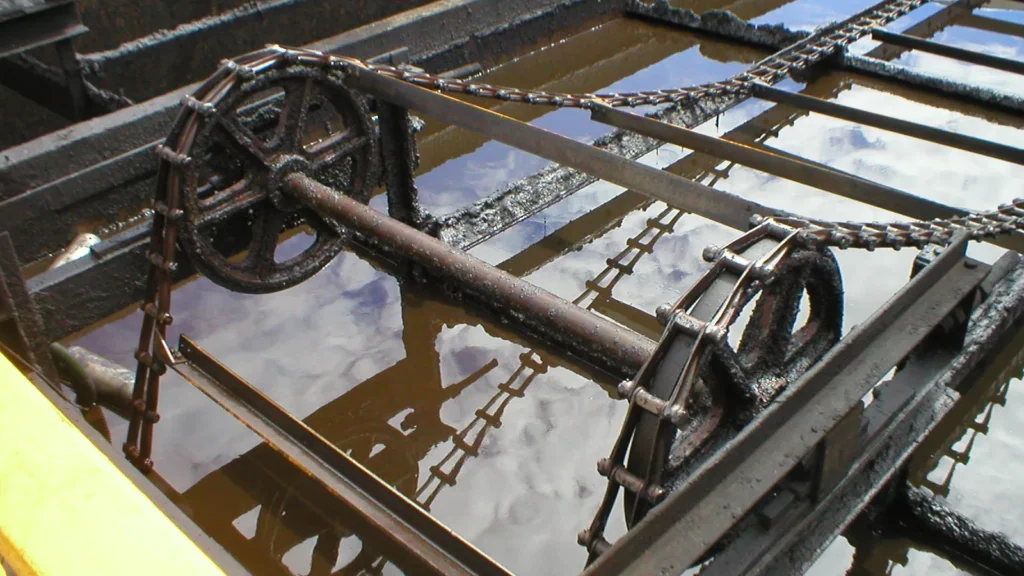

1. Material handling:?455 pintle chain is often used in material handling applications, such as conveyors, elevators, and hoists. It is well-suited for these applications because it is lightweight and durable, and it can handle a variety of loads.2. Elevators:?455 pintle chain is also used in elevators, where it is used to move people and materials between floors. It is a reliable and safe choice for elevator applications, and it can withstand the high loads and stresses that are common in these environments.3. Environmental and wastewater applications: 455 pintle chain is also used in environmental and wastewater applications, such as sewage treatment plants and water treatment plants. It is resistant to corrosion and wear, making it a good choice for these harsh environments.4. Sand spreaders:?455 pintle chain is often used in sand spreaders, where it is used to spread sand on roads and walkways. It is durable and can withstand the abrasiveness of sand, and it is also resistant to rust and corrosion.5. Manure spreaders:?455 pintle chain is also used in manure spreaders, where it is used to spread manure on fields and gardens. It is durable and can withstand the weight and moisture of manure, and it is also resistant to rust and corrosion.6. Salt spreaders:?455 pintle chain is also used in salt spreaders, where it is used to spread salt on roads and walkways to prevent ice and snow. It is durable and can withstand the abrasiveness of salt, and it is also resistant to rust and corrosion.7. Conveyors:?455 pintle chain is also used in conveyors, where it is used to move materials from one place to another. It is durable and can withstand the weight and stress of moving materials, and it is also resistant to rust and corrosion.8. Forage harvesters:?455 pintle chain is also used in forage harvesters, where it is used to move crops through the harvester. It is durable and can withstand the weight and stress of moving crops, and it is also resistant to rust and corrosion.

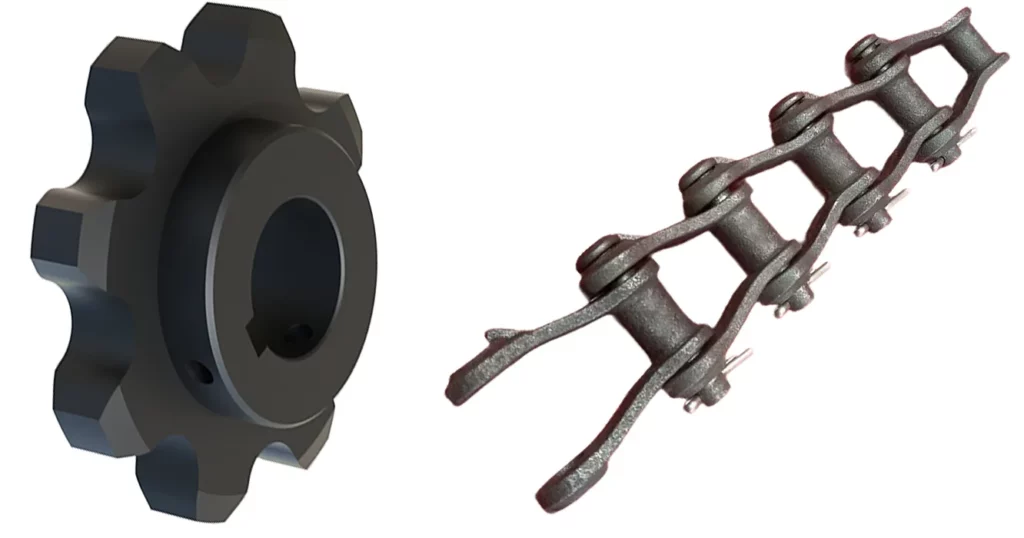

455 Pintle Chain Sprockets for 455 Pintle Chains:

455 pintle chain sprockets and 455 pintle chains are two different components that work together to transmit power in a mechanical system. The sprocket is the driving component, and the chain is the driven component. The sprocket has teeth that engage with the links of the chain, and as the sprocket rotates, the chain moves along.

The 455 pintle chain sprocket is designed to work specifically with the 455 pintle chain. The pitch of the sprocket teeth must match the pitch of the chain links in order for the two to work together properly. The sprocket must also be the correct size to accommodate the chain.

When choosing a 455 pintle chain sprocket, it is important to consider the following factors:

• The pitch of the sprocket teeth
• The size of the sprocket
• The material of the sprocket
• The finish of the sprocket
• The load rating of the sprocket

The pitch of the sprocket teeth must match the pitch of the chain links. The size of the sprocket must be large enough to accommodate the chain, but it should not be too large, as this can cause the chain to bind. The material of the sprocket should be durable and able to withstand the loads and conditions of the application. The finish of the sprocket can affect its durability and appearance. The load rating of the sprocket is the maximum amount of weight or force that the sprocket can safely transmit.

The 455 pintle chain is also a critical component in the system. The chain must be strong enough to withstand the loads and conditions of the application. The chain must also be made from a material that is resistant to wear and tear.

When choosing a 455 pintle chain, it is important to consider the following factors:

• The pitch of the chain links
• The strength of the chain
• The material of the chain
• The finish of the chain
• The load rating of the chain

The pitch of the chain links must match the pitch of the sprocket teeth. The strength of the chain must be sufficient to withstand the loads and conditions of the application. The material of the pintle chain should be resistant to wear and tear. The finish of the chain can affect its durability and appearance. The load rating of the chain is the maximum amount of weight or force that the chain can safely transmit.

The 455 pintle chain sprocket and the 455 pintle chain are two important components that work together to transmit power in a mechanical system. It is important to choose the right sprocket and chain for the specific application in order to ensure the safety and reliability of the system.

China 400 Class Pintle Chain?Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X conveyor chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, grip chains (film gripper chains), PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain,?welded steel mill chain, drop forged chain, malleable iron chain, “H” Class mill chain, CC Class crate conveyor chain, ?“H” Class refuse drag chain, "H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
