720S Wastewater Treatment Chain

Raydafon Group's 720S Wastewater Treatment Chain is an innovative solution for efficient water purification, ideal for industrial and municipal use. Its advanced 720S technology ensures high durability and low maintenance, offering reliable performance that saves costs and protects the environment. Experience cleaner water and peace of mind with this standout chain—upgrade your system today!

Send Inquiry

Product Description

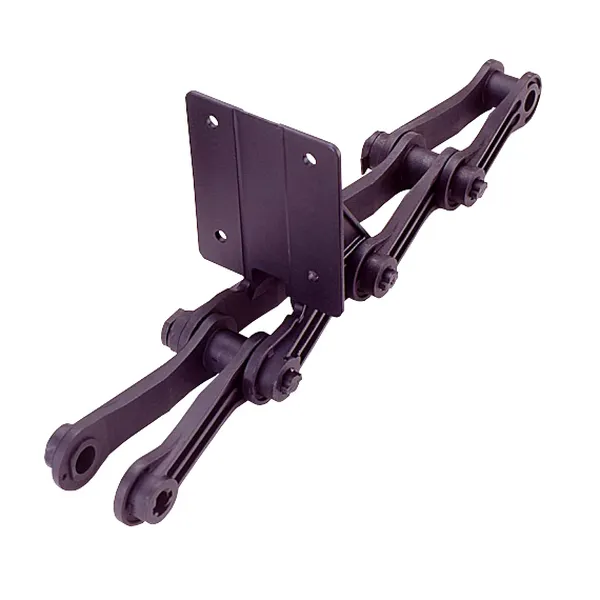

720S Wastewater Treatment Chain

The 720S Wastewater Treatment Chain is a heavy-duty chain designed for use in a variety of demanding wastewater treatment applications. It is manufactured from high-quality materials and features a unique design that makes it ideal for use in corrosive environments and under high loads.

The 720S Wastewater Treatment Chain is available in both riveted and cottered construction, and it can be fitted with a variety of attachments to meet the specific needs of your application. It is commonly used in rectangular clarifiers, as well as other conveying and elevating applications in wastewater treatment plants.

Here are some of the key benefits of the 720S Wastewater Treatment Chain:

Durability: The 720S Wastewater Chain is manufactured from high-strength materials and features a unique design that makes it resistant to wear and tear, even in the most demanding wastewater treatment applications.
Corrosion resistance: The 720S Wastewater Treatment Chain is also resistant to corrosion, making it ideal for use in harsh wastewater environments.
Lightweight: The 720S Wastewater Chain is relatively lightweight, which makes it easy to install and maintain.
Versatility: The 720S Wastewater Treatment Chain is available in a variety of sizes and configurations to meet the specific needs of your application.

If you are looking for a durable, corrosion-resistant, and versatile chain for your wastewater treatment application, the 720S Wastewater Treatment Chain is an excellent option.

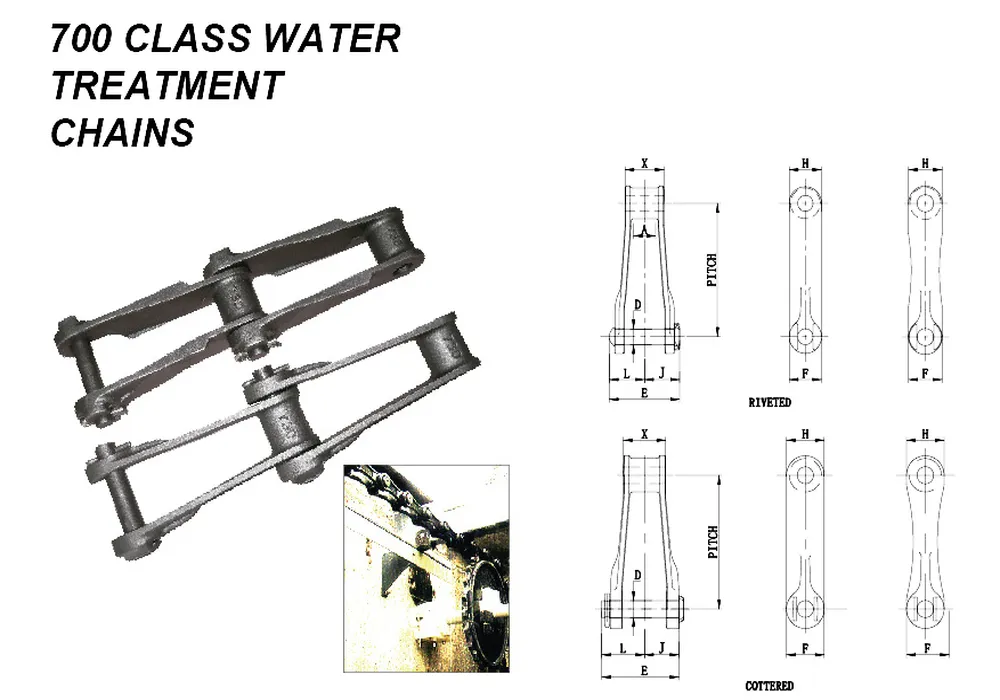

720S Wastewater Treatment Chain Dimensions:

Chain No.	Pitch in Inches	Weight Per Foot LBS.	Average Ultimate Strength LBS.	Maximum Working Load LBS.	A	C	D	E	F	H	X	Available Attachments
720S	6.000	5.30	37500	4200	1.12	3.81	0.75	3.69	1.56	1.44	1.88	A2,A53,AM116,F2,F22-6,F22-8,K2,M1

720S Wastewater Treatment Chain Attachment:

720S Wastewater Treatment Chain is manufactured with a full cast link and hardened carbon-steel pins for ultimate strength while maintaining a lightweight, and features an average ultimate strength of 40,000 LBS. Raydafon has a premium 720S chain in either riveted or cottered construction. Something special about this chain is the T-head pins that eliminate pin rotation while at the same time preventing the entrance of dirt and or grit. As a drive chain, the 720S chain is designed to travel in just one direction (the direction of their barrel ends). This chain is primarily used in wastewater applications such as rectangular clarifiers, as well as other conveying applications. Attachments available for 720S chain are: A2, A53, AM116, F2, F226, F228, K2, M1, as well as custom attachments upon request. We can supply the chain with attachments already assembled onto the chain in any configuration needed, and within a fast assembly time.

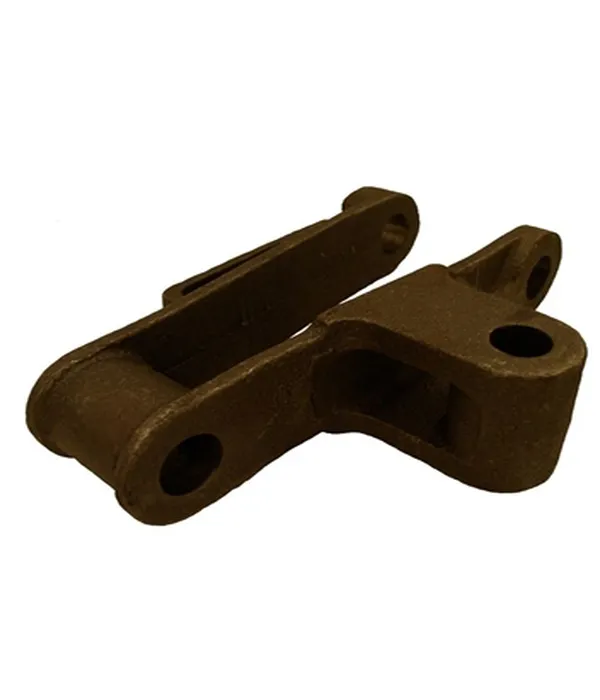

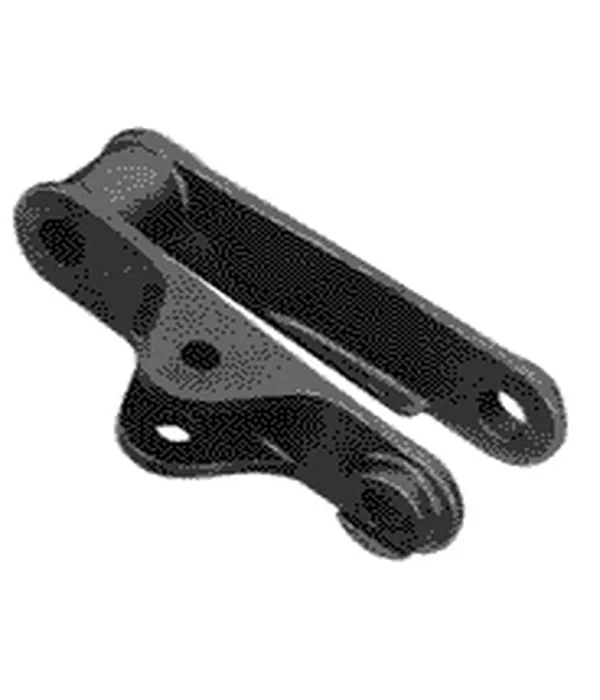

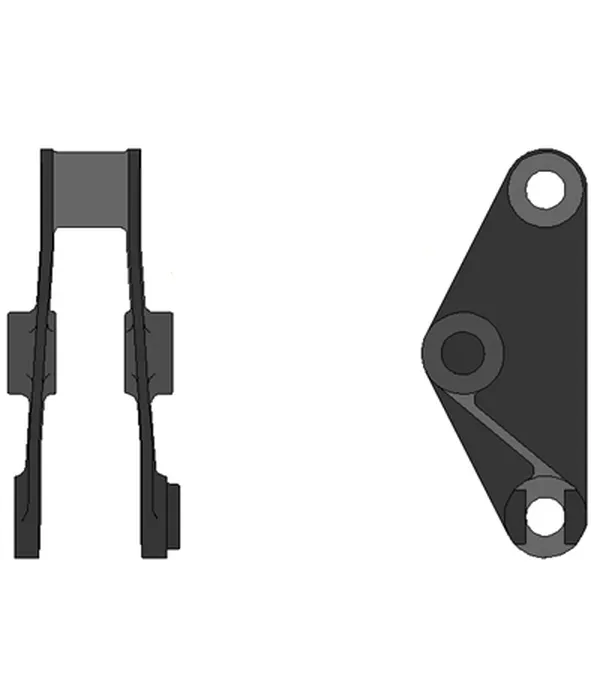

720S Wastewater Chain A53 Attachment	720S Wastewater Chain M1 Attachment	720S Wastewater Chain AM116 Attachment

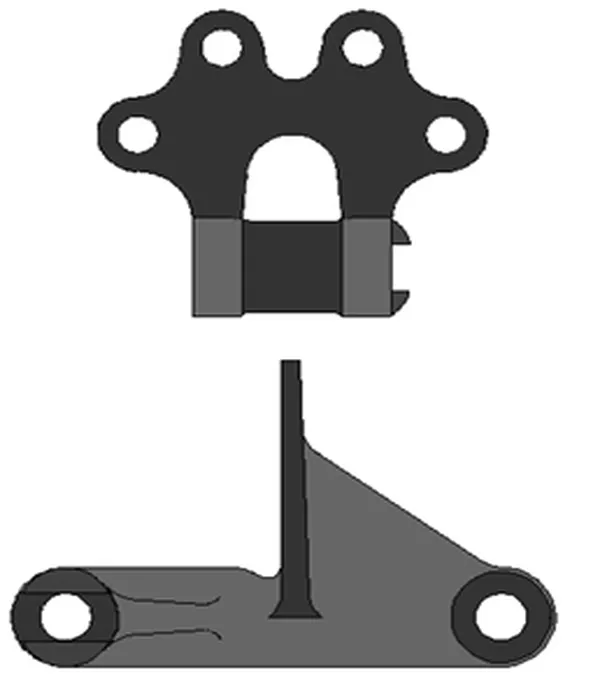

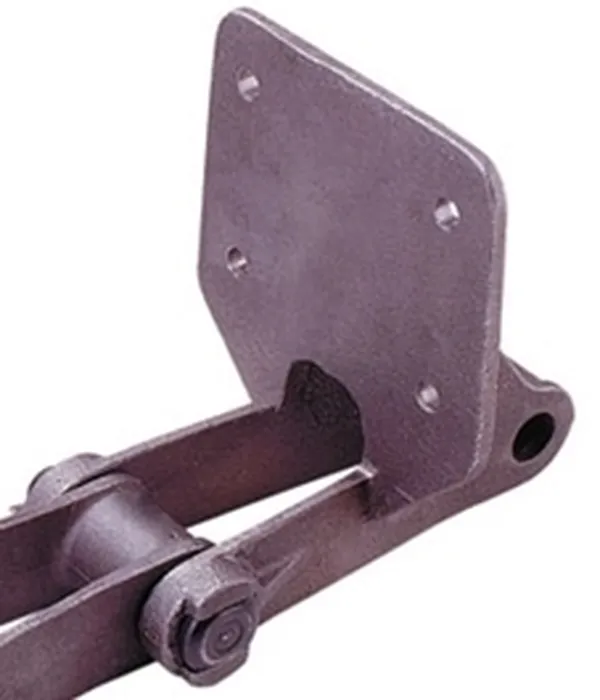

720S Wastewater Chain F2 Attachment	720S Wastewater Chain F226 Attachment	720S Wastewater Chain F228 Attachment

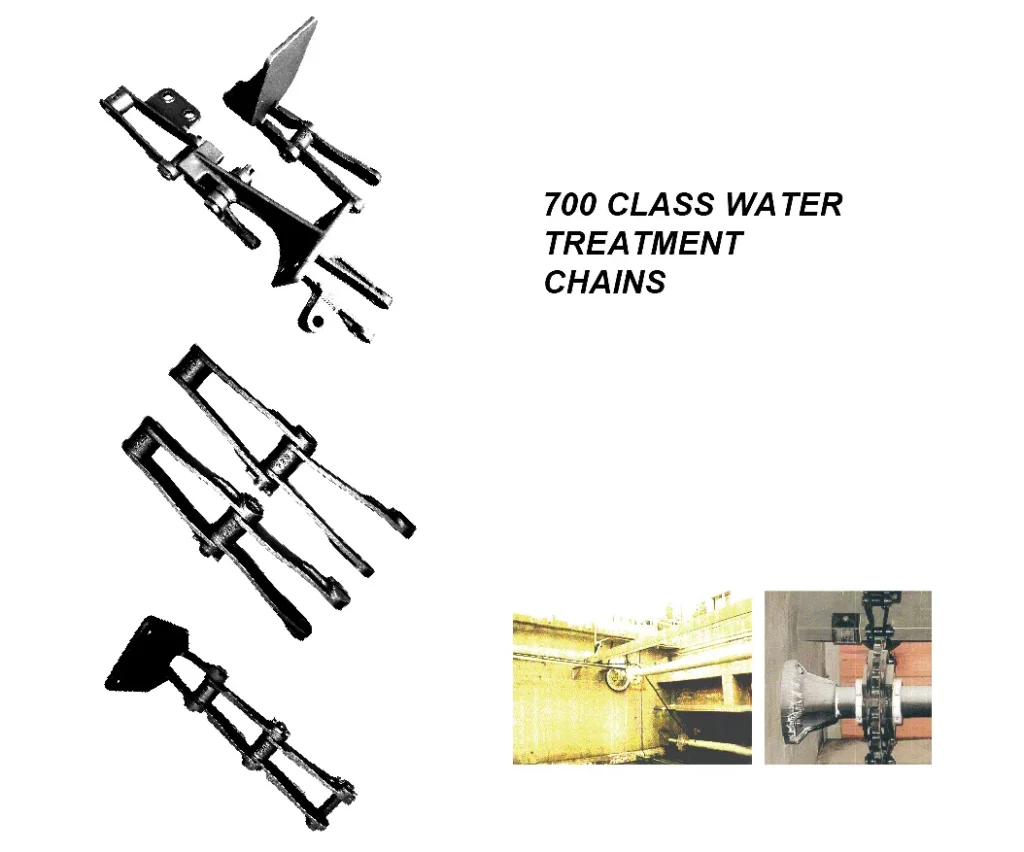

720S Wastewater Treatment Chain Features:

720S wastewater treatment chain is a non-metallic chain that is commonly used in rectangular clarifiers. It is made of high-quality glass-filled nylon and has steel-reinforced pins for strength and performance. Some of the key features of the 720S wastewater treatment chain include the following:

Lightweight: The 720S wastewater treatment chain is significantly lighter than traditional steel chains, which can reduce energy consumption and wear and tear on other components in the wastewater treatment system.
Durable: The 720S wastewater chain is highly resistant to corrosion, abrasion, and chemicals, making it ideal for use in wastewater treatment applications.
Easy to install and maintain: The 720S wastewater treatment chain is easy to install and maintain, and does not require any special tools.
Long service life: The 720S wastewater chain has a long service life, even in demanding wastewater treatment environments.

In addition to these features, the 720S wastewater treatment chain also offers the following benefits:

It is environmentally friendly and recyclable.
It is non-conductive, which reduces the risk of electrical shock.
It is quiet in operation, which can improve the work environment for wastewater treatment plant operators.

Overall, the 720S wastewater treatment chain is a high-quality, durable, and easy-to-use chain that is ideal for use in a variety of wastewater treatment applications.

720S Wastewater Treatment Chain

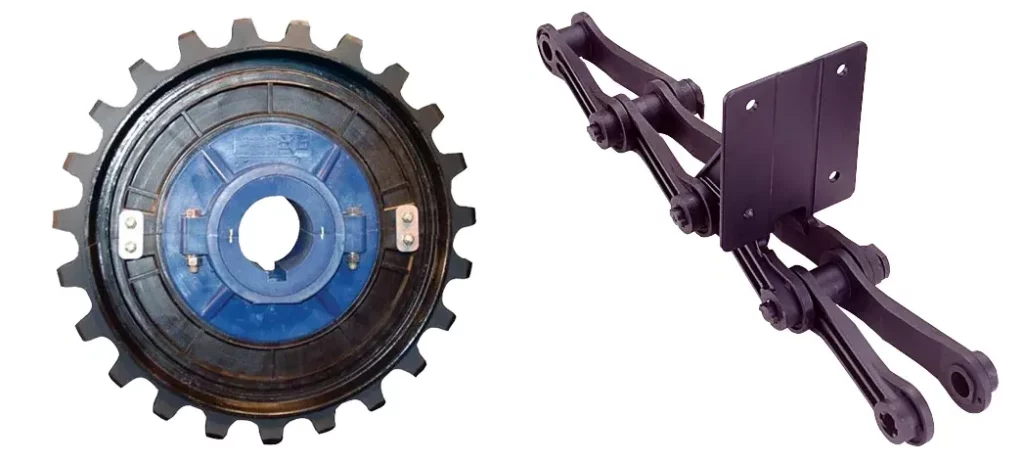

700 Series Wastewater Chain Sprockets for 700 Class Wastewater Chain:

700 series wastewater chain sprockets are designed to be used with 700 class wastewater chains. They are typically made of stainless steel or engineered plastic, both of which are highly resistant to corrosion and wear. 700 series sprockets are available in a variety of sizes, bore sizes, and hub types to meet the needs of a wide range of wastewater applications.

Here are some of the benefits of using 700 series wastewater chain sprockets:

Durability: 700 series chain sprockets are made of high-quality materials that are designed to withstand the harsh conditions of wastewater treatment facilities.
Corrosion resistance: 700 series chain sprockets are made of stainless steel or engineered plastic, both of which are highly resistant to corrosion.
Wear resistance: 700 series chain sprockets are designed to resist wear and tear, even in the most demanding applications.
Variety of sizes and configurations: 700 series chain sprockets are available in a variety of sizes, bore sizes, and hub types to meet the needs of a wide range of wastewater applications.

700 series wastewater chain sprockets are commonly used in a variety of wastewater treatment applications, including:

Conveyors
Drives
Scraper mechanisms
Elevators
Other wastewater treatment equipment

700 Class Wastewater Treatment Chain?Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains, 81X conveyor chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, grip chains (film gripper chains), PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain,?drop forged chain, malleable iron chain,?"H" Class mill chain,?CC Class crate conveyor chain,??"H" Class refuse drag chain,?600 Class ley bushed chain, combination transfer chain, "H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available. 720S Wastewater Treatment Chain
