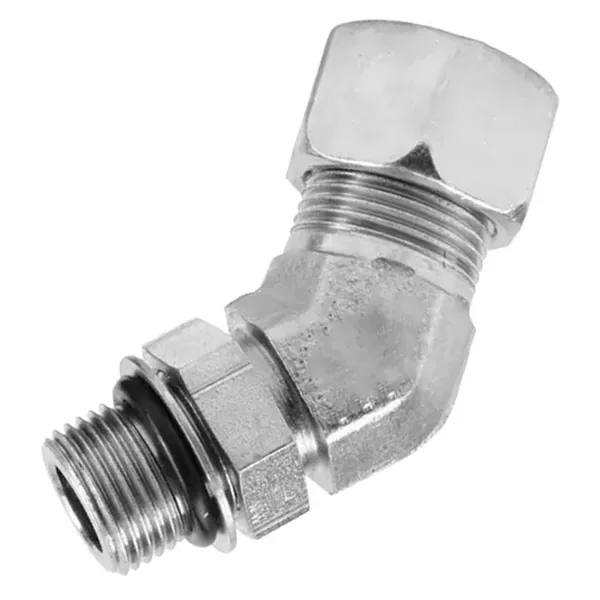

Adjustable Lock Nut 45°Elbow-VEE-R Hydraulic Fittings are a type of hydraulic fitting that uses a locknut to secure the fitting in place. The locknut is adjustable, so it can be tightened to ensure a leak-free connection. These hydraulic fittings are typically made of steel or brass and are available in a variety of sizes and configurations.

Adjustable Lock Nut 45°Elbow-VEE-R Hydraulic Fittings are a type of bite-type fitting, which means that they use a sharp edge to bite into the hose to create a secure connection. VEE-R fittings are known for their high pressure and temperature ratings, making them ideal for a variety of hydraulic applications.

Adjustable Lock Nut 45°Elbow-VEE-R Hydraulic Fittings are commonly used in hydraulic systems for construction equipment, agricultural equipment, and industrial machinery. They are also used in some automotive and aerospace applications.

Here are some of the benefits of using Adjustable Lock Nut 45°Elbow-VEE-R Hydraulic Fittings:

• Leak-proof connections: The locknut ensures a tight and secure connection, even under high pressure and vibration.
• High pressure and temperature ratings: Adjustable Lock Nut 45°Elbow-VEE-R Hydraulic Fittings are known for their high pressure and temperature ratings, making them ideal for a variety of demanding hydraulic applications.
• Durability: Adjustable Lock Nut 45°Elbow-VEE-R Hydraulic Fittings are typically made of steel or brass, which are durable materials that can withstand harsh operating conditions.
• Versatility: Adjustable Lock Nut 45°Elbow-VEE-R Hydraulic Fittings are available in a variety of sizes and configurations, making them suitable for a wide range of applications.

If you are looking for a reliable and durable hydraulic fitting, Adjustable Lock Nut 45°Elbow-VEE-R Hydraulic Fittings are a good option to consider.

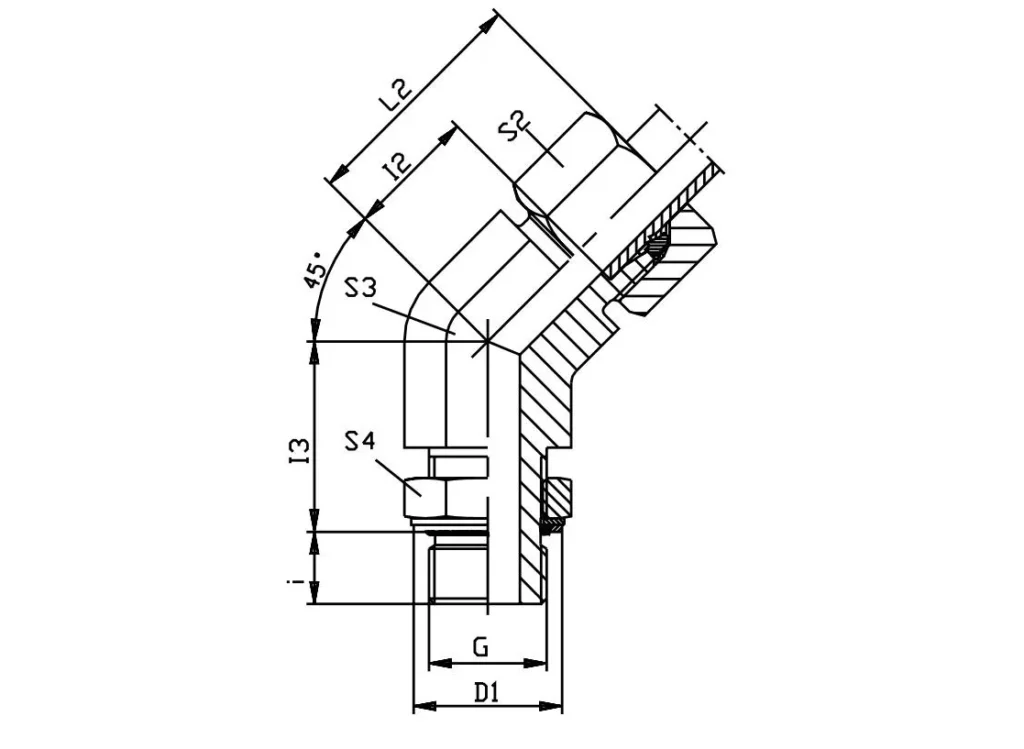

Adjustable Lock Nut 45°Elbow-VEE-R Hydraulic Fitting Size Chart:

VEE-RPart NO.	Series Working Pressure(bar/psi)	Tube O.d	Gmale thread	L2	l2	l3	i	D1	S2	S3	S4
VEE06LR	L light 315 bar 4560psi	6	G 1/8A	24	9	21	7	15	14	14	14
VEE08LR		8	G 1/4A	27	12	19	10	18	17	14	17
VEE10LR		10	G 1/4A	27	12	24	9	20	19	19	19
VEE12LR		12	G3/8A	28	14	25	9	23	22	19	22
VEE15LR		15	G1/2A	32	17	24	11	25	27	22	24
VEE18LR	250bar3625psi	18	G1/2A	33	17	31	11	28	32	27	27
VEE22LR	160 bar 2320psi	22	G 3/4A	35	19	31	14	33	36	30	32
VEE28LR		28	G 1A	40	23	35	14	41	41	36	41
VEE35LR		35	G11/4A	48	27	37	14	51	50	50	50
VEE42LR		42	G11/2A	49	26	37	16	56	60	50	55
VEE06SR	S heavy 315 bar 4650psi	6	G 1/4A	24	9	19	10	18	17	14	17
VEE08SR		8	G 1/4A	27	12	19	10	20	19	19	19
VEE10SR		10	G 3/8A	29	13	23	11	23	22	19	22
VEE12SR		12	G 3/8A	33	17	25	12	25	24	22	24
VEE16SR	250bar3625psi	16	G1/2A	34	16	30	14	28	30	27	27
VEE20SR		20	G 3/4A	38	16	35	16	33	36	30	32
VEE25SR	160 bar2320 psi	25	G 1A	43	19	37	16	41	46	36	41
VEE30SR		30	G11/4A	50	24	37	17	51	50	50	50
VEE38LR		38	G11/2A	50	9	38	19	56	60	50	55

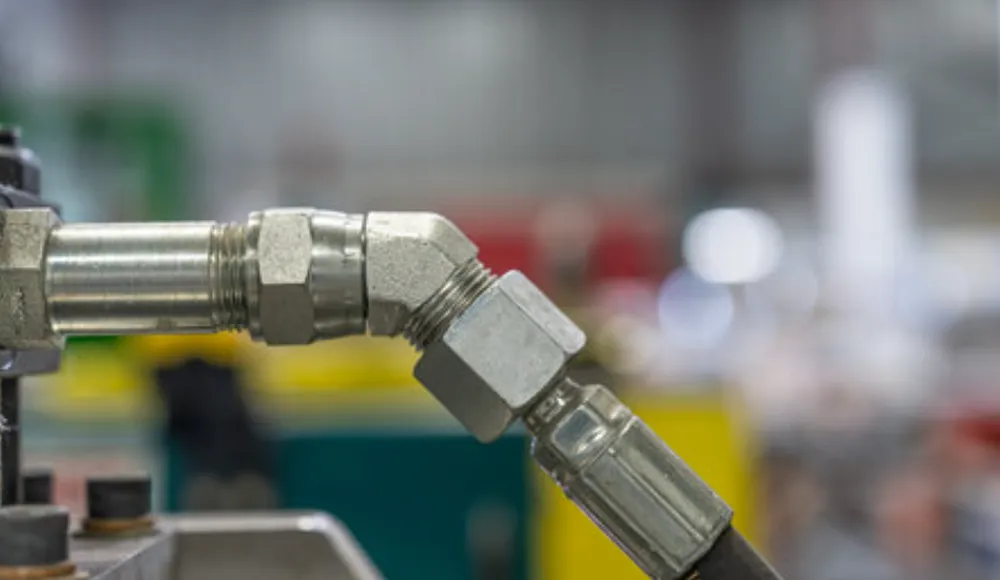

Installation of Adjustable Lock Nut 45°Elbow-VEE-R Hydraulic Fittings:

To install an Adjustable Lock Nut 45° Elbow-VEE-R Hydraulic Fitting, follow these general steps:1. Prepare the hydraulic system: Ensure that the hydraulic system is depressurized and turned off to prevent any accidental movement or fluid leakage during installation.2. Select the appropriate fitting: Choose the correct size and thread type of the Adjustable Lock Nut 45° Elbow-VEE-R hydraulic fitting that matches the hydraulic pipes or hoses you are working with.3. Prepare the pipes or hoses: Cut the hydraulic pipes or hoses to the desired length and ensure the ends are clean, smooth, and free from any debris or burrs. If necessary, use a deburring tool or file to remove any rough edges.4. Apply thread sealant: Depending on the specific fitting and system requirements, you may need to apply thread sealant to the male threads of the fitting. This helps create a tight and leak-free connection. Follow the manufacturer's instructions for the appropriate sealant and application method.5. Insert the fitting: Insert the male end of the Adjustable Lock Nut 45° Elbow-VEE-R Hydraulic Fitting into the female end of the hydraulic pipe or hose. Ensure that the fitting is fully engaged and hand-tightened to establish initial contact.6. Tighten the lock nut: Using an adjustable wrench or a suitable tool, hold the Adjustable Lock Nut 45° Elbow-VEE-R Hydraulic Fitting in place while tightening the lock nut. Rotate the lock nut clockwise to secure the fitting firmly. Take care not to overtighten, as it may damage the fitting or cause leaks.7. Check for leaks: After tightening the lock nut, visually inspect the Adjustable Lock Nut 45° Elbow-VEE-R Hydraulic Fitting and surrounding area for any signs of leakage. Additionally, you can perform a pressure test to verify the integrity of the connection. If leaks are detected, further tighten the lock nut or reapply thread sealant as necessary.8. Repeat for other fittings: If you are installing multiple Adjustable Lock Nut 45° Elbow-VEE-R Hydraulic Fittings in the system, repeat the above steps for each fitting.
