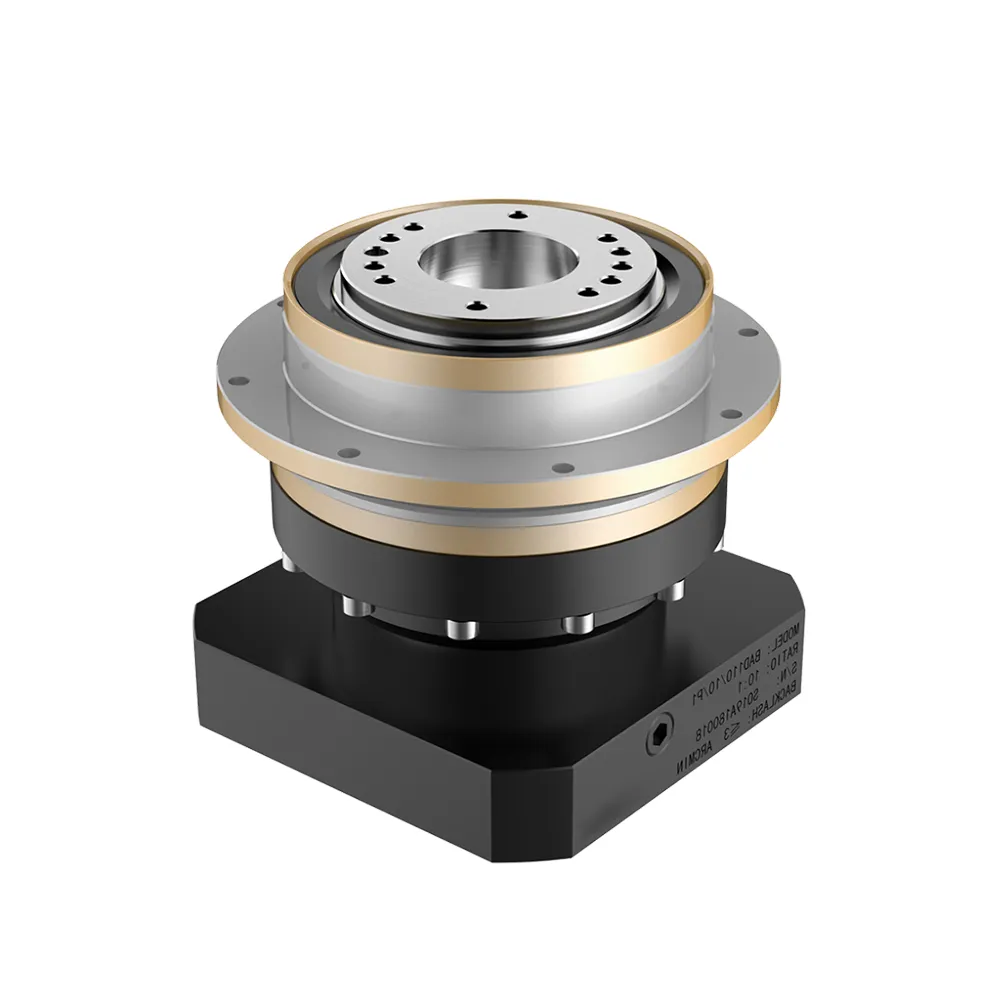

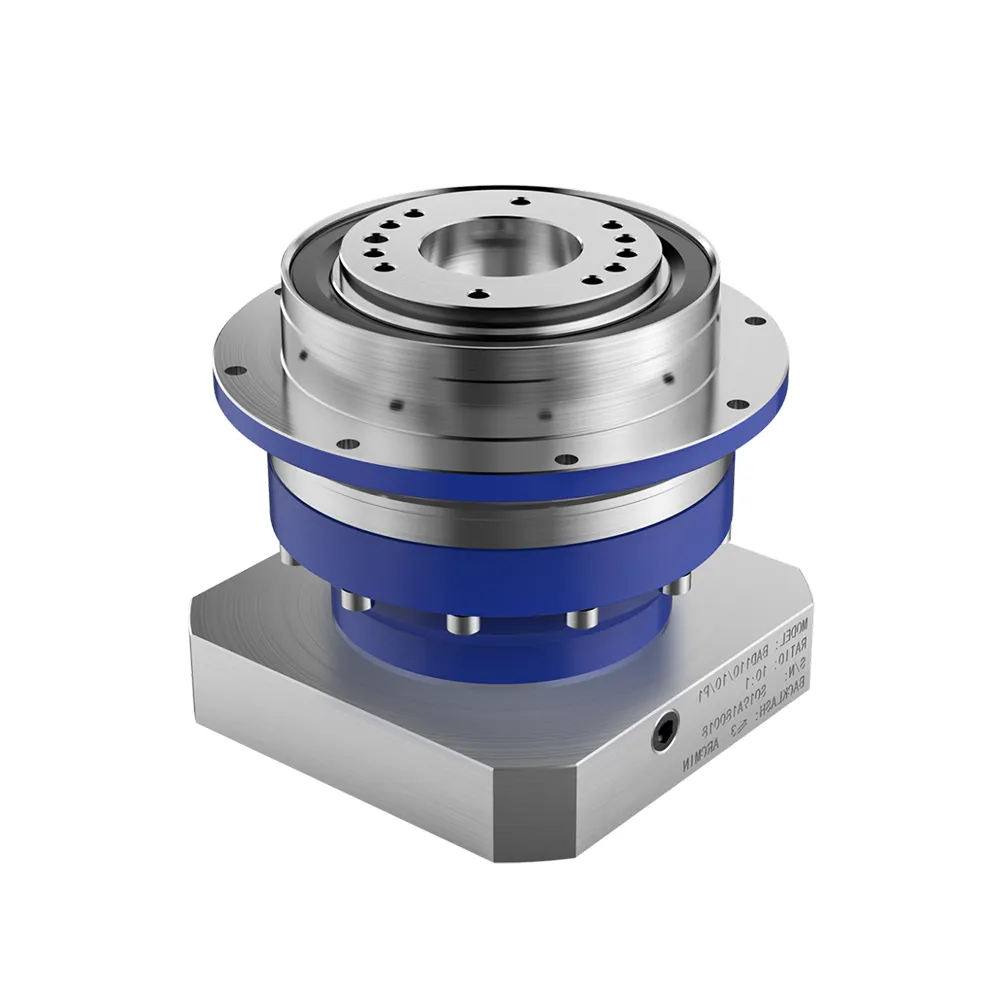

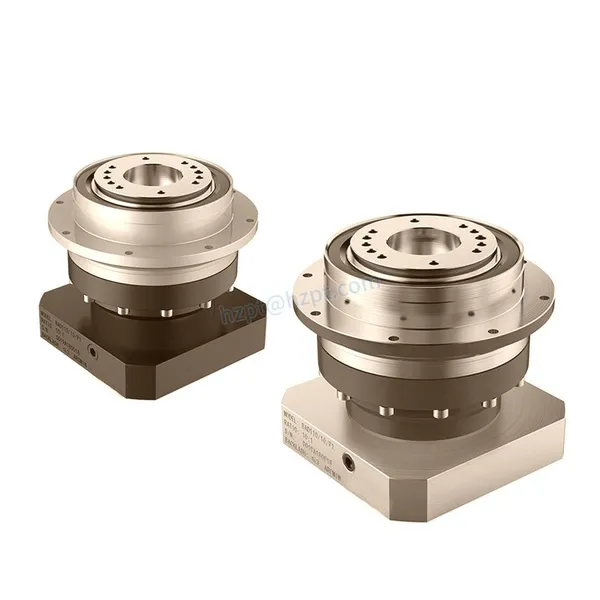

BAD Series High Precision High Speed Planetary Gearbox (Planetary Gear Reducer)

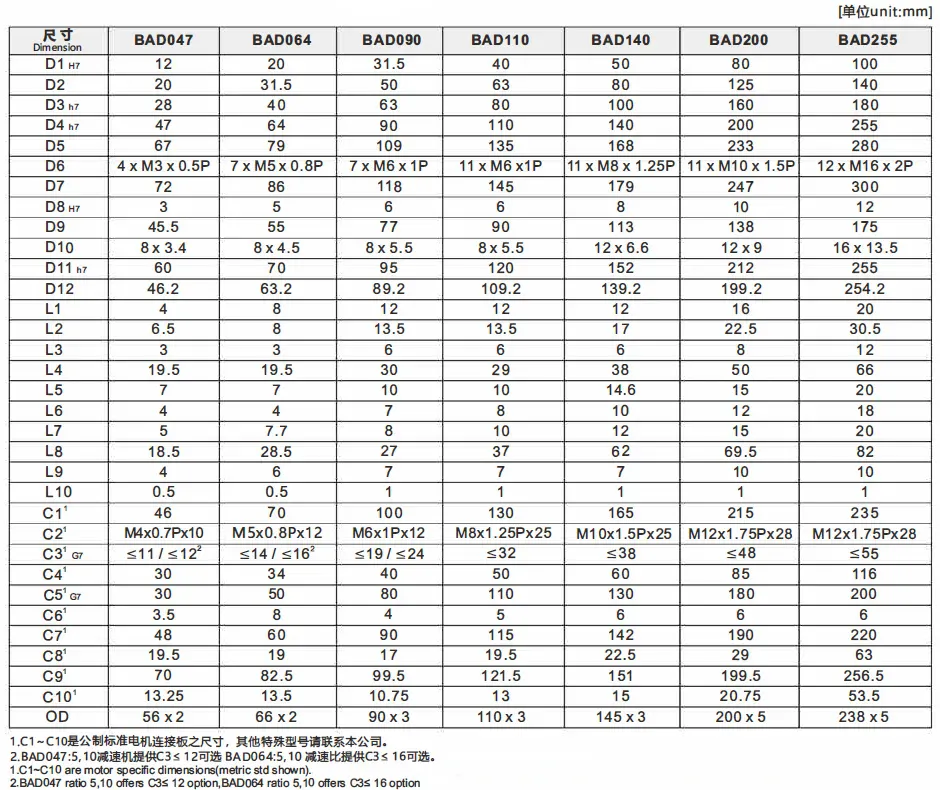

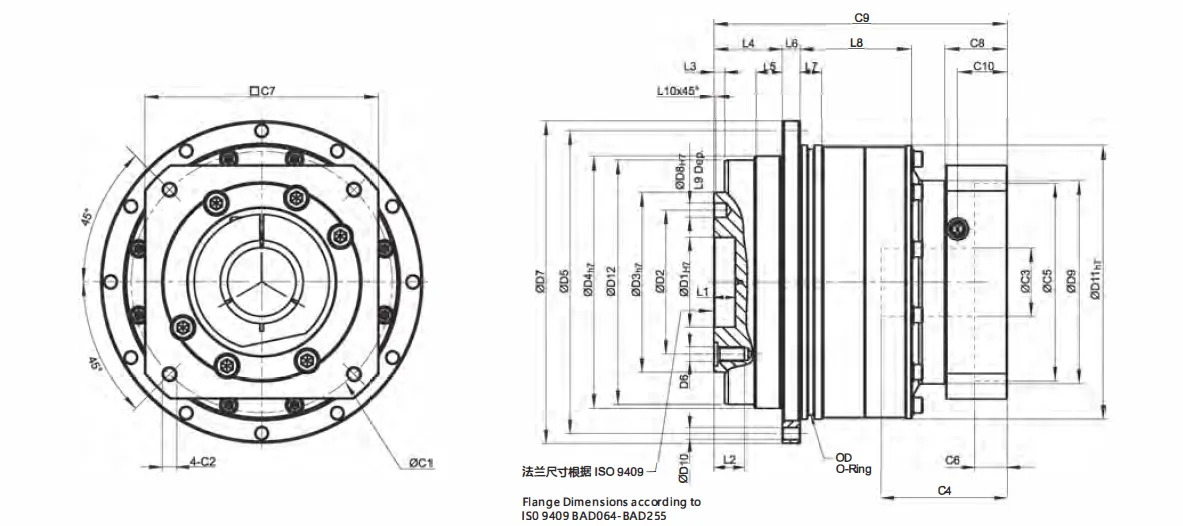

▍1 Stage Planetary Gearbox (Ratio i =4~ 10)

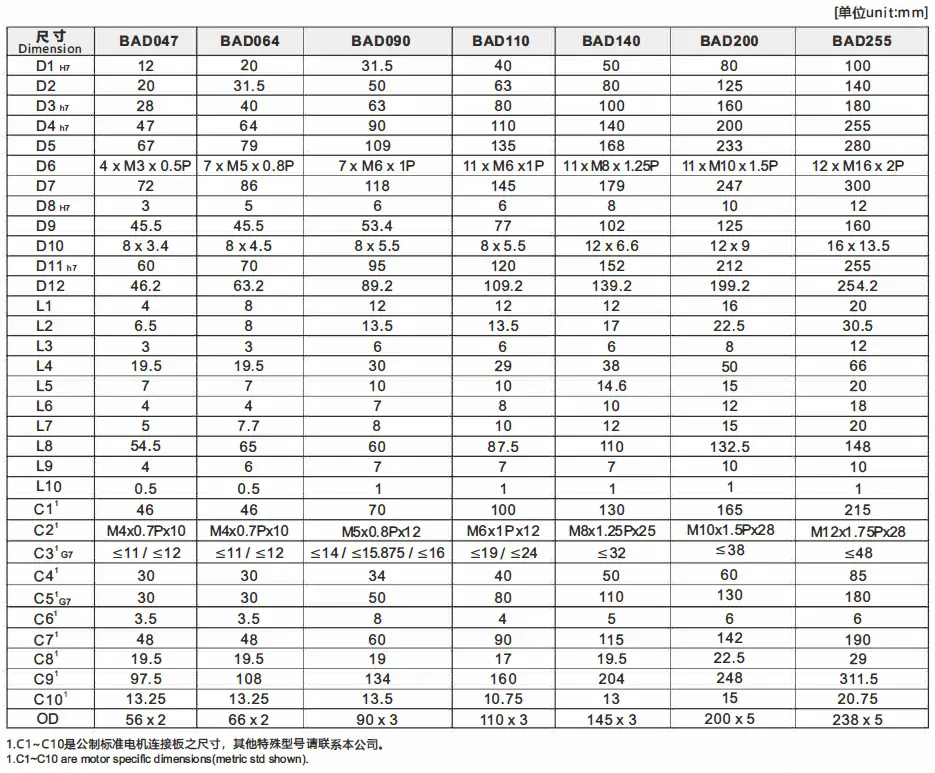

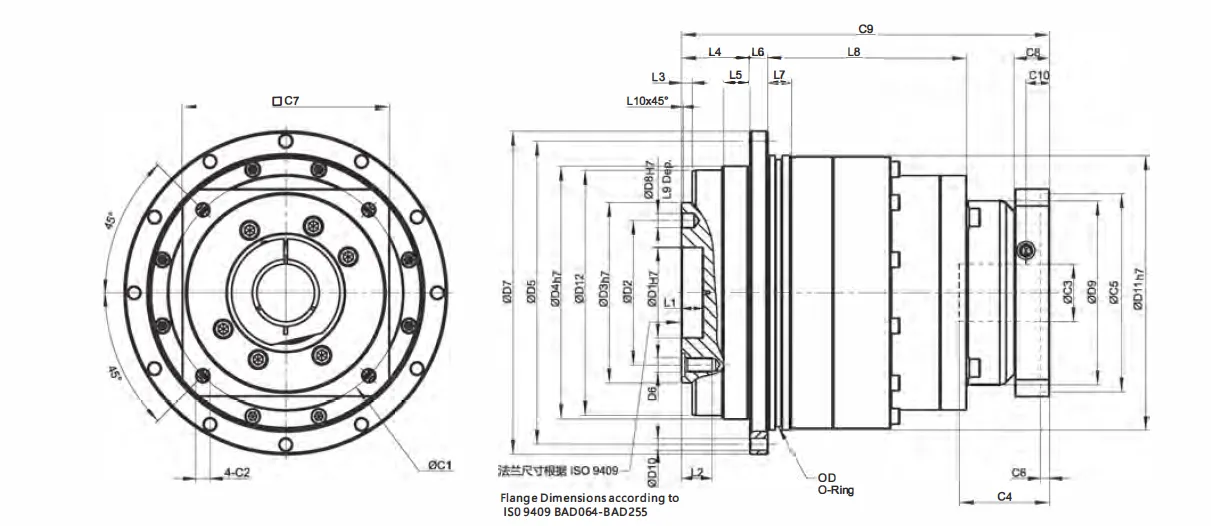

▍2 Stage Planetary Gearbox (Ratio i =4~ 10)

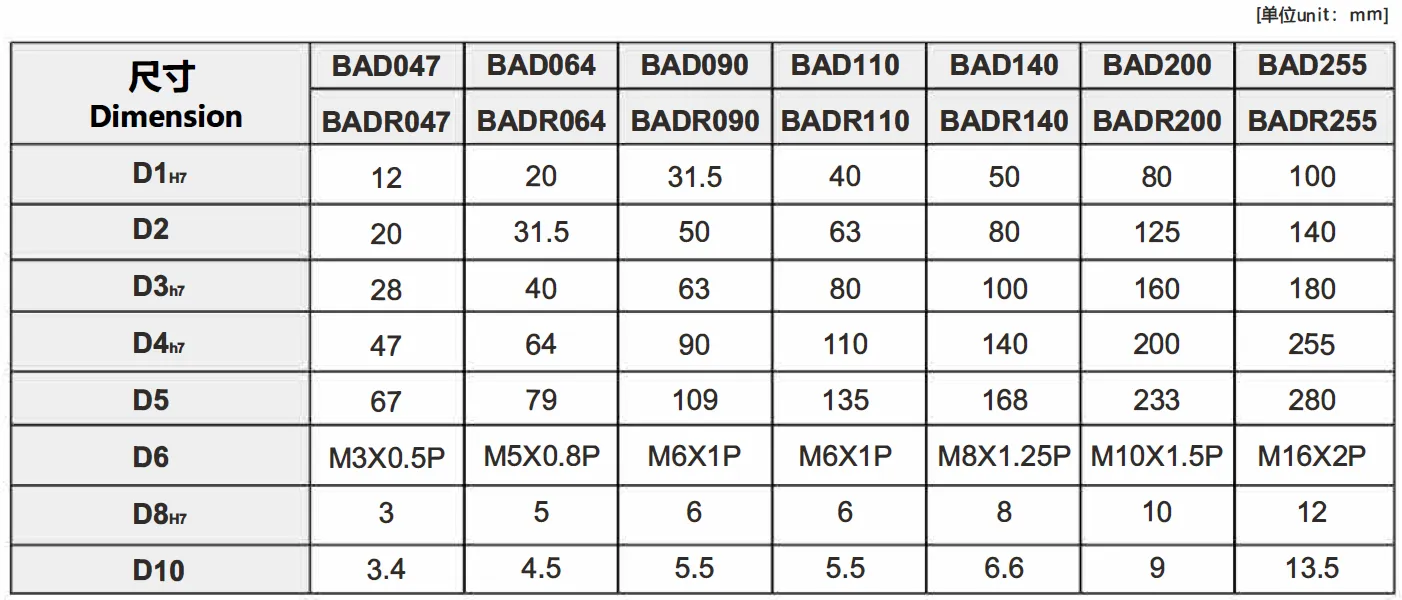

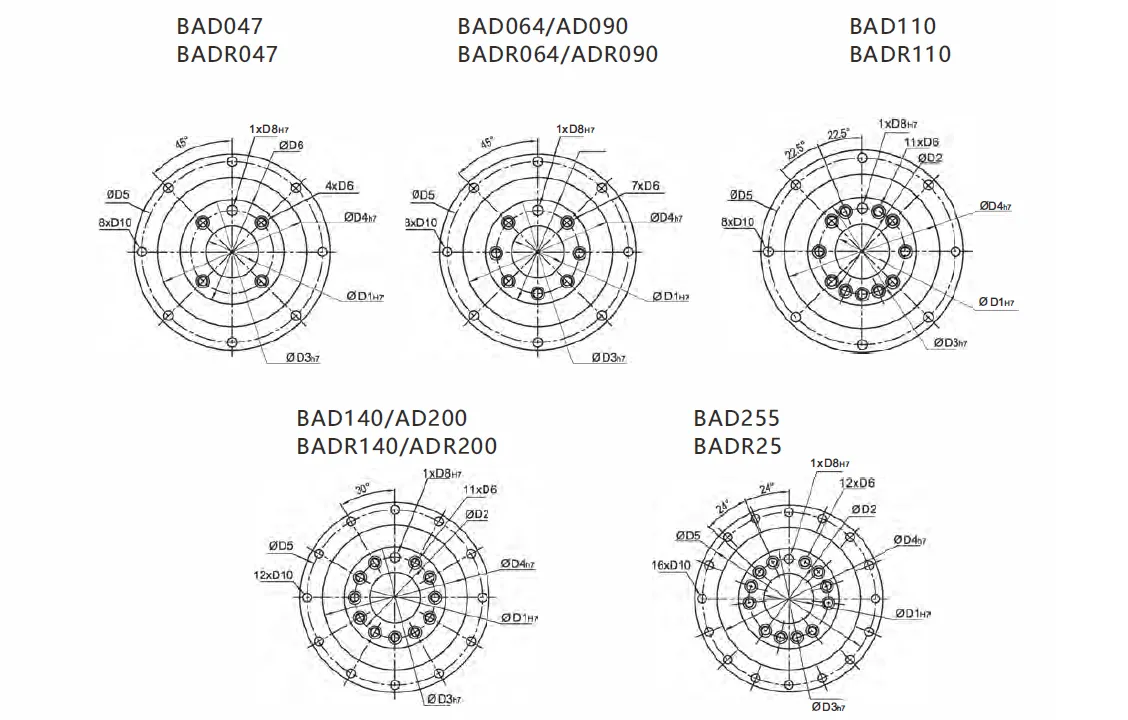

▍BAD Series High Speed Planetary Gearbox Output Shaft Dimension:

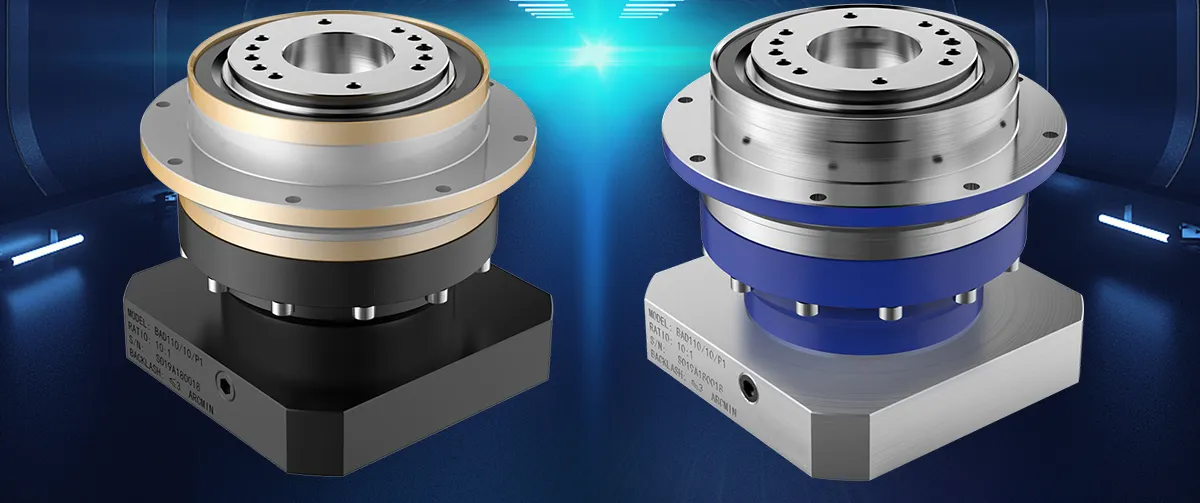

▍BAD Series High Speed Planetary Gearbox Design Features:

The BAD series high speed planetary gearbox is designed with several key features that make it a popular choice for high speed and high torque transmission applications. Some of the design features include:1. Planetary Gear System: The BAD series high speed planetary gearbox uses a planetary gear system that consists of multiple gears arranged around a central sun gear. This arrangement allows for high torque transmission and smooth operation, with minimal backlash and vibration.2. High Efficiency: The BAD series high speed planetary gearbox is designed to have high efficiency, with up to 97% efficiency in some models. This means that it can transfer more power from the input shaft to the output shaft, resulting in less energy loss and lower operating costs.3. Compact Size: The BAD series high speed planetary gearbox is designed to be compact and lightweight, which makes it easy to install and integrate into different types of machinery and equipment.4. High Torsional Stiffness: The BAD series high speed planetary gearbox has high torsional stiffness, which means that it can transmit high torque loads without experiencing excessive deformation or deflection.5. Low Backlash: The BAD series high speed planetary gearbox has low backlash, which means that it can provide precise control over the speed and position of the output shaft. This is important in applications where accuracy and repeatability are critical.6. Durable Construction: The BAD series high speed planetary gearbox is made from high-quality materials, such as hardened steel and aluminum, which makes it durable and able to withstand harsh operating conditions and heavy loads.7. Customization Options: The BAD series high speed planetary gearbox can be customized to meet the specific needs of different applications, with options for different gear ratios, input and output shaft configurations, and mounting options. This makes it a versatile solution for a wide range of motion control applications.

▍BAD Series High Speed Planetary Gearbox Reduction Ratio:

The BAD series high speed planetary gearbox is available in a range of reduction ratios, depending on the specific model and configuration. The reduction ratio determines the relationship between the input speed and torque and the output speed and torque of the gearbox.The BAD series high speed planetary gearbox offers a wide range of reduction ratios, typically ranging from 3:1 to 100:1, although some models can provide even higher ratios. The specific ratio options will depend on the particular model and size of the planetary gearbox.The choice of planetary gearbox reduction ratio will depend on the specific requirements of the application, such as the desired output speed and torque, as well as the input speed and torque of the driving motor. In general, a higher reduction ratio will result in lower output speed and higher output torque, while a lower reduction ratio will provide higher output speed and lower output torque.It's important to note that the planetary gearbox reduction ratio is just one factor to consider when selecting a gearbox for a particular application. Other factors, such as efficiency, backlash, and torsional stiffness, should also be taken into account to ensure that the gearbox meets the specific needs of the application.
