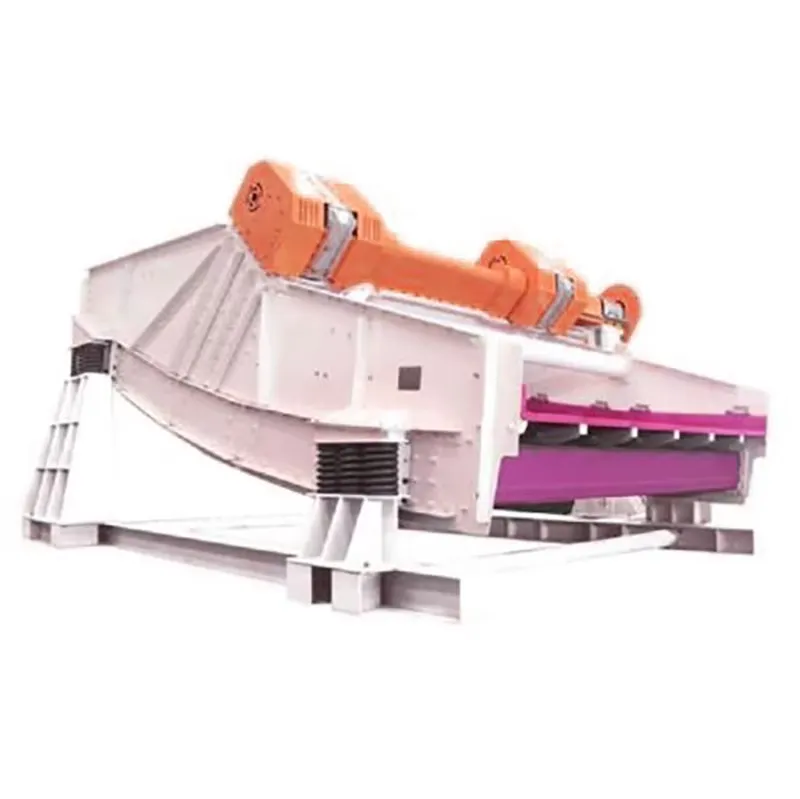

Banana Screen Heavy Duty Multi-Deck Large Linear Banana Vibrating Screen Sieve for Mining Coal Mineral Processing Aggregate

Banana Screen Heavy Duty Multi-Deck Large Linear Banana Vibrating Screen Sieve for Mining Coal Mineral Processing Aggregate

Introduction to Industrial Vibrating Screens

The Industrial Vibrating Screen is an essential piece of equipment in various industries, designed to separate materials based on size and density. This particular model, the Banana Screen, is tailored for heavy-duty applications, ensuring optimal performance in mining, coal, mineral processing, and aggregate industries. Its unique banana-shaped deck design allows for improved material flow and higher screening efficiency, making it a versatile choice for operators seeking precision.

Advantages of the Banana Screen

This high-efficiency screening solution offers several benefits, including:

• Enhanced durability with robust construction materials
• High-frequency operation to ensure effective dewatering and precise separation
• Customizable dimensions to fit specific processing needs

Specifications

Core Components: Screen Deck, Screening Media (Mesh/Sieve), Vibrator/Drive Mechanism, Frame/Body, Springs/Dampers
Voltage: 380 V, 110 V, 220 V
Weight: 50 KG
Warranty: 1 Year
Dimension (L*W*H): Customized

Features of the Banana Screen

• Stainless Steel Material: Provides excellent corrosion resistance.
• High-Frequency Dewatering Screen Functionality: Ensures effective moisture removal in fine materials.
• Customized Solutions: Tailored designs to meet specific operational requirements.

We specialize in the production of this high-quality industrial vibrating screen, providing clients with tailored solutions for their unique processes.

Industry Applications

The Banana Screen finds applications across various industries, including:

• Mining: Efficiently separates minerals and ores, enhancing recovery rates.
• Ports: Handles bulk materials to streamline loading and unloading processes.
• Cement: Facilitates the separation of raw materials for improved processing.

In real-world scenarios, clients in the mining sector have reported significant improvements in screening efficiency while using the Banana Screen, allowing for more effective mineral extraction. At ports, the system has optimized logistics by rapidly sorting materials, reducing turnaround times and increasing throughput.

Design Considerations and Selection Criteria

Vibration Force

Choosing the appropriate vibration force is crucial for ensuring the screen operates efficiently. An adequate force allows for optimal material movement across the deck, enhancing separation and reducing wear on components.

Sealing

Effective sealing mechanisms are necessary to prevent dust and contaminants from entering the system, which could impair performance and lead to maintenance issues. High-quality seals contribute to extended equipment lifespan.

Screen Mesh Durability

The screen mesh must withstand harsh operational conditions, including abrasion from materials processed. Selecting durable materials for the mesh ensures minimal downtime due to wear and tear, maximizing productivity.

Isolation Design

A well-engineered isolation design minimizes vibrations transmitted to the foundation or surrounding structures, ensuring safety and compliance with industry standards.

Maintainability

Easy access to components for routine maintenance is essential for minimizing downtime. Design considerations should prioritize maintenance-friendly layouts to facilitate quick inspections and repairs.

Sealing and Lubrication

Proper sealing and lubrication play a pivotal role in the longevity of the Banana Screen:

• Floating Oil Seals: Prevent dust and contaminants from entering the system.
• High-Temperature Seals: Ensure reliability in demanding environments.
• Lubrication Methods: Use of grease or oil lubrication for vibrator bearings enhances performance.
• Durable Sealing Materials: Selecting wear-resistant materials further protects the integrity of the system.
• Precision-Bore Bearings: Fine machining of bearing housings reduces friction and wear.

Regular Inspection and Preventive Maintenance

Routine inspections and preventive maintenance measures are critical for optimal operation:

• Monitoring Bearing Temperature: Detects potential failure before it occurs.
• Vibration Amplitude Analysis: Helps in identifying irregularities in performance.
• Screen Tension Checks: Ensures proper mesh tension for effective screening.
• Fastening Inspections: Regular checks on vibration source fastenings prevent unexpected breakdowns.

Installation Guidelines

Proper installation is vital for the successful operation of the Banana Screen:

• Foundation Requirements: Ensure a solid and level foundation to support the screen.
• Level Calibration: Confirm the screen is level to avoid uneven wear.
• Isolation Spring Installation: Correctly install isolation springs to minimize vibration transmission.
• Vibration Motor Weight Adjustment: Set the weight angle for optimal performance.

Common Maintenance Tasks

• Regular Inspections and Replacement of Wear Parts: Ensures that all components are functioning correctly and reduces the risk of failure.
• Lubrication Oil Changes for the Vibrator: Regularly updating the lubrication keeps the system running smoothly and efficiently.
• Amp and Frequency Calibration: Ensures the machine operates within optimal parameters for the best screening results.

Safety Considerations and Environmental Factors

Implementing safety measures during operation is paramount:

• Dust Covers: Protects operators and equipment from airborne particles.
• Vibration Safety Distances: Maintain safe distances to prevent injury.
• Noise Reduction Measures: Implementing noise control strategies to protect worker health.
• Static Electricity Prevention: Design features that mitigate the risk of static build-up.

Fault Diagnosis and Common Issues

Common issues that may arise include:

• Decreased Screening Efficiency: Possible causes could be clogging or incorrect vibration settings.
• Screen Mesh Breakage: Often results from material overload or improper tensioning.
• Excessive Bearing Temperature: Indicative of insufficient lubrication or misalignment.
• Abnormal Vibration Patterns: Can result from uneven loading or mechanical failures.

To mitigate these issues, regular maintenance and prompt attention to any irregularities are essential to sustain productivity.

About Our Company

We are a leading manufacturer of Industrial Vibrating Screens, with a diverse product range and a reputation for excellence in both domestic and international markets. Our commitment to quality is reflected in our advanced manufacturing strategies, utilizing skilled professionals and state-of-the-art equipment. We continuously enhance our production capabilities through rigorous quality control and innovation.

We provide customized services to meet specific client needs, ensuring high efficiency and precision in our products. With international certifications and dedicated after-sales support, we stand out as a trusted partner in the industrial sector.
