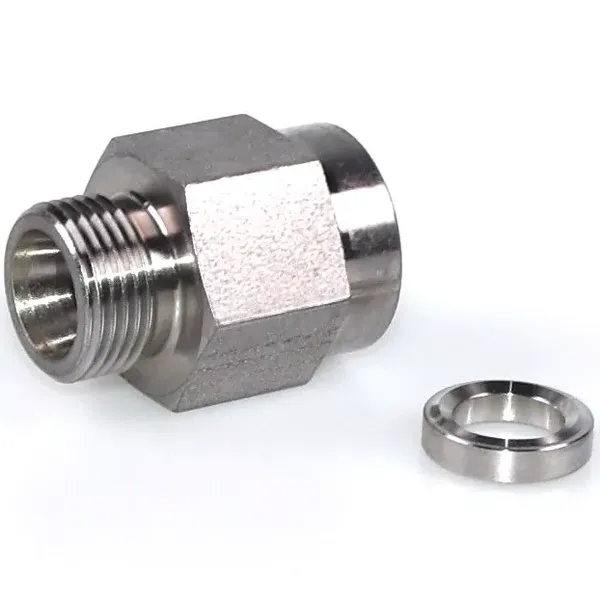

BSPP pressure gauge connectors are hydraulic fittings that are used to connect a pressure gauge to a hydraulic system. They are typically made of stainless steel and have a BSPP female thread on one end and a 24° cone end on the other end. The 24° cone end is compatible with Ermeto DIN tube fittings. BSPP Pressure Gauge Connector-MAVE Hydraulic Fittings are a type of BSPP pressure gauge connector. They are known for their high quality and durability. MAVE hydraulic fittings are available in a variety of sizes and pressure ratings to meet the needs of a wide range of applications.

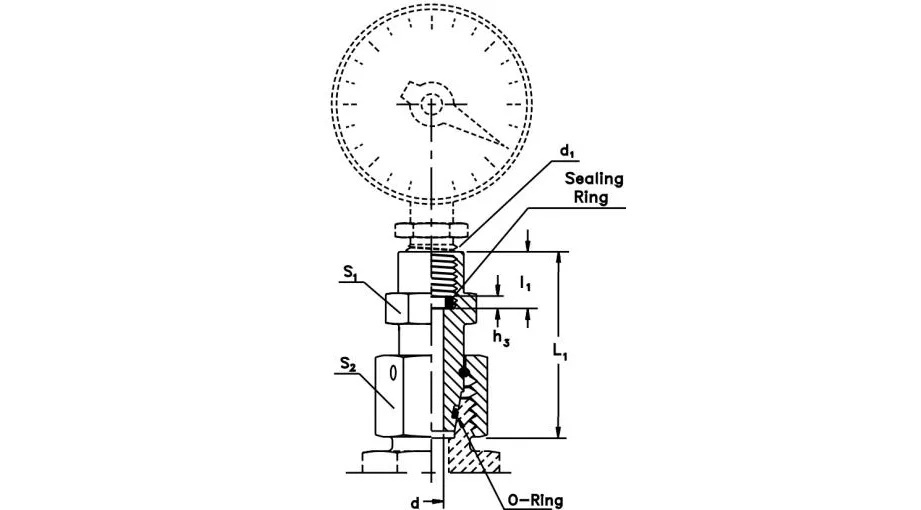

BSPP Pressure Gauge Connector-MAVE Hydraulic Fitting Size Chart:

MAVEPart no.	Series Working Pressure(bar/psi)	Tube o.d.	d1 BSPPthread	d	h	l1	L1	S1	S2	O-ring
-MAVE06LR	L light 315 bar4560 psi	6	G 1/4	2.5	4.5	14.5	35.5	19	14	4.5 x 1.5
-MAVE08LR		8		4			35.5		17	6.5 x 1.5
-MAVE10LR		10		5.5			36		19	8 x 1.5
-MAVE12LR		12		5.5			36		22	10 x 1.5
-MAVE06SR	S heavy 630 bar9130 psi	6	G 1/2	2.5	5	20	42.5	27	17	4 x 1.5
-MAVE08SR		8		4			43		19	6 x 1.5
-MAVE10SR		10		6			43.5		22	7.5 x 1.5
-MAVE12SR		12		7			45		24	9 x 1.5
-MAVE06SR1/4	630 bar9130 psi	6	G 1/4	2.5	4.5	14.5	35.5	19	17	4 x 1.5
-MAVE08SR1/4		8		4			35.5		19	6 x 1.5
-MAVE10SR1/4		10		7			39		22	7.5 x 1.5
-MAVE12SR1/4		12		7			39		24	9 x 1.5

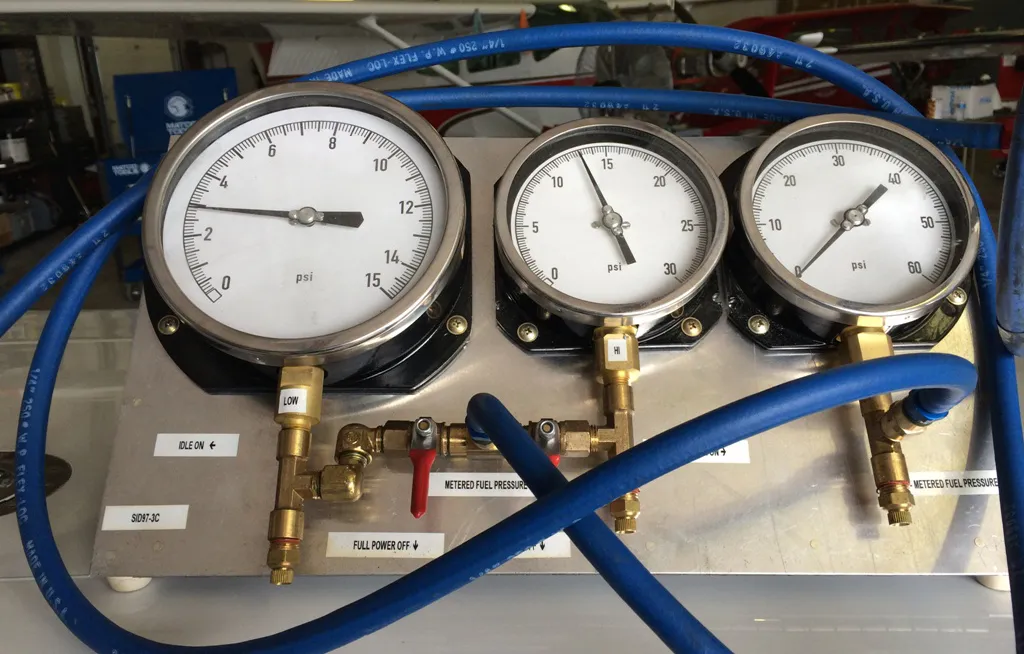

Benefits of BSPP Pressure Gauge Connector-MAVE Hydraulic Fittings:

Using BSPP pressure gauge connectors-MAVE Hydraulic Fittings offers several benefits in hydraulic systems. Here are some key advantages:1. Accurate pressure measurement: BSPP pressure gauge connectors provide a reliable and precise connection between the pressure gauge and the hydraulic system. This ensures accurate measurement of system pressures, allowing for effective monitoring and control of hydraulic processes.2. Leak-free operation: The parallel threads of the BSPP pressure gauge connector ensure a tight and secure seal, minimizing the risk of leaks. This is crucial in hydraulic systems, as even small leaks can lead to fluid loss, decreased system efficiency, and potential damage to components. The reliable sealing capability of BSPP connectors helps maintain system integrity.3. Easy installation: BSPP pressure gauge connectors are designed for easy installation. They can be quickly and easily screwed into the female threads of the pressure gauge or other hydraulic components without the need for additional tools or complicated procedures. This saves time and effort during assembly or maintenance tasks.4. Compatibility: BSPP pressure gauge connectors that are compatible with industry-standard hydraulic systems. These connectors ensure proper mating with other hydraulic components, allowing for seamless integration into existing systems or replacement of old fittings.5. Durability and reliability: Raydafon is known for producing high-quality hydraulic fittings, including BSPP pressure gauge connectors, that are built to last. These connectors are made from durable materials that can withstand high-pressure conditions, ensuring long-term reliability and performance in demanding hydraulic applications.6. Industry compliance: BSPP pressure gauge connectors adhere to the British Standard Pipe Parallel (BSPP) specification, ensuring compliance with industry standards. This guarantees compatibility and interchangeability with other BSPP fittings available in the market.7. Wide range of options: Raydafon offers a variety of BSPP pressure gauge connectors with different thread sizes, materials, and configurations. This allows users to select the most suitable connector for their specific hydraulic system requirements, ensuring optimal performance and compatibility.
