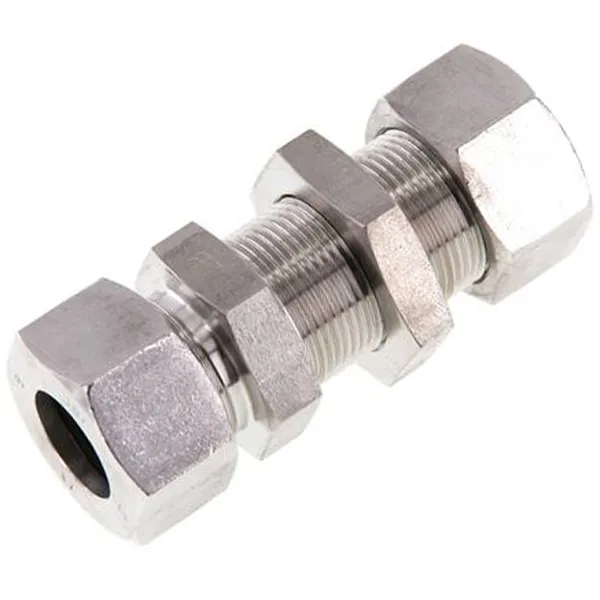

Bulkhead union-SV hydraulic fittings are a type of fitting that allows for the connection of two hydraulic tubes through a panel or other barrier. They are typically made of brass or stainless steel and have a male thread on one end and a female thread on the other. The bulkhead union-SV fitting is then inserted into the panel and secured with a nut. Once the bulkhead union-SV fitting is in place, the two hydraulic tubes can be connected to the male and female threads.

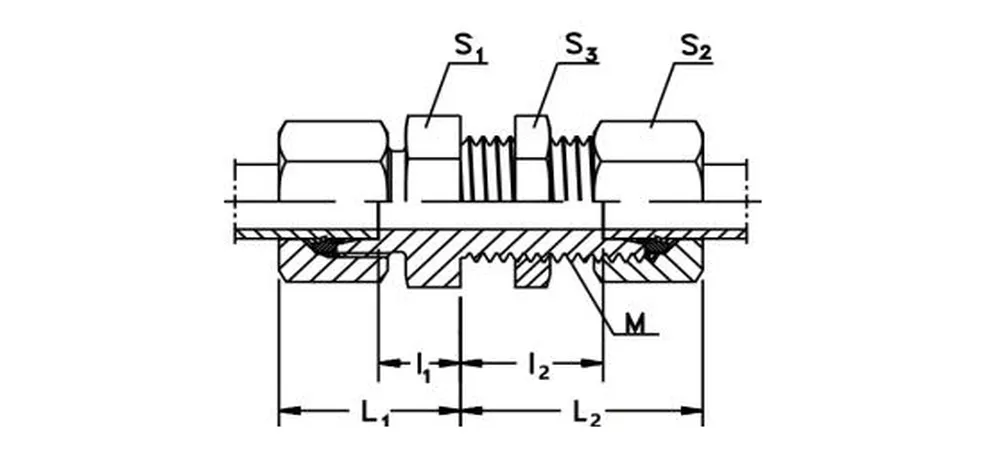

Bulkhead Union-SV Hydraulic Fitting Size Chart:

SVPart no.	Series Working Pressure(bar/psi)	Tubeo.d.	M	l1	l2	L1	L2	S1	S2	S3
-SV06L	L light 315 bar4560 psi	6	M12 x 1.5	7	27	22	42	17	14	17
-SV08L		8	M14 x 1.5	8	27	23	42	19	17	19
-SV10L		10	M16 x 1.5	10	28	25	43	22	19	22
-SV12L		12	M18 x 1.5	10	29	25	44	24	22	24
-SV15L		15	M22 x 1.5	12	31	27	46	27	27	30
-SV18L		18	M26 x 1.5	13.5	32.5	30	49	32	32	36
-SV22L	160 bar2320 psi	22	M30 x 2	16.5	34.5	33	51	36	36	41
-SV28L		28	M36 x 2	18.5	35.5	35	52	41	41	46
-SV35L		35	M45 x 2	18.5	36.5	40	58	50	50	55
-SV42L		42	M52 x 2	19	36	42	59	60	60	65
-SV06S	S heavy 630 bar9130 psi	6	M14 x 1.5	12	29	27	44	19	17	19
-SV08S		8	M16 x 1.5	13	29	28	44	22	19	22
-SV10S		10	M18 x 1.5	14.5	29.5	31	46	24	22	24
-SV12S		12	M20 x 1.5	14.5	30.5	31	47	27	24	27
-SV14S		14	M22 x 1.5	17	32	35	50	30	27	30
-SV16S	400 bar5800 psi	16	M24 x 1.5	16.5	31.5	35	50	32	30	32
-SV20S		20	M30 x 2	17.5	33.5	39	55	41	36	41
-SV25S		25	M36 x 2	20	35	44	59	46	46	46
-SV30S		30	M42 x 2	21.5	37.5	48	64	50	50	50
-SV38S	315 bar4560 psi	38	M52 x 2	22	37	53	68	65	60	65

Benefits of Using Bulkhead Union-SV Hydraulic Fittings:

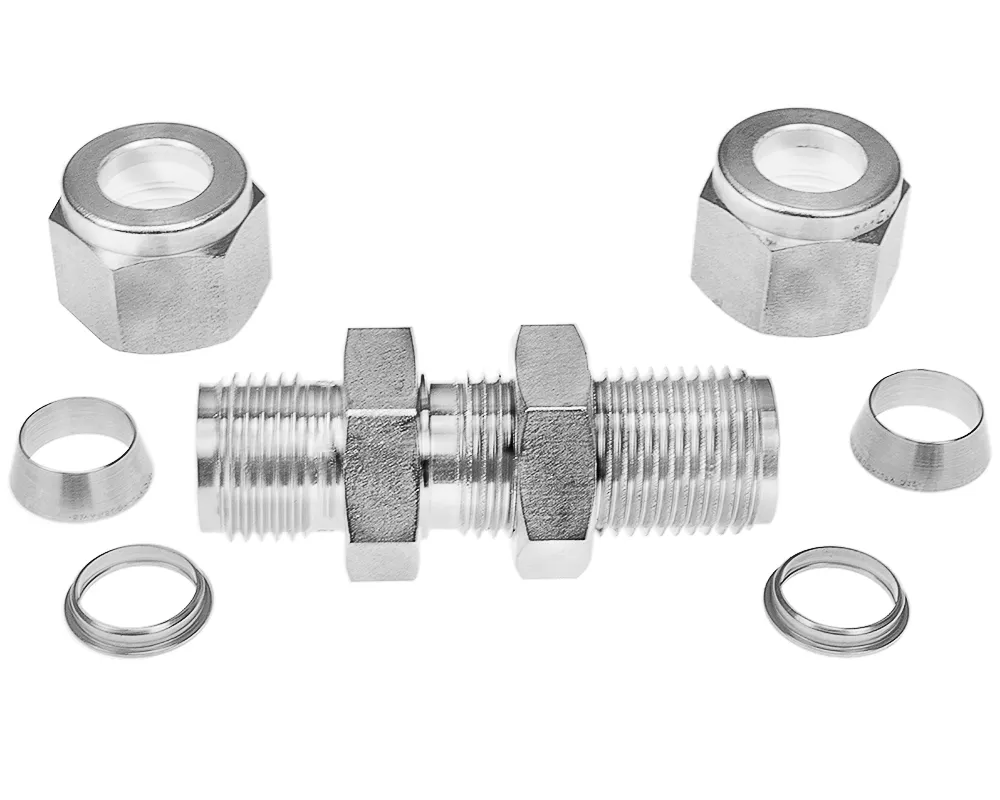

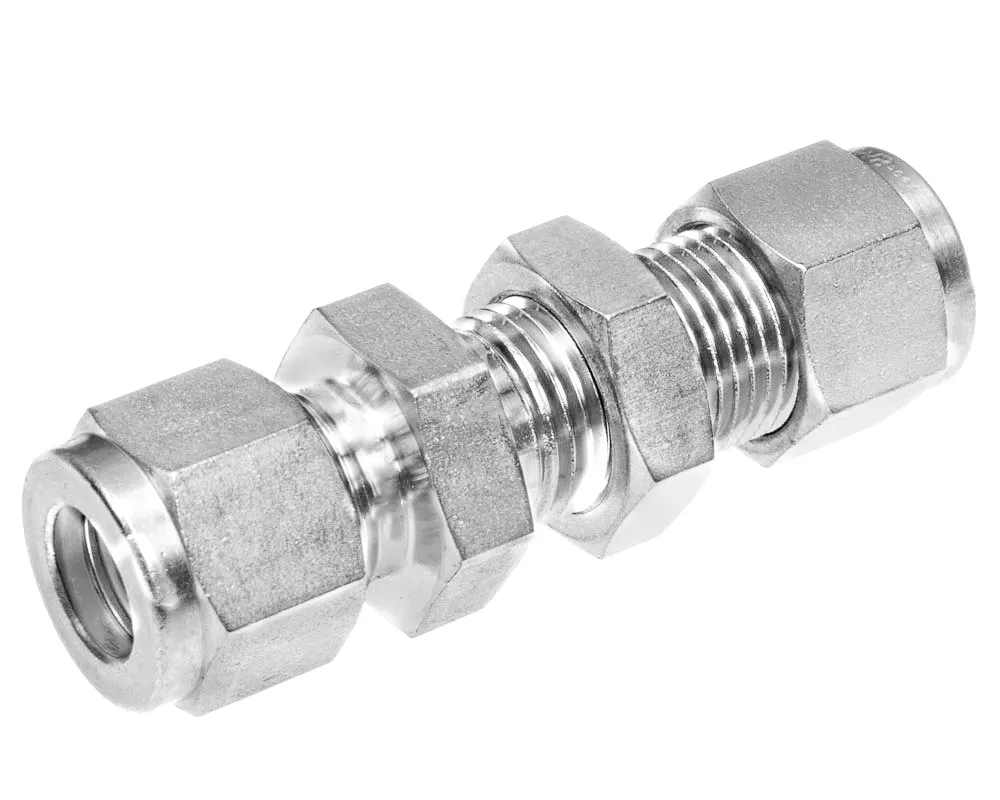

Bulkhead union-SV hydraulic fittings offer a number of benefits over other types of hydraulic fittings, including:

1. High pressure capacity: Bulkhead union-SV fittings are rated for high pressures, up to 800 bar (S series) and 500 bar (L series). This makes them suitable for a wide range of hydraulic applications, including those in the industrial, construction, and agricultural sectors.2. Corrosion resistance: Bulkhead union-SV hydraulic fittings are made from high-quality materials, such as stainless steel, which are highly resistant to corrosion. This makes them ideal for use in harsh environments, such as marine applications or chemical processing plants.3. Leak resistance: Bulkhead union-SV fittings are designed to provide a leak-free seal, even under high pressure and vibration conditions. This is achieved through the use of a precision-machined sealing ring and a tight-fitting connection between the fitting and the tubing.4. Easy installation and removal: Bulkhead union-SV hydraulic fittings are easy to install and remove, even in confined spaces. This is due to their simple design and the use of a wrench-tightening mechanism.5. Versatility: Bulkhead union-SV fittings are available in a wide range of sizes and configurations to suit a variety of hydraulic applications. They can also be used to connect different types of tubing, including steel, stainless steel, and copper.

In addition to the benefits listed above, bulkhead union-SV hydraulic fittings are also known for their durability and reliability. They are designed to withstand the rigors of even the most demanding hydraulic applications.

Applications of Bulkhead Union-SV Hydraulic Fittings:

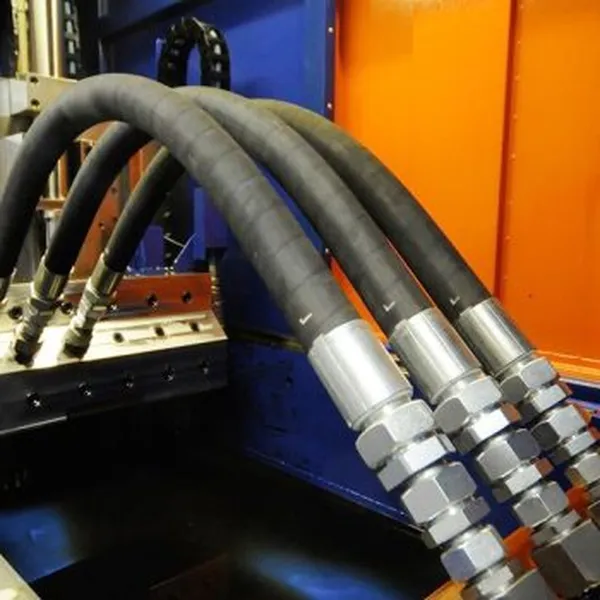

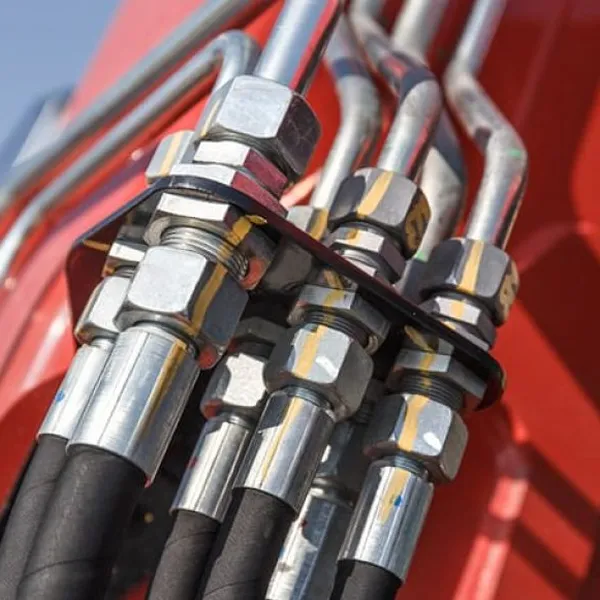

Bulkhead Union-SV hydraulic fittings find applications in various industries and hydraulic system setups. Here are some common applications:(1) Industrial machinery: Bulkhead Union-SV fittings are widely used in industrial machinery that relies on hydraulic systems, such as hydraulic presses, machine tools, conveyor systems, and material handling equipment. They provide secure connections for hydraulic lines and components while allowing for control and isolation of fluid flow.(2) Agricultural equipment: In the agricultural sector, Bulkhead Union-SV hydraulic fittings are utilized in machinery like tractors, harvesters, and irrigation systems. They help connect hydraulic lines and controls, allowing for precise operation and control of hydraulic functions in farming equipment.(3) Construction machinery: Construction equipment, including excavators, loaders, cranes, and concrete pumps, often employ hydraulic systems for power and control. Bulkhead Union-SV fittings are used to connect hydraulic lines and components in these machines, ensuring reliable and leak-free operation.(4) Transportation and automotive: Bulkhead Union-SV hydraulic fittings are found in various applications within the transportation industry. They are used in hydraulic brake systems, power steering systems, suspension systems, and hydraulic lift gates or ramps in trucks and trailers. These fittings provide secure connections and reliable fluid control in these critical automotive applications.(5) Marine and offshore applications: In marine and offshore environments, Bulkhead Union-SV fittings are employed in hydraulic systems on ships, boats, and offshore platforms. They allow for connections through bulkheads or panels, ensuring watertight seals and reliable fluid control in challenging marine conditions.(6) Fluid power systems: Bulkhead Union-SV hydraulic fittings are used in general fluid power systems that require connections through bulkheads or panels. These can include hydraulic power units, control panels, test benches, and other applications where a secure and controlled fluid connection is needed.(7) Mobile equipment: Bulkhead Union-SV fittings are commonly used in mobile equipment like cranes, aerial lifts, forklifts, and utility vehicles. These fittings facilitate hydraulic connections while ensuring safe and efficient operation of the equipment.
