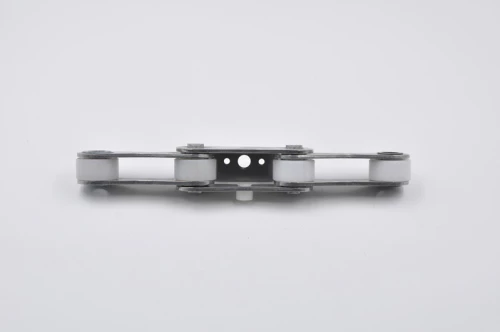

C50S-N1SS Stainless Steel Ice-cream Processing Chain

The C50S-N1SS Stainless Steel Ice-cream Processing Chain is a highly efficient and durable chain designed specifically for use in ice-cream production lines. This chain is made from high-quality stainless steel, which makes it resistant to corrosion and ensures a long service life.

Product Overview

The C50S-N1SS Stainless Steel Ice-cream Production Chain is a vital component in ice-cream production lines. This chain is designed to transport ice-cream products through various stages of the production process. It is known for its durability, high load capacity, and resistance to corrosion. This chain is suitable for use in a variety of food processing applications and is a popular choice among food manufacturers.

Structure and Composition

The C50S-N1SS Stainless Steel Ice-cream Production Chain is composed of several components, including pins, bushings, and rollers. These components work together to ensure the smooth and efficient transfer of ice-cream products through the production process. The chain is also designed to resist wear and tear, even in high-stress environments.The chain is made from high-quality stainless steel, which ensures that it is durable and resistant to corrosion. The pins, bushings, and rollers are also heat-treated to ensure that they can withstand heavy loads and high-stress environments. The chain is designed to operate smoothly and efficiently, even in the most demanding conditions.

Specifications of C50S-N1SS Stainless Steel Ice-cream Processing Chain

ChainNo.	Pitch	Widthbetweeninner plates	Roller? diameter	Pin	Pin	Pin	Plate	Plate	UItimate tensile strength
	P	bl(min)	D(max)	d	L1	L2	h	t/T	Q(min)
	mm	mm	mm	mm	mm	mm	mm	mm	KN
C50S-N1SS	5	17	25	7	18.15	19.05	20	3	15

ChainNo.	d1(mm)	E1(mm)	E(mm)	F(mm)	W(mm)	H(mm)
C50S-N1SS	M6	25	40	45	53	26

Hygiene and Safety

Stainless steel is an ideal material for use in the food industry, including ice-cream production. It is resistant to corrosion and easy to clean, which makes it an ideal choice for food processing applications. The following are some of the reasons why stainless steel is well-suited for use in the food industry:

• Corrosion resistance: Stainless steel is highly resistant to corrosion, which makes it ideal for use in environments where food processing equipment is exposed to moisture and other corrosive substances.
• Easy to clean: Stainless steel is easy to clean and sanitize, which makes it ideal for use in the food industry. It is non-porous, which means that bacteria and other microorganisms cannot penetrate its surface.
• Durable: Stainless steel is a durable material that can withstand heavy use and high-stress environments. It is also resistant to wear and tear, which makes it an ideal choice for food processing applications.

Product Features

The C50S-N1SS Stainless Steel Ice-cream Production Chain is known for its durability, high load capacity, and resistance to wear and tear. The following are some of the key features of this chain:

• Durable: This chain is made from high-quality stainless steel, which ensures that it is durable and resistant to corrosion.
• High load capacity: The chain is designed to withstand heavy loads and high-stress environments.
• Resistance to wear and tear: The chain is designed to resist wear and tear, even in high-stress environments.
• Efficient: The chain is designed to operate smoothly and efficiently, even in demanding conditions.

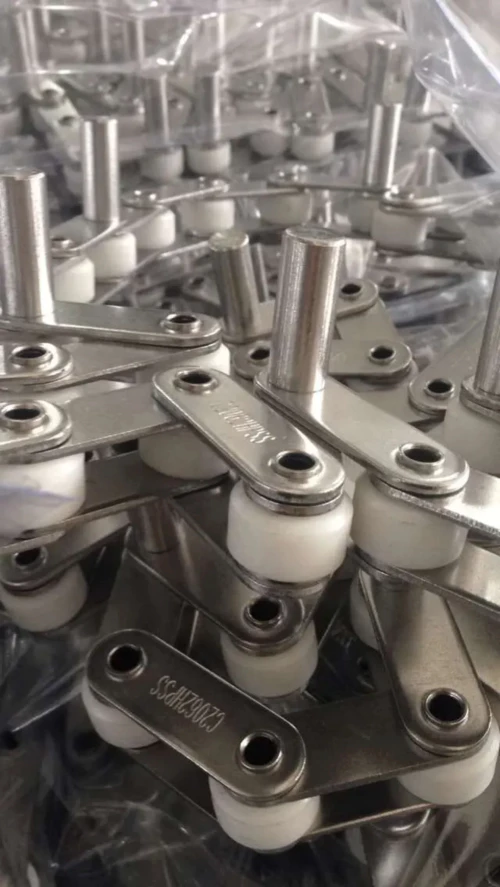

The image below shows the C50S-N1SS Stainless Steel Ice-cream Production Chain in action:

Design

The C50S-N1SS Stainless Steel Ice-cream Production Chain is designed to be strong, durable, and efficient. It is important to choose the right chain design to ensure that it can withstand the demands of the production process, including high-speed transfers, heavy loads, and high-stress environments.

Applications

The C50S-N1SS Stainless Steel Ice-cream Production Chain is suitable for use in a variety of food processing applications, including ice-cream production, chocolate production, and pastry production. The chain is designed to operate smoothly and efficiently in demanding conditions, which makes it an ideal choice for food manufacturers. The following are some of the key applications of this chain:

• Ice-cream production: This chain is designed to transport ice-cream products through various stages of the production process, including mixing, freezing, and packaging.
• Chocolate production: This chain is suitable for use in chocolate production lines, where it can transport chocolate products through various stages of the production process.
• Pastry production: This chain is ideal for use in pastry production, where it can transport pastry products through various stages of the production process.

Maintenance and Care

The C50S-N1SS Stainless Steel Ice-cream Production Chain requires regular maintenance and care to ensure that it operates smoothly and efficiently. The following are some tips for maintaining and caring for this chain:

1. Clean the surface of the chain: Regularly cleaning the surface of the chain is an important step in keeping it running smoothly. Use a mild detergent and a soft brush or cloth to clean the surface of the chain. Make sure to remove any oil stains, dirt, and residue.
2. Lubricate the chain: Lubricating the chain is essential for reducing friction and preventing wear and tear. Use a food-grade lubricant to lubricate the chain regularly. Be sure to use an approved lubricant to ensure its safety and hygiene.
3. Check the tension of the chain: Regularly check the tension of the chain, ensuring that it is not too loose or too tight. Loose chains can cause skipping while tight chains can increase friction and wear and tear. Adjust the tension of the chain according to the requirements of the production equipment.
4. Check the wear of the chain: Regularly check the wear of the chain. If the chain shows signs of wear or damage, replace it promptly. Use wear indicators or measuring tools to check the wear of the chain and take appropriate maintenance measures as needed.
5. Regularly check the chain connections: Check the tightness of the chain connections (such as pins and connecting plates) regularly. Ensure that the connections are not loose or damaged. If a problem is found, repair or replace the connections promptly.
6. Prevent chain contamination: Avoid chain contamination during the production process. Prevent food, liquids, or other impurities from entering the chain, which could cause it to jam or be damaged.
7. Regularly check the alignment of the chain: Ensure that the chain remains in good alignment during operation. Check the clearance between the chain and the guide wheels or guide plates and adjust it as needed to ensure smooth chain operation.

Stainless Steel Sprockets for Chains

Stainless steel sprockets are an essential component of a chain-driven system. They are used to transmit power and torque from the chain to the driven equipment. Our company offers a wide range of stainless steel sprockets for use with our stainless steel chains. The following image shows our stainless steel sprockets:

About the Company

Raydafon is a professional chain manufacturer that specializes in standard chains and specialized shaped chains. Our stainless steel roller chains are manufactured in accordance with strict ANSI/DIN/ISO standards. Our chains are designed with sturdy rollers to ensure a long service life. In addition, our chains are heat-treated and pre-stressed to ensure optimal performance. We offer a wide range of stainless steel materials to meet our customers' specific requirements.Our products are made using high-quality alloy steel. The plates are punched and extruded using precision technology. The pins, bushings, and rollers are processed using highly efficient automated equipment and automatic grinding equipment. The parts are then heat-treated using carburizing, carbon, and nitrogen protected mesh belt furnace and surface sandblasting technology. The assembly accuracy is ensured by bore positioning and spinning, and the whole chain is pressure-riveted to ensure optimal performance. Our factory has excellent equipment, mature and advanced technology, and a large technical force team. We have won the favor of our customers due to our quick market response, flexible and modernized production and operation mode, and excellent and considerate after-sales service. Our products are exported to Europe, Japan, the United States, Canada, Southeast Asia, and other countries and regions.We encourage our customers to explore our C50S-N1SS Stainless Steel Ice-cream Production Chain and to contact us for more information on purchasing our products.
