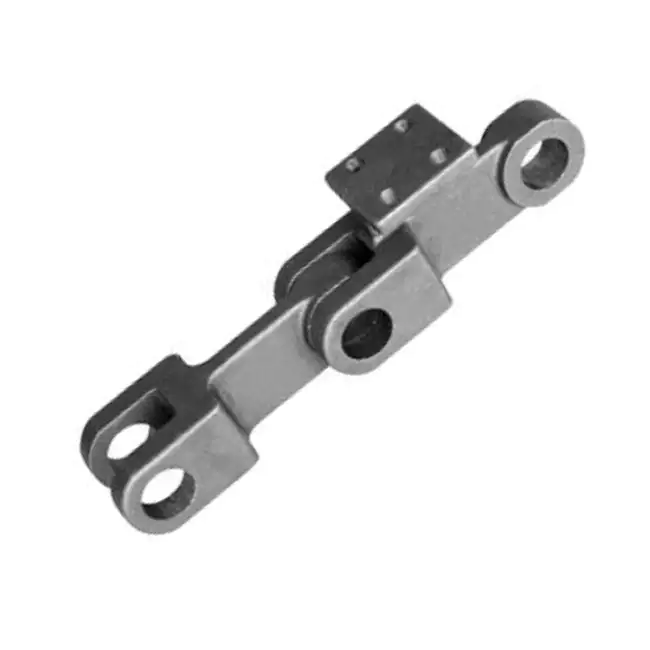

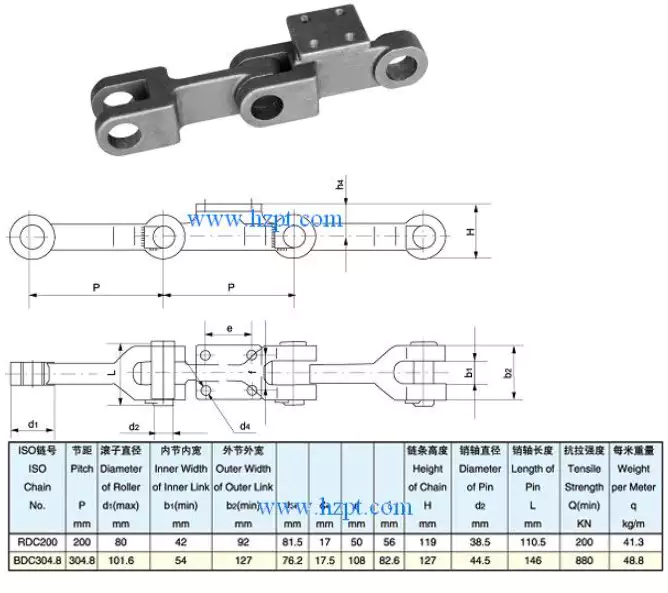

We can offer a wide range of cast chain products for use in sewage water treatment equipment and conveying applications in sugar making and steelmaking industries. Our chains can be cast using varied materials based on specific usage requirements and desired technical standards. All cast chains have a simple structure and few pores, boosting high tensile strength.| Chain No. | Pitch P (mm) | Diameter of roller d1 (max) (mm) | The inner width of inner link b1 (min) (mm) | The outer width of outer link b2 (min) (mm) | Other dimensions | Height of chain H (mm) | Diameter of pin d2 (mm) | Length of pin L (mm) | Tensile strength Q (min) (KN) | Weight per meter q (kg/m) | |||
| h4 (mm) | d4 (mm) | e (mm) | f (mm) | ||||||||||
| RDC200 | 200 | 80 | 42 | 92 | 81.5 | 17 | 50 | 56 | 119 | 38.5 | 110.5 | 200 | 41.3 |
| BDC304.8 | 304.8 | 101.6 | 54 | 127 | 76.2 | 17.5 | 108 | 82.6 | 127 | 44.5 | 146 | 880 | 48.8 |
