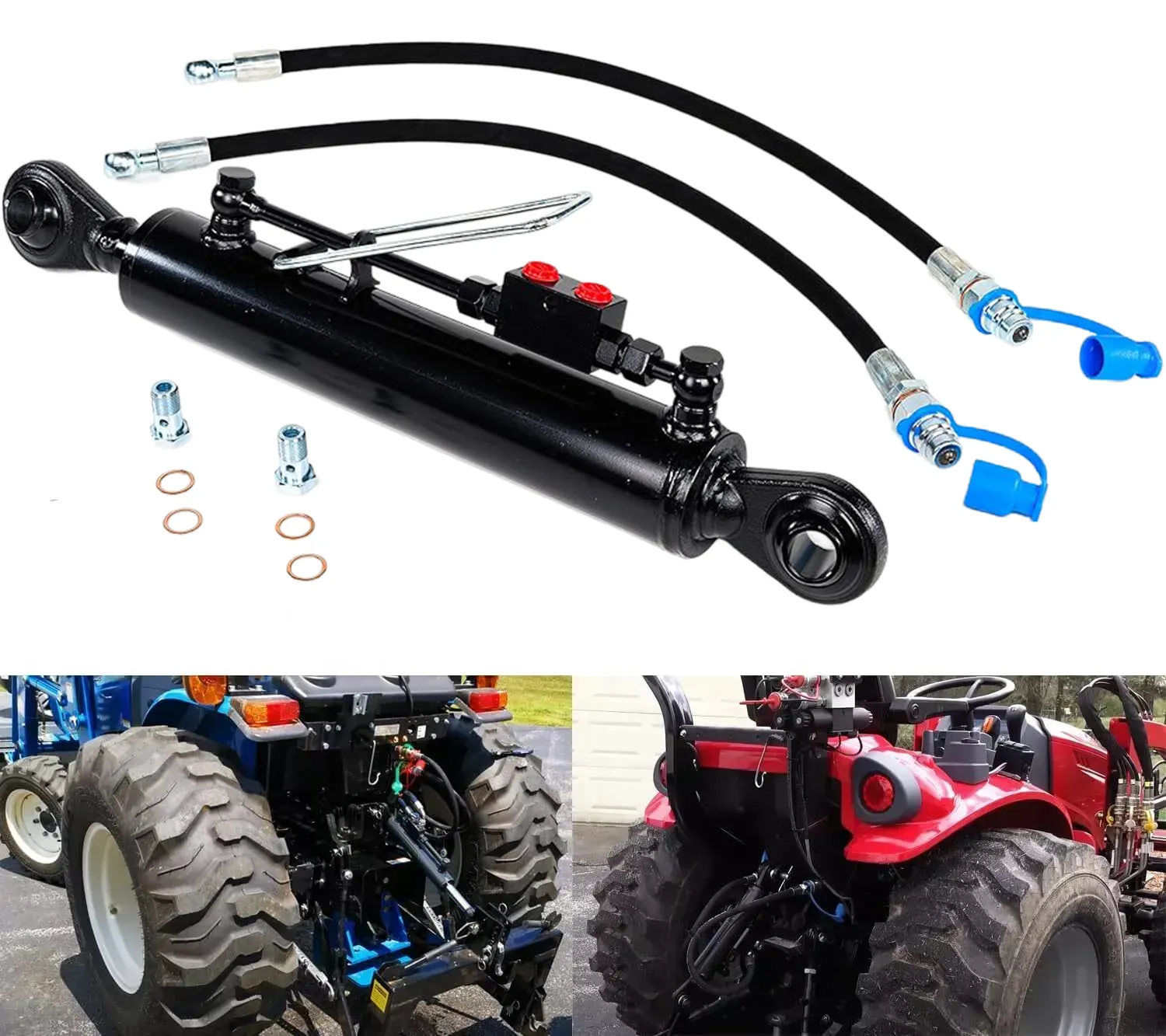

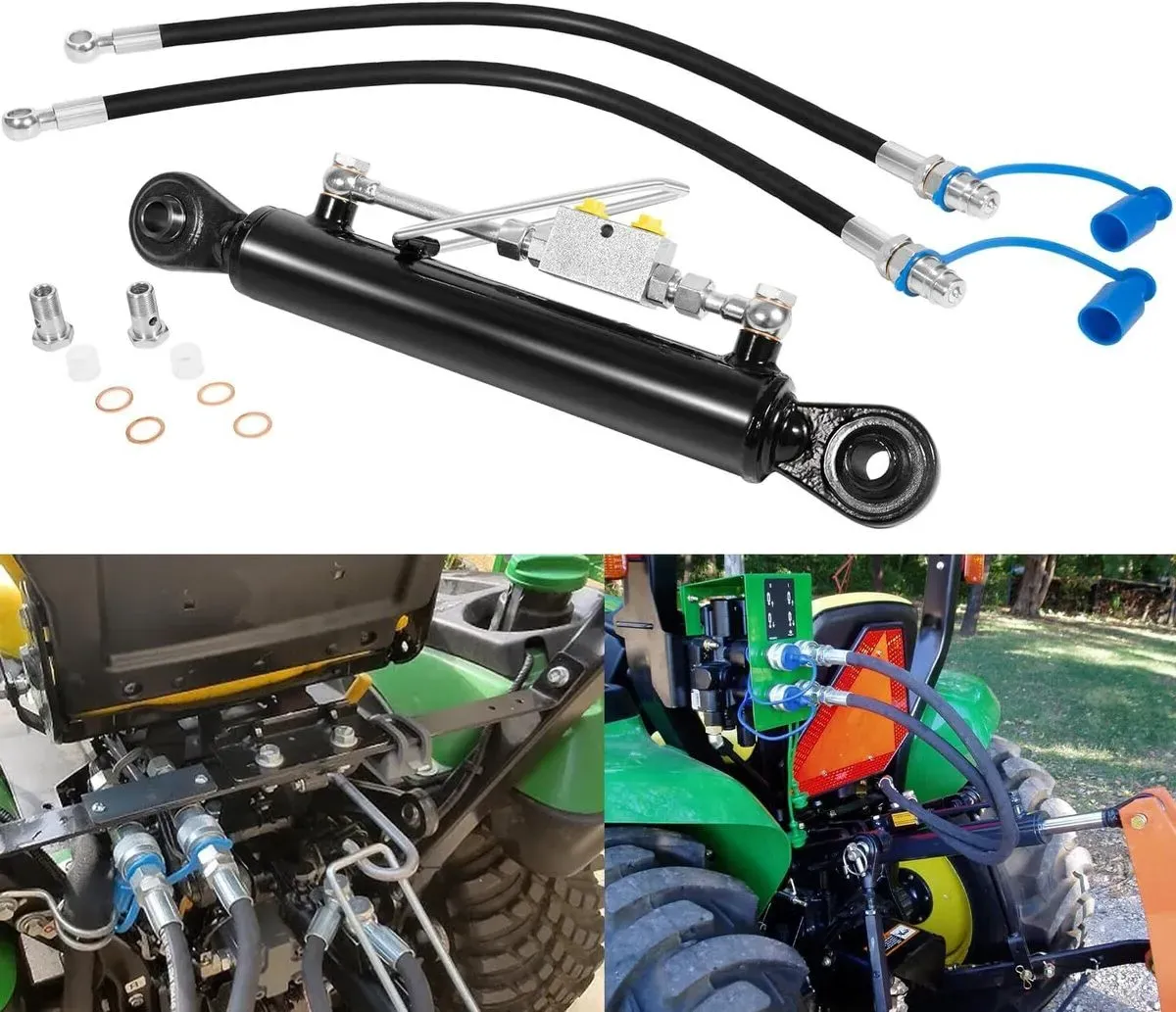

Category Cat 1 Hydraulic Top Link 360-480mm Adjustable for Kubota Compact Tractor

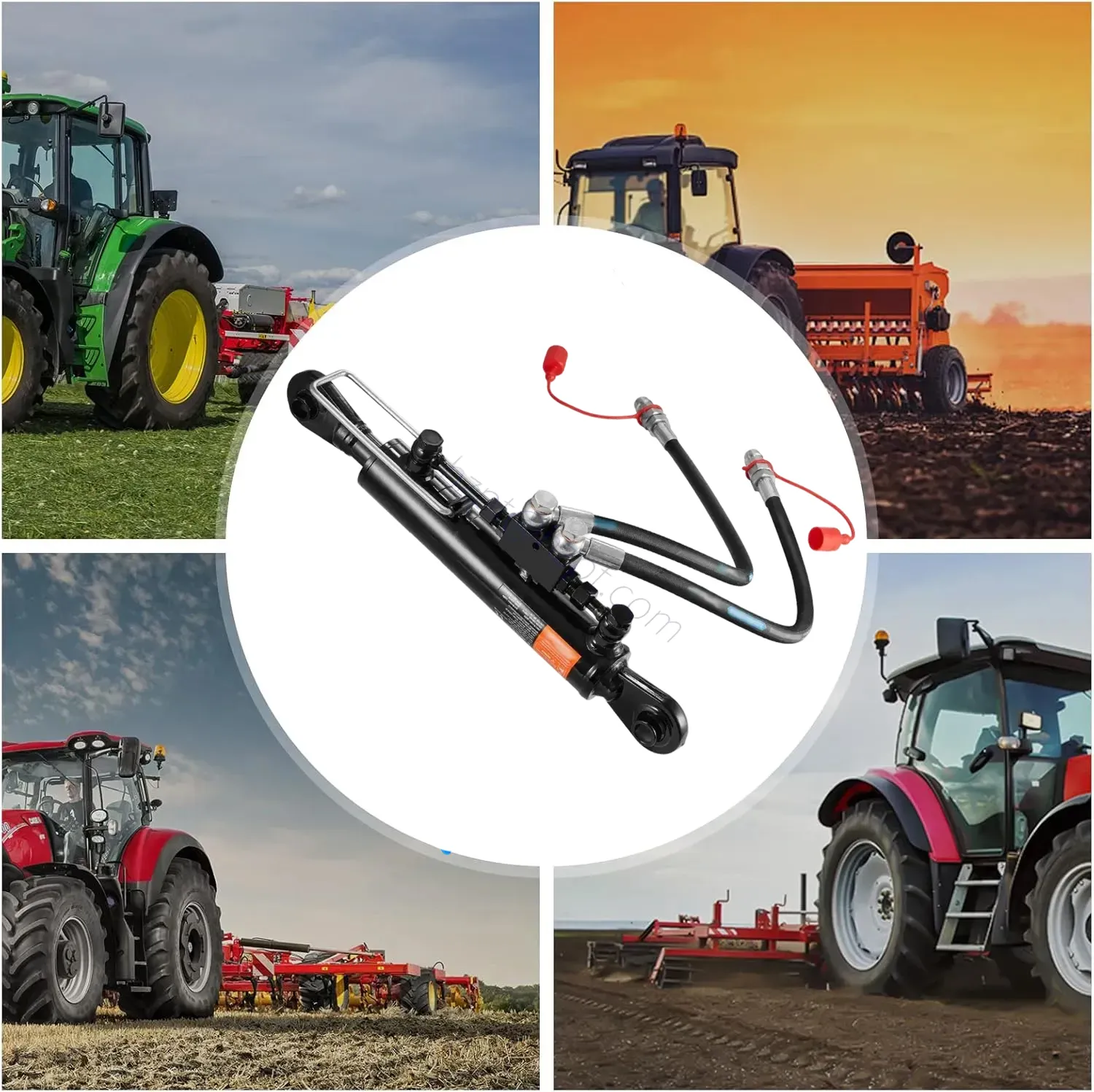

Cat 1 Hydraulic Top Link 360-480mm Adjustable for Kubota Compact Tractor

The Cat 1 Hydraulic Top Link 360-480mm Adjustable is a vital component for enhancing the functionality and versatility of Kubota compact tractors. Designed specifically for Category 1 three-point hitch systems, this hydraulic top link provides a range of adjustability from 360mm to 480mm. This allows for precise control over the angle and positioning of various implements attached to the tractor, such as mowers, blades, or box scrapers.Constructed from durable materials, the hydraulic top link is built to withstand the rigors of agricultural and landscaping tasks. It features high-quality hydraulic cylinders that facilitate smooth and efficient adjustments, even under load. This adjustability is crucial for optimizing the performance of implements on uneven terrain or when different working angles are required.The hydraulic top link enhances the overall efficiency and ease of use of the tractor, reducing the need for manual adjustments and enabling quicker transitions between tasks. This tool is particularly useful for operators who need to frequently change the implement angle or when working in challenging conditions, providing both convenience and improved productivity.

Specifications of Cat 1 Hydraulic Top Link 360-480mm

Eye to eye closed:	360mm (14.2")
Eye to eye open:	480mm (18.9")
Category:	1 (19mm hole)
Inside diameter:	50mm
Outside diameter:	60mm
Shaft diameter:	30mm
Pull capacity:	2200Kg
Push capacity:	3350kg
Hydraulic Hose Length:	660mm
Suitable For:	Kubota Compact Tractor

Benefits of Category 1 Hydraulic Top Link for Compact Tractor

The Category 1 Hydraulic Top Link offers several benefits when used with a compact tractor:

1. Enhanced Precision and Control: The hydraulic top link offers precise control over the angle and positioning of tractor implements. This precision is crucial for tasks requiring specific angles, such as grading or plowing. By allowing easy adjustments, operators can achieve optimal implement performance, improving the quality of work and ensuring consistent results across various terrains.
2. Increased Efficiency: With hydraulic adjustments, the need for manual changes is greatly reduced, saving time and effort. This efficiency allows for quicker transitions between tasks, minimizing downtime and maximizing productivity. Operators can adjust implements on-the-fly, adapting to changing conditions without leaving the tractor seat, which is particularly beneficial during lengthy operations.
3. Improved Versatility: The adjustable nature of the hydraulic top link enhances the tractor's versatility, accommodating a wide range of implements. This adaptability means one tractor can perform multiple tasks, from mowing to leveling, without needing extensive equipment changes. It broadens the utility of the tractor, making it a more valuable asset on any farm.
4. Consistent Implement Performance: The ability to finely tune the implement angle ensures that tools like mowers or blades maintain consistent contact with the ground. This consistency leads to more uniform work, whether cutting grass or grading soil. The hydraulic top link helps maintain the correct implement posture, preventing uneven wear and enhancing durability.
5. Reduced Wear and Tear: Proper adjustment of implements minimizes unnecessary stress and strain on both the tractor and the attached tools. By ensuring optimal alignment, the hydraulic top link helps prevent damage and excessive wear, extending the lifespan of equipment. This reduction in wear and tear translates into lower maintenance costs and fewer repairs over time.
6. Adaptability to Terrain Changes: When operating on uneven or hilly terrain, the hydraulic top link allows for quick adjustments to maintain implement effectiveness. This adaptability ensures that implements perform consistently, regardless of the landscape’s challenges. Operators can easily adjust for slope variations, ensuring efficient operation and reducing the risk of implement damage.

Applications of Hydraulic Top Link Cat 1 for Compact Tractor

The Category 1 Hydraulic Top Link for compact tractors like Kubota models has a wide range of applications across various agricultural and landscaping tasks due to its versatility and adjustability. Some common applications include:

• Mowing and Landscaping: The hydraulic top link allows for precise adjustment of mower decks, ensuring even cuts across varying terrains. This capability is crucial for maintaining consistent grass height and achieving a professional finish in landscaping projects. Operators can easily change the mower angle to adapt to slopes and undulating landscapes, enhancing overall mowing efficiency.
• Grading and Leveling: When using box blades or land planes, the hydraulic top link enables fine-tuning of the implement angle for optimal soil contact. This precision is essential for creating smooth, level surfaces, whether preparing a construction site or maintaining driveways. Quick adjustments improve grading quality and reduce the need for repetitive passes.
• Plowing and Tilling: For tasks like plowing and tilling, adjusting the implement’s angle can significantly affect soil penetration and turnover. The hydraulic top link allows operators to modify the plow or tiller angle for different soil conditions, improving efficiency. This adaptability ensures thorough soil preparation for planting, enhancing crop yields and soil health.
• Digging and Excavation: Using implements like post hole diggers or trenchers, the hydraulic top link ensures optimal positioning for effective digging. It allows precise control over the depth and angle, vital for achieving accurate and consistent holes or trenches. This precision is especially beneficial for fencing projects or laying underground utilities.
• Snow Removal: In snow removal applications, the hydraulic top link provides the ability to adjust snow blades or blowers quickly. This flexibility is crucial for clearing paths efficiently, accommodating different snow depths and surface conditions. Adjustments can be made on-the-go, ensuring that the equipment performs optimally in varying winter conditions.
• Cultivation and Weeding: For cultivation tasks, the hydraulic top link allows precise adjustment of cultivators and weeders. This capability ensures effective soil disturbance and weed removal, promoting healthier crop growth. By optimizing the implement angle, operators can achieve better penetration and coverage, enhancing the effectiveness of cultivation efforts.

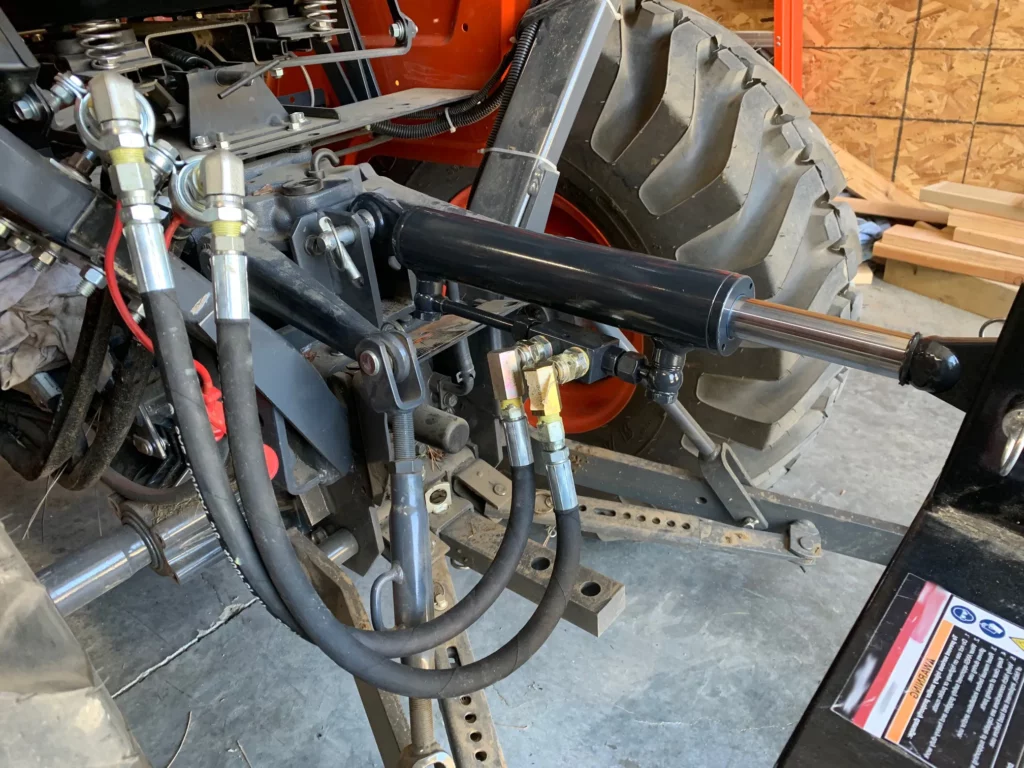

Installation Steps of Cat 1 Hydraulic Toplink for Compact Tractor

Installing a Category 1 Hydraulic Top Link on a compact tractor like a Kubota involves several steps to ensure proper setup and functionality. Here is a general guide outlining the installation process:

1. Remove the Existing Top Link: Safely park the tractor on a level surface and engage the parking brake. Carefully detach the existing mechanical top link by removing the securing pins. Ensure the implement attached to the tractor is stable and supported during this process to prevent any accidents or equipment damage.
2. Attach the Hydraulic Top Link to the Tractor: Position the hydraulic top link in place of the old top link, aligning it with the tractor’s mounting holes. Insert the pins to secure the top link, ensuring they are tightly fastened. This step is crucial for maintaining the stability and integrity of the connection during operation.
3. Connect Hydraulic Hoses: Identify the tractor’s hydraulic ports and connect the hoses from the hydraulic top link. Ensure the connections are tight to prevent leaks. Proper routing of the hoses is essential to avoid interference with other tractor functions or moving parts. Double-check connections for security and leak prevention.
4. Test the Hydraulic System: Start the tractor and activate the hydraulic system to test the top link’s movement. Ensure it extends and retracts smoothly without any obstructions. Observe for any leaks or unusual noises. Testing the system helps confirm that the installation is successful and that the top link operates correctly.
5. Adjust and Fine-Tune: Once the hydraulic top link is operational, make any necessary adjustments to achieve the desired range of motion. Fine-tune the settings according to the specific requirements of the implements being used. This final step ensures optimal performance and enhances the tractor’s versatility for various tasks.

Why Choose Raydafon's Hydraulic Top Links?

Raydafon is a leading manufacturer and supplier specializing in the production and sales of hydraulic top links. With a robust infrastructure and advanced technology, we operate on a large scale, ensuring high-quality manufacturing processes and innovative solutions. Our team of skilled engineers and technicians is dedicated to continuous improvement and excellence, positioning us as a formidable force in the agricultural machinery industry.Our hydraulic top links are designed with precision and durability, offering features such as adjustable lengths and robust construction to handle various agricultural tasks. These products provide unmatched advantages in flexibility, ease of use, and efficiency, making them ideal for applications with rotary mowers, land levelers, disc ploughs, forage harvesters, snow blowers, and post hole diggers. Our products not only enhance the performance of your implements but also ensure operational safety and productivity across different terrains and conditions.At Raydafon, our expertise and influence in the hydraulic top link sector are unparalleled. We pride ourselves on our professionalism, international certifications, and ability to deliver customized solutions tailored to our clients' needs. Our state-of-the-art production facilities and comprehensive after-sales service reinforce our commitment to customer satisfaction. We offer a wide range of products, including Cat 2 hook hydraulic top links, Cat 3 hook hydraulic top links, Cat 3 hydraulic top links, Cat 2 hydraulic top links, and Cat 1 hydraulic top links, catering to diverse requirements and ensuring optimum performance for every task.

FAQs:

Q: What is a Cat 1 Hydraulic Toplink?A: A Cat 1 Hydraulic Toplink is an adjustable hydraulic cylinder used in agricultural machinery to connect and control the angle of implements to tractors. It replaces the traditional manual top link, allowing for more precise adjustments from the tractor's seat, enhancing operational efficiency.Q: How does the hydraulic toplink improve efficiency?A: By enabling on-the-go adjustments, the hydraulic toplink allows operators to quickly modify implement angles without leaving the tractor. This feature significantly reduces downtime and increases productivity, especially during tasks that require frequent changes, such as plowing or tilling.Q: What types of equipment can use a Cat 1 Hydraulic Toplink?A: This hydraulic toplink is compatible with Category 1 three-point hitch systems, commonly found on smaller tractors. It is suitable for various implements, including plows, harrows, and mowers, providing flexibility and enhanced control for diverse farming operations.Q: What are the installation requirements for a Cat 1 Hydraulic Toplink?A: Installation requires a tractor equipped with a hydraulic system capable of connecting to the toplink's hoses. Users should ensure that their tractors have the necessary hydraulic ports and sufficient pressure capacity to operate the toplink effectively and safely.Q: How do you maintain a hydraulic toplink?A: Regular maintenance involves checking for hydraulic fluid leaks, ensuring fittings and hoses are secure, and lubricating moving parts. Keeping the cylinder clean and inspecting for any signs of wear or damage are crucial for prolonging the toplink's lifespan and maintaining optimal performance.Q: What safety precautions should be taken when using a hydraulic toplink?A: Operators must follow safety protocols such as depressurizing the hydraulic system before maintenance, wearing protective gear, and ensuring all connections are secure. Understanding the tractor's hydraulic system and the toplink's operation manual can prevent accidents and ensure safe usage.Q: Can a Cat 1 Hydraulic Toplink be used with any tractor?A: While designed for Category 1 three-point hitches, compatibility depends on the tractor's hydraulic system and specifications. It's essential to verify that the toplink matches the tractor's capabilities, including hydraulic pressure and connection points, for safe and efficient use.Q: What are the benefits of using a hydraulic toplink over a manual one?A: A hydraulic toplink offers easier, more precise adjustments, reducing manual labor and physical strain. It enhances the tractor's versatility and allows operators to make quick modifications to implement angles, improving the effectiveness of various agricultural tasks.Q: How do you troubleshoot common issues with a hydraulic toplink?A: Common issues include leaks, loss of pressure, and sluggish movement. Troubleshooting involves checking hydraulic connections, inspecting hoses for damage, and ensuring the hydraulic fluid is at the correct level. Consulting the manufacturer's manual and seeking professional assistance when needed can resolve most issues effectively.
