CMNL-003X Micro-heat Regeneration Adsorption Dryer

The Importance and Advantages of Air Drying Technology in Industrial Production

Introduction

Air drying technology is an essential process in industrial production that involves removing moisture from compressed air. Excess moisture in compressed air can cause equipment damage, product defects, and even lead to system failure. As a result, industrial facilities need to implement effective air drying systems to ensure optimal performance.

CMNL-003X Micro-Heat Regeneration Adsorption Dryer

Model	Flow Rate (m3/min)	Power Consumption (kW)	Working Pressure (Mpa)	Dimensions (mm)
CMNL-003X	0.3	1.2	0.6~1.0	450x450x600

The CMNL-003X Micro-heat Regeneration Adsorption Dryer is a state-of-the-art air drying system that uses micro-heat regeneration technology to achieve optimal moisture removal. This technology offers several advantages over traditional air drying systems, such as increased energy efficiency, reduced maintenance costs, and improved air quality.[ninja_tables id="896857"]

• Finished gas dew point: -40℃~-70℃
• Regeneration gas volume: (4~6)% rated processing capacity
• Adsorbent: activated alumina (Al2O3) or molecular sieve (13X)
• Control mode: single-chip microcomputer program automatic control
• Pressure loss: ≦0.02Mpa
• Power supply: AC 220V/380V 50Hz
• Switching cycle: 1h~4g adjustable

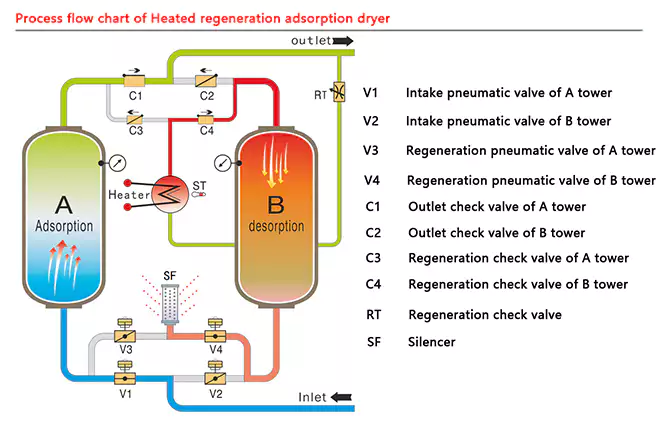

Basic Principles of Micro-Heat Regeneration Adsorption Dryer

Micro-heat regeneration adsorption dryer works on the principle of adsorption. The system contains a desiccant, which is a material capable of removing moisture from compressed air. During the adsorption phase, the compressed air flows through the desiccant bed, where the moisture is adsorbed by the material.Once the desiccant bed is saturated, the system enters the regeneration phase. The desiccant is heated, which causes the moisture to evaporate and be discharged from the system. The desiccant is then cooled, allowing it to be reused in the adsorption phase.The system operates on a continuous cycle, alternating between the adsorption and regeneration phases to achieve continuous air drying.

Core Components and Technical Features

The CMNL-003X Micro-heat Regeneration Adsorption Dryer uses high-quality desiccants and precision control systems to achieve optimal performance. Some of its key technical features include:

• Automatic control logic with optimized algorithms
• High-precision temperature and pressure sensors
• Advanced PLC control system for precise cycle control
• Low power consumption and energy-efficient design

Comparison with Traditional Air Drying Systems

Compared to traditional air drying systems, the CMNL-003X Micro-heat Regeneration Adsorption Dryer offers several advantages, such as:

• Higher energy efficiency and lower operating costs
• Improved air quality with lower dew points
• Reduced maintenance costs and increased reliability
• Compact size and easy installation

Applications of Micro-Heat Regeneration Adsorption Dryer

Micro-heat regeneration adsorption dryers are used in a wide range of industrial applications, including:

• Food and beverage production
• Pharmaceutical manufacturing
• Chemical processing
• Petrochemical production

Purchasing and After-Sales Service Guide

When purchasing an air drying system, it is essential to consider factors such as system capacity, energy efficiency, and service support. Some key considerations include:

• System capacity and flow rate requirements
• Energy efficiency and operating costs
• After-sales service and support
• Warranty and maintenance agreements

About Us

At our factory, we specialize in manufacturing high-quality air compressors and related products. Some of our key advantages include:

• Advanced manufacturing technology
• Strict quality control and testing procedures
• Experienced and knowledgeable staff
• Comprehensive after-sales service and support
• Competitive pricing and flexible payment options

Author: Miya
