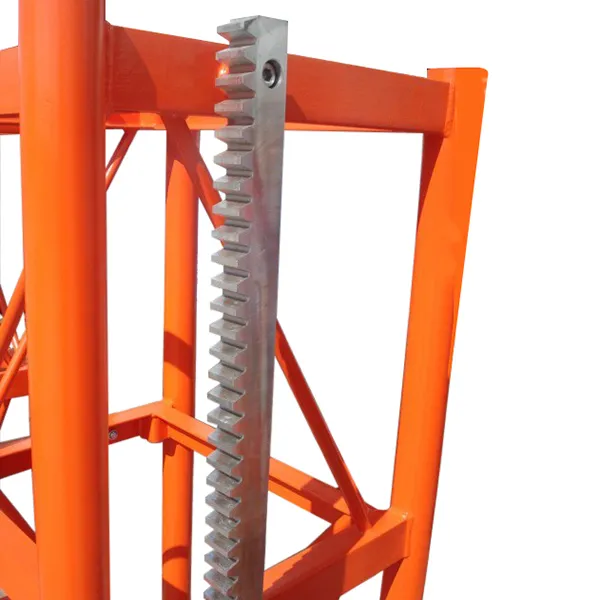

Construction Hoist Rack Different Types of Rack and Pinion

Dimension of Construction Hoist Rack



Different types of rack and pinion

There are different types of rack and pinion mechanisms. A rack and pinion with a 20-degree involute spur gear are the most common. In the past, 14-1/2 degree spur gears were used. These systems are classified according to their degree identification, which describes the angle of the gear teeth and the line of contact between them. A higher degree means a higher ratio, and a more minor degree means a lower ratio.Another type is called helical gear. Helical gears have a larger radius than straight teeth and are used in precision applications. It can be straight or spiral and can be found in various applications. The rack is usually made of durable steel, while the pinion is made of aluminum or plastic. While they are used in various settings, they are most commonly used for car steering.Rack and pinion steering shafts are the most popular type of rack and pinion used in automotive steering systems. Other types include recirculating ball systems and variable-ratio steering, which changes the teeth near the end of the rack to produce faster wheel rotation during low-speed maneuvers while maintaining lower sensitivity for high-speed heading corrections. These systems also feature a recirculating ball design and are used in aerospace applications.Both spur and helical gears are standard in mechanical applications. Spur gears have linear tooth tracks and are quieter than helical gears. Helical gears are designed with helical teeth for increased efficiency and reduced noise. Helical gears are usually placed on parallel shafts and can add lateral loads to the machine. It is also possible to combine two different racks and pinions to create more complex designs.
